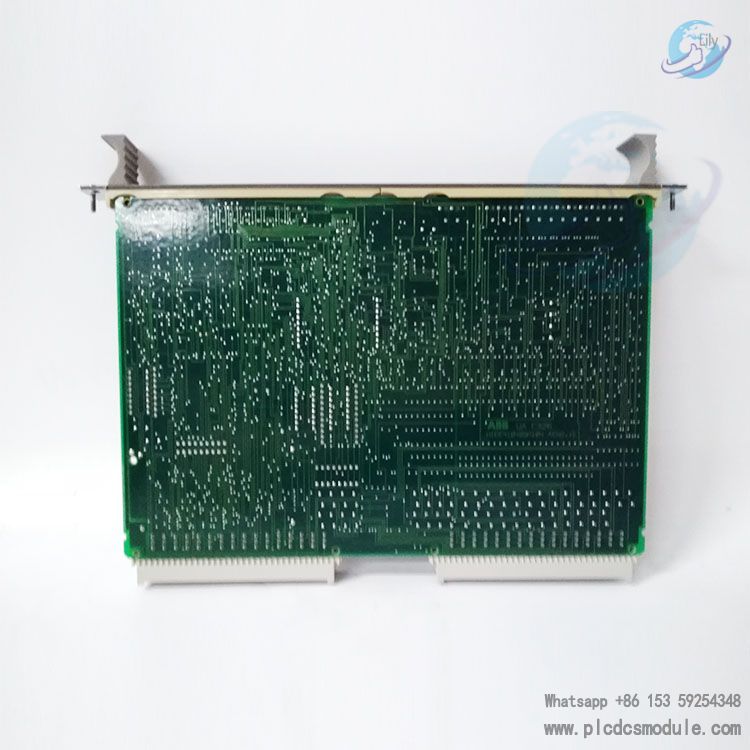

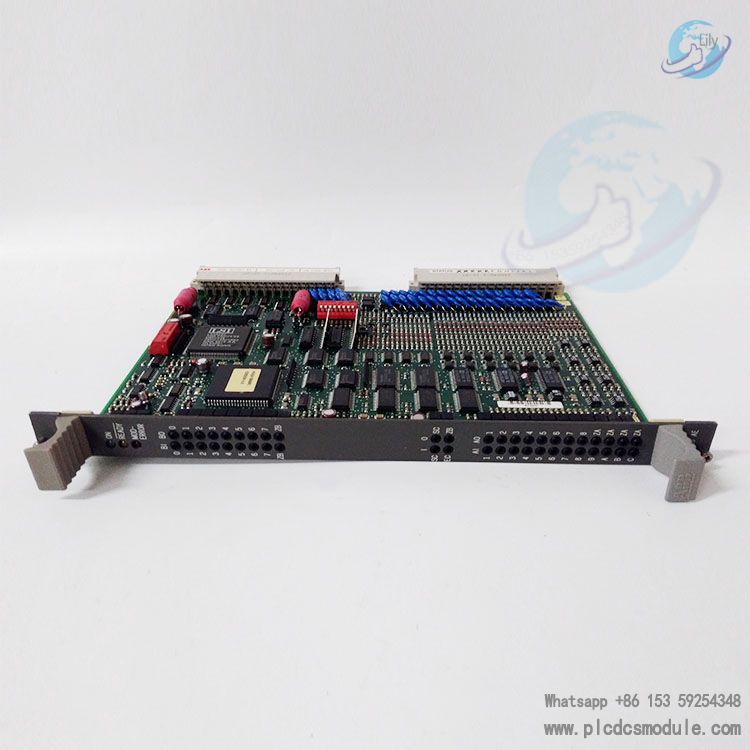

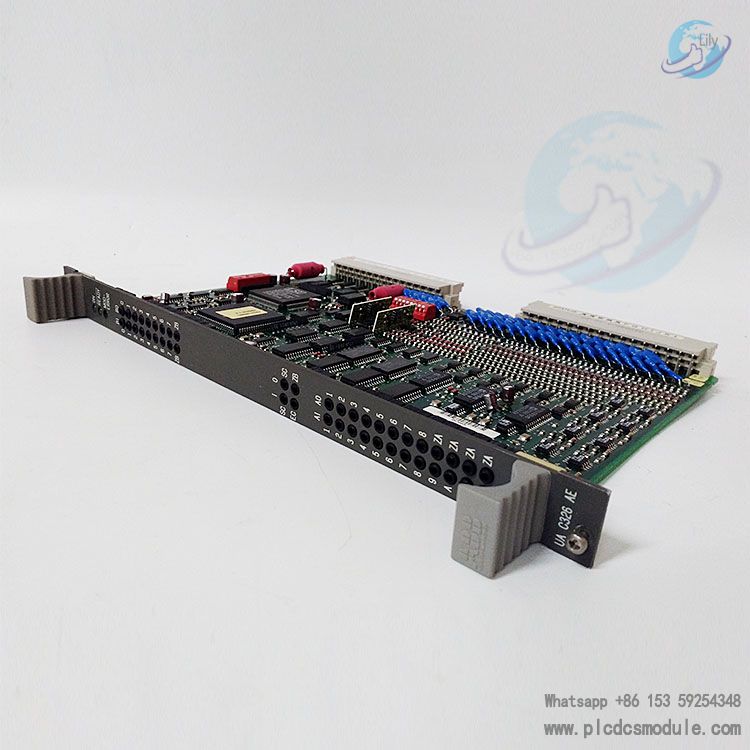

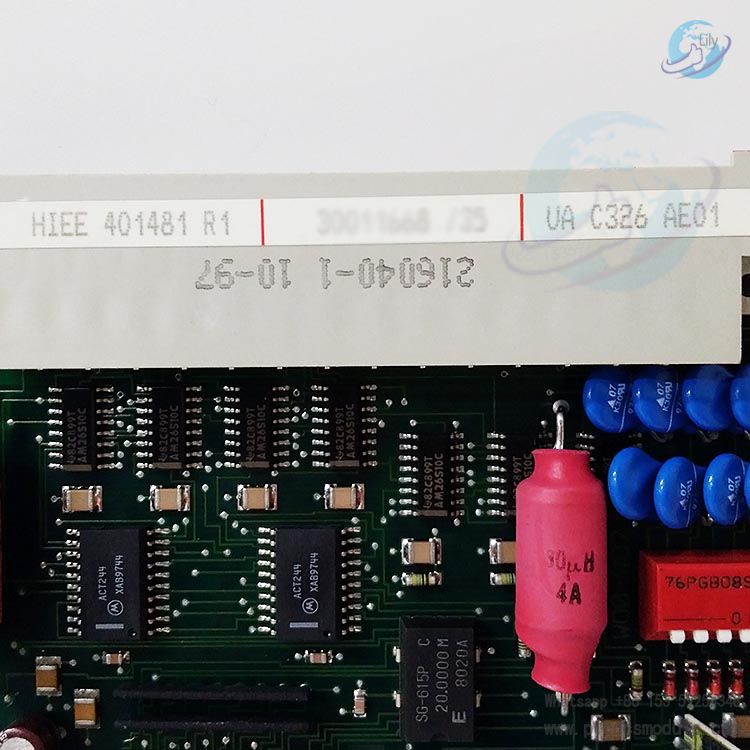

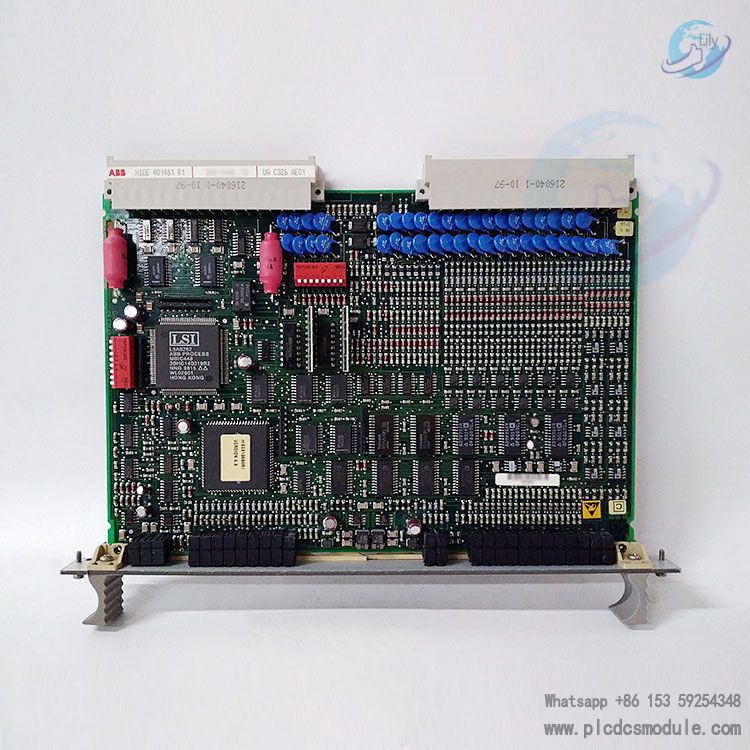

ABB UAC326AE01 HIEE401481R0001 is a high-precision and high-reliability Analog/Digital I/O Card specifically designed for industrial automation and process control systems. As one of the core components of ABB's advanced control solutions, this module provides flexible signal acquisition and output capabilities, is suitable for harsh industrial environments, and ensures efficient data transmission and stable system operation.
Product Parameters
Basic Parameters
Model: UAC326AE01 HIEE401481R0001
Type: Analog/Digital I/O Card
Country of Origin: Switzerland
Component Type: Brand New
Physical Specifications
Net Dimensions: Length/Depth 29*29*29mm
Gross Weight: 0.45kg
Net Weight: 0.35kg
Electrical Parameters
Power Supply: 24V DC (Direct Current)
Power Consumption: 5W
Signal Processing Capability
Analog Input: 16 channels, capable of accurately acquiring analog sensor signals (e.g., voltage or current signals from temperature, pressure, and flow sensors) and converting them into system-recognizable data.
Analog Output: 8 channels, used to output analog control signals for regulating the operation of actuators and other devices.
Digital Input: 16 channels, capable of quickly responding to signals from digital devices such as switches and buttons.
Digital Output: 8 channels, able to send control commands to digital devices such as relays and indicator lights.
Performance Parameters
Microprocessor: Built-in 32-bit microprocessor, combined with high-speed data transmission technology, enabling fast processing and transmission of large volumes of data, reducing latency, and achieving real-time monitoring and timely response to industrial processes.
Data Transmission Speed: Supports high-speed data transmission to ensure efficient data interaction and guarantee the high-performance operation of automation systems.
Isolation Feature: Input and output are isolated to effectively resist external electromagnetic interference, enhancing anti-interference capability in complex electromagnetic environments and improving system stability and reliability.
Environmental Parameters
Operating Temperature Range: -20°C to +60°C, adaptable to temperature conditions in various industrial scenarios (e.g., high-temperature smelting workshops or low-temperature cold storage warehouses).
Storage Temperature Range: -40°C to +80°C, suitable for long-term storage in different environments.
Protection Rating: IP67, providing excellent dustproof and waterproof performance to effectively prevent dust intrusion and water splashes, making it suitable for harsh industrial field environments.
Application Areas of UAC326AE01 HIEE401481R0001:
Industrial Automation Production Lines: Applied in the automated production lines of industries such as automotive manufacturing, electronic device manufacturing, and food & beverage processing, it can be used to control robot movement, material handling systems, and adjust production process parameters. Through precise signal processing and equipment control, it enables efficient and stable automated production, enhancing productivity and product quality.
Process Control Fields: Suitable for process control systems in industries like chemical engineering, power, and petroleum & natural gas, it enables accurate monitoring and control of critical parameters such as temperature, pressure, and liquid level during the production process. This ensures the safe and stable operation of production, optimizes production processes, and improves energy utilization efficiency.
Intelligent Building and Building Automation: In the building automation control systems of intelligent buildings, it can centrally manage and control equipment including air conditioning, lighting, elevators, and security systems. By automatically adjusting the operating status of equipment according to actual needs, it achieves energy optimization management, reduces energy consumption and emissions, and simultaneously enhances the intelligence level of buildings and living comfort.
Environmental Monitoring Systems: Used in places such as environmental monitoring stations and sewage treatment plants, it can collect environmental data in real time, such as air quality and water quality parameters, and transmit the data to the control system for analysis and processing, providing accurate data support for environmental protection and pollution control.
