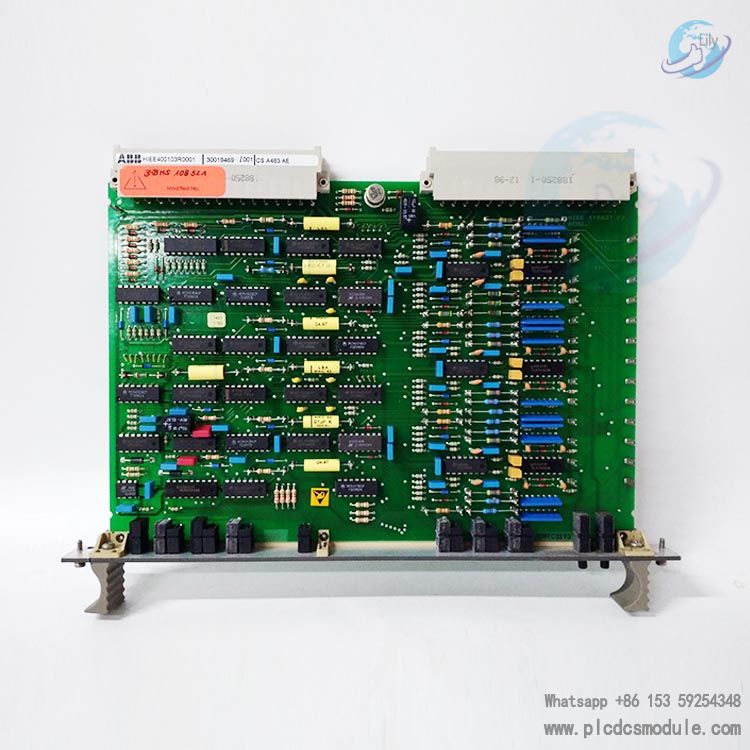

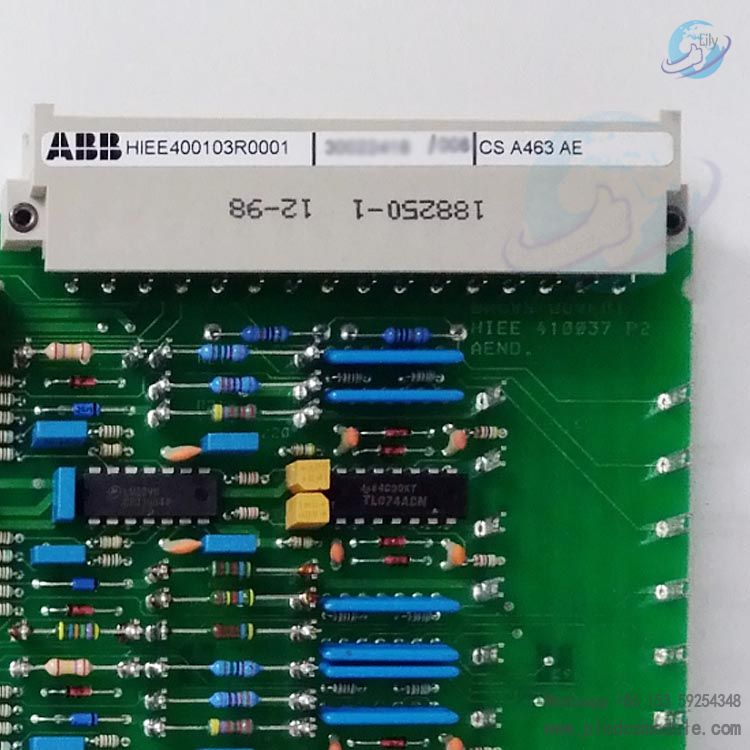

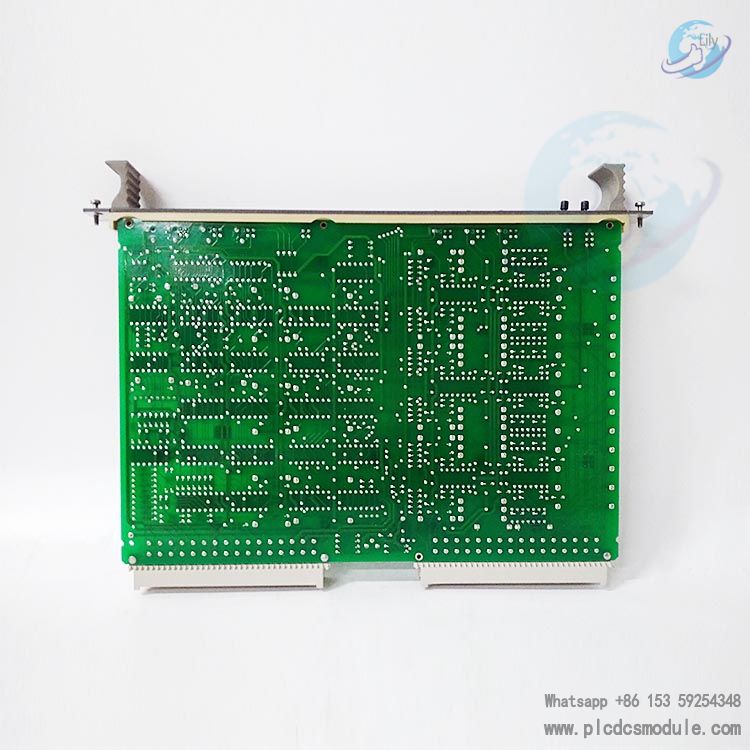

HIEE400103R0001 CSA463AE is a communication expansion module in the ABB PLC system, whose main function is to provide high-speed and stable data transmission channels for the control system. It supports multiple industrial communication protocols and can seamlessly connect ABB main controllers with field devices to achieve real-time data exchange and system collaborative operation. This design makes it an ideal choice for intelligent manufacturing, process automation and other fields, especially suitable for complex industrial scenarios requiring integrated control of multiple devices.
Technical Specifications
I. Communication Capabilities
Protocol Compatibility: Supports mainstream industrial communication protocols such as PROFIBUS DP and Modbus RTU, enabling seamless integration with diverse industrial devices and control systems.
Transmission Performance: Achieves a maximum communication rate of 12 Mbps, meeting high-speed data exchange requirements between devices and ensuring real-time control response efficiency.
Enables synchronous communication with multiple devices, facilitating system-level data coordination and rapid command delivery.
II. Reliability Design
Redundancy Mechanism: Features dual communication port redundancy design, automatically switching to backup lines in case of primary communication failures to ensure continuous operation and minimize system downtime risks.
Incorporates built-in fault detection and recovery algorithms to enhance communication stability.
Environmental Adaptability: Operating Temperature Range: -25°C to +70°C, suitable for extreme industrial environments with high or low temperatures.
Protection Class: IP20, providing resistance to dust, small particles, and light splashes, meeting the protection requirements of workshops and production lines.
Vibration and shock resistance design effectively mitigates interference from mechanical vibrations in industrial settings, reducing hardware failure rates.
III. Hardware Architecture Optimization
Compact Integration: Modular design facilitates quick integration with ABB master controllers (e.g., AC800M, AC500 series), simplifying system setup complexity.
Status Visualization: Equipped with LED indicators for real-time display of communication status, power status, and fault information, streamlining on-site maintenance and fault diagnosis processes.
Practical Applications
The CSA463AE module demonstrates robust adaptability and scalability in real-world scenarios:
Seamless Integration: It interfaces seamlessly with ABB's PLC controllers (e.g., AC800M, AC500 series), supporting up to 32 I/O modules via expansion racks, significantly expanding system I/O capacity and control scale.
Industry-Specific Applications:
Automotive Manufacturing: Enables automated production line control by connecting robots, sensors, and actuators, ensuring precise machining and assembly of automotive components.
Food Processing: Meets communication requirements for hygienic-grade equipment, ensuring compliance with strict food safety standards throughout the production process.
Energy Management Systems: Facilitates real-time power data collection for smart grid dispatching and load balancing, optimizing energy distribution and consumption.
