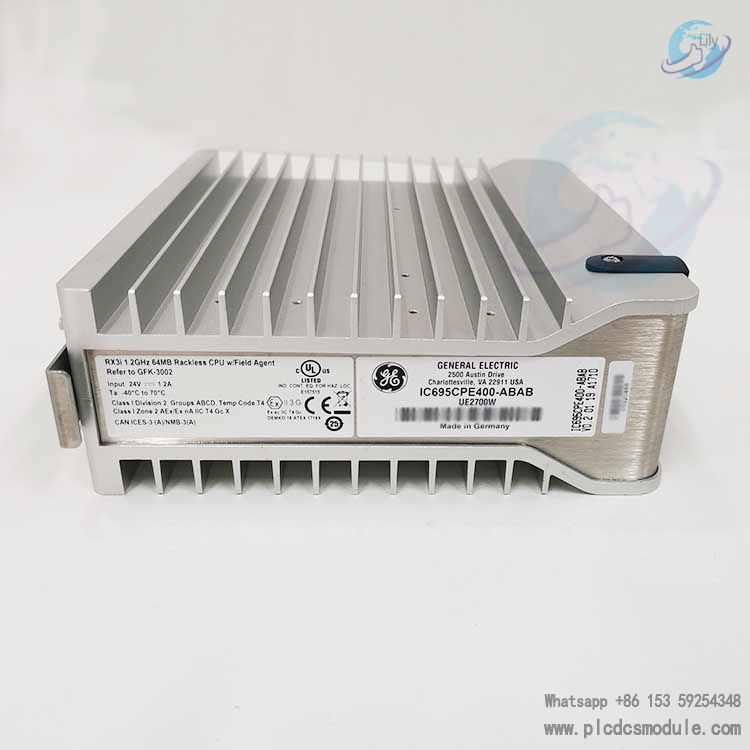

The IC695CPE400 - ABAB is a compact result-optimized controller from the GE Fanuc PacSystems RX3i series. As a rackless independent component in GE's industrial internet control system, it supports the industrial network standard protocol Profinet. It can communicate and analyze through a platform called Field Agent, interact with edge or cloud applications, and is suitable for various industrial scenarios.
Technical Specifications
Processor: 1.2GHz dual-core ARM processor.
Memory: 64MB non-volatile user memory, 512MB RAM.
Operating System: Embedded Linux-based system.

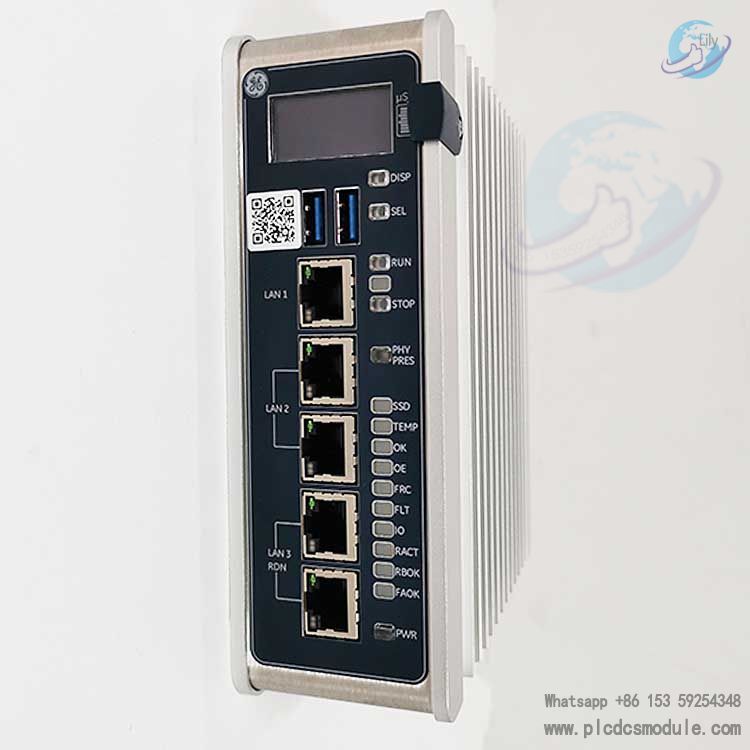

Network Interfaces: Four independent Ethernet 10/100/1000 LAN ports, including:
LAN1: Dedicated RJ45 connector on the front panel.
LAN2 and LAN3: Connected via internally switched RJ45 connectors.
LAN4: Used for connecting to the Field Agent platform, located at the bottom of the device.
Communication Protocols: Supports SRT, Modbus TCP, EGD, Profinet, MRP, and other protocols.
Key Features and Advantages
Powerful Processing Capability: The 1.2GHz processor enables fast handling of various control tasks, supporting multiple programming languages such as ladder diagram, structured text, function block diagram, and C syntax.
Reliable Communication Functions: Multiple Ethernet interfaces and rich communication protocols facilitate integration with other devices and systems. Profinet protocol support ensures efficient communication in industrial networks.
Data Security Assurance: Equipped with security features like secure boot and Trusted Platform Module (TPM) to prevent attacks, unauthorized code, and application updates.
Flexible Configuration Options: Can be configured for simplex or redundant operation. The frame rate can reach up to 3ms in any configuration, based on a scalable, synchronous, hot-standby redundant control platform with a minimum switching time of 300ms.
Technical Parameters
Input Power: Maximum 20 watts.
Input Voltage: Minimum 18VDC, maximum 30VDC.
Display: OLED.
Application Fields
Machine Control: Enables precise control of various industrial machines to achieve automated production processes.
Process Control: Suitable for scenarios requiring monitoring and control of process parameters such as temperature, pressure, and flow rate.
Building Automation: Used for centralized control and management of building systems like lighting, air conditioning, and elevators.
Data Acquisition: Capable of collecting various data from industrial sites to support data analysis and decision-making.
