Triconex 3636T 32-Point Relay Output Modules

The Trriconex 3636T is a 32-point relay output module belonging to non-triplicated digital output modules. It realizes the output control of digital signals through relay contacts and is suitable for industrial scenarios requiring electrical isolation. Its electrical isolation design and high-reliability specifications such as 1900 VDC isolation voltage and 2A load capacity make it applicable to industrial control scenarios. However, when in use, attention should be paid to the derating of inductive loads and the inrush current of incandescent lamps. At the same time, the module status can be monitored through the front panel indicators to ensure the safe operation of the system.

⚠️ Warm Reminder ⚠️
Due to adjustments in product photography arrangements, physical product images are temporarily not uploaded on this page. You can obtain more information through the following methods:
▶ Consult by calling the customer service hotline:+86 153 5925 4348

 Eamil: plcdcs-module@foxmail.com

3636T Technical Specifications

Output contact type: Normally Open (NO)

Number of output points: 32 points, non-commoned

Voltage range: Maximum 125 VAC/VDC

Current load: Maximum 2 Amps

Minimum permissible load: 10 mA (5 VDC)

Switching power (resistive load): Maximum 150 watts (2000 VAC)

Maximum output cycle rate: <30 cycles per second

Expected life at rated load: >10,000 cycles

Fuse configuration: 1 per output, 2.5 amps fast-acting

Point isolation voltage: Minimum 1900 VDC (higher than 1500 VDC for 3636R)

Logic power (all points off): <10 watts

Logic power (all points on): <30 watts

Data Sheet

Triconex 3636T.pdf

Special Application Notes for 3636T

Switching Power Derating

• When driving inductive loads (such as motors or coils), the switching power must be derated to 25% of the maximum value, which is 37.5 watts for DC applications, to avoid overcurrent damage.
• For incandescent lamps, consider the inrush current (10-15 times the rated nominal load current). Specific parameters should be consulted with the lamp manufacturer.

Module Status and LED Indications

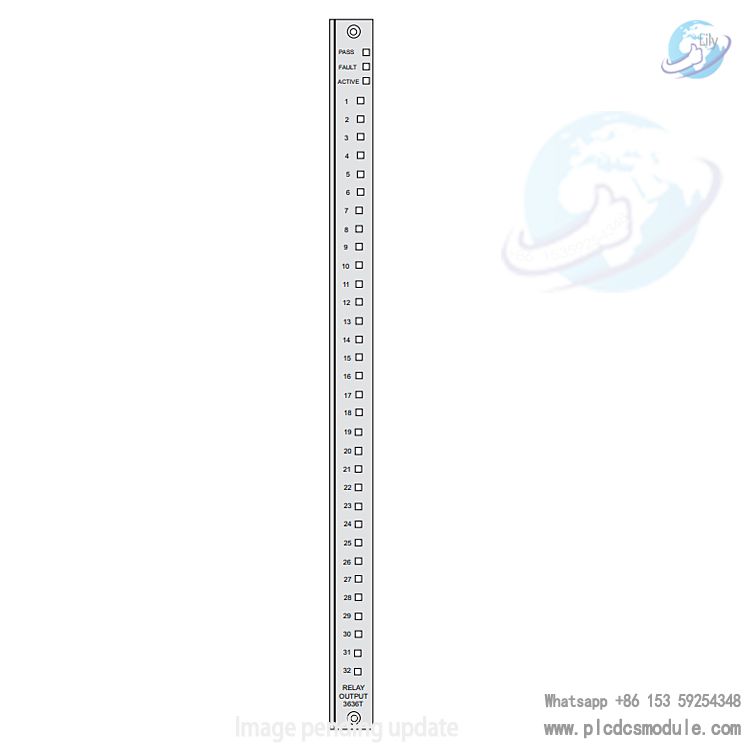

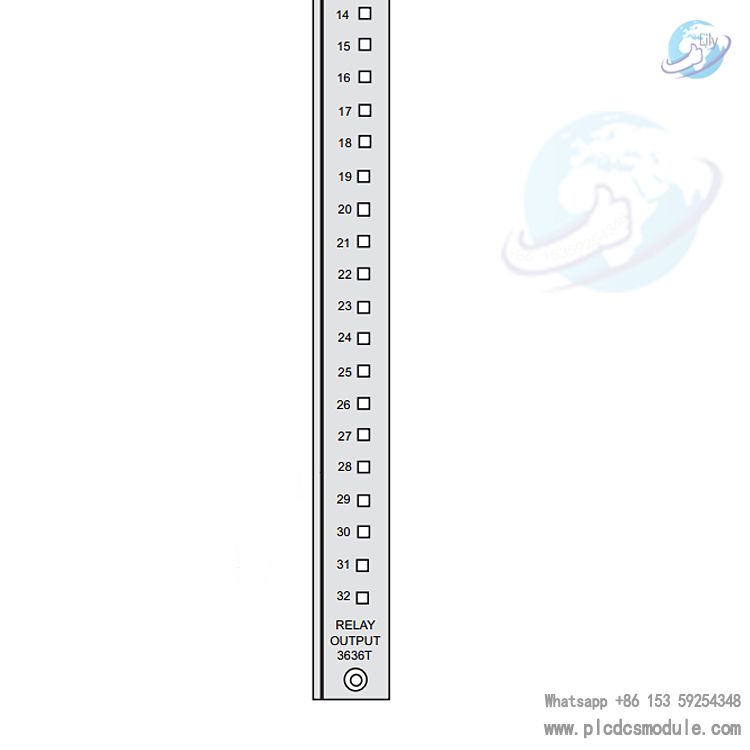

• Only the output point LEDs of the primary module will display status; spare modules do not activate LEDs to prevent misjudgment.

Application Fields:

Industrial Automation Control: As a 32-point relay output module, it is suitable for industrial systems requiring digital signal output control, such as control scenarios for production line equipment start/stop, valve switching, etc.

Electrical Isolation Requirement Scenarios: With a point isolation voltage of 1900 VDC, it can be used in occasions requiring electrical safety isolation to avoid interference or fault conduction between different circuits.

High-Low Voltage Hybrid Systems: Supporting a voltage range of 125 VAC/VDC and a current load of 2A, it can adapt to relay control in various power supply environments, such as motor drive, indicator light control, etc.
