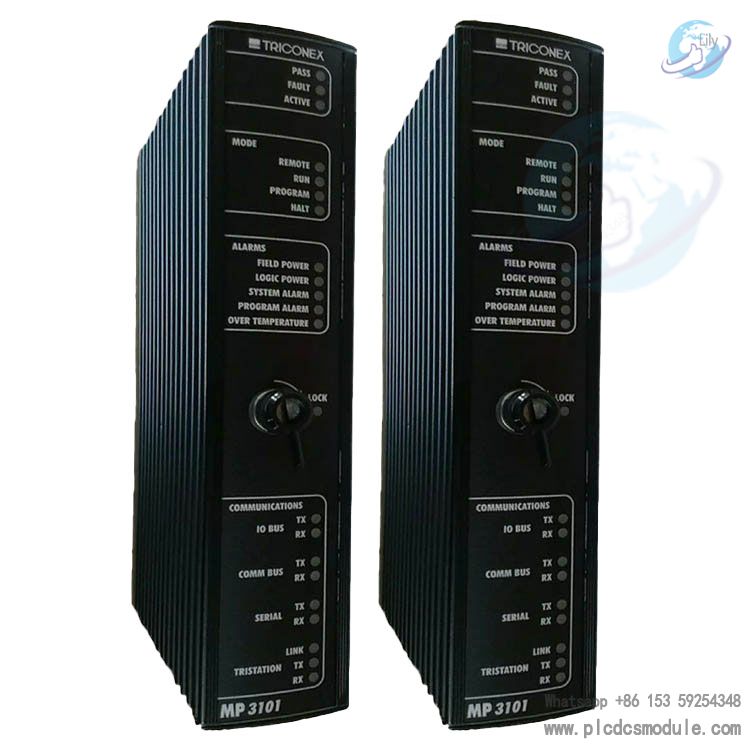

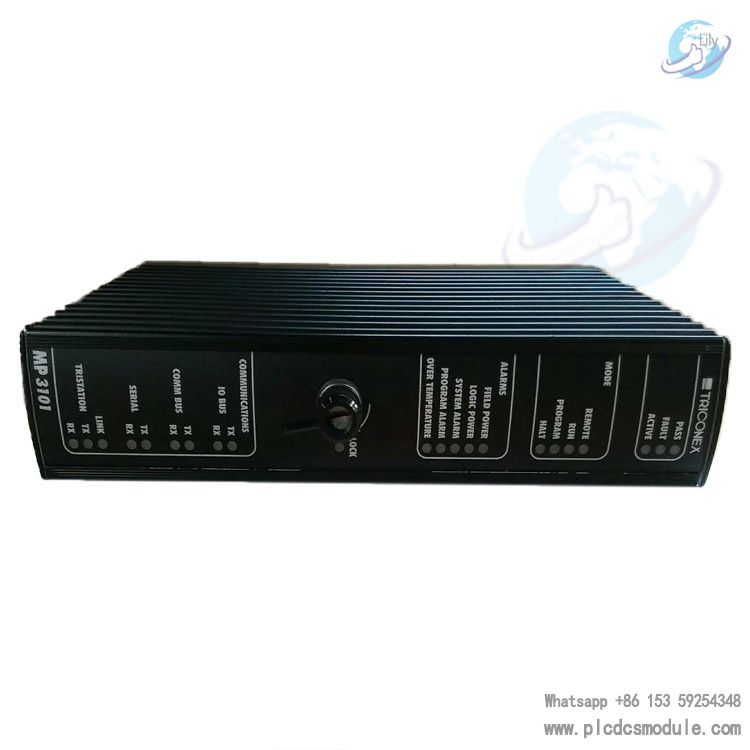

triconex 3101 Main Processor Module tricon/Invensys3101.A controller with a Model 3101 MP can include the following components:

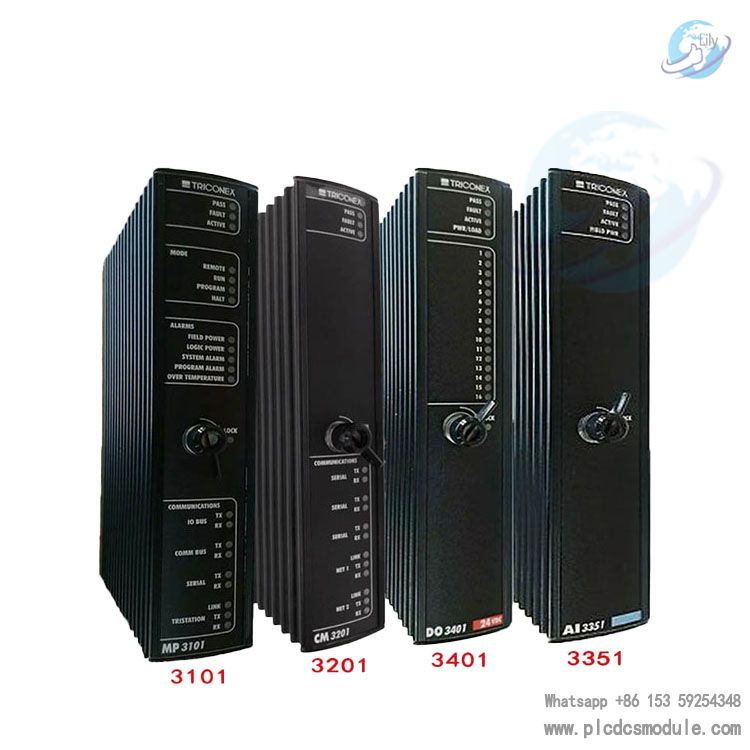

• 1 Main Processor (MP) Baseplate assembly with 3 MP Modules
• 1 Communication Baseplate with up to 2 Communication Modules
• Up to 14 baseplates with up to 2 I/O modules per baseplate or up to 10 baseplates if using AO or PI Modules.
• Up to 15 Interconnect Assemblies
• I⁄O bus extender kits for each I⁄O column
• End Caps (top and bottom) for each column
DATA SHEET:
General information:
| Feature | Specification |
| SX Processor | Motorola MPC860, 32-bit, 50 MHz |
| Flash PROM | 6 MB used for SX, IOX, and control application storage |
| CRC-protected | |
| DRAM | 16 MB used for SX control application execution and program and SOE data |
| Byte parity | |
| NVRAM | 8 KB, used for retentive variables |
| CRC-protected | |
| Clock calendar - Accuracy during power on | 1 sec/day typical |
| 2.2 sec/day maximum | |
| Clock calendar - Accuracy during power off, with battery backed up | 2.2 sec/day typical |
| 9.2 sec/day maximum | |
| Clock calendar - Battery | AA lithium, 15-year predicted life |
| TriBus | 25 Mbps |
| CRC-protected | |
| 32-bit + parity DMA | |
| TriStation port | 1 10BaseT Ethernet connector |
| RJ-45 shielded connector on baseplate | |
| Modbus port | 1 RS-232/485 DTE |
| DB-9-pin shielded connector on baseplate | |
| Debug port | Used to access diagnostic information |
| RJ-12 connector located on baseplate, shared with IOX debug port | |
| Communication bus | RS-485 2 Mbps HDLC |
| Alarm contacts | Redundant, normally closed |
Technical Specifications
Processor: Motorola MPC860 processor
Memory: 16MB DRAM for program execution
Dimensions: 16*16*12cm
Weight: 0.8kg
Primary Functions
Data Processing
Receives and processes data from field instruments via Triconex I/O modules
Handles both analog and digital signals
Manages various process parameters
