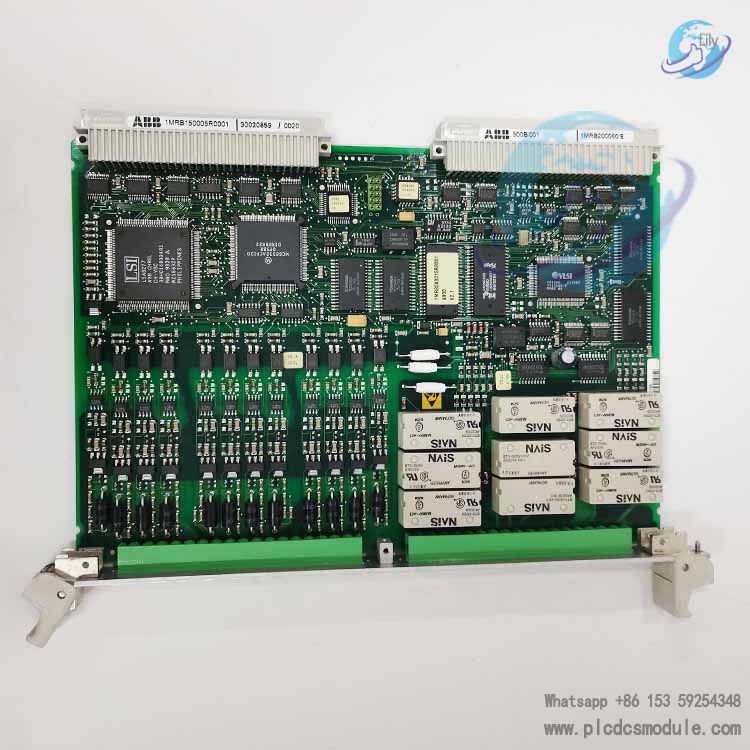

500BIO01 1MRB150005R0001 1MRB200060/E is a binary I/O module produced by ABB, and it is part of the ABB AC500 series PLCs.
Functional Features:
Strong anti-interference capability: It has high electromagnetic interference (EMI) immunity, enabling stable operation in complex electromagnetic environments and ensuring the accuracy of signal transmission.
Timestamp function: I/O events have local timestamps on each module, which helps accurately record the time of event occurrence and facilitates fault troubleshooting and system operation analysis.
Input characteristics: Optically isolated input channels can effectively prevent external electrical interference; software-based debounce function can eliminate jitter in input signals; it also has a software-based discrimination function that can identify oscillating signals on the Bus Interface Module (BIM). In addition, the input channels adopt an oxidation burnout design, with low steady-state input current, and the input can still work normally in case of a battery power supply grounding fault.
Output characteristics: It has a large current capacity, and the output module is equipped with a "select before execute" function, which can meet the control needs of some external devices that require a larger driving current.
Technical Specifications:
Input Voltage: Typically 24V DC.
Number of Digital I/O: The specific number depends on the model and configuration. For example, a common configuration includes 8 binary input channels and 10 relay output channels, where the output channels are divided into 3 groups, and there may also be two high-speed relay outputs.
Communication Interface: Supports various industrial communication protocols such as Modbus, PROFIBUS, Ethernet/IP, etc., facilitating integration with different devices and systems to achieve rapid data transmission and interaction.
Operating Temperature: The operating temperature range is generally -20°C to +70°C, enabling it to adapt to relatively harsh industrial environments.
Process Control: Widely used in industries such as chemical engineering, oil and natural gas, it can be used to control various parameters in the production process, such as temperature, pressure, flow rate, etc., to realize automated control of the production process.
Manufacturing Industry: It plays a role in the automated control of production lines. It can connect sensors and actuators to precisely control links such as equipment operation and material transmission on the production line, improving production efficiency and product quality.
Energy Management: It can be used for power system monitoring and control, such as monitoring the status of substation equipment and collecting power parameters, helping to realize efficient management and distribution of energy.
Building Management: In building automation systems, it can realize data exchange and control of equipment such as elevators, air conditioners, and lighting, providing support for intelligent management of buildings.
Binary Input Module (BIM): Equipped with 16 input channels, and can be selected when a large number of input channels are required.
Binary Output Module (BOM): Features 12 groups with a total of 24 relay output channels, suitable for scenarios that require a large number of output controls, and can be used for trip outputs or other signal controls.
I/O Module (IOM): Comes with 8 binary input channels, 10 relay output channels (divided into 3 groups), and two high-speed relay outputs, making it suitable for applications that need a small number of input and output channels.
Power Supply Module (PSM): Provided with 4 binary input channels and 4 binary output channels, and can be selected when only a few binary input/output channels are needed. It is usually equipped with a 20W power supply and applicable to 1/2 and 3/4 full-width platforms.
