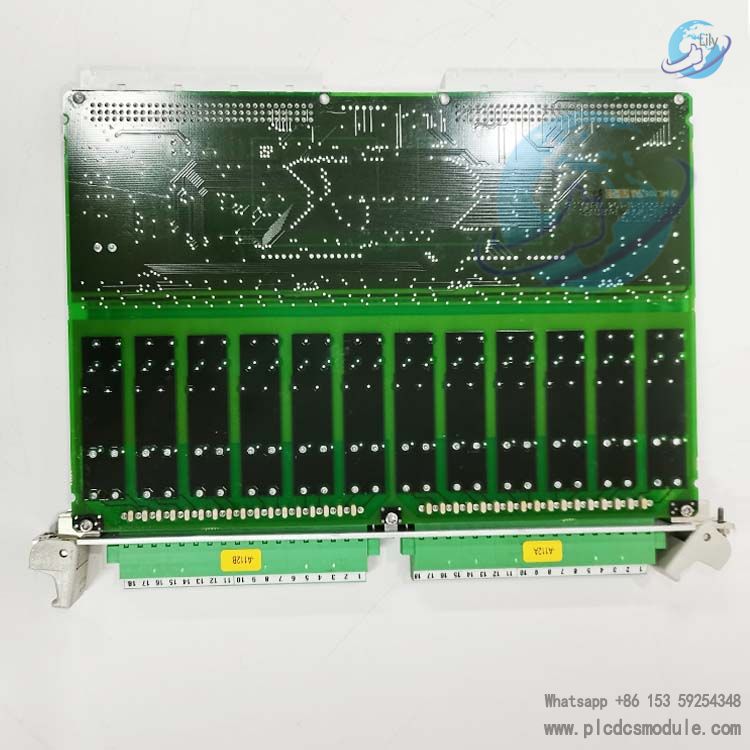

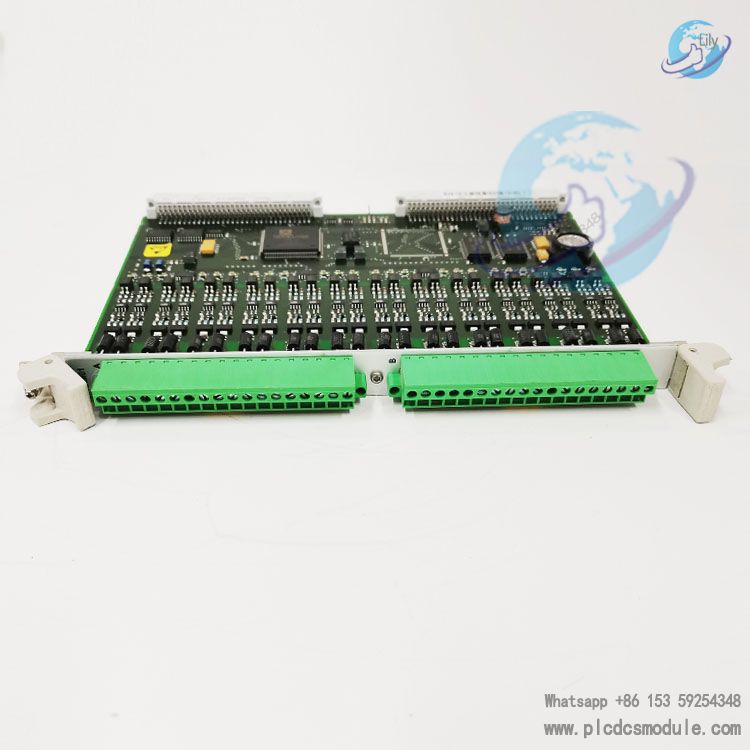

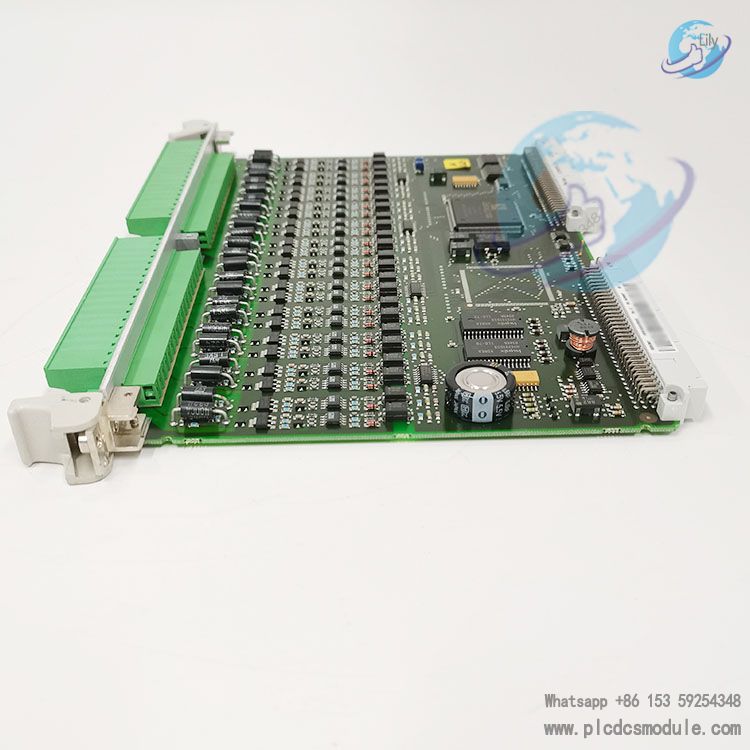

500BIM01 1MRB150024R0002 is a bus interface module in the ABB AC500 series. It is mainly used to realize the communication connection between field devices and the control system network, and plays a key role in industrial automation control systems.
Functional Features:
Communication Connection: As a bus interface, it enables the connection between field devices and the ABB Bailey Net 90 distributed control system (DCS) network, allowing field devices to conduct data communication and exchange with the network. This facilitates operators to monitor and control industrial processes from a central location.
Protocol Support: It supports multiple communication protocols such as PROFINET, Profibus, Modbus TCP, etc. It can adapt to different types of devices, facilitating connection with various fieldbus systems and ensuring the compatibility and scalability of the automation system.
Data Processing: It has high-performance data processing capability, which can quickly and reliably handle a large amount of data exchange, ensuring the efficient operation of the system, realizing real-time data collection and control, and improving the efficiency of process monitoring and control.
Technical Specifications:
Power Supply Requirements: The rated operating voltage is 24VDC, with a maximum ripple of 5%. It is equipped with reverse voltage protection, and the rated protection fuse is a 10A fast-acting fuse. It is powered by the 24VDC power supply at the terminals up/L + and zp/M of the CPU/communication interface module. The current consumption during normal operation is approximately 0.15A + output load, and the inrush current during power-up is 0.020A, lasting for 2 seconds.
Communication Rate: It supports high-speed (500kbaud) serial communication. All related modules share this high-speed communication channel, and it can support up to 53 nodes connected to the bus in any combination.
Analog Cable Length: When the cross-sectional area of the conductor is greater than 0.14mm², the maximum length of the analog cable is 100m.
Physical Dimensions and Weight: In terms of dimensions, the approximate height is 76mm, width is 67.5mm, depth is 62mm, and the weight is about 300g.
Installation and Cooling: It can be installed horizontally or vertically. Attention should be paid to derating during installation (each group of output loads is reduced to 50% at 40°C). Natural convection cooling is adopted, and the heat dissipation should not be blocked by cable conduits or other components in the control cabinet during installation.
Application Fields: It is widely used in industrial automation fields such as chemical industry, electric power, metallurgy, and manufacturing. It can connect on-site devices like sensors and actuators to the control system network, enabling precise control and real-time monitoring of industrial processes. It is suitable for automation systems of various scales and can be flexibly configured and expanded according to different application requirements.
