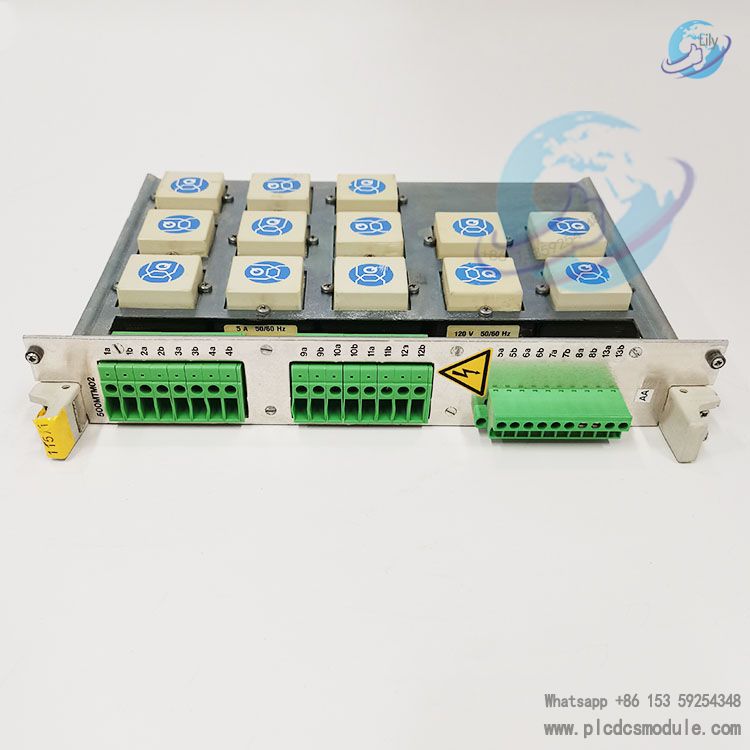

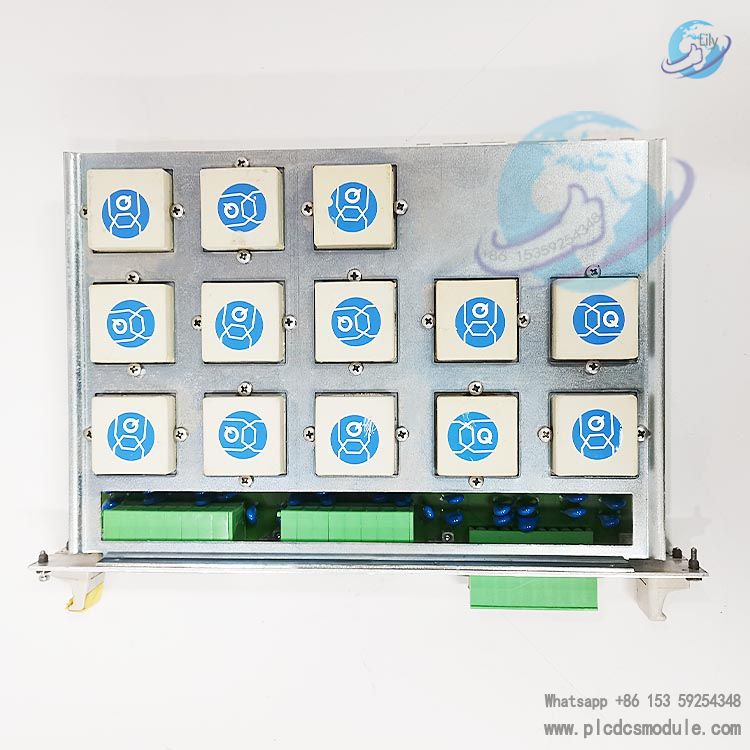

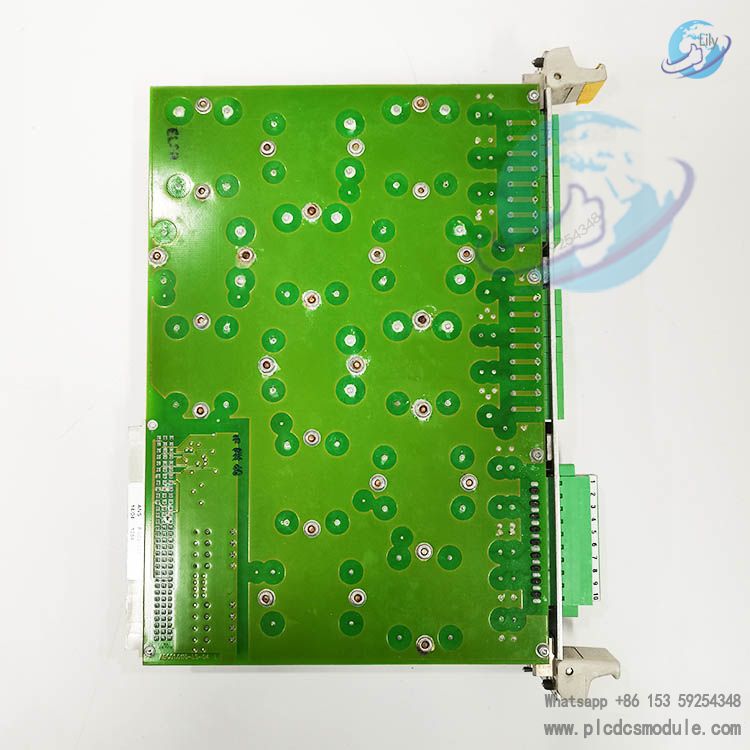

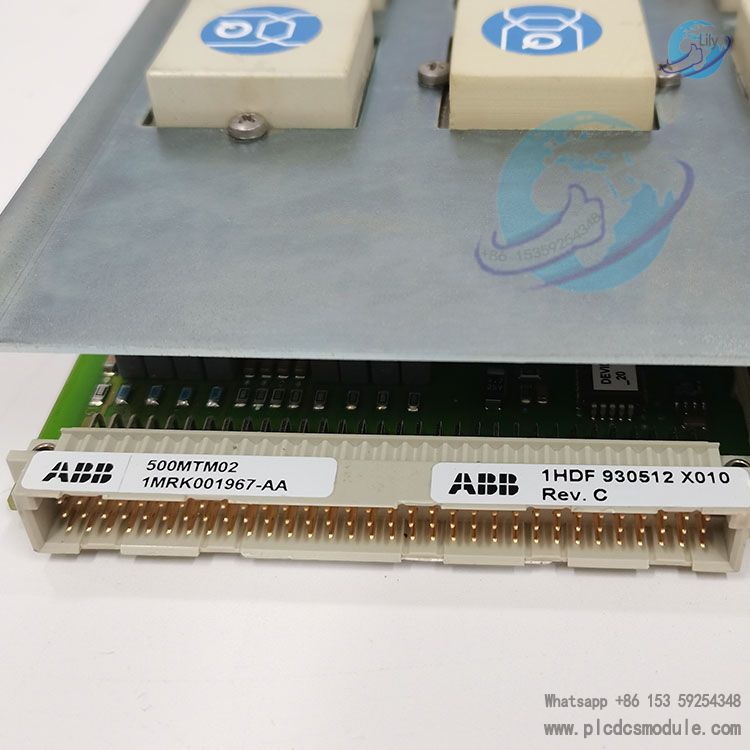

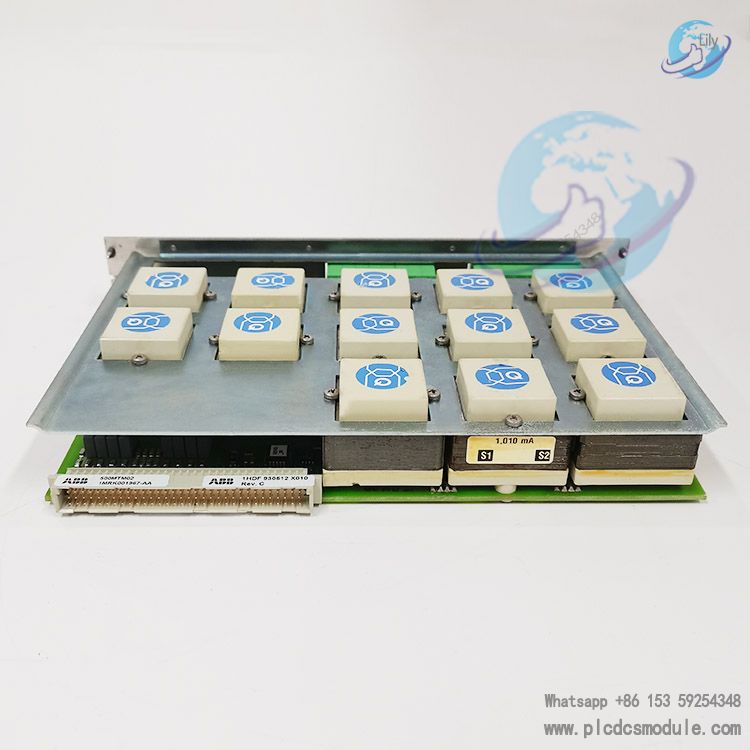

ABB 500MTM02 1MRK001967-AA control card

The ABB 500MTM02 1MRK001967-AA input/output (I/O) control card is widely used in industrial automation systems. It can connect field devices with control systems to realize data collection and control command transmission. This control card has high-performance data processing capability, enabling it to handle large amounts of data exchange quickly and reliably. It is compatible with various industrial communication protocols, facilitating integration with different devices. Meanwhile, it supports multiple configuration methods, making it easy to install and maintain. In addition, it complies with industrial standards and can operate stably in harsh environments.

Technical Parameters:
Operating voltage: Requires 24V DC power supply, and may also support wide voltage input to adapt to the power supply conditions of different industrial sites.
Number of input and output channels: Includes multiple analog input channels and digital input/output channels. The specific number needs to be determined according to the actual product. For example, common configurations include 4 analog inputs, 2 analog outputs, 8 digital inputs, 4 digital outputs, etc.
Communication rate: If it supports the Profibus protocol, the communication rate may be configurable between 9.6kbps and 12Mbps; if it is Modbus, it can usually reach common rates such as 115.2kbps.
Operating temperature range: To adapt to industrial environments, the operating temperature range may be around -20℃ to +60℃, with certain resistance to high and low temperatures.

Functional Features:

• Signal Processing: It has the capability to collect and process various input signals, such as analog signals and digital signals. It can convert, amplify, and filter signals transmitted from on-site devices like sensors, making them recognizable and processable by main control devices such as PLCs.
• Communication Function: It supports industrial communication protocols such as Profibus and Modbus, facilitating data interaction with other devices to achieve system integration and networking. It can transmit processed data to the main control unit and also receive instructions from the main control unit.
• Control Logic Execution: It can execute some basic control logic, such as controlling output signals according to preset conditions, thereby realizing the start-stop and adjustment control of on-site actuators (such as motors and valves).
