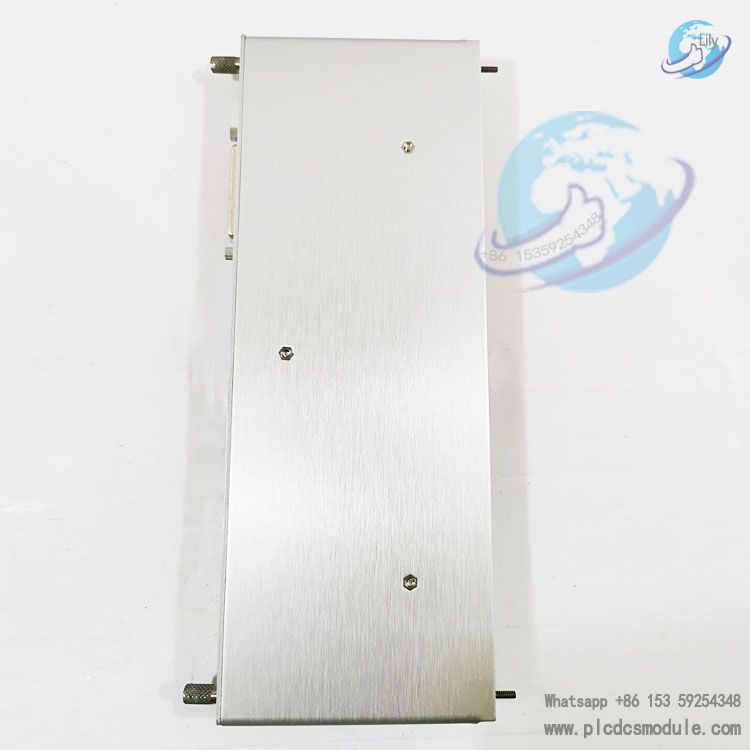

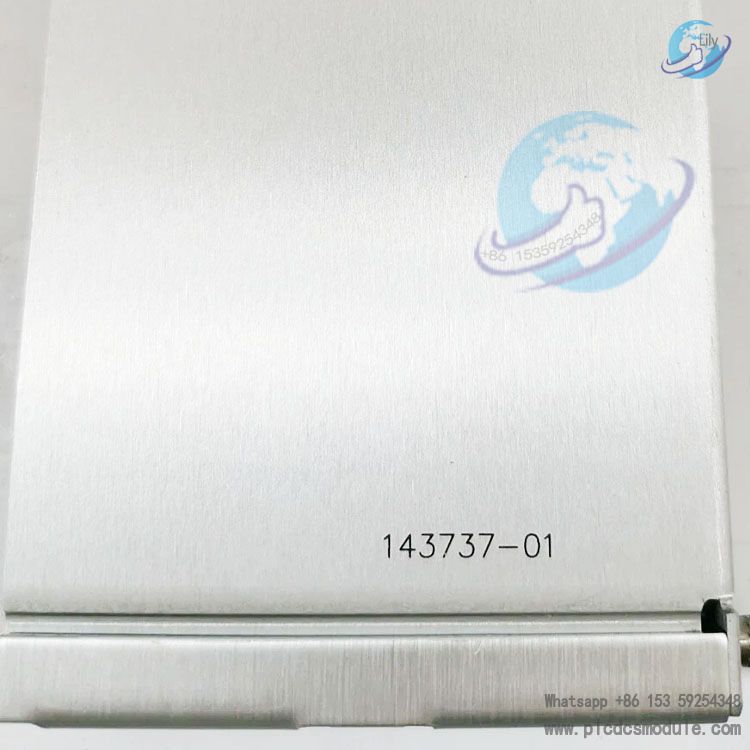

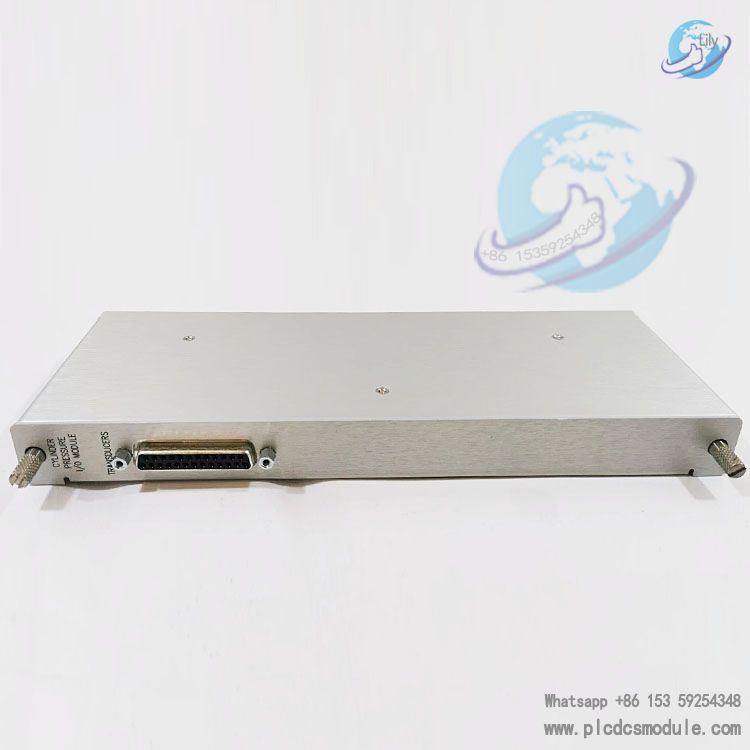

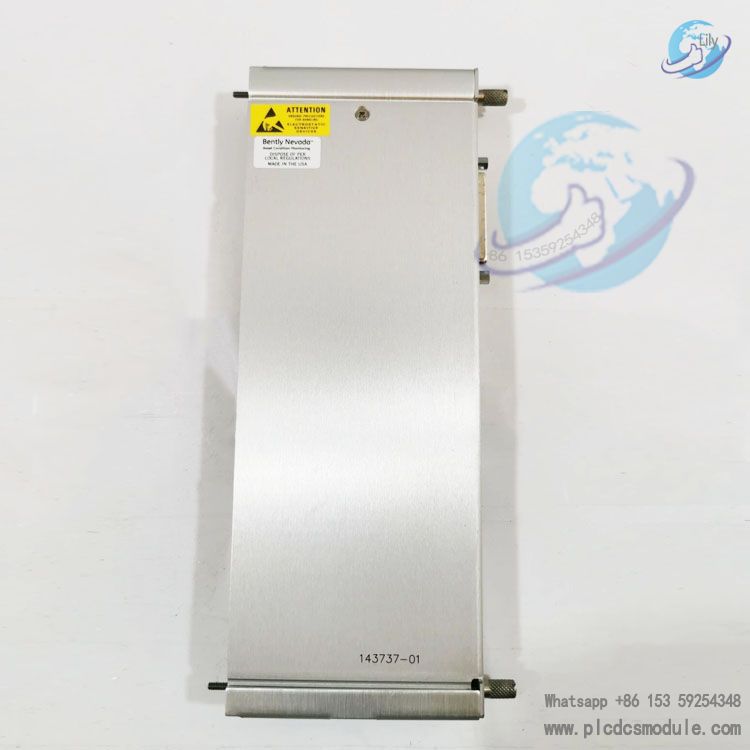

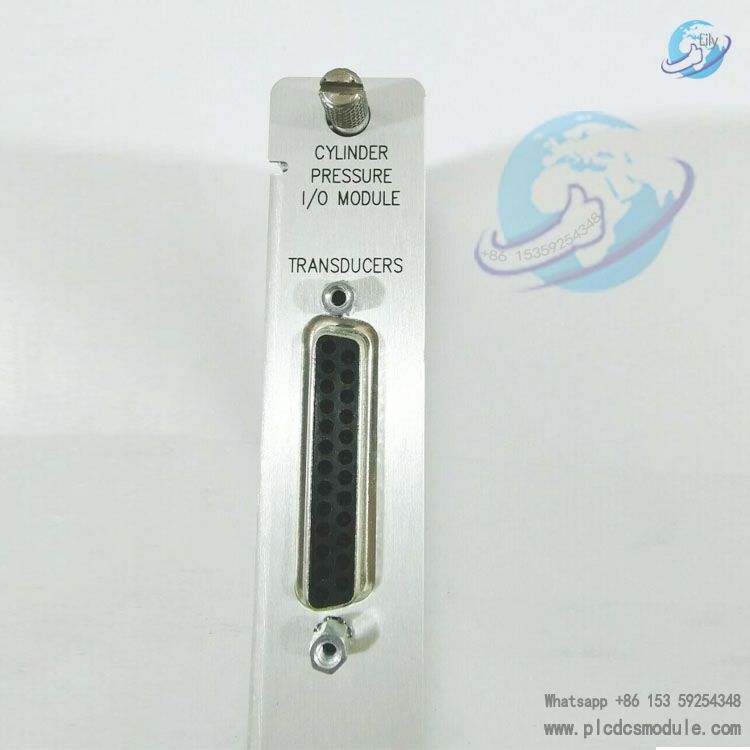

Bentley Nevada 3500/77 143737-01 Cylinder pressure module

Product Positioning: 143737-01 is a core component of the Bently Nevada 3500/77M reciprocating cylinder pressure monitoring system. It is a cylinder pressure I/O module with external terminals, specifically designed to work with third-party pressure sensors certified by Bently, and is used for cylinder pressure monitoring and protection of reciprocating compressors.

Associated System: It needs to work with the 3500/77M reciprocating cylinder pressure monitor to form a complete pressure monitoring solution. This solution provides key machine information for operation and maintenance personnel, and realizes mechanical protection by comparing with user-programmable alarm values.

DATA SHEET

Bentley Nevada 3500/77 143737-01.pdf

Core Functions and Features

Signal Processing: It receives input signals from 1-4 channels of Bently-certified third-party positive voltage pressure sensors (psia), conditions the signals to enable multiple pressure measurements, and supports the calculation of 8 measurement variables related to cylinder pressure operation, including:

Single-chamber related: discharge pressure, suction pressure, maximum pressure, minimum pressure, compression ratio;

Combined calculations: peak rod compression force, peak rod tension, rod reversal degree.

Alarm Configuration: It allows users to configure Alert thresholds for each activated measurement variable and Danger thresholds for any two activated measurement variables. By continuously comparing monitoring parameters with configured thresholds, it triggers alarms to achieve mechanical protection.

Signal Output: Cooperating with the monitor, it provides buffered sensor outputs. Each channel is equipped with a coaxial connector at the front end and has a short-circuit protection function; the output signal is inverted and offset by -2.265 Vdc.

Input Parameters:

• Measurement Range and Scale Factor: Supports multiple pressure ranges with corresponding scale factors as follows (assuming +0.5 Vdc at 0 psia and +10.0 Vdc at full scale):

• Input Impedance: 50 kΩ (internal/external terminals of the cylinder pressure I/O module).

Signal Conditioning:

• Frequency Response: 0 - 5.5 kHz for all configured pressure channels.
• Accuracy: At +25°C (77ºF), ±0.5% of the full scale of the pressure sensor (9.5 V range: +0.5 to +10.0 V); within the range of -30°C to +65°C (-22ºF to 150ºF), ±1.0% of the full scale of the pressure sensor.

Output Parameters:

• Output Impedance: 550 Ω.
• Sensor Power Supply: +23.0 ± 0.8 Vdc, with a current limit of 24.5 mA per channel.

Physical Specifications:

• Dimensions (H × W × D): 241.3 mm × 24.4 mm × 99.1 mm (9.50 in × 0.96 in × 3.90 in).
• Weight: 0.20 kg (0.44 lb.).
• Rack Space Requirement: 1 full-height rear slot.

Environmental Limits:

• Operating Temperature: Refer to the overall environmental requirements of the 3500/77M monitoring system.
• Storage Temperature: -40°C to +85°C (-40°F to +185°F).

• Humidity: 95% without condensation.

• 3500/01 software-Version 3.00;
• 3500/02 software-Version 2.30;
• 3500/03 software-Version 1.30.

V. Related Accessories and Ordering Information

• 125808-10: Cylinder pressure external terminal block (European-style connector);
• 128015-10: Cylinder pressure external terminal block (terminal block connector).
