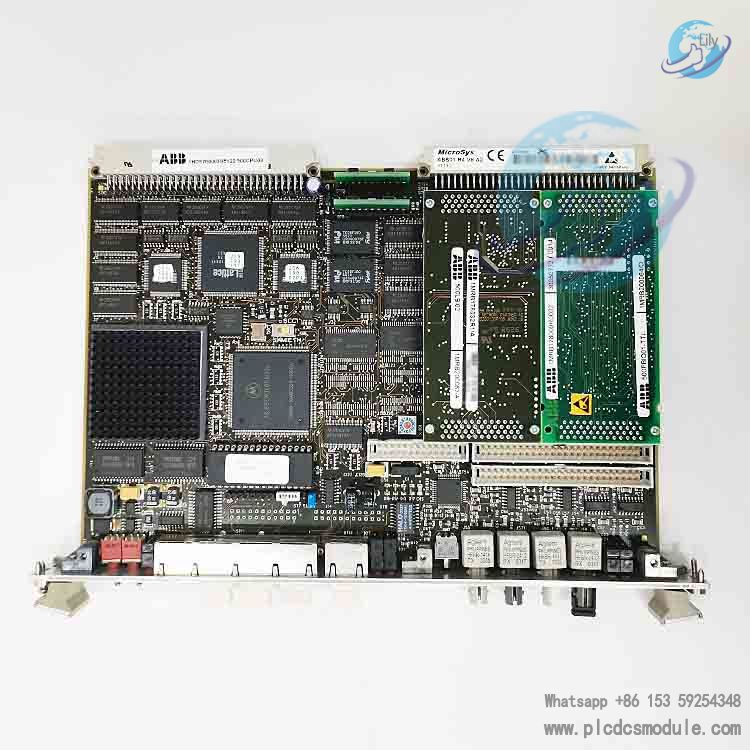

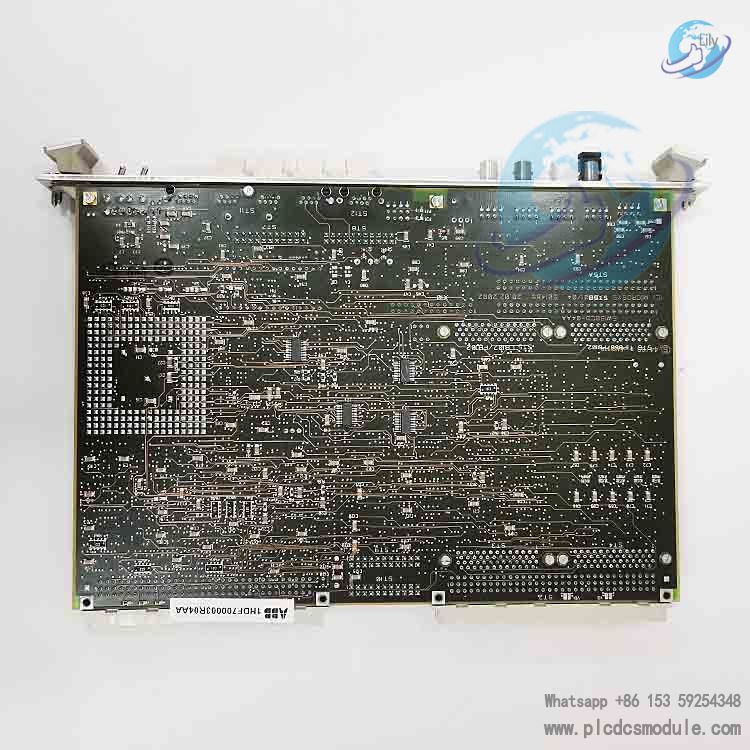

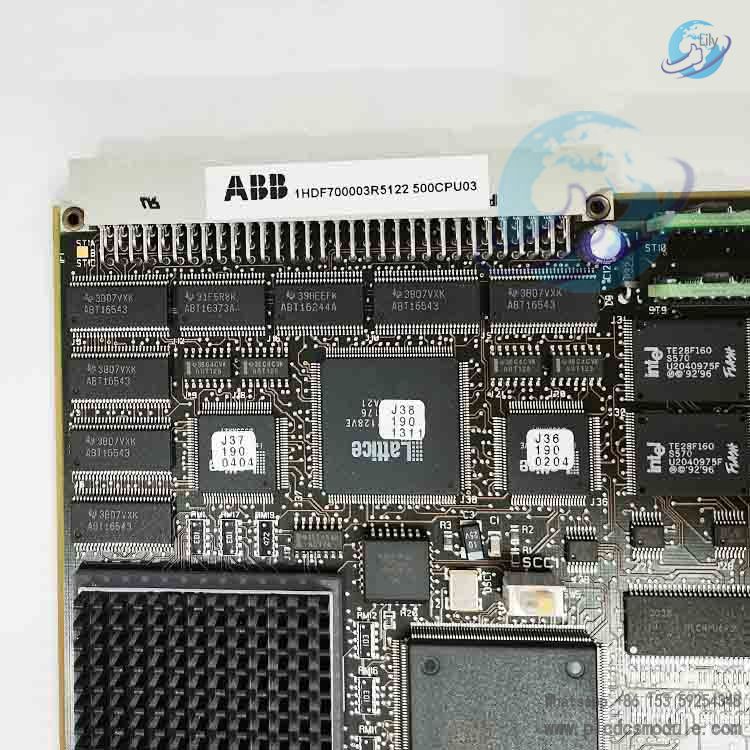

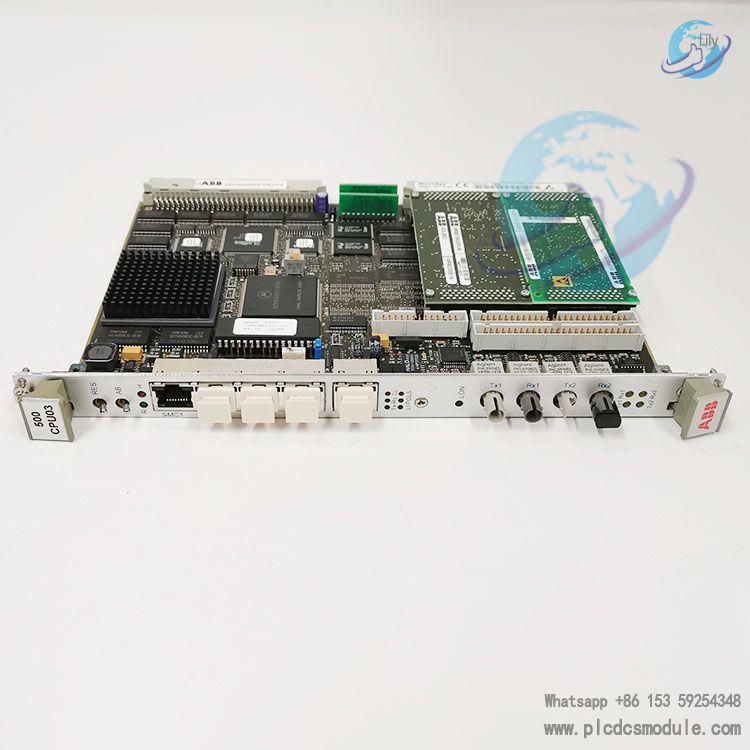

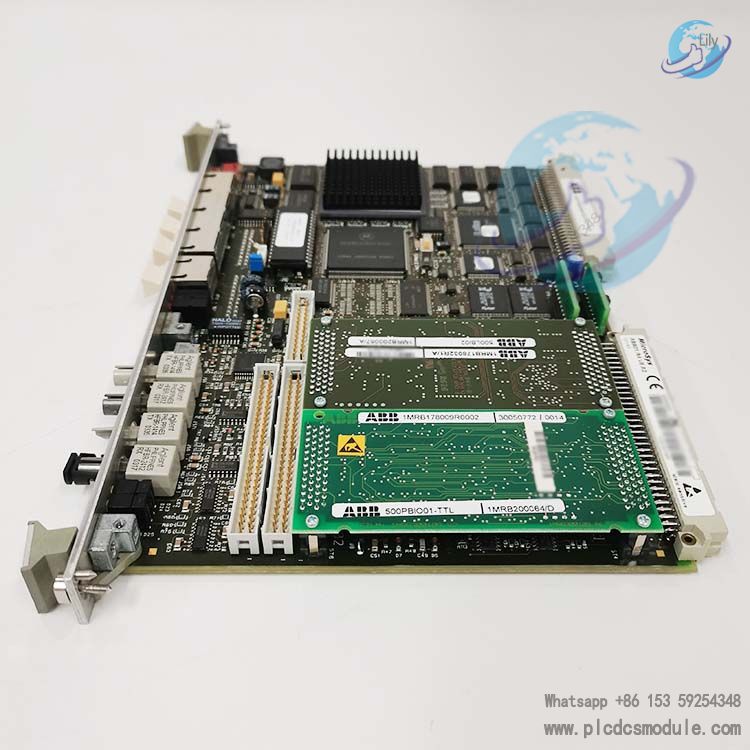

500CPU03 1HDF700003R5122 is a processor module launched by ABB. It is mainly used in industrial automation systems and serves as a core component of the 800xa automation system.
Functional Features:Designed specifically for handling complex control tasks, process monitoring, and real-time data processing.
It has high processing capability, reliability, and scalability, and is widely used in distributed control systems (DCS) and process control applications.
Signal Processing:
Analog input signals: Supports various signals such as 4 - 20mA and 0 - 10Vdc, which can be configured according to system requirements.
Analog output signals: Usually provides 4 - 20mA and 0 - 10Vdc output signals, and can also provide relay output according to configuration for controlling other devices or systems.
Power Requirements:Powered by 24Vdc power supply, compatible with most industrial automation control systems.
Interface and Expansion:It belongs to the AC500 series. The CPUs of this series are usually equipped with an LCD display, a set of operation keys, an SD card expansion port, and two integrated serial communication ports. It can be directly plugged into the CPU backplane, and the backplane can optionally integrate Ethernet or ARCNET network interfaces. In addition to the integrated communication interfaces, it can expand up to 4 communication interfaces, which can be extended to standard bus protocols such as Profibus DP - V1, DeviceNet, CANopen, and Ethernet.
Digital I/O Characteristics:Equipped with 32 configurable digital inputs/outputs, powered by 24Vdc, with electrical isolation. The output can load 500mA and supports the CS31 system bus.
Product Features:
High-performance processing: Equipped with an advanced industrial-grade CPU, it can efficiently execute complex control tasks, ensuring high precision and fast response of the system.
Modular design: Supports flexible configuration, is easy to expand and maintain, and can add, remove or adjust modules according to the needs of industrial applications.
Multiple communication interfaces: Compatible with various industrial communication protocols, facilitating integration with other automation equipment and enabling data interaction and collaborative work between systems.
Durable and robust: Designed in accordance with industrial standards, it can operate stably for a long time in harsh environments and adapt to various industrial on-site conditions.
Application Fields:
Power systems: Can be used in substation automation, power plant control, etc., to realize the monitoring and control of power equipment and ensure the stable operation of power systems.
Petrochemical industry: Suitable for automatic control in oil refineries and chemical production processes, enabling precise control of parameters such as temperature, pressure and flow in chemical processes.
Manufacturing industry: Plays a key role in production line automation and equipment control, such as in the automotive manufacturing, food processing, textile and other industries, improving production efficiency and product quality.
Water treatment: Used for process control and monitoring in water treatment plants, realizing automatic management of water quality treatment links to ensure that water quality meets standards.
