ABB

ABB TP830-1 3BSE018115R1 printed circuit board

Manufacturer: ABB

Product Number: TP830-1 3BSE018115R1

Product Type: printed circuit board

Place of Origin: Switzerland

Price Range: $1900

✓ Payment Method: Telegraphic Transfer (T/T)

✓ Warranty Period: 12 months

✓ In Stock

✓ On-site Inspection Supported

Mail： plcdcs-module@foxmail.com

Phone/Wechat/Whatsapp：+86 15359254348

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication.

The ABB TP830-1 3BSE018115R1 is a high-performance printed circuit board (PCB) specifically designed for the modular integration of industrial automation control systems. It belongs to the ABB AC 800M controller product family, with its core positioning as the "connection hub between processor modules and I/O modules" and its essence being a processor module baseplate.

This PCB provides a physical installation platform and data interaction channel for ABB PM851/856/857/860 series processor units, memory modules, and I/O modules through standardized terminal units and signal buses. It serves as a key hardware carrier for the AC 800M control system to achieve "centralized control + flexible expansion".Its design complies with the IEC 61131-3 industrial control standard, adopting a 115mm width compact layout, gold-plated terminals (corrosion-resistant), and multi-layer signal wiring. It supports redundant configuration of 2 processor units, 16MB memory expansion, and cascading of 128 I/O modules, enabling stable operation in industrial environments with temperatures ranging from -10℃ to +60℃ and in scenarios with strong electromagnetic interference (such as inverter harmonics).Compared with ordinary baseplate PCBs, the TP830-1 has the advantages of deep compatibility with ABB processors and high-density expansion. It can seamlessly connect to AC 800M series core modules without additional adapters, and is widely used in fields such as power, chemical industry, and metallurgy that require modular control systems.

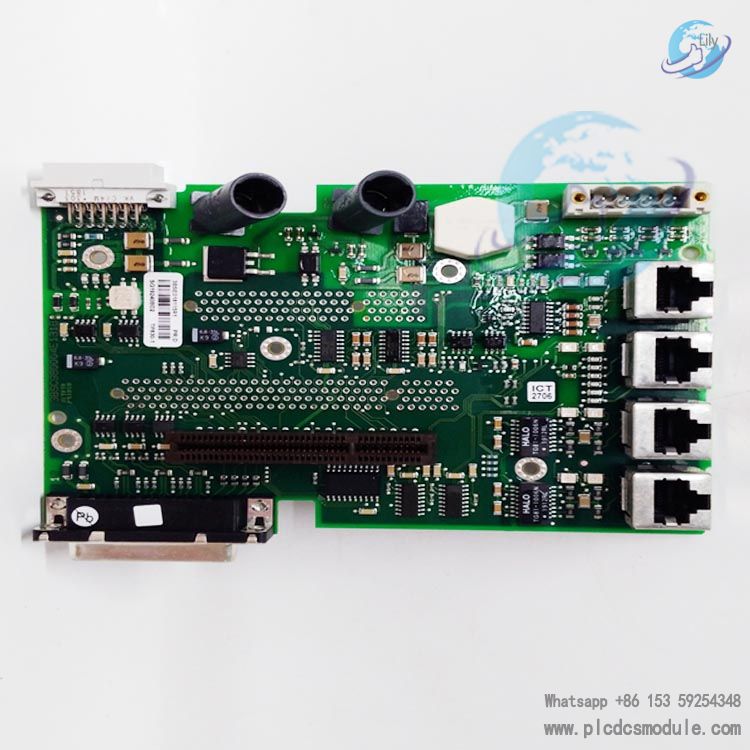

ABB TP830-1 3BSE018115R1 printed circuit board.jpg

Performance Parameters

Parameter Category	Specific Specifications
Product Type	Processor Module Baseplate PCB
Compatible Modules	- Processor Units: ABB PM851, PM856, PM857, PM858, PM860~PM867 series - I/O Modules: AC 800M series digital modules (DI830/DO830), analog modules (AI830/AO830) and fieldbus modules - Memory Modules: Supports maximum 16 MB RAM expansion
Expansion Capability	- Processor Units: Supports up to 2 units (redundant or parallel configuration) - I/O Modules: Supports up to 128 units (cascaded via Local Bus) - Terminal Units: 16-channel standardized terminals (compatible with 24 V DC signals)
Physical Dimensions	Width: 115 mm (standard baseplate size); Overall dimensions: 240 mm × 250 mm × 55 mm (including mounting structure)
Weight	Net weight: 0.234 kg (PCB board only, excluding mounting accessories)
Power Requirements	Input voltage: 220 V DC (powered from AC 800M controller backplane); Voltage fluctuation tolerance: ±10%
Signal Bus	- Internal Bus: ABB Local Bus, transmission rate: 100 Mbps, supporting data interaction between processors and I/O modules - Signal Isolation: Photoelectric isolation between terminals and bus (withstand voltage: 1 kV AC/1 min) to avoid signal crosstalk
Terminal Characteristics	- Terminal Type: 16-channel spring terminals (compatible with 0.5~2.5 mm² wires) - Signal Type: Supports digital (24 V DC) and analog (4~20 mA/0~10 V) signal transmission - Contact Resistance: <10 mΩ (terminal contact points)
Frequency Characteristics	Supports maximum signal frequency: 50 kHz (digital input sampling frequency)
Operating Environment	- Temperature: -10℃~+60℃ (standard); -25℃~+70℃ (wide-temperature version, custom-made required) - Humidity: 5%~95% (non-condensing, IEC 68-2-3) - Vibration: 5~500 Hz, 2 g (IEC 68-2-6, sine wave) - Shock: 30 g (duration: 11 ms, IEC 68-2-27)
Material & Protection	- PCB Material: FR-4 flame-retardant epoxy substrate (temperature resistance: 130℃) - Terminal Plating: Gold plating (thickness: 30 μm), corrosion and oxidation resistant - Protection Class: IP20 (PCB board itself; requires matching with control cabinet to reach IP40)
