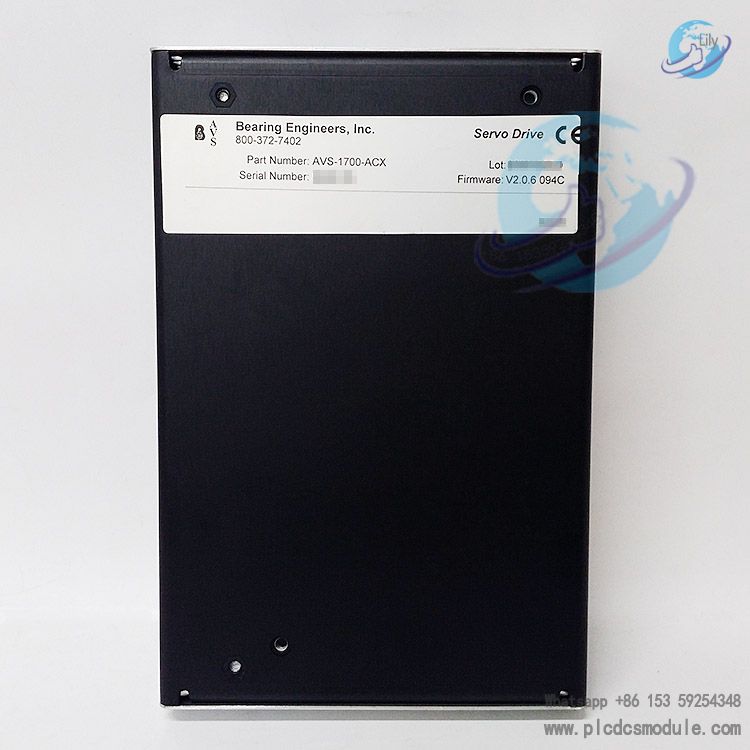

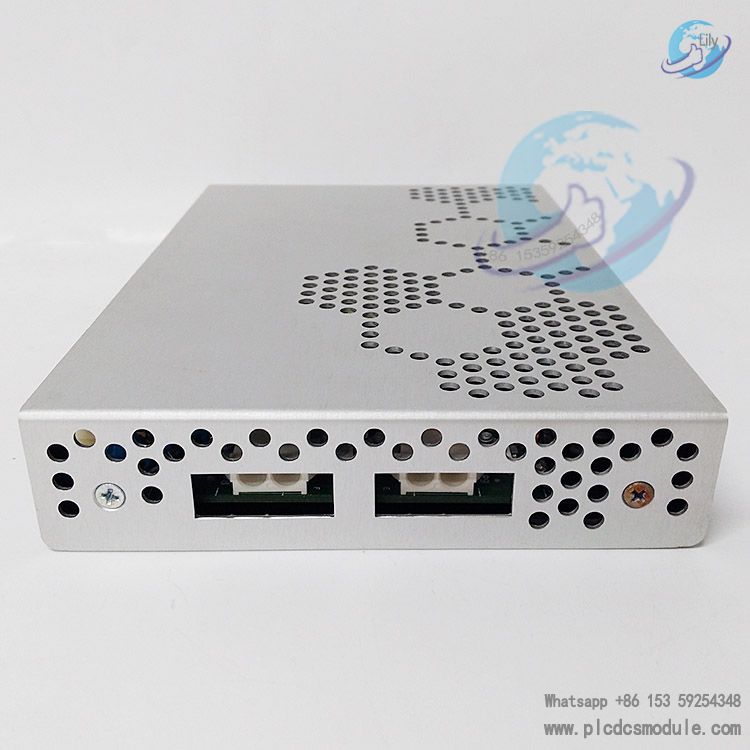

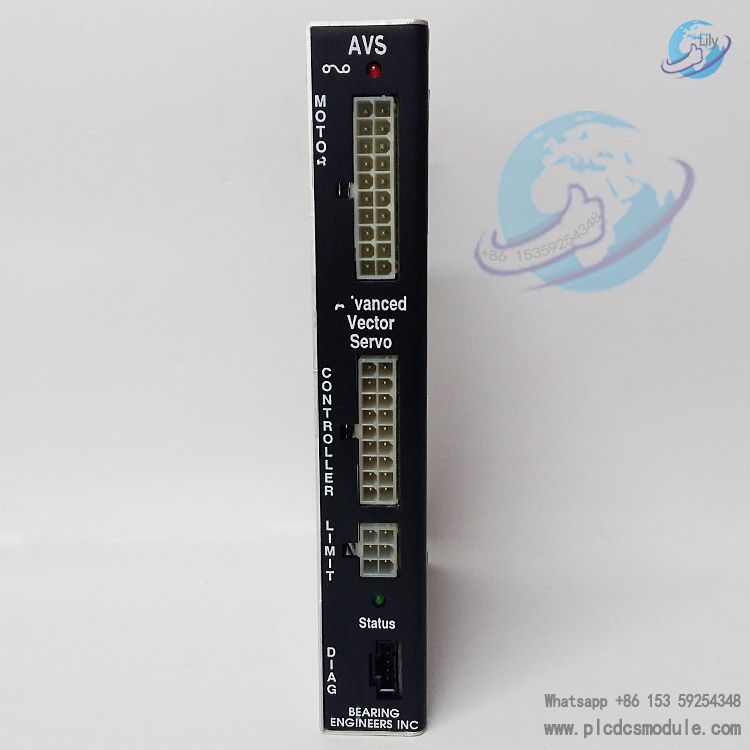

The Reliance Electric AVS-1700-ACX controller module is the core control unit of the AVS-1700 series AC servo drives. Specifically designed for the precise control of AC servo motors in industrial automation scenarios, it is widely used in key fields such as manufacturing, energy, and logistics due to its high reliability and high-precision performance. It serves as a critical intermediate component connecting the control system and the executive motor.

Core Technical Specifications

This module has a rated voltage of 380V AC, a rated current of 17A, and a rated power of 6.5kW. Its peak current can reach 34A and peak power 13kW, enabling stable and powerful power output.In terms of control performance, it achieves a control accuracy of ±0.01% and a positioning accuracy of up to ±0.001mm. The speed range covers 0-3000rpm, and the torque range is 0-20Nm. The acceleration and braking time can be flexibly adjusted within the ranges of 0-20000rpm/s² and 0-1000ms respectively, fully meeting the requirements of high-precision motion control.It has an external dimension of 200mm×150mm×50mm and a weight of approximately 2kg. Adopting a screw connection method, it allows for convenient installation and maintenance.

Key Functional Features

The module features ultra-fast seamless switching capability, with a switching time of less than 1ms, which minimizes system downtime to the greatest extent. It has an IP65 protection rating, capable of resisting dust and water ingress, and its operating temperature range covers -20℃ to 70℃, making it suitable for harsh industrial environments. Equipped with RS-232/RS-485 control interfaces, it supports communication protocols such as Modbus RTU/TCP, allowing easy integration into existing industrial control systems. Meanwhile, it is equipped with multiple protection functions including overcurrent, overvoltage, and overheating protection, ensuring long-term safe operation of the equipment.

Applicable Application Scenarios

With its precise control performance, this module can be directly applied to scenarios such as cutting control of CNC machine tools, joint drive of industrial robots, and synchronous conveying of packaging machinery. It is also compatible with printing machinery, textile machinery, food processing machinery, and automated production lines. Additionally, it can meet the needs of equipment with strict control accuracy requirements, such as medical devices and testing equipment.
