Basic Information
Part Number: 57C554, also available under part number 0-57554.
Product Type: Shark interface module.
Series: AutoMax PLC series.
Manufacturer: Originally manufactured by Reliance Electric; ABB and Baldor Reliance may have produced it at one point, but it is currently out of production.
Function and Purpose: Used to connect Shark remote racks to the AutoMax remote I/O network, can play a role in drive control applications, and is a key component in the AutoMax PLC series for achieving system connection and data transmission.
Working Principle: The module has a built-in microprocessor, which can connect to the backplane of the Shark remote rack. With the help of basic buffer circuits and timing functions, it realizes data interaction with the AutoMax remote I/O network, ensuring accurate data transmission and synchronization.

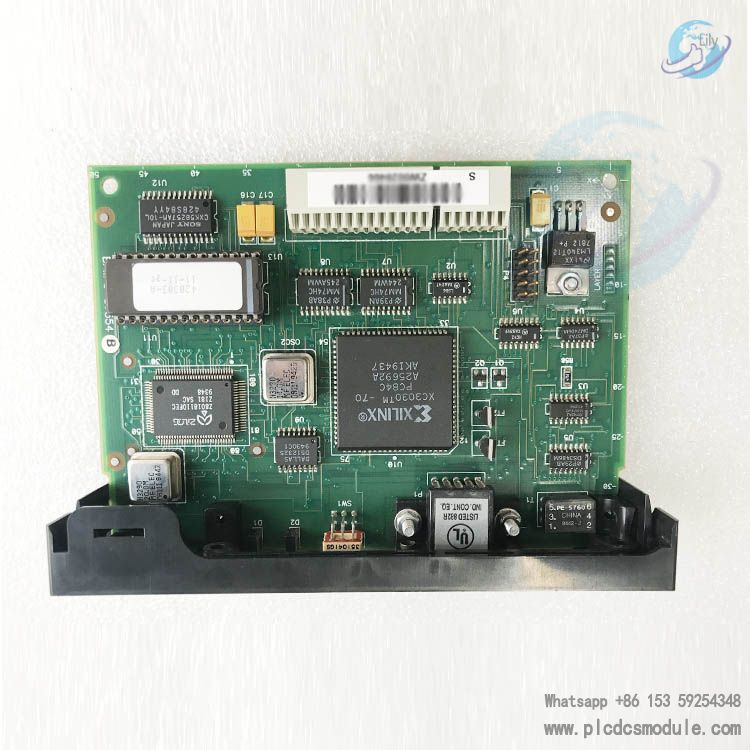

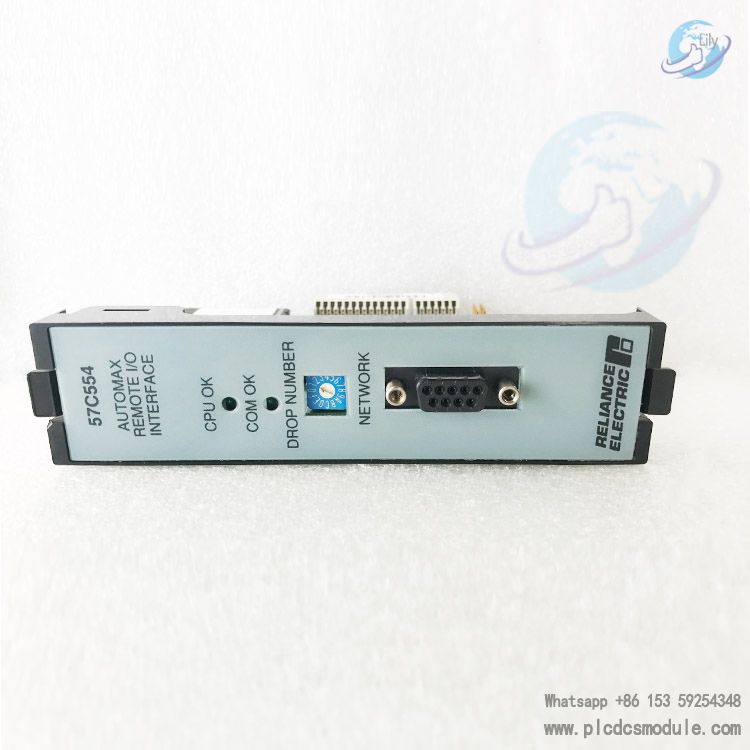

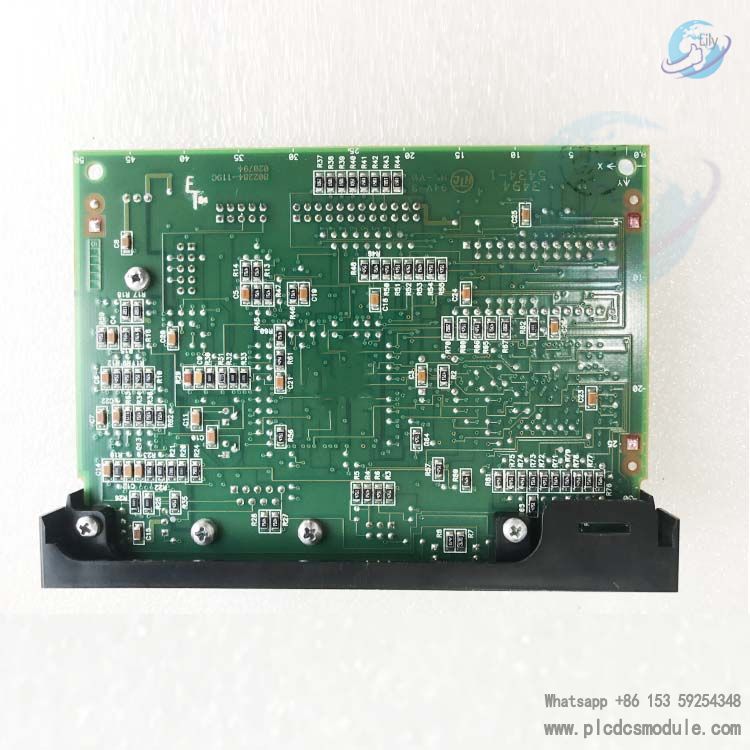

Appearance: Composed of a printed circuit board and a front panel, the whole is a printed circuit board assembly. There are two green LED indicators on the front panel, marked "CPU OK" and "COM OK" respectively, which are used to display the operating status of the module; there is a bit number dial in the middle; there is also a 9-pin D-type female RS-232 serial connection port, marked "NETWORK", which is used for network connection; in addition, there are two small clips to assist in the installation and removal of the module in the rack.
Installation: It is a full-size module that needs to be inserted into the back of the Shark rack and should be installed in the first slot to the right of the power supply.
Power Requirements: The power supply for the logic circuit is provided by the rack it is connected to, with a rated voltage of +5VDC. The I/O network of the module is powered by different power supplies installed on the rack, with a rated voltage of +24VDC, which is regulated to +12VDC.
Performance Features:
High Reliability: Adopting high-quality materials and advanced manufacturing technology, it is sturdy and durable, capable of long-term stable operation in harsh industrial environments, reducing maintenance needs and downtime.
Easy Integration: Equipped with standardized connectors and interfaces, it can be easily connected to the AutoMax PLC system and peripheral devices, simplifying the installation process and enabling rapid deployment and commissioning.
Good Safety: Compliant with strict industrial standards, it has multiple protection functions such as overvoltage and short circuit protection to ensure the safe operation of the module and the entire system.
