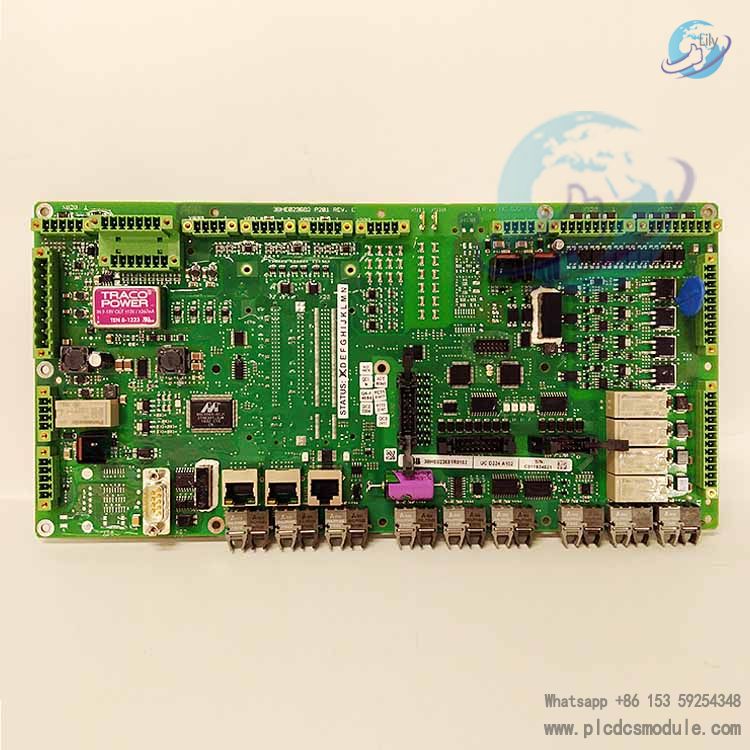

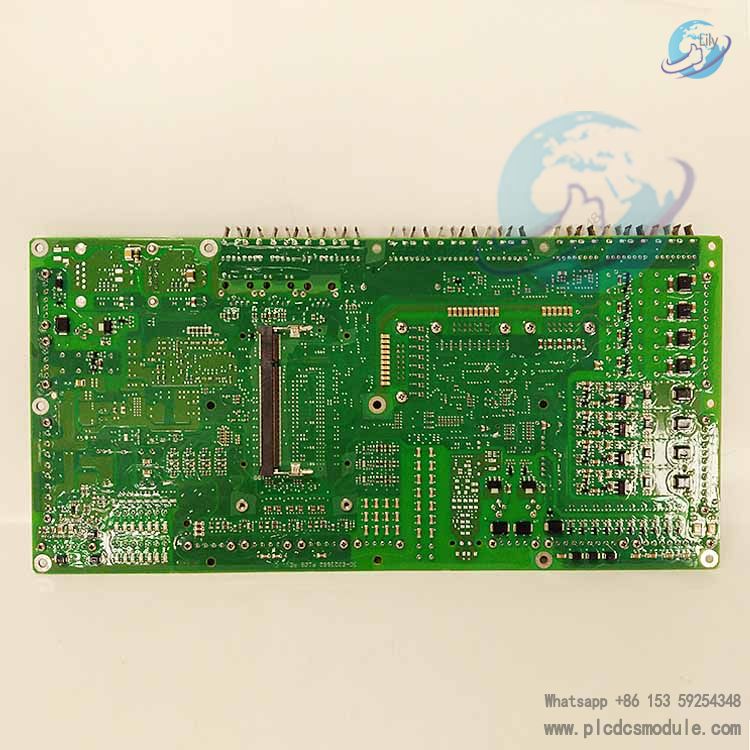

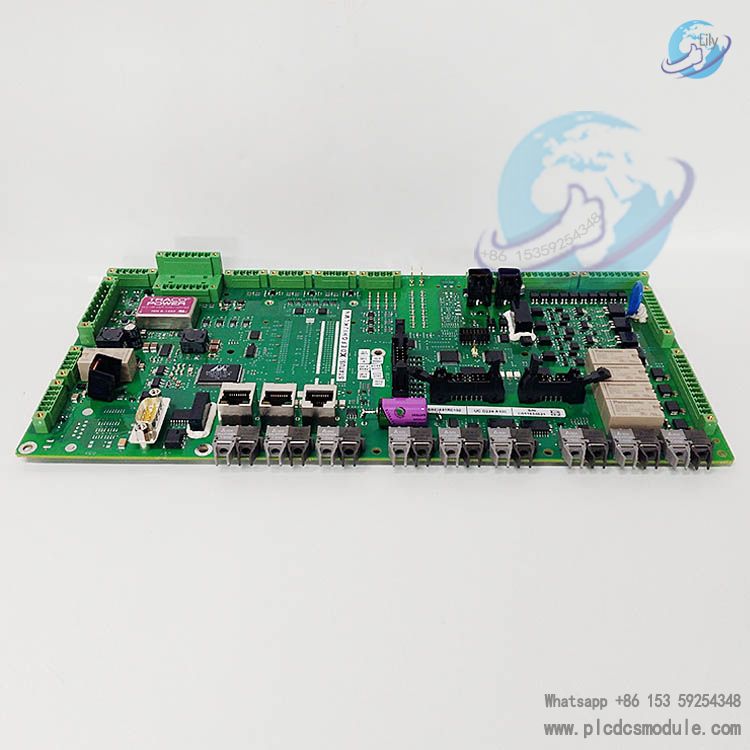

The UCD224A102 3BHE023681R0102 Controller Module is a high-performance core component in ABB's industrial automation product line. It belongs to the UCD series product matrix and is specifically designed for precise control and system collaboration in complex industrial scenarios. As a control unit integrating data processing, command execution, and multi-equipment linkage, this module has become a preferred solution for the construction and upgrading of automation systems in fields such as new energy, manufacturing, transportation, and process industry, relying on its high reliability, flexible scalability, and wide compatibility.
Core Parameters
Processing Performance: Equipped with a high-performance RISC processor, it has strong computing and command processing capabilities. It can quickly respond to complex control algorithms, ensure real-time execution of control commands and data synchronization, and provide computing power support for multi-equipment collaboration.
Environmental Adaptability: The operating temperature range covers -40℃ to 85℃, and the storage temperature is suitable for -40℃ to 90℃, meeting the needs of extreme industrial environments such as high temperature and severe cold. The protection level reaches IP20 and above, effectively resisting dust and moisture erosion. At the same time, it has passed multiple international safety certifications such as CE, UL, and IECEx to ensure operational safety.
Control Type: Supports three core control modes: DC voltage control, current control, and power control. It can accurately adapt to the control needs of different industrial loads and realize refined control of DC equipment.
Interface and Compatibility: Equipped with rich input and output interfaces, it can flexibly connect various sensors, actuators, and external devices. It supports mainstream industrial communication protocols such as Modbus RTU, is highly compatible with ABB's full range of automation solutions, and can be seamlessly integrated into existing industrial networks to reduce compatibility risks of system upgrades.
Safety Protection: Built-in dual protection mechanisms for overcurrent and overvoltage, it can monitor the circuit status in real time. In abnormal working conditions, it quickly cuts off the circuit to avoid equipment damage and production accidents, and ensure the stable operation of the system.
Core Control Functions
Multi-mode Precision Control: Integrates advanced control algorithms, allowing switching between voltage, current, and power control modes for different application scenarios. Whether it is the regulation of energy storage systems in the new energy field or the speed control of industrial motors, it can achieve a control accuracy of ±0.1%, meeting high-precision production needs.
Modular Expansion Capability: Adopts a modular design architecture, supporting flexible addition, removal, and stacked expansion of functional modules. Users can configure according to the system scale on demand, which is suitable for both small single-machine control scenarios and the linkage needs of large-scale distributed control systems, reducing initial investment and later upgrade costs.
Data Acquisition and Interaction: Equipped with efficient data acquisition functions, it can capture equipment operation parameters and environmental data in real time. It uploads data to the control system or monitoring platform through compatible communication protocols, while receiving superior instructions and executing them quickly, realizing the closed-loop management of "acquisition - analysis - control".
Anti-interference and Stability: Has passed strict electromagnetic compatibility tests, and can maintain stable signals in strong industrial electromagnetic environments to avoid distortion of control instructions. High-quality components and precision manufacturing processes ensure that the module's MTBF (Mean Time Between Failures) far exceeds industry standards, reducing unplanned downtime.
