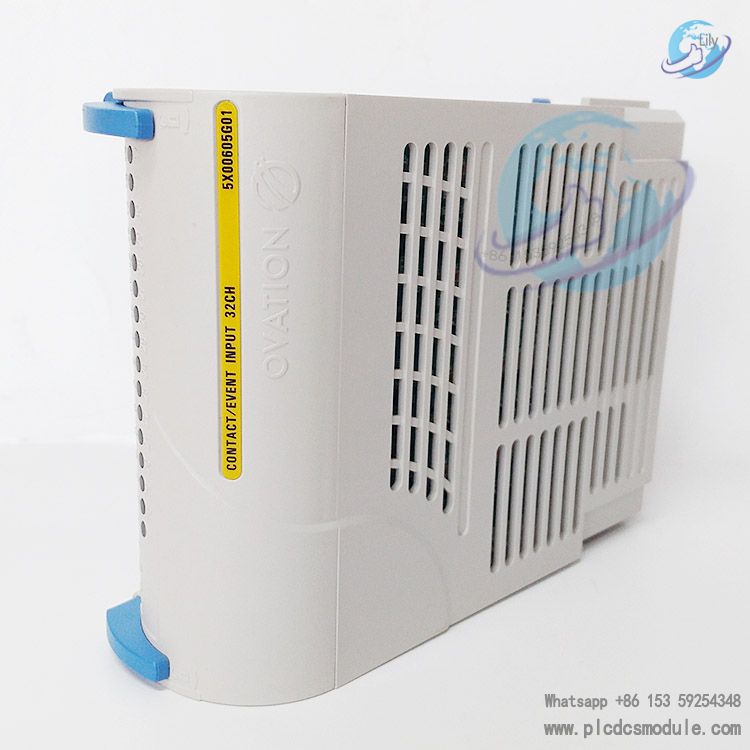

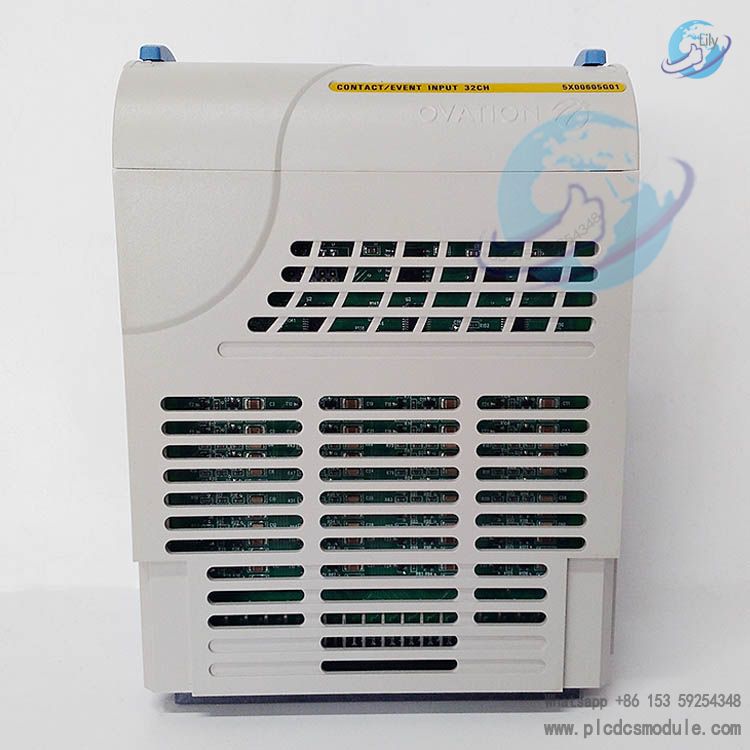

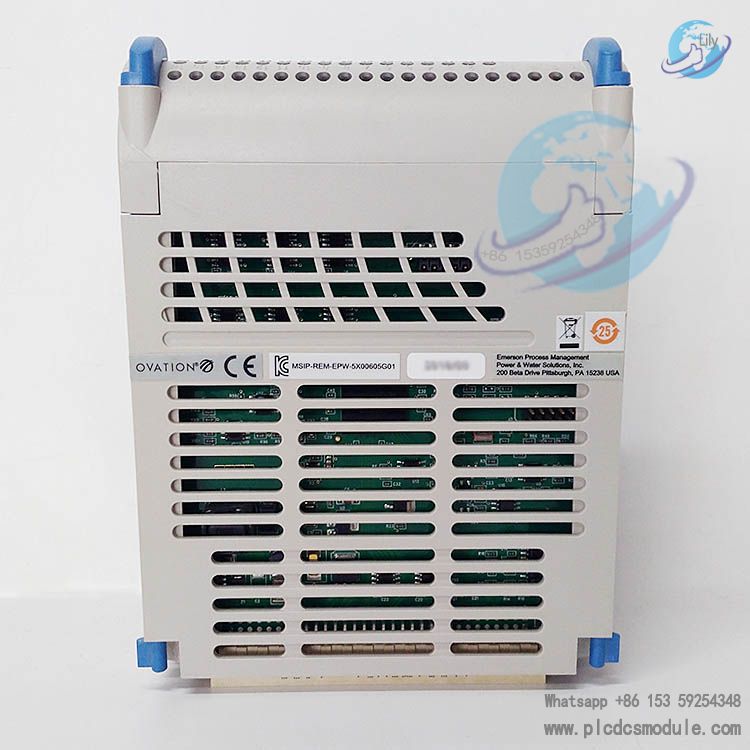

Emerson 5X00605G01 is a 32-channel contact/event input module belonging to the Ovation series, specifically engineered for seamless integration with Emerson's Distributed Control System (DCS). It efficiently collects contact signals and event signals from various field devices, converts them into standardized digital signals for transmission to the controller, while enabling real-time monitoring and response to on-site events. Boasting stable and reliable performance, the product is adaptable to harsh industrial environments and plays a crucial role in ensuring the smooth operation of critical processes across multiple industries.
Core Technical Parameters
Number of channels: 32 contact/event input channels
Power supply requirement: Nominal 24VDC, supports 12VDC to 30VDC wide voltage input
Operating temperature range: -20°C to 60°C, storage temperature range: -40°C to 85°C
Relative humidity: 5% to 95% non-condensing
Isolation performance: 1500V RMS channel-to-ground isolation to enhance system safety and anti-interference capability
Protection rating: IP20 or IP67 depending on enclosure type, adapting to different installation environments
Dimensions: Multiple specifications available, typical sizes include 225mm × 112mm × 58mm or 4.1cm × 15.9cm × 10.8cm
Weight: Approximately 0.3kg to 1.0kg, facilitating modular installation and transportation
Voltage rating: 35VDC, maximum current: 1A
Shock resistance: 10g half-sine wave for 11ms; vibration resistance: 1mm peak to peak from 5 to 16Hz, 0.5g from 16 to 150Hz
Certifications: Complies with CE, UL, RoHS standards, meeting international industrial specifications
Key Functional Features
High reliability: Undergoes strict testing and verification, with stable performance to ensure long-term continuous operation in harsh industrial environments
Strong anti-interference capability: Adopts advanced isolation technology and robust circuit design to effectively resist electromagnetic interference and ensure signal integrity
Easy integration: Designed with a modular structure, it can be seamlessly integrated into existing Emerson Ovation DCS, supporting hot-swapping and modular expansion for convenient system upgrade and maintenance
Advanced diagnostic functions: Equipped with self-test, signal integrity detection and channel status indication functions, enabling timely discovery of module faults and ensuring maintenance efficiency
Flexible configuration: Supports multiple contact and event signal types, adapting to different field device requirements and improving application flexibility
Application Fields
Power generation industry: Used for monitoring of turbines, boilers and auxiliary systems, realizing real-time collection of equipment operation status signals.
Petrochemical industry: Applicable to process instrumentation monitoring in chemical and petrochemical plants, ensuring the stability and safety of production proce.
Water treatment industry: Used in water supply and wastewater treatment control systems, collecting signals of on-site valves, pumps and other equipment.
Marine and offshore industry: Adapts to harsh marine environments, supporting industrial control systems of offshore platforms and ships.
HVAC and building automation: Used in building environmental monitoring systems, collecting contact signals of air conditioners, ventilators and other equipment.
