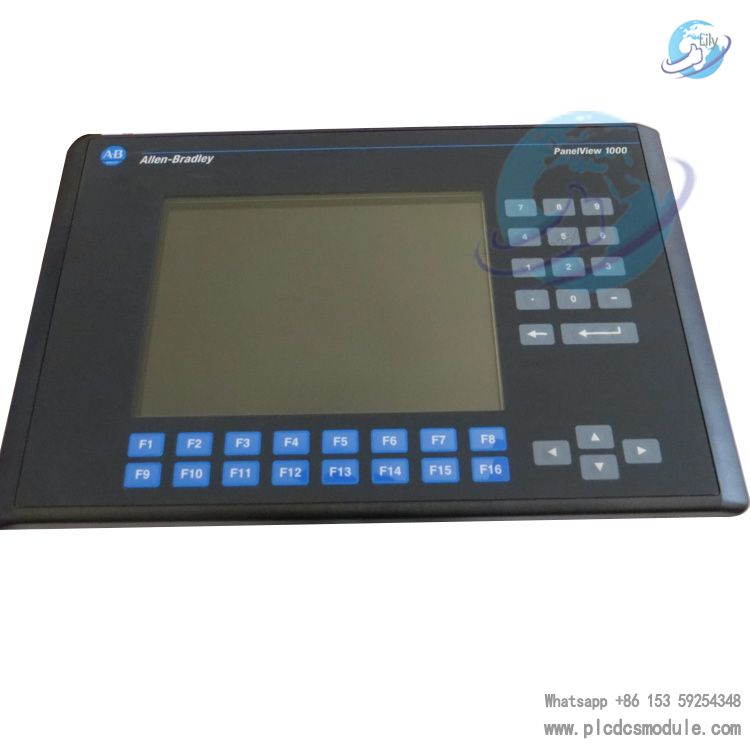

The Allen Bradley 2711-K10C1 is a 10-inch color operator interface panel belonging to the PanelView Standard series under Rockwell Automation. It is an industrial-grade human-machine interaction device with high reliability and versatility. Designed for industrial automation scenarios, this product can achieve stable communication with various PLCs and SLC controllers, while supporting a wealth of visualization and operation functions to help operators efficiently monitor and control industrial production processes. Its compatible PanelBuilder32 configuration software also enables rapid development and reuse of application programs, making it widely applicable to various industrial control sites.
related documents
PanelView Standard Specifications.pdf
Technical Specifications
Display-related ParametersDisplay type: Color active matrix TFT displayDisplay area: 211×158mm (8.3×6.2 inches)Resolution: 640×480Backlight: Field-replaceable; the half-life of the backlight reaches 50,000 hours at 25℃ (77°F)Touch capability: Equipped with a touch screen with 384 touch units, supporting 1 million press operations
Operation Input and Key ParametersOperator input method: Supports dual input via keys or touch screenKey specifications: Adopts stainless steel dome membrane keys, including navigation keys and function keys, supporting 1 million presses; equipped with 16 function keys (F1-F16) that can be customized with operation commands
Storage and Clock ParametersApplication running memory: 310KBNon-volatile storage: 1008KB (capable of storing application objects, text, bitmaps and other data)Real-time clock: Equipped with a battery-powered real-time clock that can timestamp key data; the battery is field-replaceable
Power Supply ParametersInput voltage: AC 85-264V, 47-63Hz; for DC power supply, models with suffix L1 can be ordered (e.g., 2711-K10C1L1), with DC input range of 18-32V DC (nominal 24V DC)AC power consumption: 55VA maxDC power consumption: 24W max (1.0A at 24V DC)
Dimensions and WeightOverall dimensions (height × width × depth): Key version: 282×423×112mm (11.11×16.64×4.40 inches); Touch version: 282×370×112mm (11.11×14.58×4.40 inches)Weight: Key version: approx. 3.7kg (8.2lb); Touch version: approx. 3.6kg (7.9lb)

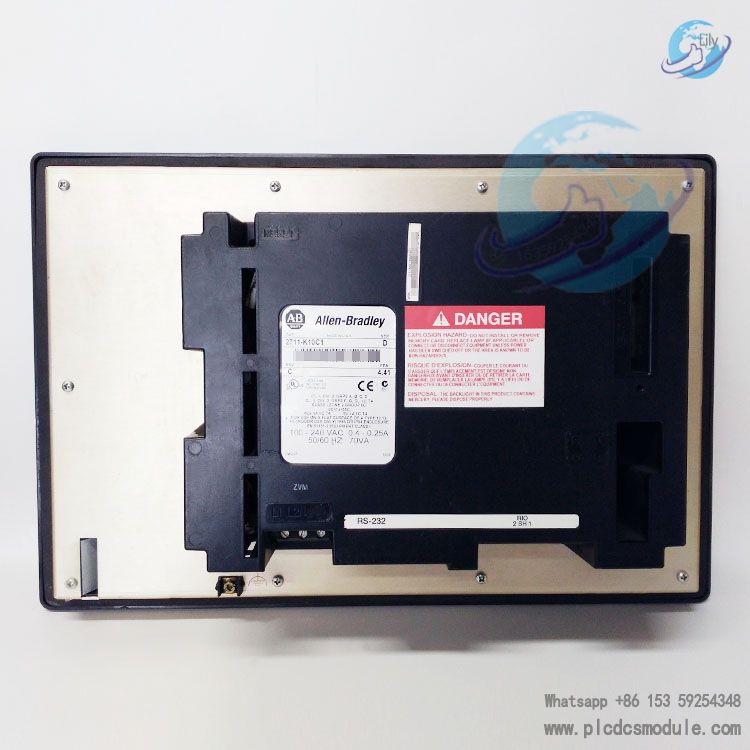

Communication Capabilities
The 2711-K10C1 supports multi-protocol and multi-port communication and can be connected to various industrial networks. The specific communication interfaces and protocols are as follows:
Communication ports: Supports EtherNet/IP, DeviceNet, ControlNet, DH+, Remote I/O, DH-485, RS-232 (DH-485), and
RS-232 (DF1)RS-232 printer port: Supports baud rates of 1200, 2400, 9600, and 19200 Kbps, enabling online printing functionality
Memory card support: Compatible with ATA memory cards, which can expand storage capacity and realize backup and migration of application programs

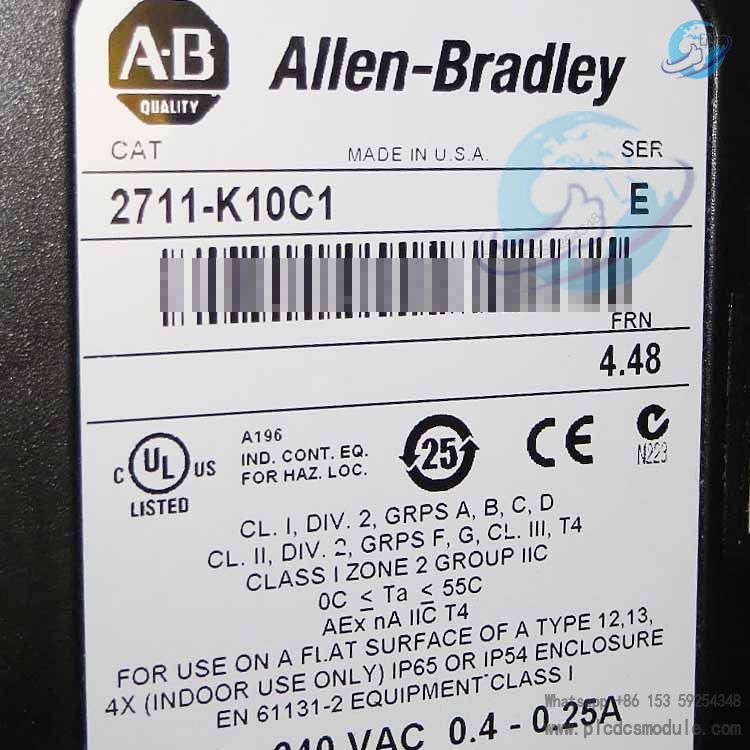

Environmental Adaptability
Operating temperature: 0–50℃ (32–122°F; as the 600 color series belongs to the same product line, the upper temperature limit is 50℃, while the upper limit for regular models is 0–55℃)
Storage temperature: -25 to 70℃ (-13 to 158°F)
Relative humidity: 5%–95% non-condensing (under 0–55℃ environment)Vibration and shock resistance: Can withstand 2g, 2000Hz vibration during operation; shock resistance is 15g (operational state) / 30g (non-operational state)
Protection rating: Complies with NEMA Type 12, 13, 4X (indoor use only), and IEC IP54, IP65
standardsAltitude: Maximum operating altitude up to 2000m (6561ft)
Software and Accessory Support
Configuration software: Compatible with PanelBuilder32 configuration software, which supports Windows 2000/ME/XP/Vista systems. It features functions such as cut/copy/paste, tag import and export, and simultaneous editing of multiple applications, enabling quick completion of interface configuration.
Optional accessories: Can be paired with accessories including ATA memory cards (models such as 2711-NM13/14/15/232), anti-glare protective films (2711-NV6K/NV6T), backlight replacement components, real-time clock replacement parts, and dedicated mounting clips (2711-NP2) to meet various on-site requirements.
