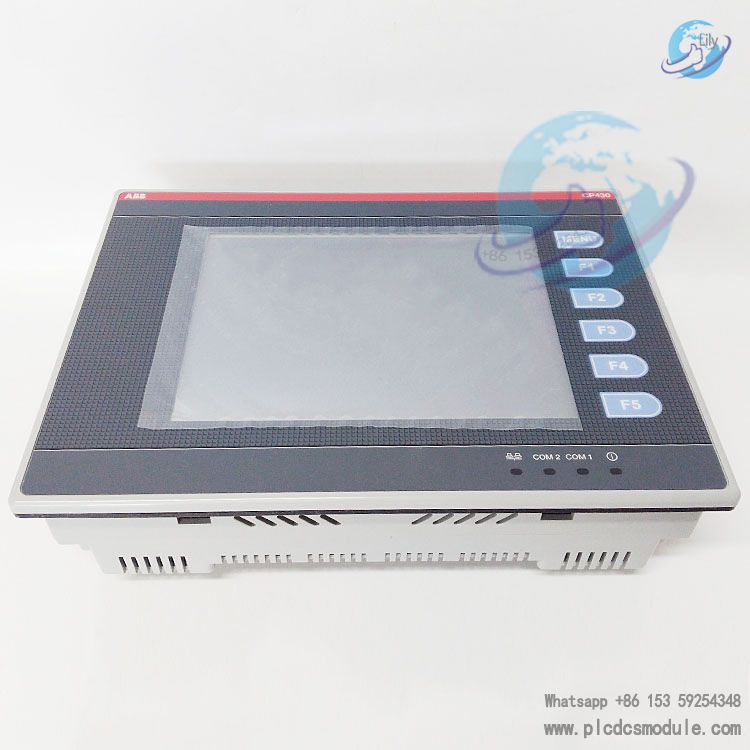

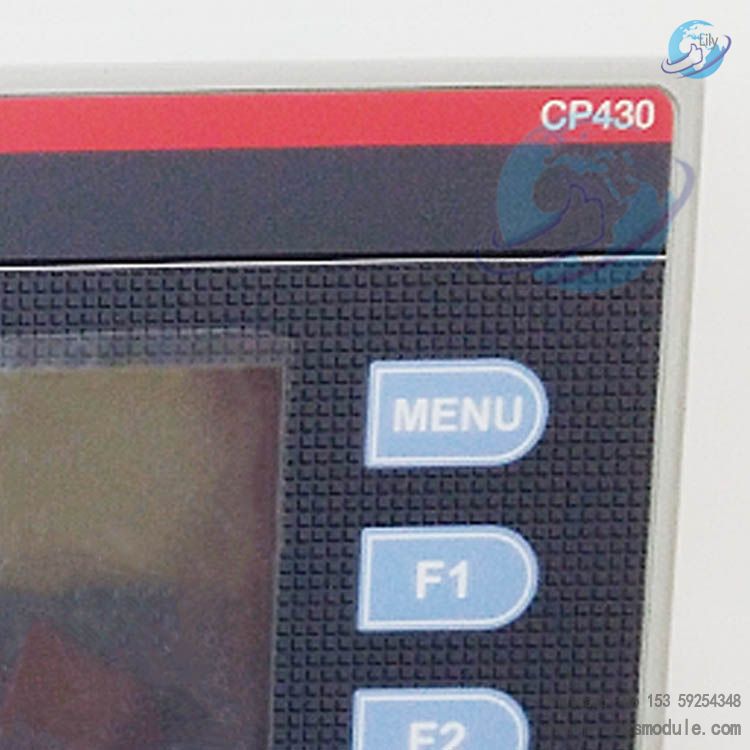

This product is equipped with a 5.7-inch 64K-color TFT touch screen and integrates 5 customizable function keys, combining the flexibility of touch operation with the convenience of physical buttons. It features an Ethernet communication interface and multiple types of serial ports, enabling compatibility with a wide range of industrial communication protocols. Additionally, it offers rich software functions such as password protection, alarm management, and recipe management, which can meet the equipment monitoring and operation requirements of industrial sites.Originating from Taiwan, China, the product is mainly stored in the European central warehouse and supports immediate delivery upon order (with a minimum order quantity of 1 unit).
related documents
CP430T-ETH 1SBP260196R1001.pdf

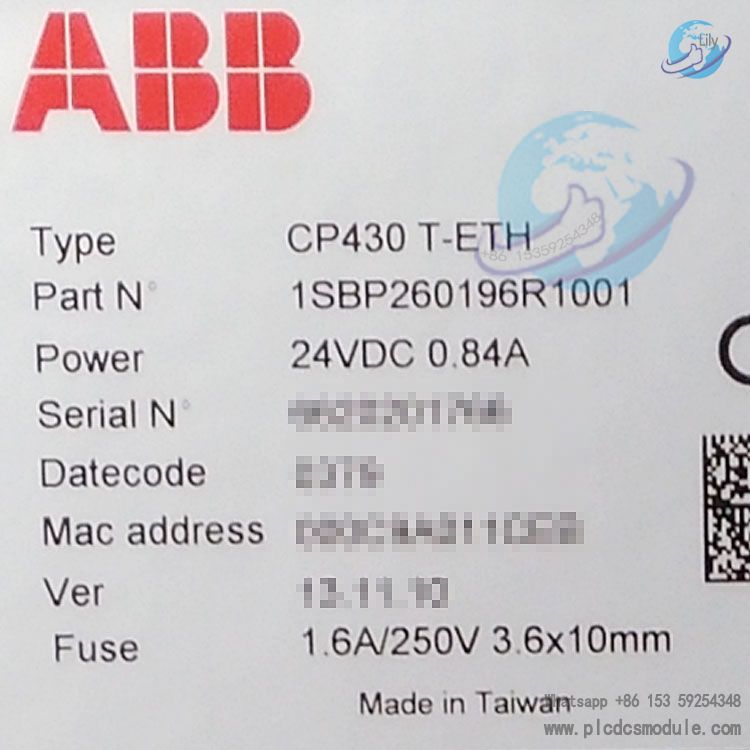

Technical Specifications
1. Display-related Parameters
The panel adopts a TFT color screen with CCFL backlight and touch function; the screen size is 5.7 inches (4:3 aspect ratio) with a resolution of 320×240 pixels and 64K display colors. Its visible area measures 117.2mm in length and 88.4mm in height, and it can display 30 lines with 40 characters per line.
2. Hardware and Structural Parameters
The net dimension of the panel is 60mm in length, 195mm in width and 145mm in height; its net weight is 0.86kg and gross weight is 1.34kg. It supports front-mounted installation with an installation angle ranging from 0° to 135°, and DIN rail installation is not available. It is equipped with 5 function keys and no indicator lights. The power supply specification is 24V DC (with an operating voltage range of 20.4~27.6V DC) and the power consumption is 20V·A. For storage media, it has 512kB (RAM) of user data memory and 4000kB (4MB ROM) of user program memory. A button battery is provided to support the real-time clock function, and the service life of the panel reaches 60000 hours.
3. Communication Interface Parameters

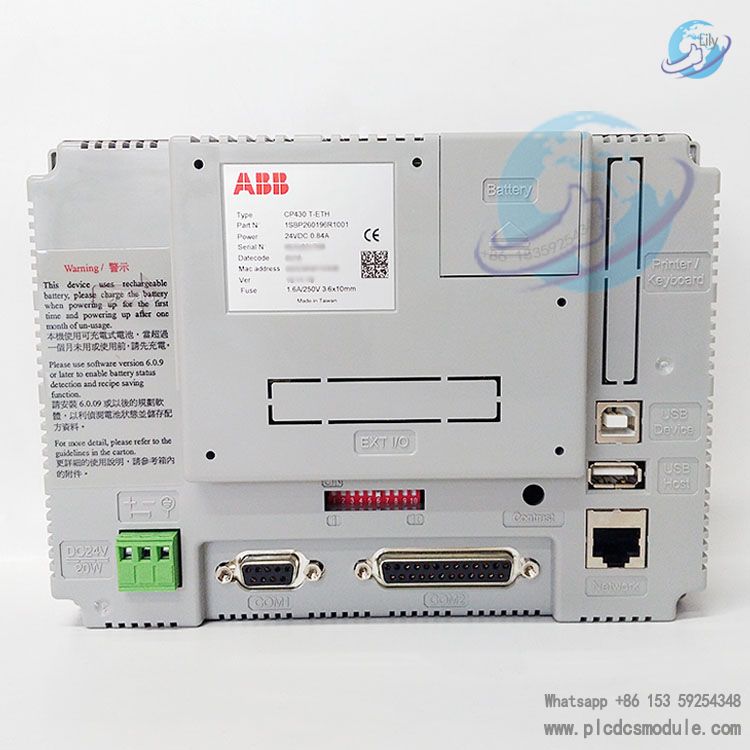

It comes with an Ethernet interface that supports Ethernet communication with a communication rate of 4.8~187.5kBd (communication protocol depends on the driver). There are two serial ports: Serial Port 1 supports RS232/RS485, and Serial Port 2 supports RS232/RS422/RS485. It also has two USB interfaces, including 1 USB 2.0 Host and 1 USB 2.0 Device. In terms of fieldbus support, it is compatible with protocols such as Modbus RTU and AC500_ModbusASCII (other protocols can be consulted with the manufacturer), while Profibus is not supported.
4. Environmental and Safety Parameters
The operating temperature range of the panel is 0~+50℃, and the storage temperature range is -10~+60℃. It has password protection with 9-level user permissions for security, and integrates a gG-type fuse (specification 5×20_MMTx, model SLEEK.36ESr) for short-circuit protection.
Software Functions
Basic Programming
It is compatible with the dedicated programming software CP400 Soft and supports offline/online programming modes.
Business Functions
It includes alarm management, recipe management, trend monitoring, macro and ladder diagram control, sub-screen switching, etc., which can meet the diversified management and control needs of industrial sites.
