ABB CI868K01-eA 3BSE048845R2 AC 800M Communication Interface module

Manufacturer: ABB

Product Number: CI868K01-eA 3BSE048845R2

Product Type: Communication Interface module

Place of Origin: Switzerland

Price Range: $3600

✓ Payment Method: Telegraphic Transfer (T/T)

✓ Warranty Period: 12 months

✓ In Stock

✓ On-site Inspection Supported

Mail： plcdcs-module@foxmail.com

Phone/Wechat/Whatsapp：+86 15359254348

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication.

CI868K01-eA (Order No. 3BSE048845R2) —— a high-performance IEC 61850 communication interface module engineered exclusively for the ABB AC 800M control system. Designed primarily to enable standardized communication and seamless integration with Intelligent Electronic Devices (IEDs) in substation automation scenarios, it supports real-time data exchange and communication redundancy. Ideal for harsh operating environments such as power generation and industrial control, this module serves as a key enabler for interconnectivity between the AC 800M system and IEC 61850-compliant devices.

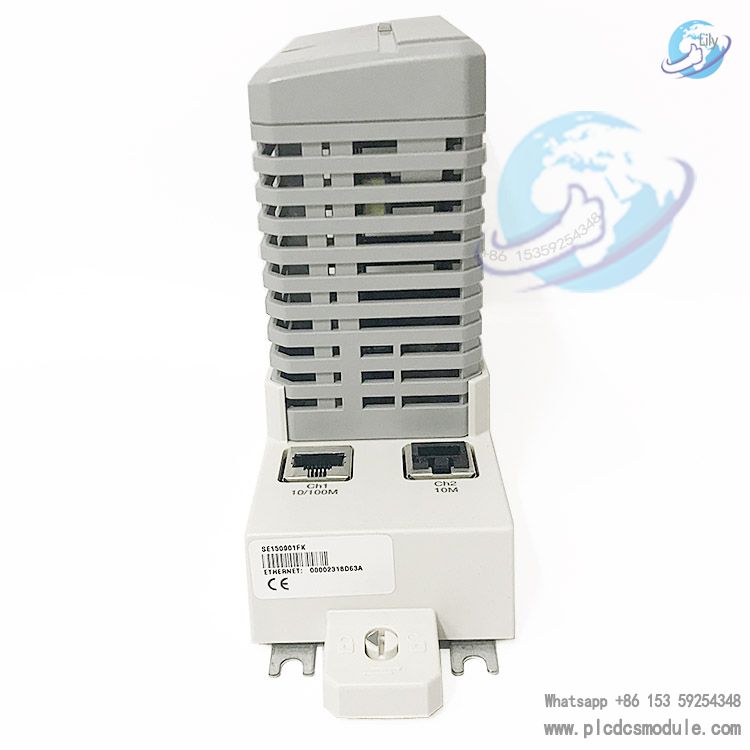

ABB CI868K01-eA 3BSE048845R2 AC 800M Communication Interface module.....jpg

Core Positioning and Protocol Capabilities

System Compatibility: Exclusively compatible with ABB AC 800M controllers, it seamlessly integrates into the System 800xA automation platform and supports collaborative operation with SIL3-certified controllers such as PM857, PM863, PM865 and PM867.Protocol Stack: Natively supports IEC 61850 Edition 1, incorporating MMS client functionality and GOOSE publish/subscribe features. It meets the requirements for standardized transmission of real-time telemetry, remote signaling, remote control and event alarms in substation automation scenarios.Communication Role: Operates as an IEC 61850 Slave, compatible with 10/100 Mbps adaptive Ethernet. It supports Line Redundancy to ensure uninterrupted communication continuity.

Technical Specifications

Model / Order No.: CI868K01-eA / 3BSE048845R2Physical Dimensions: 185 mm (height) × 59 mm (width) × 127.5 mm (depth)Weight: Approximately 700 g (0.7 kg) including the baseMounting Method: DIN rail mounting (compatible with standard 35 mm rails), requiring the TP867 base (60 mm width) for installationPower Supply: 24 V DC (supplied by the AC 800M system backplane or external redundant power supply)Redundancy Support: Line Redundancy with Hot Swap capabilityOperating Temperature: -40°C to +70°CElectromagnetic Compatibility: Complies with EN 50581:2012 (RoHS) and the EN 61000 series of industrial EMC standards

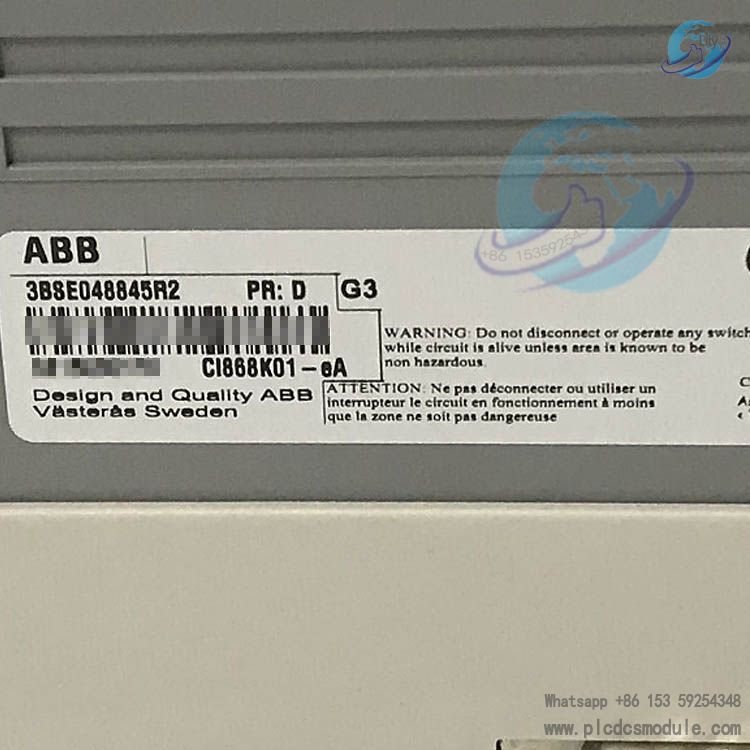

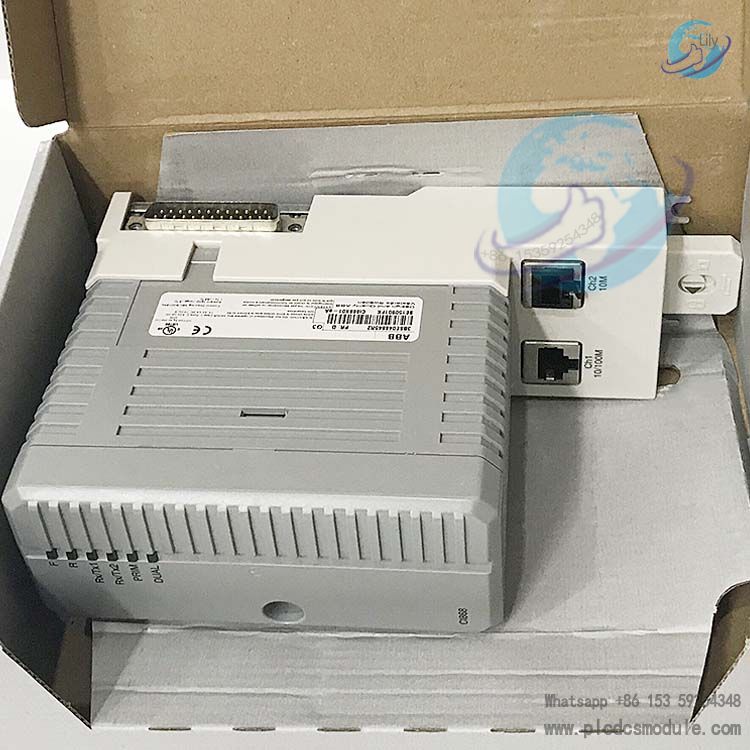

ABB CI868K01-eA 3BSE048845R2 AC 800M Communication Interface module...jpg

Functions and Advantages

Standardized IEC 61850 Integration

It directly interfaces with IEC 61850-compliant Intelligent Electronic Devices (IEDs) such as protection relays, intelligent terminals and merging units without protocol conversion, significantly simplifying the design of secondary circuits in substations.

The GOOSE mechanism enables millisecond-level event transmission, meeting the requirements for rapid response to power grid faults; the MMS protocol ensures the reliable execution of non-real-time services including parameter configuration and data archiving.

High-Reliability Redundant Design

It supports dual Ethernet link redundancy, with automatic switchover in the event of link failure to ensure uninterrupted communication without any disruption.

The module is hot-swappable, allowing maintenance operations to be performed without system shutdown and significantly improving overall system availability.

Ease of Engineering and Operation & Maintenance

Integrated LED status indicators provide intuitive visualization of power supply, communication activity, link status and fault alarms, enabling quick troubleshooting.

Configuration and diagnostics are unified via AC 800M engineering tools, with support for import and export of IEC 61850 SCL files to shorten commissioning cycles.It is compatible with the redundant controller architecture of the AC 800M system, making it suitable for integrated process and safety application scenarios.

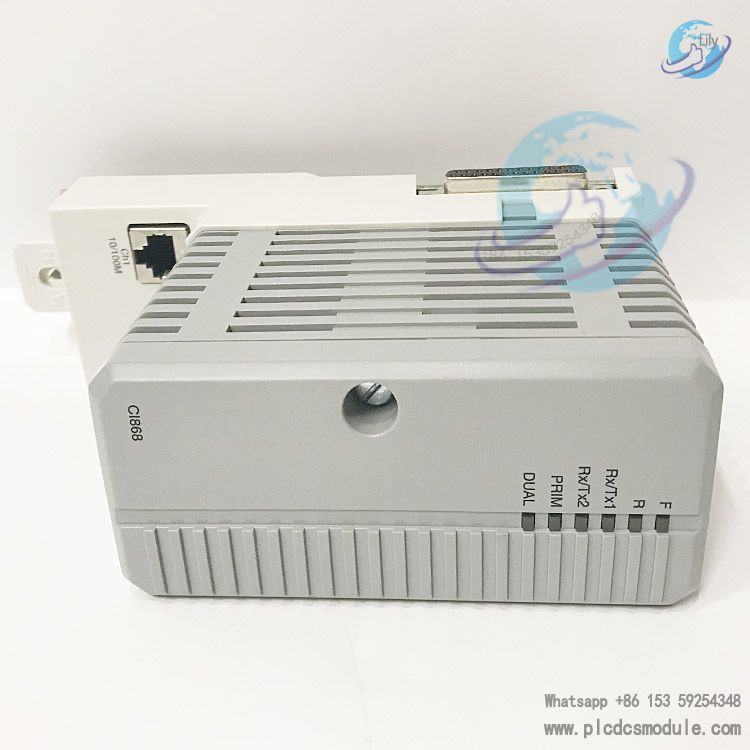

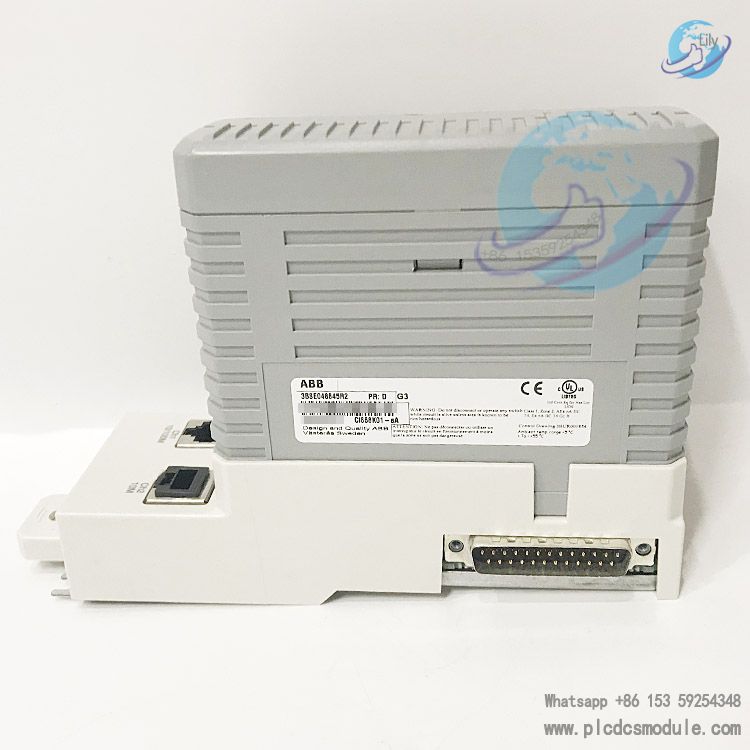

ABB CI868K01-eA 3BSE048845R2 AC 800M Communication Interface module.jpg

Application Scenarios

Substation Automation: Serves as the communication bridge between the bay level and station control level of 110 kV–750 kV substations, enabling centralized monitoring and data aggregation of protection, measurement & control, metering and other IEDs with the AC 800M system.

New Energy Grid Integration: Facilitates communication at booster stations of wind farms and photovoltaic power plants, supports standardized access to power grid dispatching systems, and meets the requirements for grid-connected data interaction and remote control.

Industrial Power Monitoring: Enables automation of distribution stations in large-scale petrochemical, metallurgical and other plants. It uniformly collects power data via the IEC 61850 protocol, improving energy management efficiency and power supply reliability.

Power Grid Edge Control: Acts as a communication gateway between distribution automation terminals (FTU/DTU) and the AC 800M system, supporting rapid collaboration for distribution network fault location, isolation and restoration.
