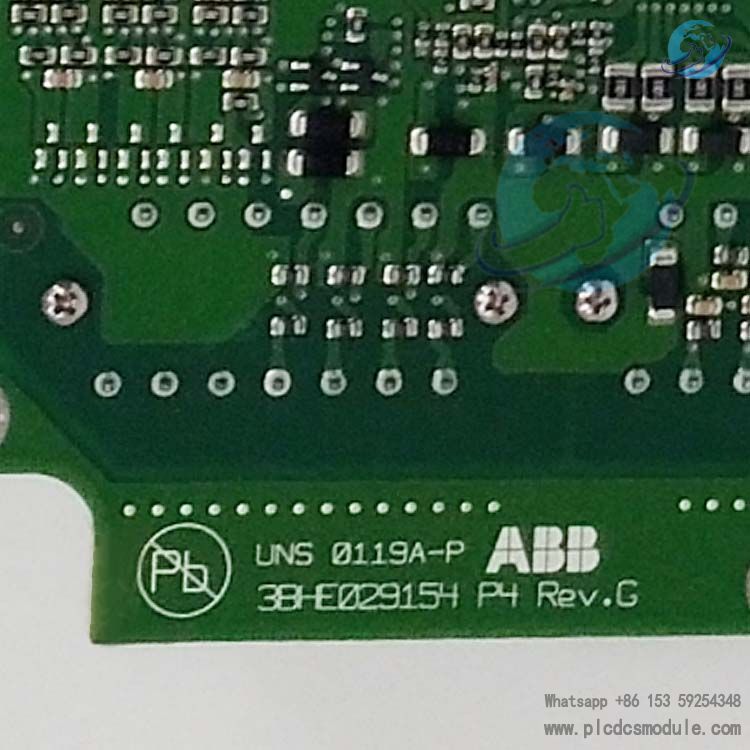

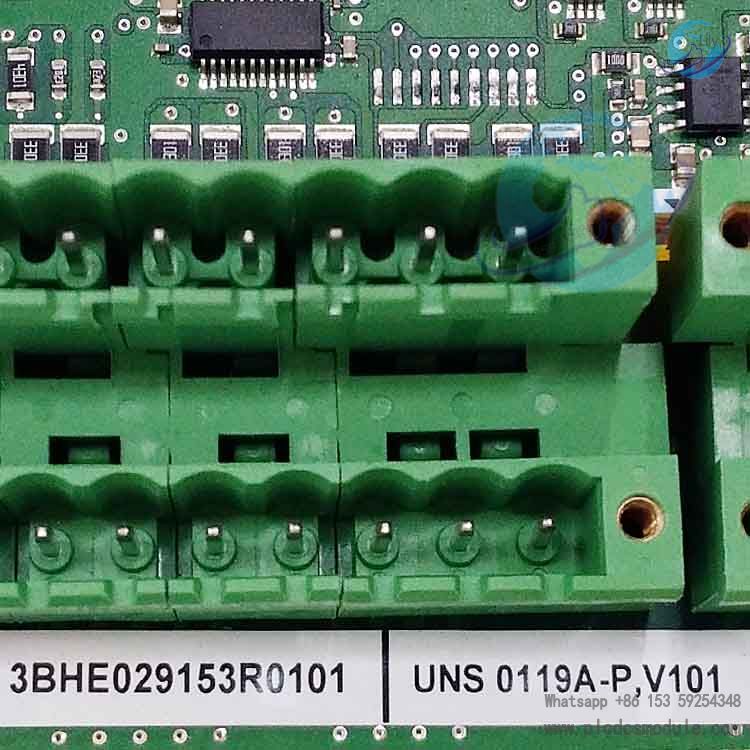

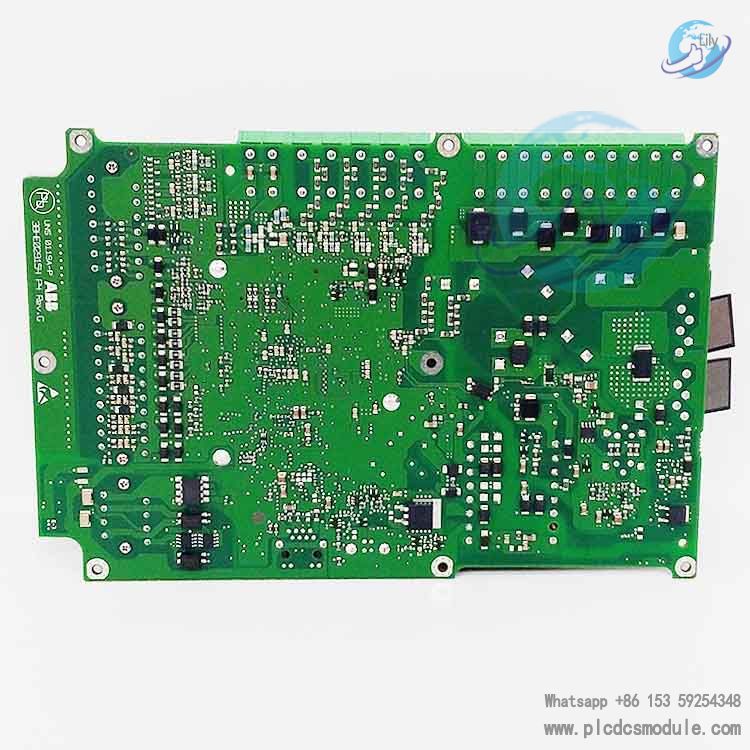

ABB UNS0119A-P V101 3BHE029153R0101 is a digital input sub-module PCB board designed for industrial automation applications. It is primarily compatible with ABB DCS and PLC systems, with its core function being to collect digital signals from external devices and convert them into system-recognizable signals, thereby enabling real-time monitoring and control of field devices. Meanwhile, it supports a variety of industrial communication protocols, and can be flexibly integrated with other modules via the backplane bus. Featuring high reliability, strong anti-interference performance and modular design, it is capable of adapting to harsh industrial environments, and serves as a critical component in automatic control systems for industries such as chemical engineering, metallurgy, electric power and water treatment.
Basic Parameters
Core Functions
- Digital Signal Acquisition and ConversionPrecisely acquires 24 channels of digital input signals from external devices, completes signal level conversion and format adaptation, ensures stable recognition and reading of signals by PLC/DCS systems, and provides basic data support for system control logic.
- Multi-protocol Communication and InterconnectionCompatible with mainstream industrial communication protocols including Modbus RTU, Profibus DP, CANopen, Modbus TCP, Profinet and EtherNet/IP. It enables high-speed data interaction with SCADA, DCS, PLC and other devices via RJ45 interfaces, meeting the communication requirements of distributed control systems.
- Backplane Bus IntegrationRealizes seamless connection with other functional modules (such as processor modules, output modules, communication modules, etc.) via the system backplane bus, achieves data sharing and collaborative work between modules, and enhances the overall system integration and expansion capability.
- Anti-interference and Reliability AssuranceAdopts industrial-grade components and special circuit design, featuring excellent electromagnetic interference (EMI) resistance. It can withstand electromagnetic noise, voltage fluctuations and other interferences in industrial field environments, ensures the accuracy of signal acquisition and transmission, adapts to harsh working conditions such as vibration and dust, and supports long-term stable operation.
- Rapid Response and Real-time MonitoringWith a fast response time of 550μs, it can capture the status changes of on-site equipment in real time, facilitate the system to execute control commands promptly, and is suitable for industrial control scenarios with high requirements for response speed.
Installation and Maintenance
- Installation SpecificationsThe module shall be installed in a control cabinet compliant with industrial standards, ensuring a dry and well-ventilated installation environment free from dust, corrosive gases and other contaminants. Wiring must be strictly performed in accordance with interface markings. Parameters such as power supply voltage and signal type shall be verified to prevent module damage caused by wiring errors.
- Maintenance EssentialsPeriodically inspect the module for loose wiring connections and clean interfaces. Utilize the system diagnostic function to monitor module operating status and troubleshoot faults such as communication anomalies and signal loss in a timely manner. In the event of module failure, the faulty unit can be replaced quickly thanks to its modular design. After replacement, communication parameters and input signal types shall be reconfigured to ensure compatibility with the system.
