Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The TOSHIBA UTLH21 TC-net100 Optical Shared HUB is an optical fiber shared hub launched by Toshiba for the TC-net100 network in the industrial automation field. It is mainly used to construct TC-net100 optical transmission lines, connect I/O modules in the network, and manage data transmission and network traffic. Featuring high-speed communication, high reliability and a rugged design adapted to harsh industrial environments, it provides stable and efficient transmission support for data interaction of industrial control systems. It is often used in conjunction with master hubs such as the UTNH21A and UTNH21B to ensure the redundancy and expandability of the network.
related documents
nvSeries-Controller pdf.pdf
Core Functional Features
Network Adaptability and Transmission Performance
It is compatible with the TC-net100 network and complies with the 100BASE-FX optical transmission standard of 100Mbps. Adopting Toshiba's proprietary DOMA (Deterministic Ordered Multiple Access) transmission control method, it can assign transmission rights to nodes within a specific time to ensure deterministic response and meet the real-time requirements of industrial control.
It supports network loops and dual paths to achieve transmission path redundancy and improve the reliability of data transmission. When the main path fails, it can quickly switch to the standby path, reducing the risk of data transmission interruption.
Built-in signal processing mechanism enables efficient management of network traffic, reduces data conflicts, ensures smooth data interaction between I/O modules, and adapts to the concurrent communication scenarios of multiple devices in industrial sites.
Port and Connection Capability

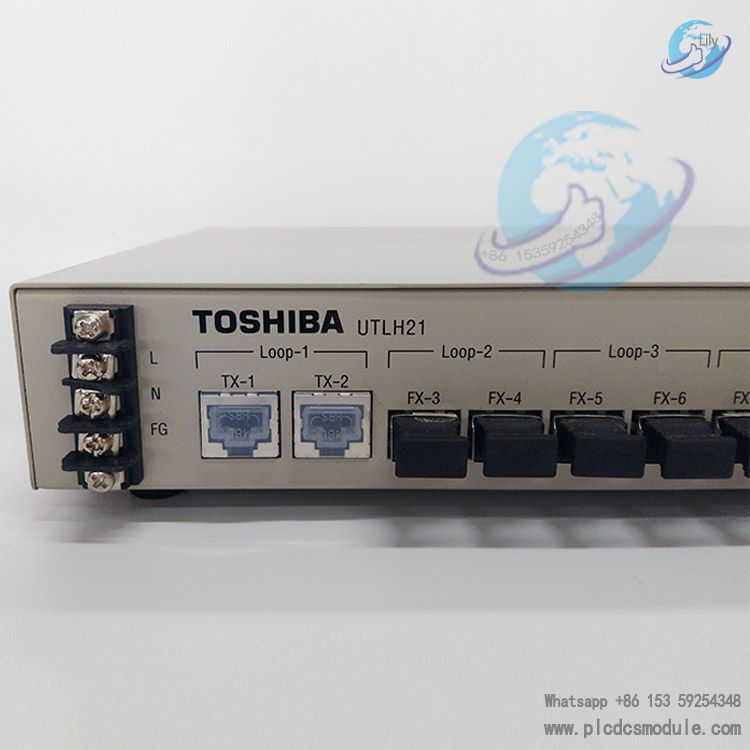

Equipped with multiple optical ports with MT-RJ connectors, it can connect multiple I/O modules and other TC-net100 devices. It supports an optical fiber transmission distance of up to 2km, meeting the long-distance wiring requirements of industrial sites.
It supports stackable connection and can be used with slave hubs such as UTNH22 to flexibly expand the number of network ports, adapting to the networking needs of industrial control systems of different scales.
Cooperating with equipment such as optical jumpers and relay connectors, it can realize flexible connection between different areas and devices, adapting to the complex wiring environment of industrial sites.
Industrial-Grade Reliability Design
Adopting a robust industrial-grade housing design, it has excellent anti-electromagnetic interference, dustproof and moisture-proof performance, and can adapt to the harsh working environments of industrial sites such as high temperature, vibration and dust.
It supports DIN rail or panel mounting with flexible installation methods, facilitating integration into industrial control cabinets, saving installation space and improving the stability of equipment installation.
Some models have built-in SNMP (Simple Network Management Protocol), which enables remote monitoring and management of the network, timely detection and troubleshooting of network faults, and reduction of operation and maintenance costs.
Communication and Management
Communication Protocol: It is compatible with the TC-net protocol and enables seamless communication with controllers, I/O modules and other devices in the TC-net100 network, ensuring the compatibility and consistency of data transmission.
Management Functions: Serving as the communication hub in the network, it can centrally manage data transmission, including data forwarding, traffic control and error detection. It also supports network status monitoring and can feed back real-time information such as port connection status and data transmission rate, facilitating operation and maintenance personnel to grasp the network operation status.
Technical Parameter Overview
Transmission rate: 100Mbps (100BASE-FX);
Transmission medium: 62.5/125μm or 50/125μm silica optical fiber;
Maximum transmission distance per optical fiber segment: 2km;
Connector type: MT-RJ connector;
Installation method: DIN rail mounting or panel mounting;
Operating environment: Industrial-grade with anti-electromagnetic interference, dustproof and moisture-proof performance;
Adapted network: TC-net100 industrial control network
Application Scenarios
This product is widely applied in the control systems of industrial automated production lines, smart factories, electric power, metallurgy, chemical engineering and other fields. It is used to construct TC-net100 optical transmission networks, connect on-site I/O modules with control centers, and achieve high-speed and reliable data transmission to ensure the stable operation of industrial control systems. It is especially suitable for key production processes with high requirements for communication real-time performance and reliability, such as production line automatic control, equipment status monitoring, data acquisition and analysis and other scenarios.
