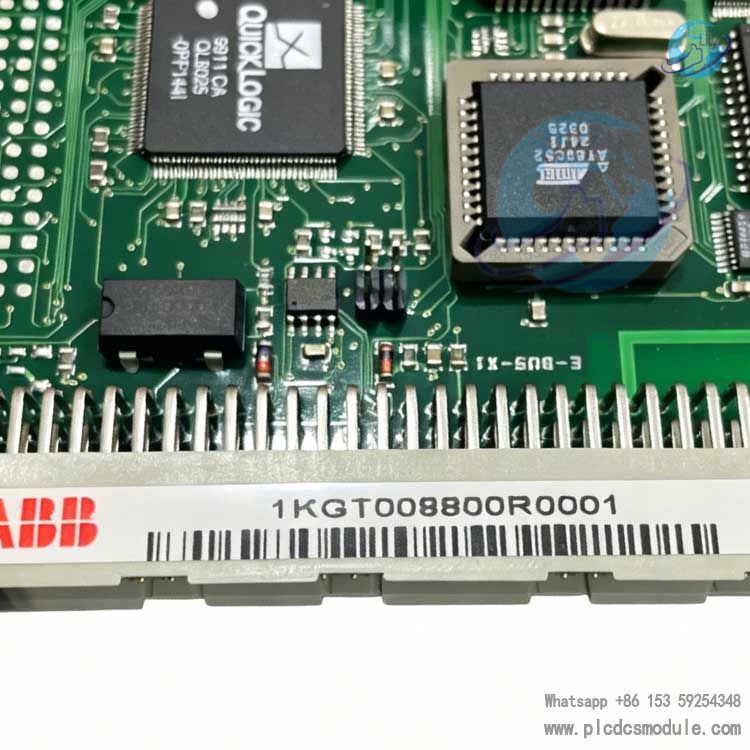

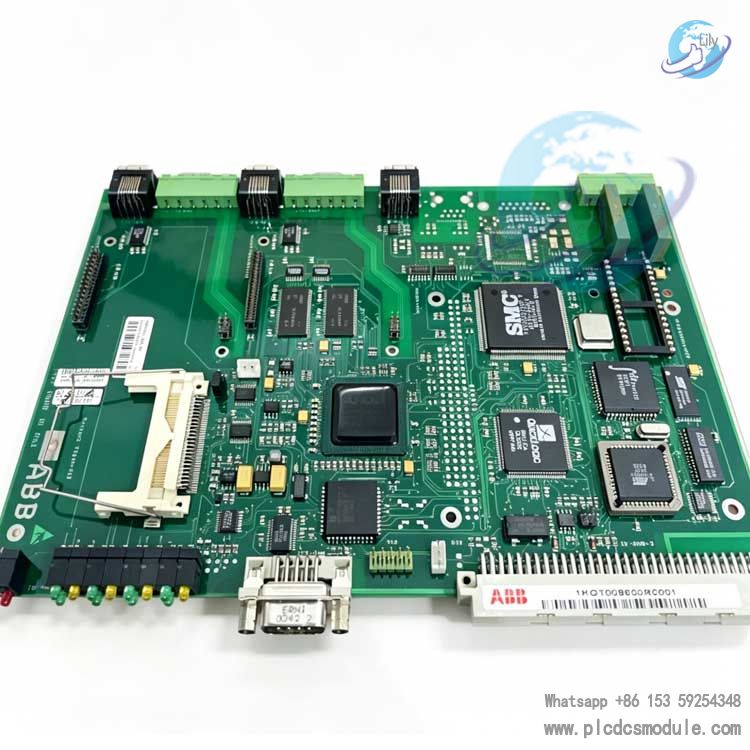

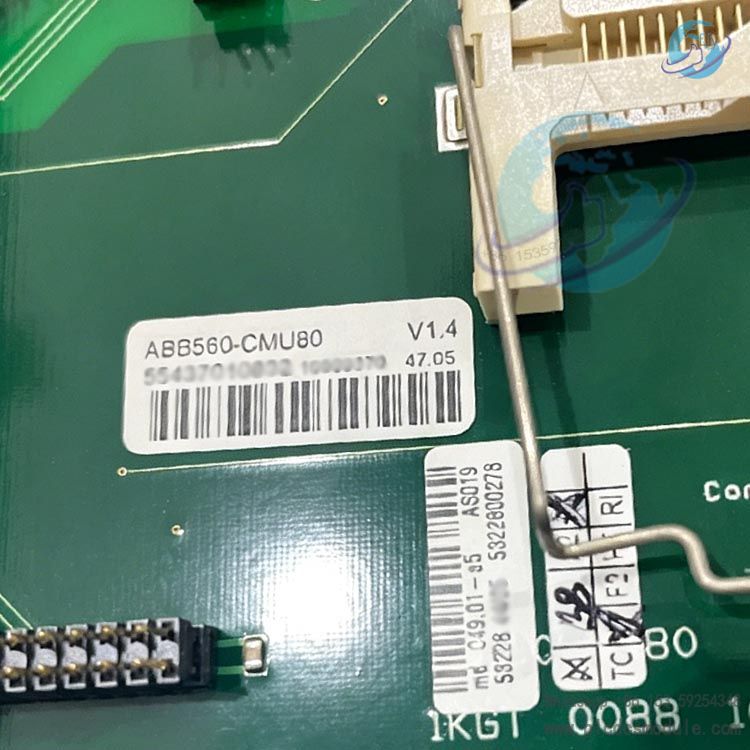

ABB 560CMU80R1  1KGT008800R0001 is the core communication and control module of the ABB RTU560 series Remote Terminal Unit (RTU). It features data acquisition, protocol conversion, edge computing and multi-link redundant communication. It is widely applied in SCADA systems and distributed control systems for critical infrastructure such as power, water conservancy, oil and gas industries.

Product Advantages

Industrial-grade High-reliability ArchitectureWide temperature range (-20℃ ~ +70℃), excellent EMC electromagnetic interference resistance, and coated PCB with moisture and dust protection, suitable for harsh environments of substations and field stations.Multi-protocol Fusion GatewayNatively supports IEC 60870‑5‑101/104, DNP3.0, Modbus RTU/TCP. It enables protocol conversion between serial ports and Ethernet, reducing integration costs of heterogeneous systems.Real-time Edge Processing CapabilityEquipped with 32-bit ELAN 400 processor (66MHz) and 4MB DRAM (expandable to 16MB). It supports local logical operation, event preprocessing and data caching to reduce the load on the host computer.Flexible Redundancy and ExpansionDual Ethernet plus multi-serial port configuration supports network redundancy and link backup. The modular design allows on-demand expansion of I/O and communication daughter cards.

Product Features

1. Hardware Specifications

Model: 560CMU80R1Part No.: 1KGT008800R0001CPU: 32-bit ELAN 400, 66MHzMemory: 4MB DRAM (optional 16MB), 2MB FlashCommunication Interfaces:Serial Ports: 2 × RS232 (50~38400bps), 1 × RS485 (up to 19200bps)Ethernet: 1 × 10BaseT (dual Ethernet port expansion optional)Bus: SPB serial peripheral bus, WRB I/O expansion busPower Supply: 24VDC ±20%, power consumption ＜10WDimension: Standard DIN rail mounting, occupies 2 slotsEnvironment:Operating temperature: -20℃ ~ +70℃Storage temperature: -40℃ ~ +85℃Protection grade: IP30

2. Software & Functional Features

Real-time Operating System: Supports multi-task scheduling and millisecond-level event response.Protocol Stack: IEC 60870‑5‑101/104, DNP3.0, Modbus RTU/TCP, ASCII.Data Functions: Local data caching, historical logging, Sequence of Events (SOE) recording.Redundancy: Dual Ethernet port redundancy, serial link backup, power redundancy support.Diagnostics: Built-in Web server, remote firmware upgrade, port status monitoring.

Application Scenarios

Power IndustrySubstation RTU, distribution automation terminal, data acquisition and monitoring for wind power and photovoltaic stations.Water Conservancy & Water SupplyRemote control of reservoirs and sluices, process monitoring of water plants, hydrological data telemetry.Oil & Gas PipelineRemote monitoring of pump stations and valve chambers, flow and pressure data collection, leakage early warning.Industrial AutomationFactory distributed I/O control, production line data acquisition, legacy system renovation and upgrading.Rail TransitTraction power supply monitoring, tunnel environmental monitoring, data interaction of signal systems.

Operation Guide

1. Installation and Wiring

• RS232: Cross-connect TX/RX/GND; default baud rate is 9600bps.
• RS485: Differential connection for Line A and Line B; enable 120Ω terminal resistor.
• Ethernet: Connect RJ45 port to switch; default IP address: 192.168.1.1.
• Bus Wiring: Connect SPB/WRB bus to I/O modules and confirm correct DIP switch address setting.

2. Configuration Steps

• Serial Port: Select RS232/RS485, configure baud rate, data bits, parity bit and stop bits.
• Ethernet: Set static IP, subnet mask and gateway; enable redundancy if required.

• Master Station: IEC 60870‑5‑104 master station for connection to SCADA server.
• Slave Station: Modbus RTU slave station for connection to PLCs and meters.

3. Maintenance and Diagnosis

FAQ – Frequently Asked Questions
