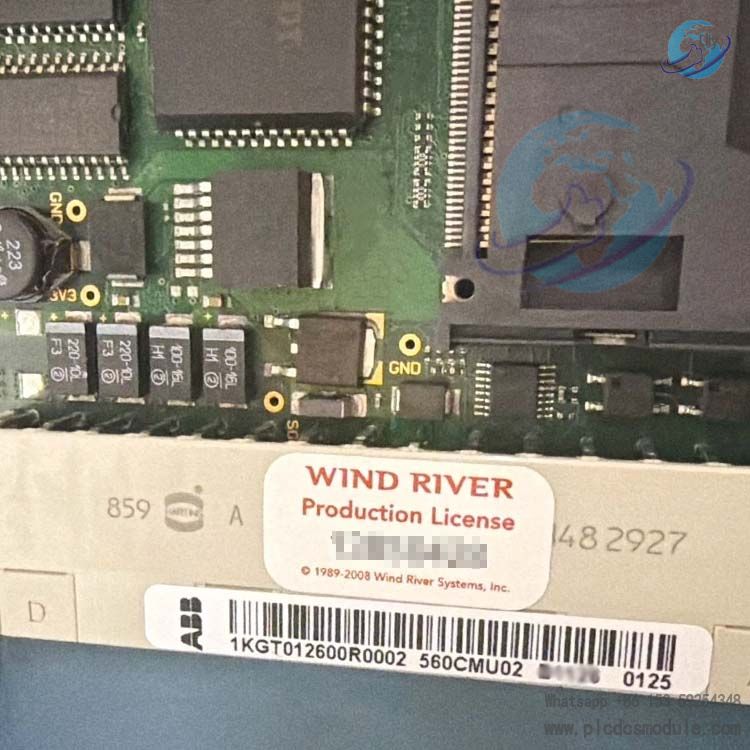

560CMU02 1KGT012600R0002 is the core communication processing module of the ABB RTU560 series remote terminal unit.It undertakes the functions of data acquisition, protocol conversion, I/O control and system communication hub.Specially designed for SCADA systems in power and industrial automation, it is a key component for building highly reliable distributed monitoring systems.
Product Advantages
Highly Integrated Communication ArchitectureA single module integrates multiple serial ports, Ethernet and I/O bus, replacing multi-card stacking. It simplifies system structure and reduces wiring complexity as well as potential failure points.
Industrial-Grade ReliabilityWide temperature range from -25℃ to 70℃ with strong electromagnetic interference resistance. It supports hot swapping and redundant configuration, featuring an MTBF of over 100,000 hours, suitable for harsh industrial environments.
Multi-Protocol CompatibilityNatively supports mainstream protocols such as IEC 60870-5-101/104, Modbus RTU/TCP and DNP3, enabling seamless connection with third-party devices and master station systems.
Flexible ExpansionModular design allows compatibility with RTU560 series I/O modules, power supplies and clock modules, supporting smooth capacity expansion from small stations to large redundant systems.
Convenient Remote Operation & MaintenanceBuilt-in Web server supports remote configuration, diagnosis and firmware upgrade via Ethernet, lowering on-site maintenance costs.
Product Features
(1) Hardware Specifications

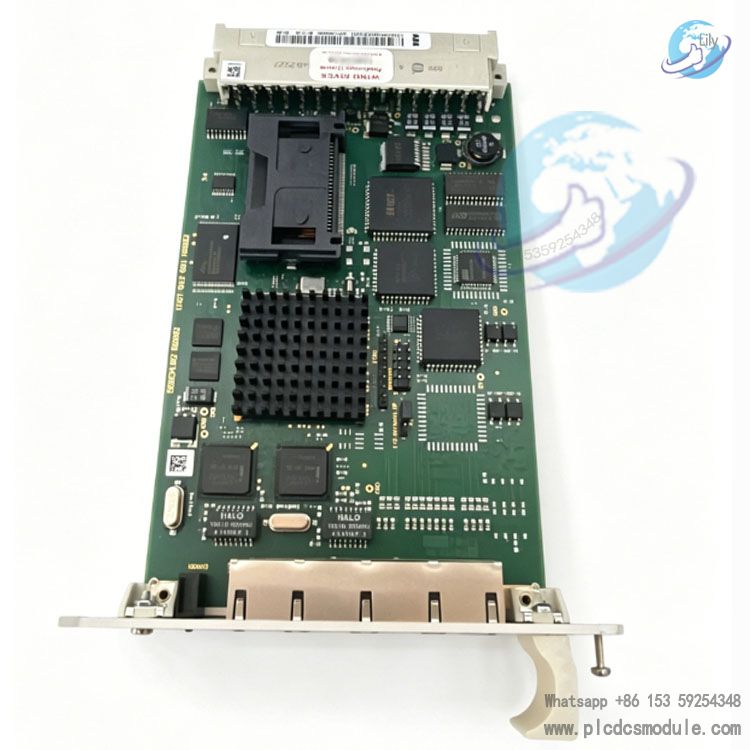

CPU: AMD ELAN520 @133MHz, 128MB Flash, 64MB RAM.

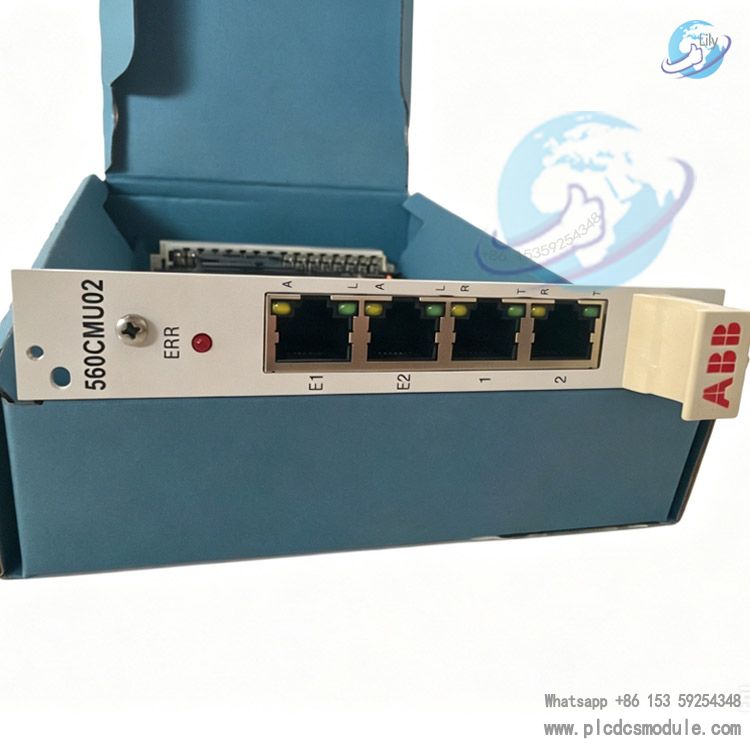

Communication Interfaces:Serial Ports: 3 channels (2×RS232, 1×RS485, RJ45);Ethernet: 1×10/100BaseT (RJ45);I/O Bus: 1×RS485 (backplane, for connecting local I/O modules).
Storage: 16KB dual-port RAM, supports storage expansion via CompactFlash card.
Environmental Parameters: Operating temperature -25℃~70℃, humidity 5%~95% (non-condensing), IP20 protection degree.
Physical Dimensions: Standard 19-inch rack single-slot unit, compatible with RTU560 rack mounting.
(2) Core Functions
Data Acquisition and ControlReads process events from I/O modules with 1ms time resolution, issues control commands, and supports local closed-loop control.
Protocol Conversion & Gateway FunctionEnables inter-conversion of multiple protocols, realizing seamless communication between RTU and master stations, IEDs, PLCs and instruments, and reducing the number of communication links.
Time SynchronizationSupports time synchronization via 560RTC0x clock module, GPS, SNTP and IRIG-B to ensure system-wide time consistency.
Redundancy SupportSupports module redundancy, network redundancy and power redundancy to meet high-availability scenarios such as power dispatching.
Event and Fault ManagementProvides event caching, fault recording, data encryption and identity authentication to ensure data security and traceability.
Application Scenarios
Power IndustrySubstation automation, power grid SCADA monitoring, distribution network terminals (FTU/DTU), and data acquisition for new energy (wind power / photovoltaic) systems.
Industrial AutomationOil and gas field monitoring, chemical process control, production line data acquisition, as well as equipment condition monitoring and remote diagnosis.
InfrastructureWater conservancy hub monitoring, urban water supply and drainage systems, rail transit signal control, and data transmission for environmental monitoring stations.
IoT GatewayServes as an edge computing node to connect sensors and actuators with cloud platforms, enabling industrial device networking and data cloud upload.
560CMU02 vs 560CMU05 Comparison
| Comparison Item | 560CMU02 (1KGT012600R0002) | 560CMU05 |
|---|---|---|
| Number of Serial Ports | 3 channels (2×RS232 + 1×RS485) | 4 channels (RS232/RS485 optional) |
| Ethernet Port | 1×10/100BaseT | 2×10/100BaseT (Redundant) |
| Application Scenarios | Small and medium-sized systems, single-network environments | Large redundant systems, dual-network high-availability scenarios |
| Price | Economy model | High-end model (approx. 30% higher) |
Frequently Asked Questions

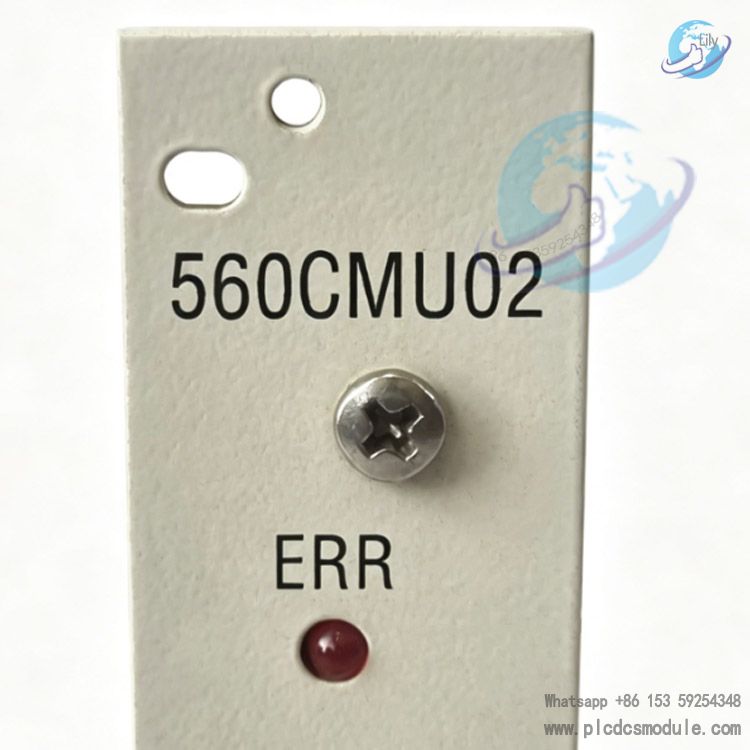

- Module ERR indicator stays solid on and communication fails.Troubleshooting:① Poor backplane contact — Reinsert the module firmly.② Abnormal power supply — Check the output of the redundant power supply.③ Corrupted firmware — Re-flash the firmware.④ Incorrect configuration — Restore factory defaults and reconfigure.
- Ethernet connection fails and the web page cannot be accessed.Troubleshooting:① IP address conflict — Modify the module IP.② Defective network cable — Replace the cable.③ Firewall interception — Disable the PC firewall.④ Damaged port — Switch to the spare Ethernet port (if available).
- Modbus serial port packet loss and garbled data.Troubleshooting:① Mismatched baud rate / parity bit — Unify parameters of master and slave stations.② Wrong wiring — Reversed positive and negative poles on RS485.③ Severe electromagnetic interference — Add shielding layer and terminal resistor.④ Slave address conflict — Modify the slave station address.
- Time synchronization failure and chaotic system time.Troubleshooting:① Incorrect NTP server address — Verify the server IP.② Network disconnection — Check Ethernet connection.③ Faulty clock module — Replace the 560RTC0x module.④ Wrong time zone — Set to the correct time zone (UTC+8).
- Does it support hot swapping? Will data be lost after plugging and unplugging?Answer: It supports hot swapping and does not affect the operation of other modules during replacement. Module configuration is stored in Flash, so no configuration is lost after power-off or reinsertion; settings will be loaded automatically after power-on.
- What is the maximum number of supported I/O modules?Answer: A single 560CMU02 supports up to 32 I/O modules via backplane bus expansion, meeting the I/O requirements of small and medium-sized systems.
