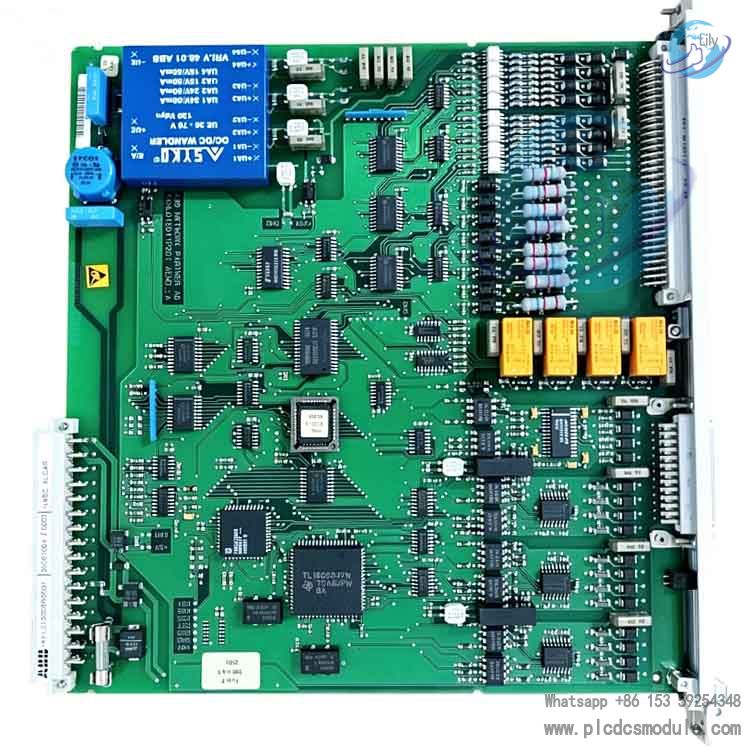

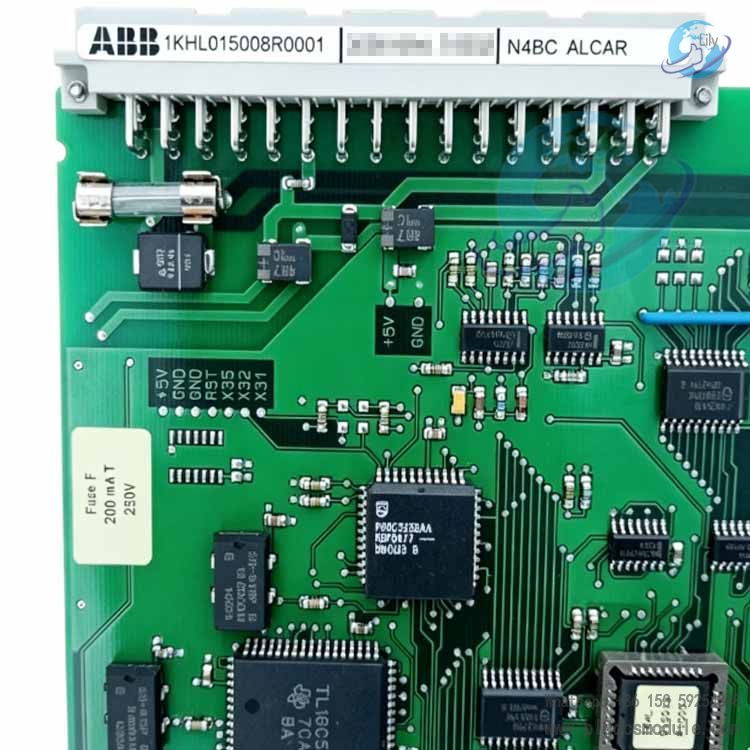

N4BC ALCAR 1KHL015008R0001 is an industrial-grade core printed circuit board (PCB) of ABB ALCAR series. It is specially designed for industrial automation control systems, serving as a key carrier for control loops and signal processing.It integrates power management, signal acquisition, data communication, and logic control functions, and is compatible with multiple series of ABB controllers and drive devices. Featuring high reliability, strong anti-interference capability and modular design, it is the preferred board for harsh industrial environments such as power, metallurgy and chemical industries.
Product Advantages
Industrial-grade ReliabilityAdopts 8-layer high-TG high-temperature resistant PCB material with built-in electromagnetic shielding inner layer and military-grade component selection. Its MTBF (Mean Time Between Failures) exceeds 100,000 hours, capable of operating stably in a wide temperature range of -25℃ to 70℃.
High Anti-interference CapabilityOptimized circuit routing via multi-layer PCB stacking technology combined with adaptive filtering design effectively reduces signal crosstalk, maintaining signal integrity under strong electromagnetic interference scenarios such as near electric arc furnaces and inverters.
Modular Compatibility DesignCompatible with mainstream ABB systems including AC800M and S800 I/O. It supports hot-swappable replacement and maintenance without system shutdown, greatly reducing equipment downtime.
Long Service Life & Corrosion ResistanceCoated with special three-proof coating (moisture-proof, salt-spray proof, mildew-proof), it resists erosion from industrial acidic gas and dust, extending the service life by more than three times.
International Certification AssuranceCertified by CE and UL, compliant with EU Machinery Directives and environmental standards, meeting market access requirements for global industrial applications.
Product Characteristics
Electrical CharacteristicsStandard 24V DC power supply (voltage range: 21.6V–26.4V); supports analog (4-20mA/0-10V) and digital signal input and output. The communication interface is compatible with Modbus RTU/TCP protocols.
Structural CharacteristicsDesigned for standard DIN rail mounting; the board size fits ABB standard racks. Gold-plated edge connectors ensure reliable contact after long-term plugging and unplugging.
Functional CharacteristicsIntegrated dual watchdog circuit (hardware + software) to monitor power fluctuations and program operation in real time, with automatic reset upon abnormality. It supports edge computing and can independently execute basic control logic under network disconnection.
Process CharacteristicsFully automatic SMT mounting technology with full and uniform solder joints. Every board undergoes 100% power-on testing and high-temperature aging testing to eliminate factory defects.
Application Scenarios
Power IndustryApplied in DCS control systems of thermal power, hydropower and wind power plants for boiler control, generator excitation regulation and power grid signal acquisition, ensuring stable operation of the power system.
Metallurgy IndustryUsed for temperature control of hot blast stoves in steel blast furnaces and electrode current regulation in non-ferrous metal smelting, capable of withstanding high temperature, heavy dust and strong vibration environments.
Chemical IndustrySuitable for reactor control as well as flow and pressure monitoring in PTA plants and coal chemical projects, resisting erosion from acidic gases and corrosive media.
Intelligent ManufacturingServes as motion control boards for semiconductor packaging equipment, CNC machine tools and industrial robots, realizing high-precision positioning and synchronous control.
Rail TransitApplied in high-speed railway signal control systems and metro traction control units to ensure precise coordination of train positioning, speed control and turnout interlocking.
Water Treatment IndustryUsed for dissolved oxygen control in aeration tanks of sewage treatment plants and flow regulation of dosing systems in waterworks, adapting to humid and bacteria-prone environments.
Frequently Asked Questions
Q1: The power indicator does not light up and the board is unresponsive after power-on.A: ① Verify the 24V DC input is normal and measure whether the voltage is within 21.6V–26.4V.② Check for reversed wiring or poor contact on the power terminals, as well as terminal oxidation and looseness.③ Inspect whether the board fuse is blown and replace it with a fuse of the same specification.④ If all checks are normal, the board’s switching power supply may be faulty; please contact ABB after-sales for inspection.
Q2: Large deviation and unstable data of signal input and output.A: ① Avoid laying signal cables in parallel with power cables; confirm single-end grounding of the shielding layer and re-standardize the wiring layout.② Calibrate signal parameters and measure standard signals (e.g. 4–20mA) with a multimeter.③ Check the wiring terminals for oxidation and looseness, then retighten them firmly.④ Install a signal filter if the site is subject to severe electromagnetic interference.
Q3: Communication failure; the host computer cannot detect the board.A: ① Check the communication cable for damage and poor connection, and ensure reliable grounding of the shielding layer.② Keep communication parameters (address, baud rate, protocol) consistent with the host computer; default baud rate is 9600bps.③ Confirm a 120Ω terminal resistor is installed at both ends of the communication bus.④ Restart the board and host computer. If the fault persists, the communication chip may be damaged.
Q4: Frequent alarms and flashing indicators during board operation.A: ① Check if the ambient temperature exceeds 45℃, ensure good ventilation of the control cabinet, and clean dust from cooling fans.② Inspect the board for moisture and dust accumulation, and clean it with anhydrous alcohol.③ Detect excessive fluctuation of supply voltage and install a regulated power supply if necessary.④ For overcurrent/overvoltage alarms, check external loads for short circuit and overload.
Q5: The system fails to recognize the new board and data is lost after replacement.A: ① Back up parameters of the original board before replacement; download and calibrate parameters for the new board.② Confirm the model of the new board is 1KHL015008R0001.③ Ensure the gold fingers are fully inserted into the slot without looseness or oxidation during installation.④ Restart the system for re-detection; contact ABB technical support if the problem remains unsolved.
Q6: Short service life and prone to aging and damage.A: ① Keep the installation environment free of corrosive gas and heavy dust, and perform regular three-proof maintenance.② Avoid long-term overload operation and strictly keep the supply voltage within the rated range.③ Regularly inspect capacitors and chips for bulging and discoloration, and replace aging components in a timely manner.④ Adopt original ABB parts instead of low-quality alternative products.
