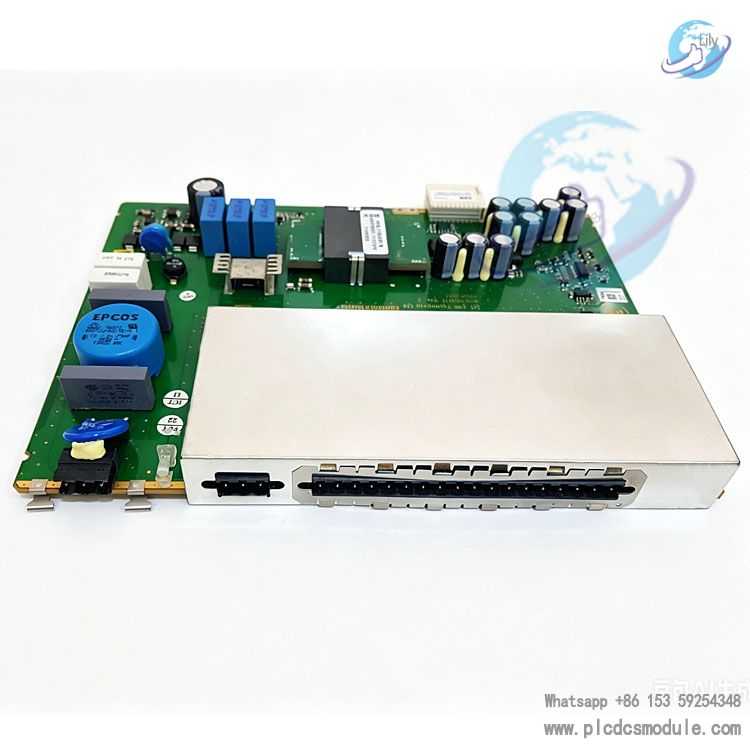

600PSM03 1KHL178016R0001G is a high-performance power supply PCB board specially designed by ABB for the System 800xA/9PX/9PXi (T3000/9000) DCS system. As the core power supply unit of the PSM03 series, it converts AC/DC input into stable multi-channel DC output, supplying clean and reliable power to controllers, I/O modules and field devices. It serves as the power core of industrial automation control systems.
Download the document
Product Advantages
High Stability and ReliabilityAdopts industrial-grade components and redundant design, with MTBF over 500,000 hours. It operates stably in a wide temperature range of -10℃~+50℃ and humidity of 5%~95% RH (non-condensing).
Wide Input for Global Power GridsSupports AC 100~240V±10%, 50/60Hz or DC 110~250V input, complying with global industrial voltage standards.
High Efficiency and Low Energy ConsumptionAdopts LLC resonant soft-switching technology, with power conversion efficiency ≥92%. Low heat generation at full load reduces long-term energy consumption and heat dissipation costs.
Comprehensive Protection MechanismIntegrates six major protection functions: overvoltage, undervoltage, overcurrent, short circuit, overheating and surge suppression. It automatically locks out and triggers alarms upon faults to prevent damage to downstream equipment.
High Anti-interference EMC DesignComplies with industrial EMC standards EN 61000-6-2/4. Built-in common-mode / differential-mode filtering and isolation shielding enable stable operation under high-noise and strong electromagnetic interference environments.
Compact Modular & Easy IntegrationStandard 3U size with backplane bus direct plug-in design. It supports hot swapping and redundant parallel operation, allowing maintenance without system shutdown and fitting various control cabinet layouts.
Product Characteristics
1. Technical Parameters
Model: 600PSM03 (Part No.: 1KHL178016R0001G)
Input: AC 100~240V / 50/60Hz; DC 110~250V
Output: +5V/10A, +24V/5A, +15V/2A, -15V/2A (multi-channel isolated)
Efficiency: ≥92% (full load at 25℃)
Protection: Overvoltage, undervoltage, overcurrent, short circuit, over temperature, surge
Operating temperature: -10℃~+50℃; Storage temperature: -40℃~+85℃
Humidity: 5%~95% RH (non-condensing)
Dimensions / Weight: 3U (160×233×25mm) / approx. 0.54kg
Certifications: CE, UL, RoHS, ATEX/IECEx (optional)
2. Hardware Design Features
PCB Material: High TG (170℃) flame-retardant substrate, high resistance to soldering temperature and aging.
Power Devices: Imported MOSFETs + fast recovery diodes, featuring low conduction loss and high switching speed.
Monitoring Circuit: 3-channel NTC temperature sensors plus real-time voltage and current sampling for accurate fault location.
Communication Interface: Supports Modbus RTU; enables remote monitoring of input/output voltage, current, temperature and fault codes.
Application Scenarios
Power & EnergyPower supply for DCS systems in thermal power, hydropower and nuclear power plants, as well as power station monitoring and protection devices.
Petrochemical IndustryPower supply for control systems and field instruments in hazardous areas of refineries and natural gas processing plants.
Metallurgy & SteelStable power supply for automation control of blast furnaces, rolling lines and continuous casting machines, adapting to high-temperature and high-dust environments.
Rail TransitRedundant power supply for signal and control systems of subways and light rails, covering both on-board and ground equipment.
Intelligent ManufacturingPrecision power supply for PLCs, robots and vision systems in automobile manufacturing and semiconductor factories.
Water TreatmentLong-term operation in high-humidity environments for automation systems of municipal sewage treatment and seawater desalination plants.
Operation Manual
1. Pre-installation Preparation
Model verification: Confirm the model is 600PSM03 / 1KHL178016R0001G; inspect the unit for no appearance damage and undamaged ports.
Environmental requirements: Operating temperature -10℃~+50℃, humidity ≤95% RH (non-condensing), well-ventilated, and free of strongly corrosive gas.
Tools required: Anti-static wristband, Phillips screwdriver, multimeter, cable ties.
2. Installation Steps
Anti-static precautionsWear an anti-static wristband to prevent static electricity from damaging PCB components.
Cabinet mountingInsert the module into the 3U slot and fasten the panel fixing screws with a torque of 0.8~1.0 N·m.
Wiring connection
- Input: For AC, connect L / N / PE; for DC, connect positive / negative / ground, wire gauge ≥1.5mm².
- Output: Connect +5V / +24V / ±15V to the corresponding load; ensure power matching and correct polarity.
- Communication: Connect RS485 to A / B / GND; fit 120Ω terminal resistor at the first and last node.
Redundancy configuration (optional)Parallel connection of dual modules via current-sharing bus; automatic switchover upon fault occurrence.
3. Power-on Commissioning
Wiring inspectionVerify correct input / output / communication wiring, no short circuit, and reliable grounding.
No-load power-onSwitch on the input power; the panel PWR green indicator stays steady on, and output voltage is within ±5% tolerance.
Full-load testConnect rated load and run for 30 minutes; ensure surface temperature ≤60℃ with no abnormal noise.
Communication verificationRead voltage, current and temperature data via Modbus on the host computer; confirm parameters are readable and writable.
4. Routine Maintenance
Quarterly maintenance (every 3 months)Clean the heat dissipation air duct, check tightness of wiring terminals, and calibrate output voltage accuracy.
Troubleshooting
- Red light flashing: Overvoltage / Undervoltage
- Red light steady on: Overcurrent / Short circuit / Overheating
- Communication abnormality: Check wiring, terminal resistor and address conflict
Frequently Asked Questions
- Q: The PWR indicator is off and there is no output after power-on.A:① Check if the input power is normal (AC 100~240V / DC 110~250V);② Check whether the input fuse is blown (replace with a 5A fuse of the same specification);③ Verify correct wiring polarity and grounding;④ Internal module fault, please contact ABB after-sales service for maintenance.
- Q: The PWR indicator flashes and the output is unstable.A:① Input voltage fluctuation exceeds ±10%, install a regulated power supply;② Load short circuit or overload, disconnect the load for troubleshooting;③ Poor heat dissipation (temperature over 60℃), clean the air duct and improve ventilation;④ Internal component aging, replace the module.
- Q: Current sharing fails after redundant parallel connection with uneven load distribution.A:① Current-sharing bus not connected or poor contact, refasten the connection;② Incorrect module address setting, configure Master/Slave mode according to the manual;③ Batch difference between modules, replace with modules from the same batch;④ Unbalanced load impedance, adjust load distribution.
- Q: Modbus communication fails and parameters cannot be monitored.A:① Wrong wiring (A/B reversed or GND not connected), rewire correctly;② Missing or incorrect terminal resistor (install 120Ω resistor at the first and last node);③ Wrong communication address or baud rate (default address: 1, baud rate: 9600);④ Upper computer serial port failure, replace the serial port for testing.
- Q: Red indicator stays steady after running for a period of time, triggering over-temperature protection.A:① Ambient temperature exceeds 50℃, improve cabinet ventilation and install a cooling fan;② Load exceeds rated power, reduce the connected load;③ Blocked heat dissipation air duct, clean dust buildup;④ Internal fan failure (if equipped), replace the fan.
- Q: Can it replace the old PSM03 model (1KHL178016R0001F)?A:Fully compatible. The 600PSM03 is an upgraded version with identical pin definition, installation dimensions and communication protocol. It can be directly plug-and-play replaced, featuring better performance with higher efficiency and wider operating temperature range.
- Q: Is it suitable for use in hazardous explosive areas?A:Yes. Optional ATEX / IECEx Ex ib IIC T4 explosion-proof certification is available, suitable for hazardous area applications such as petrochemical and natural gas industries.
