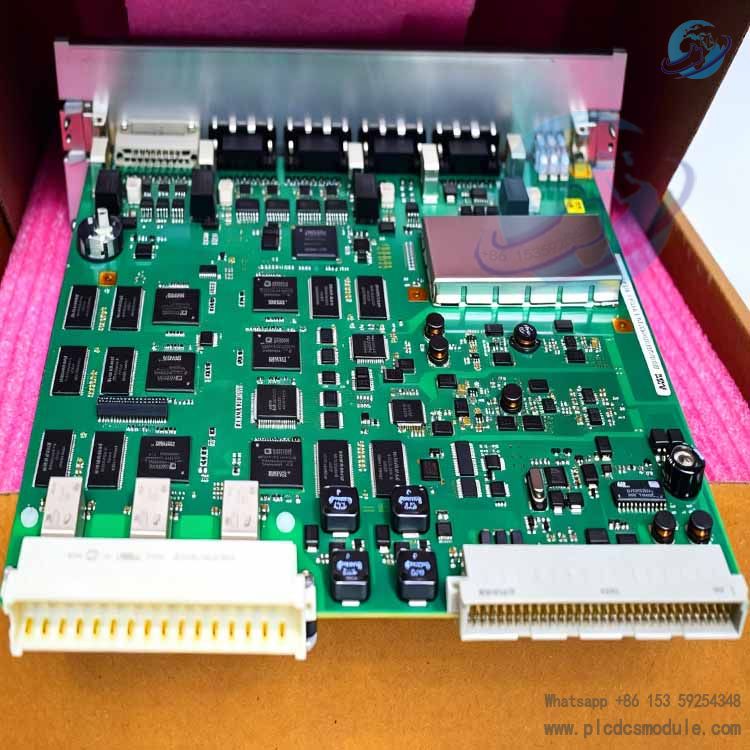

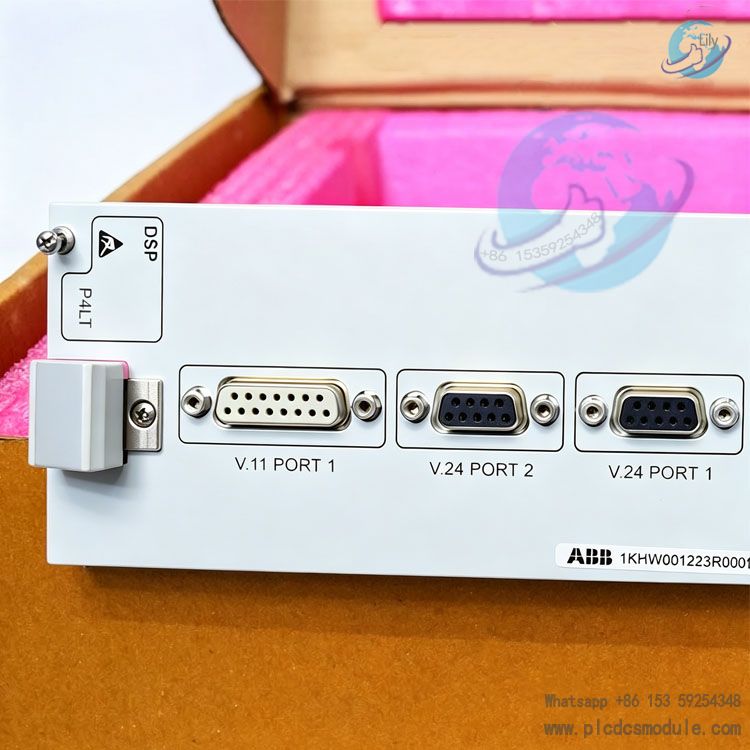

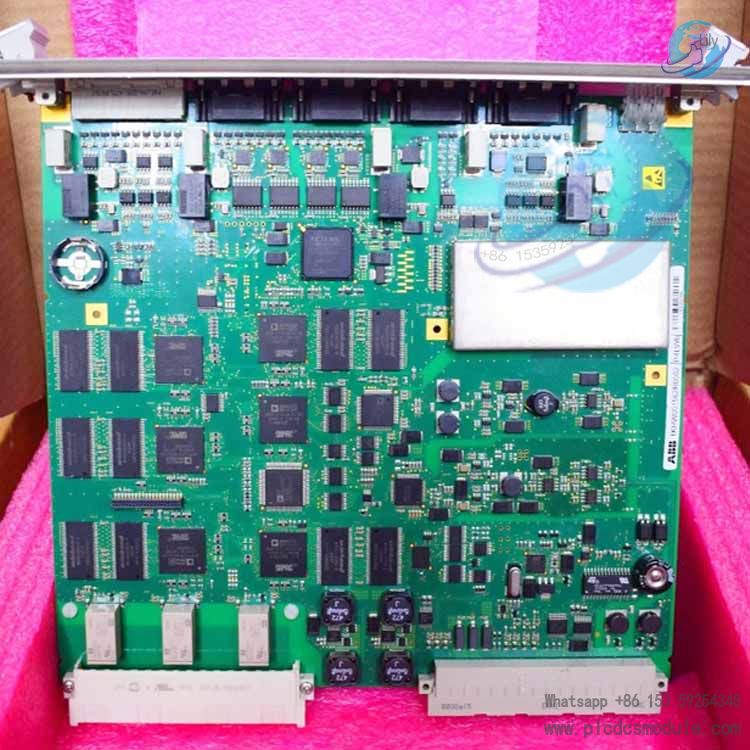

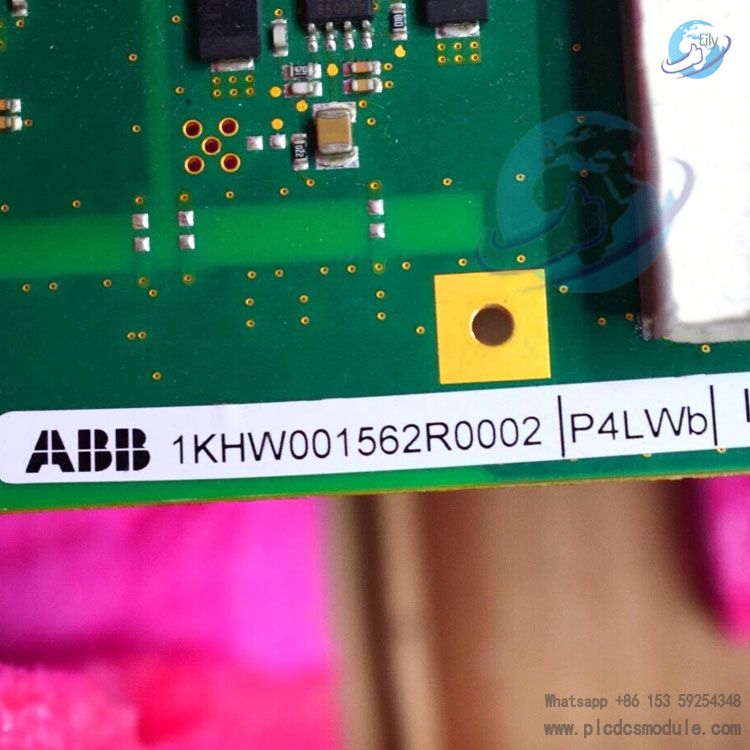

ABB DSP P4LT (1KHW001223R0003) and P4LWb (1KHW001562R0002) are the core control and signal processing cards for the ABB ETL600 power line carrier communication system. Manufactured in Switzerland, they are industrial-grade DSP modules with high reliability. The P4LT performs LF/RF signal conversion, modulation and demodulation, while the matching P4LWb handles link control and data exchange. These modules are widely deployed at critical communication nodes in power grids, energy facilities and industrial automation systems.
Application Scenarios
Power GridHigh and medium voltage power line carrier communication, data transmission for substations and transmission lines (e.g., SCADA and relay protection signals).
Energy IndustryRemote monitoring of oil & gas pipelines, wind and photovoltaic power stations, as well as feedback of equipment status and production data.
Industrial AutomationEquipment networking in workshops and communication between PLC/DCS systems, enabling stable data interaction in harsh environments.
Rail TransitCommunication for signal and control systems along railway lines to ensure traffic safety and scheduling data transmission.
FAQ
Q: Are P4LT and P4LWb required to be used together?A: Yes. P4LT handles signal conversion while P4LWb performs link control. Complete power line carrier communication functions can only be realized when they work as a set.
Q: Which systems are compatible? Can it replace older models?A: It fits the ETL600 power line carrier system and serves as a direct replacement for legacy models of the same series with excellent compatibility.
Q: The green RDY indicator is off and the red SYS indicator stays on. How to troubleshoot?A: ① Verify the 24VDC power supply; ② Re-seat the module and clean backplane contacts; ③ Check fault logs via HMI600 and resolve issues accordingly.
Q: Communication is interrupted and the red LNK indicator flashes. What are the causes and solutions?A: This is mostly caused by link interference or weak signals. ① Inspect antenna and wiring connections; ② Adjust the communication frequency band; ③ Optimize grounding to mitigate electromagnetic interference.
Q: Is additional heat dissipation required when the module runs at high temperature?A: Natural convection cooling is sufficient with no extra heat dissipation needed. If the temperature exceeds 70°C, check for blocked air ducts and improve ventilation.
Q: Can the faulty module be replaced via hot swapping?A: Hot swap is supported. Confirm the spare module works properly before replacement. Configuration will be synchronized automatically without communication outage.
