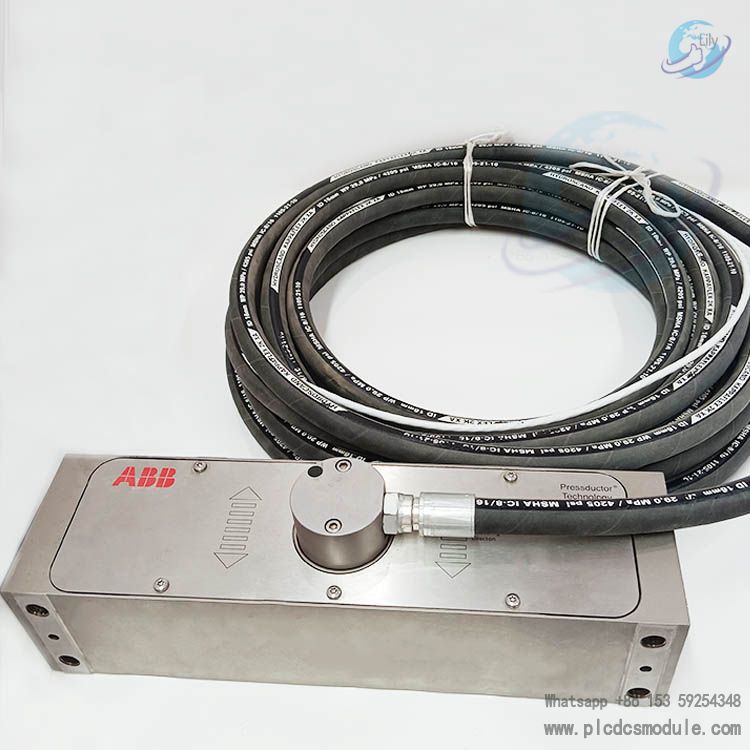

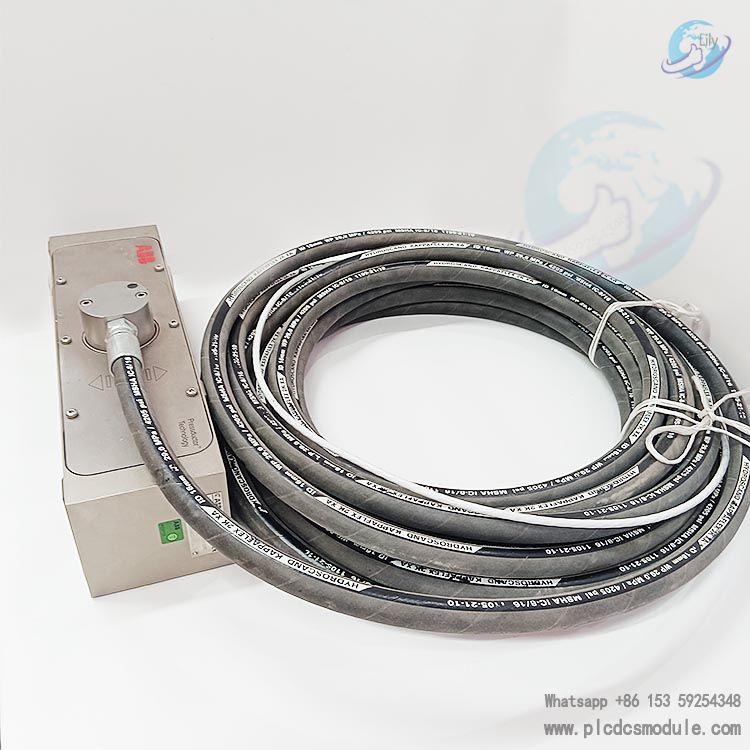

ABB PFCL201CE-150 KN 3BSE006699D0005 Pressductor PillowBlock Load cells.PFCL201CE-150 KN 3BSE006699D0005 is a magnetoelastic pillow block load cell produced by ABB. It is used for vertical force measurement, especially suitable for application scenarios of strip tension measurement, and plays an important role or has significant advantages in situations where it is necessary to determine the vertical force component.

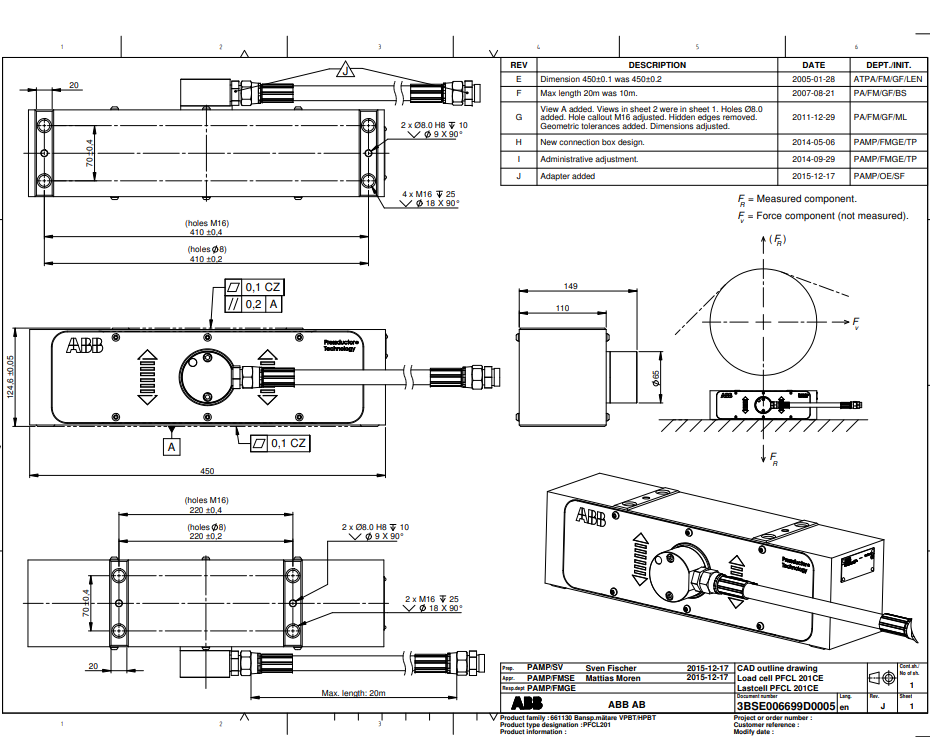

Data Sheet:
Product Features of PFCL201CE-150 KN 3BSE006699D0005:
Robust and Durable:Manufactured from a single piece of stainless steel, it exhibits extremely high resistance to overload, impact, and vibration. It also offers strong dust-proof and corrosion-resistant capabilities. The standard structure uses highly corrosion-resistant stainless steel with internally potted components. There are also industrial versions suitable for special harsh environments such as galvanizing or pickling lines.
Advanced Measurement Principle:Based on the magnetoelastic effect, where the magnetic properties of materials are influenced by applied mechanical forces. When subjected to mechanical forces, the sensor generates measurement signals due to changes in the magnetic field. These signals are independent of physical movement or deformation, combining high sensitivity with extraordinary overload tolerance. Additionally, there is virtually no inherent limit to the number of load cycles.
High Signal Quality:Capable of producing high-power, low-impedance AC signals, it has strong resistance to electrical interference and ground faults.
Technical Parameters of PFCL201CE-150 KN 3BSE006699D0005:
Measuring Range:
The measuring range of this model is 150 kN. In addition, products with different rated capacities are available, such as 5.0 kN, 10.0 kN, 20.0 kN, and 50.0 kN.
Accuracy:
Accuracy class: up to ±0.5
Linearity deviation: < ±0.3
Repeatability error: < ±0.05
Hysteresis: < 0.2
Temperature Range:
Compensation temperature range: +20°C to +80°C.
This sensor is widely used in industrial fields requiring precise measurement of vertical force or strip tension, such as production lines in the steel, paper, and textile industries.
