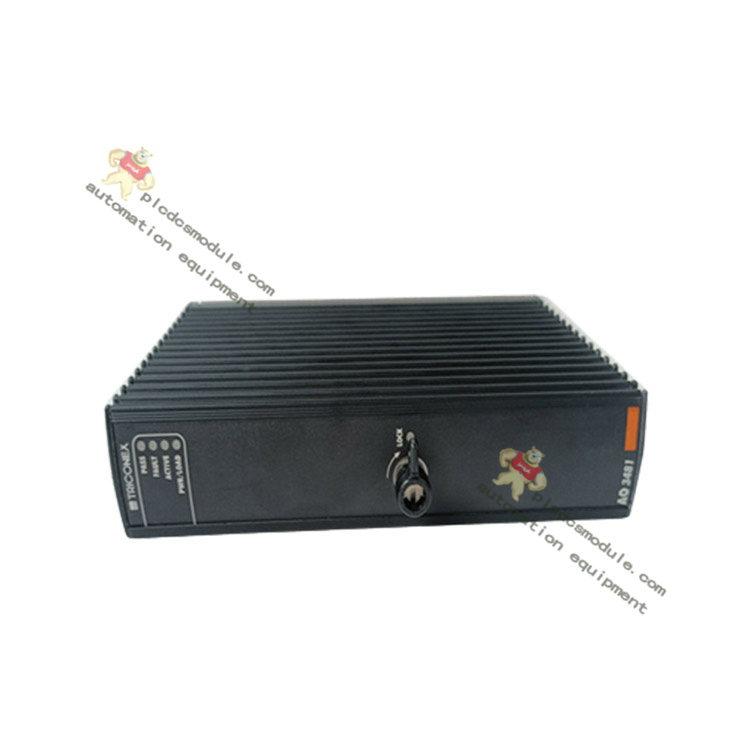

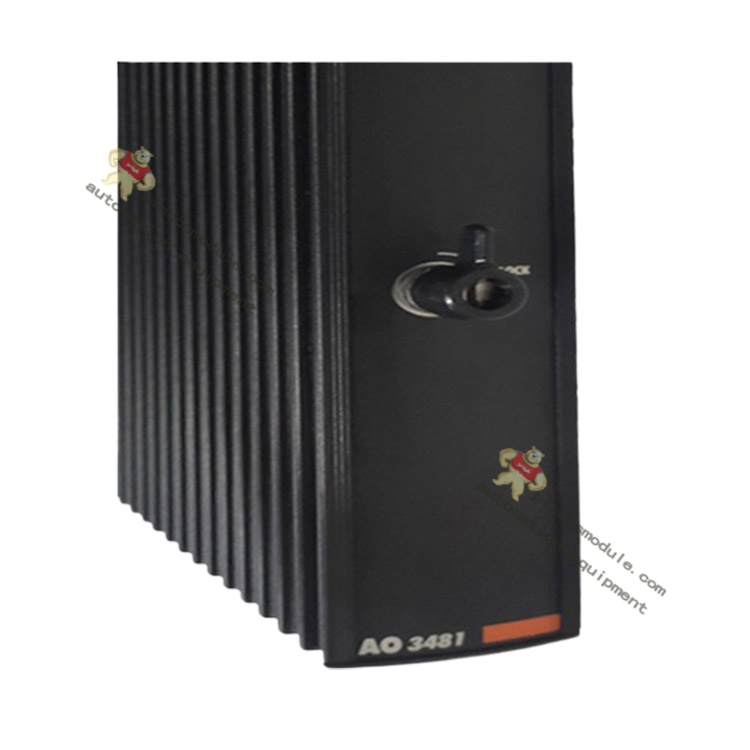

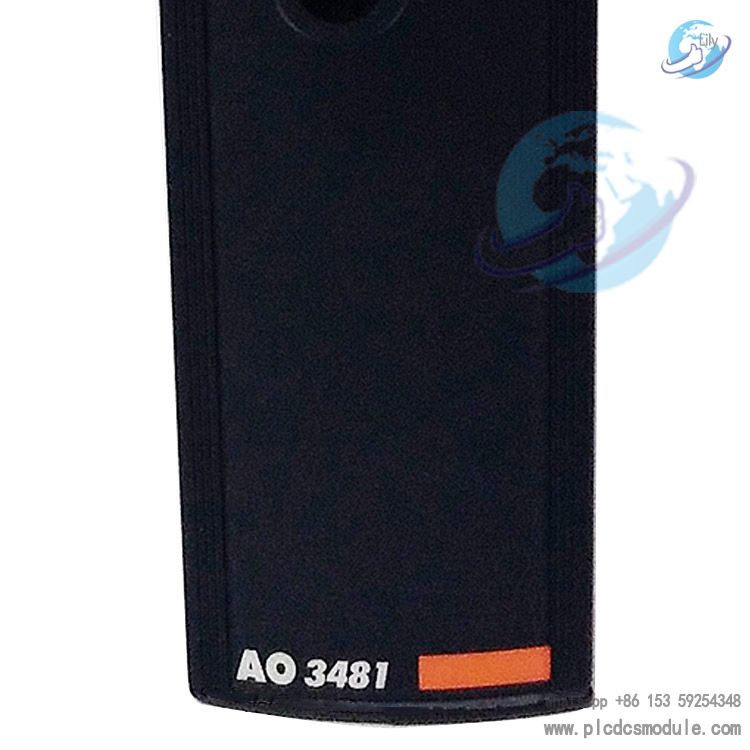

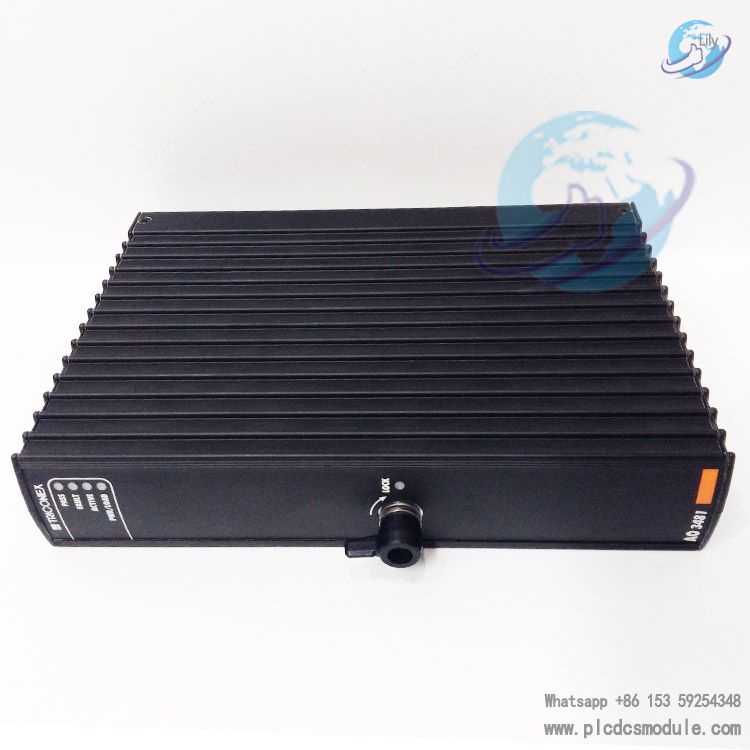

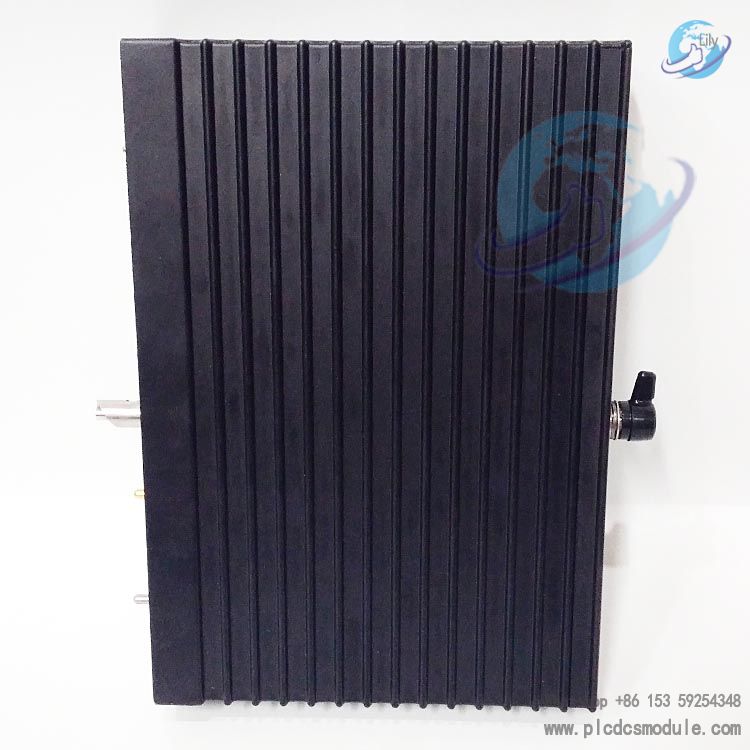

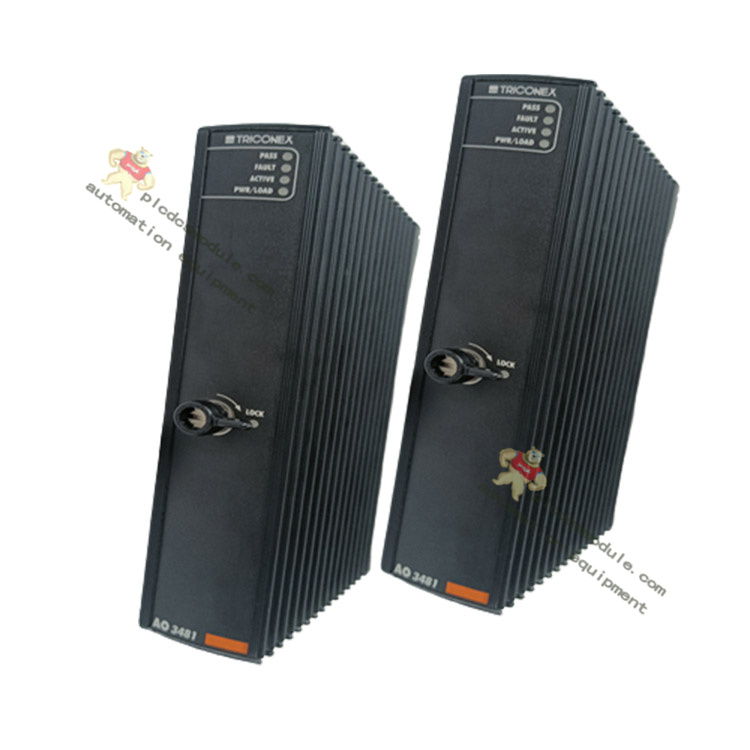

The TRICONEX AO3481 Analog Output Module is one of the core I/O modules in the Tricon system family. Specifically designed for low-point count and distributed I/O application scenarios, it adopts a triple modular redundant (TMR) architecture and is tailored for safety-critical industrial control scenarios. With its independent channel design, redundant voting mechanism, and flexible base compatibility, the module ensures the stability and safety of output signals. It also supports hot standby redundancy and online maintenance, meeting the stringent requirements for continuous operation and rapid fault response in industrial environments.
Core Architecture & Working Principle
The AO3481 module adopts a triple modular redundant (TMR) isolated electronic channel design, where each channel independently receives data from the corresponding Main Processor (MP) Module. The module incorporates built-in voter circuitry; after performing voting on the input data from the three channels, it selects a single channel to drive the output and implements shunt processing on the other non-driven channels to prevent them from interfering with the output signal. This hardware-level design ensures output accuracy and reliability. In TMR mode, the data voting adopts median selection logic; if the system is configured in dual mode, it uses average value voting logic, guaranteeing signal stability across different operating modes.

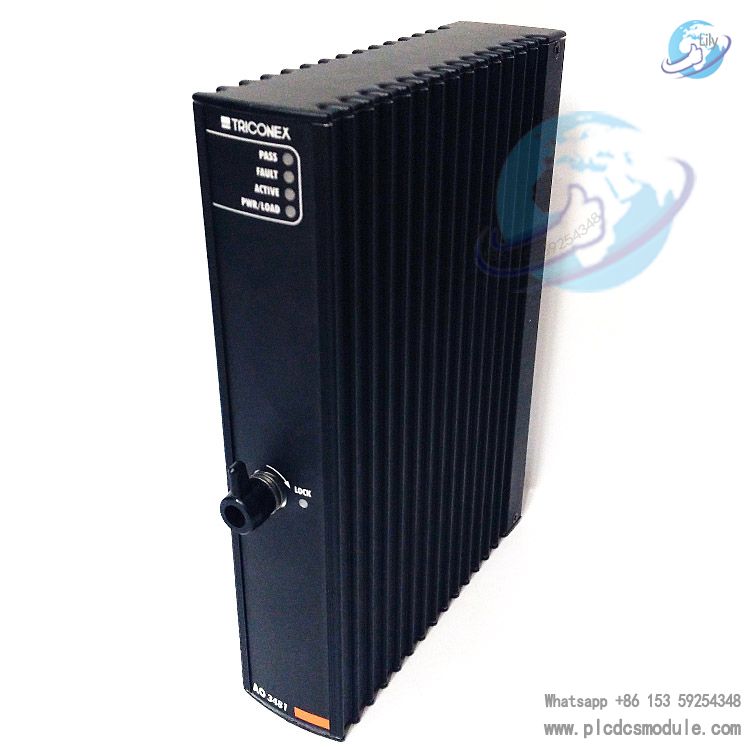

The module supports full continuous channel-level diagnostic functionality, utilizing Forced-switch Diagnostic (FSD) to monitor the operating status of each channel in real time. When a fault is detected in any channel via diagnostics, the fault indicator on the front panel of the module lights up immediately and triggers a system alarm. However, the fault is confined to the single affected channel. The module as a whole can still operate normally under single-fault conditions and maintain effective operation even in certain multi-fault scenarios, ensuring uninterrupted control processes.
Key Technical Specifications
Basic Parameters
- Point Configuration: 4 common return terminals, DC-coupled output points, non-isolated point design
- Output Current Range: Standard control range of 4–20mA, extended range of 0–22mA, with support for 0mA output capability (step function < 2mA)
- Output Accuracy: Within the operating temperature range of 32°F to 158°F (0°C to 70°C), the accuracy for the 4–20mA range is < 0.25% of the full scale (0–22mA)
- Resolution: 12-bit, ensuring precise adjustment of output signals
- Scanning & Switching Performance: Typical channel fault switching time is 1ms, maximum switching time is 3ms. It responds to faults rapidly to ensure output continuity
Power Supply & Electrical Characteristics
- External Loop Power Supply: Nominal 24VDC, maximum support up to 32VDC, with reverse voltage protection
- Output Loop Power Requirements: Vary according to load resistance, specifically: 300Ω @ >16VDC (minimum 1A), 500Ω @ >20VDC (minimum 1A), 700Ω @ >24VDC (minimum 1A), 800Ω @ >28VDC (minimum 1A)
- Overvoltage Protection: Supports continuous overvoltage protection at 36VDC and 0VDC, enhancing the module’s anti-interference capability
- Isolation Performance: Minimum isolation voltage of 500VDC between functional ground and protective ground; minimum isolation voltage of 800VDC between functional ground and logic ground, effectively preventing electromagnetic interference and leakage risks
Base Compatibility & Mounting Compatibility
The AO3481 module features flexible base compatibility and can be used with the following Trident system baseplates to meet different application requirements:
- Model 2481 Analog Output Baseplate Kit: Suitable for conventional 4–20mA analog output applications, serving as the most commonly used standard configuration
- Model 2483 Analog Output HART Baseplate Kit: Supports communication between HART field devices and PC-based configuration and asset management software, applicable to scenarios requiring device condition monitoring and parameter configuration
- Model 2483A Analog Output HART Hazardous Location Baseplate Kit (ATEX Certified): Specifically designed for hazardous environments, supports HART communication, and meets the operational requirements of hazardous areas such as Zone 2 and Group IIB
- DO External Termination Baseplate: Must be used with the Model 9863-610 External Termination Panel, suitable for analog output applications in hazardous areas (Note: "DO" is an official designation and not a typo)
The module adopts a mechanical keying design, which can effectively prevent incorrect installation on unconfigured baseplates and ensure the accuracy of system installation. Meanwhile, the module supports hot standby functionality, allowing online replacement of faulty modules without interrupting system operation, which improves the maintainability and continuous operation capability of the system.
Environmental Adaptability & Compliance Certifications
As an integral part of the Trident system, the AO3481 module delivers excellent adaptability to industrial environments, with its operating environmental parameters fully complying with the unified standards of the Trident system:
- Operating Temperature: -4°F to 158°F (-20°C to 70°C), meeting the temperature requirements of most industrial scenarios
- Relative Humidity: 5%–95% (non-condensing), adapting to humid or dry ambient conditions
- Anti-interference Performance: Compliant with the IEC 61000 series standards, it provides robust protection against electrostatic discharge, electromagnetic radiation and conducted interference
- Compliance Certifications: The Trident system to which the module belongs has obtained certifications from multiple international authoritative bodies including CSA, CE, TÜV Rheinland and Factory Mutual. It complies with a number of international standards such as CAN/CSA-C22.2, IEC 61508 and ATEX Directive 94/9/EC, enabling its application in safety-critical scenarios worldwide.
System Integration & Supporting Components
Within the Trident system architecture, the AO3481 module communicates with the Main Processor (MP) Module via the TMR HDLC I/O bus, which features a transmission rate of 2 Mbps to ensure real-time data transmission. The logic power supply of the module is provided by the MP baseplate, eliminating the need for additional logic power configuration and simplifying system wiring and power supply design.
As a standard Trident product, the AO3481 module is available as part of the Model 5381 Analog Output TriPak Kit. This kit includes one AO3481 module and one Model 2481 baseplate kit, facilitating rapid deployment by users. In addition, the module must be used with essential accessories of the Trident system, including end caps, terminal covers and slot covers, to prevent damage to the module and baseplate caused by dust, liquids and corrosive gases.
Application Scenarios
Boasting high reliability, precise output performance and adaptability to hazardous areas, the AO3481 module is widely used in safety-critical industries such as petrochemicals, power generation, semiconductor manufacturing and boiler control. It is primarily designed to drive field devices including actuators, control valves and indicator lights, providing stable 4–20mA analog output signals to achieve precise control over industrial processes.
Its redundant design and comprehensive diagnostic functions make it particularly suitable for core control loops that demand zero tolerance for equipment faults and require long-term continuous operation, such as reactor temperature control, pipeline pressure regulation and safety interlock systems.
