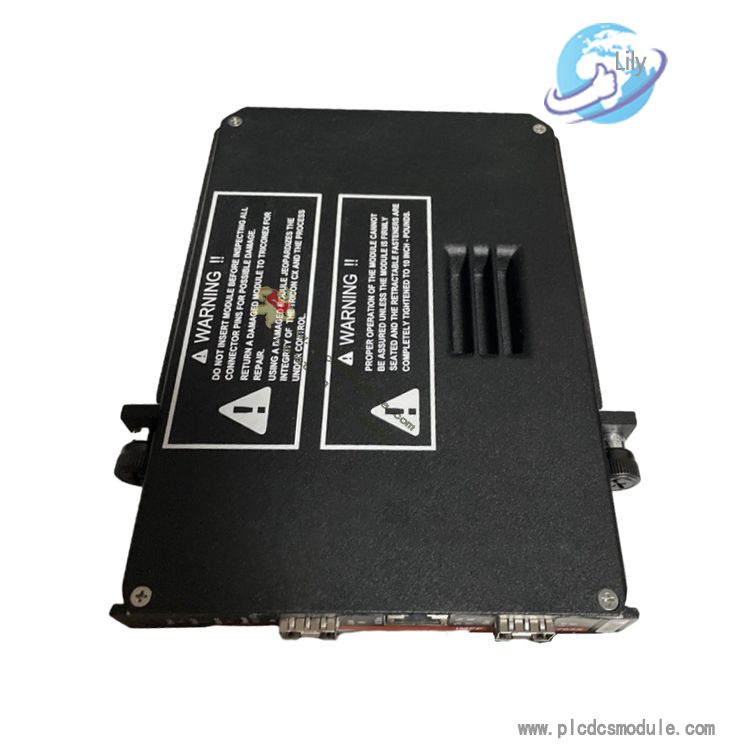

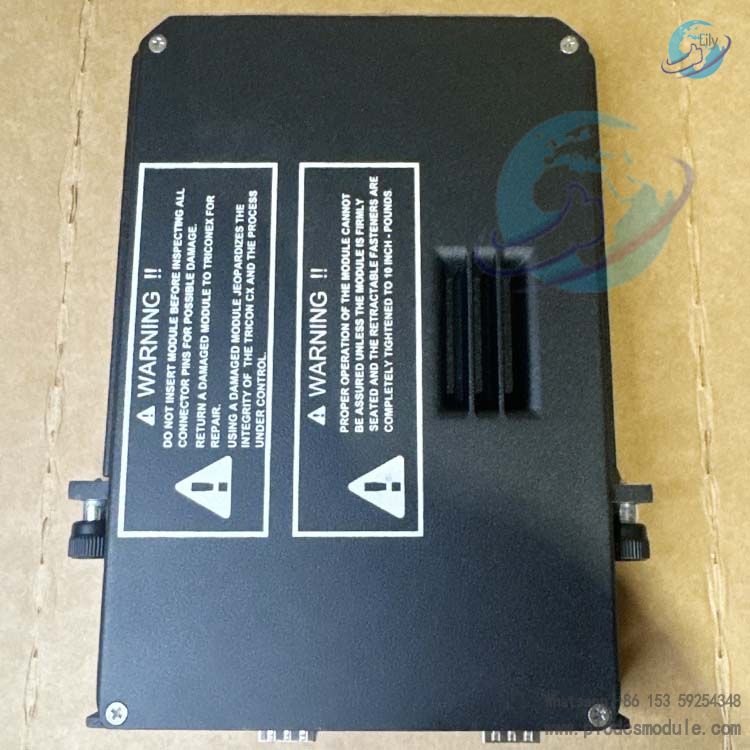

The IMFF 4703X is a dedicated fiber-to-fiber I/O bus interface module for the Tricon CX safety control system under Schneider Triconex, engineered to pair with Model 8131X I/O expansion racks. It functions as core communication hardware enabling long-distance remote I/O expansion and signal interconnection between main processor racks and off-site expansion racks within Tricon CX platforms.
Featuring a hybrid interface design with dual SFP fiber ports plus one RS485 (RJ45) port, the module adopts full-fiber transmission on the IOP bus side while supporting both fiber and serial output on the I/O bus side. Leveraging dual transmission standards: 1000 Mbps Gigabit fiber bus and industrial RS485 serial bus, it eliminates limitations of conventional copper cabling including restricted transmission length and unstable communication induced by industrial electromagnetic interference. Certified to IEC61508 SIL3 functional safety, it constructs distributed I/O network for TMR triple redundant safety systems and serves as an essential component for long-distance rack expansion of ESD emergency shutdown and FGS fire & gas systems.
Download
Core Advantages
Ultra-long-distance Fiber Networking
With matched SFP transceivers, the IOP fiber bus supports a maximum transmission distance up to 70 km (43.5 miles), while the RS485 copper-based I/O bus is limited to 30 m (100 ft). It enables distributed remote I/O rack deployment across different process units within plant boundaries, breaking the space constraint for conventional on-site rack installation and cutting intensive cabling expenses inside central control rooms.
Superior Anti-interference Performance
Full-fiber communication on the IOP side completely isolates EMI/RFI electromagnetic interference. Well-suited for harsh industrial environments with heavy dust and intensive variable-frequency interference across petrochemical, thermal power and metallurgy industries, it drastically reduces communication dropout and bit error failures.
Flexible Expansion via Multi-port Design

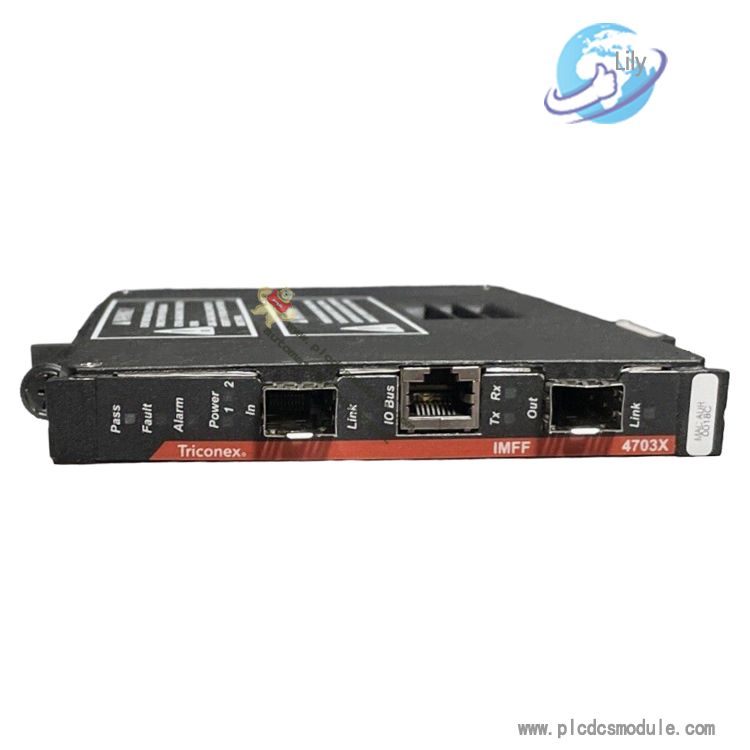

A single module integrates three physical ports: Fiber Input (Port A), Fiber Output (Port C) and RJ45-RS485 Serial Output (Port B). One card supports daisy-chaining remote racks via fiber alongside short-range local copper I/O expansion simultaneously, suiting projects with hybrid centralized and distributed layout flexibly.
Comprehensive Hardware Self-diagnosis & Alarm Function
Equipped with multiple indicator LEDs for Pass, Fault, Alarm, dual power supplies, data transceiving and link status. It continuously monitors internal module defects, backplane alerts, abnormal dual-channel 24 VDC power supply and bus/link connectivity for intuitive fault identification and rapid troubleshooting.
Redundant Dual-power Supply Architecture
Two isolated independent 24 VDC power inputs (Power1 & Power2) with separate monitoring circuits. The module keeps normal operation upon loss of either single power feed, improving power fault tolerance and complying with SIL3 power supply requirements for safety loops.
Native Compatibility with Tricon CX
Developed exclusively for 8131X expansion racks, it plugs directly into system backplanes without intermediate adapters and works seamlessly with all TMR main controllers of the Tricon CX platform. Fully compatible with TriStation configuration software for straightforward programming setup.
Detailed Specifications
(I) Communication Protocols & Interface Specifications
| Item | OEM Technical Parameter |
|---|---|
| Part Number | 4703X (IMFF, Fiber-to-Fiber Type) |
| Bus Protocol | IOP Bus: Gigabit Fiber (1000Base‑SX/LX/LX10/EX/BX10, optional pluggable SFP modules)I/O Bus: RS‑485 serial IOP bus protocol |
| Physical Interfaces | Port A: IOP bus fiber input (SFP slot)Port B: I/O bus RJ45‑RS485 serial outputPort C: IOP bus fiber output (SFP slot) |
| Transmission Distance | RS485 (Port B): ≤30 mIOP Fiber (Port A/C): Max. 70 km with matched paired SFP transceivers |
| Power Consumption | Logic power draw ＜8 W |
(II) LED Indicator Definition
- Pass (Green LED): Steady ON = Module healthy and running normally; OFF = Self‑test failure.
- Fault (Red LED): Steady ON = Internal hardware fault or abnormal bus communication.
- Alarm (Red LED): Steady ON = Any I/O module within the host 8131X rack triggers backplane rack alarm.
- Power1 / Power2 (Red/Green LED): Green = Corresponding 24 VDC supply within rated range; Red = Overvoltage / undervoltage or power fault.
- I/O Tx/Rx (Green LED): Blinking Tx = Data transmission over RS485 command bus; Blinking Rx = Data reception over RS485 response bus.

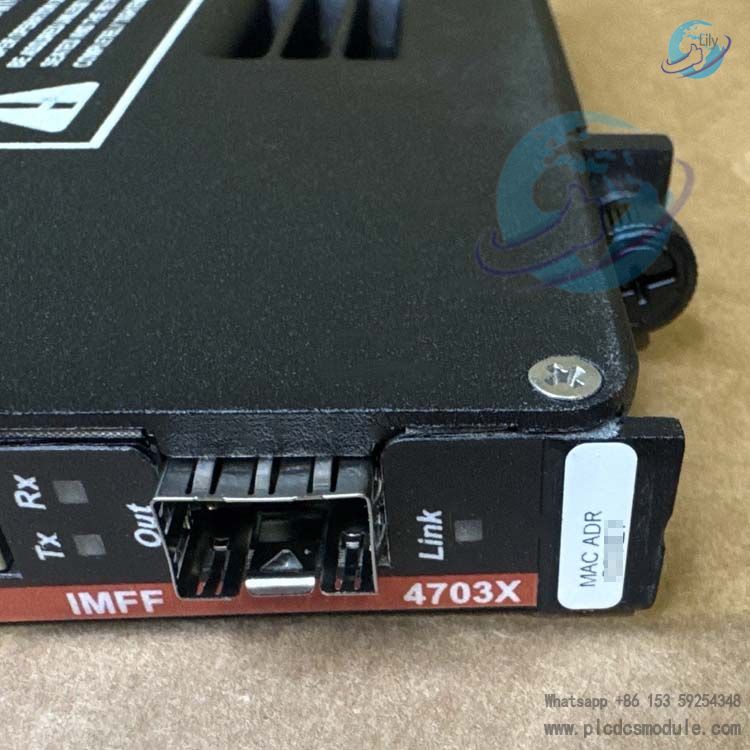

- Link In / Link Out (Green LED): Steady ON = Corresponding fiber link physically connected; Blinking = Active data transfer on link.
(III) Environmental & Safety Characteristics
- Safety Level: IEC61508 SIL3 certified, suitable for SIF loop expansion of Safety Instrumented Systems.
- Mounting: Latch-type rack insertion, fits standard slot of Tricon CX 8131X expansion rack; supports hot‑swap replacement without system shutdown.
- Ambient Rating: Wide operating temperature −40℃ ~ +70℃, relative humidity 5%~95% non‑condensing; IP20 protection for cabinet installation.
Application Scenarios
1. Petrochemical Industry
Long-distance I/O expansion for ESD emergency shutdown systems in refineries and chemical plants: On-site explosion-proof cabinets at process units are located several kilometers up to dozens of kilometers away from central control rooms. The 4703X cascades 8131X expansion racks via fiber optics, enabling field DI/DO/AI safety signals to be transmitted back to the Tricon CX main controller in the control room.For FGS fire and gas detection systems: Distributed racks housing flame and combustible gas detectors at tank farms and loading/unloading areas are networked over long distances to eliminate interference from high-power variable-frequency motors across plant sites.
2. Upstream Oil & Gas Production
Safety control systems for oil & gas gathering stations and offshore platforms: Local on-platform I/O racks connect to onshore SIL3-rated central safety systems over long-haul fiber through 4703X, resolving cabling challenges between offshore facilities and onshore control rooms. It also serves remote I/O expansion for valve chambers along pipelines in HIPPS high-integrity pressure protection systems of long-distance natural gas transmission lines.
3. Power & Coal Chemical Industry
BMS burner management for utility boilers and TMC turbine protection: Local boiler-side cabinets connect to main safety controllers via long-distance fiber links. The product supports multi-zone distributed I/O rack networking for interlock systems of coal gasifiers and synthesis plants, securing stable communication amid dense high/low-voltage variable-frequency equipment.
4. Retrofit & Upgrade of Legacy Tricon Systems
When expanding outdated Tricon systems limited by short-distance traditional copper I/O wiring, legacy electrical interface modules can be replaced with 4703X. Leveraging its long-distance fiber capability, additional remote I/O racks can be deployed without modifying the central host system, cutting costs for new cable laying and reconstruction.
Comparison of I/O Bus Interface Modules
| Comparison Item | 4703X (IMFF Fiber-to-Fiber) | 4701X (IMEE Electrical-to-Electrical) | 4702X (IMFE Fiber-to-Electrical) |
|---|---|---|---|
| Interface Configuration | Port A: Fiber In; Port C: Fiber Out; Port B: RS485 Output | All RJ45-RS485 copper ports | Fiber Input + RS485 Electrical Output |
| Max. Transmission Distance | Fiber: 70 km; Copper: 30 m | All RS485 ≤30 m | Fiber: 70 km; Copper: 30 m |
| Typical Application | Multi-stage long-distance fiber cascading, cross-site remote rack layout | Short-range dense local rack expansion inside control room | Single-stage rack: remote fiber incoming + short local copper extension |
| Anti-interference Capacity | Best (fiber galvanically isolated from EMI) | Poor (copper susceptible to electromagnetic interference) | Medium (fiber input immune to interference, copper output restricted) |
| SFP Requirement | Gigabit SFP transceivers required as option | No SFP needed | SFP only equipped on input side |
Model Selection Summary
Choose 4703X for cross-unit long-distance deployment and high-interference field conditions;Select 4701X exclusively for short-range rack expansion inside the central control room;Adopt 4702X for single-stage setup with remote fiber feed-in plus a small number of local racks.
FAQ
Q1: Is the 8131X rack mandatory when purchasing 4703X? Can it be installed in the main processor rack?A: Per official specifications, the 4703X is exclusively designed for 8131X I/O expansion racks and cannot be mounted in main processor racks. Dedicated communication cards are required for I/O expansion on main racks. Confirm matching 8131X racks and properly sized SFP transceivers (selected based on transmission distance) during procurement.
Q2: Communication failure caused by improper SFP selection for 70km long-haul links; how to specify compatible SFP modules for purchase?A: ≤550m: 1000Base‑SX multimode SFP; 10km: LX10; 40~70km: EX/BX10 single‑mode SFP. Transceiver pairs at both fiber ends must be identical. Specify transmission distance and single/multimode fiber type when ordering.
Q3: Steady red Fault LED and off Pass LED; typical root causes?A: ① Damaged or loosely seated SFP; replace with compatible spare SFP for verification.② Undervoltage on either of the two 24VDC power feeds; inspect power supply circuit.③ Poor backplane contact; power down, remove and reseat the module.④ Permanent hardware damage; replace with spare unit.
Q4: Off Link In/Out green LEDs indicating broken fiber link?A: ① Contaminated fiber end faces; clean with professional fiber wipes.② Reversed Tx/Rx polarity at Port A/C; swap fiber connectors.③ Defective SFP; test with spare transceiver.④ Broken fiber; check link loss via optical power meter.
Q5: Steady red Alarm LED while the 4703X itself functions normally?A: The Alarm LED aggregates backplane fault signals from all I/O cards within the corresponding 8131X rack. Constant red light denotes faulty DI/DO/AI modules or shorted field loops elsewhere in the rack. Troubleshoot individual rack I/O modules; no defect exists on the 4703X.
Q6: Red Power1 LED with normal green Power2 LED; can the module stay online?A: Short‑term operation is available thanks to dual redundant power design; single power loss will not shut down the module. However, troubleshoot circuit breakers and cable voltage drop issues on Power1 promptly to prevent total shutdown from dual power failure.
Q7: Permanently off I/O Tx/Rx LEDs with no RS485 bus traffic?A: ① Miswired RJ45‑RS485 at Port B; reterminate per OEM I/O bus wiring standard.② Faulty downstream local I/O rack.③ Missing bus termination resistor; install matched terminator at bus tail end.
Q8: Frequent disconnection of remote modules after cascading multiple 4703X on one link?A: ① Excessive fiber attenuation or underspecified SFP for long haul.② Poor earthing introducing interference; implement reliable single‑point rack grounding.③ Exceeded maximum node limit of Tricon CX; split into separate network segments.
