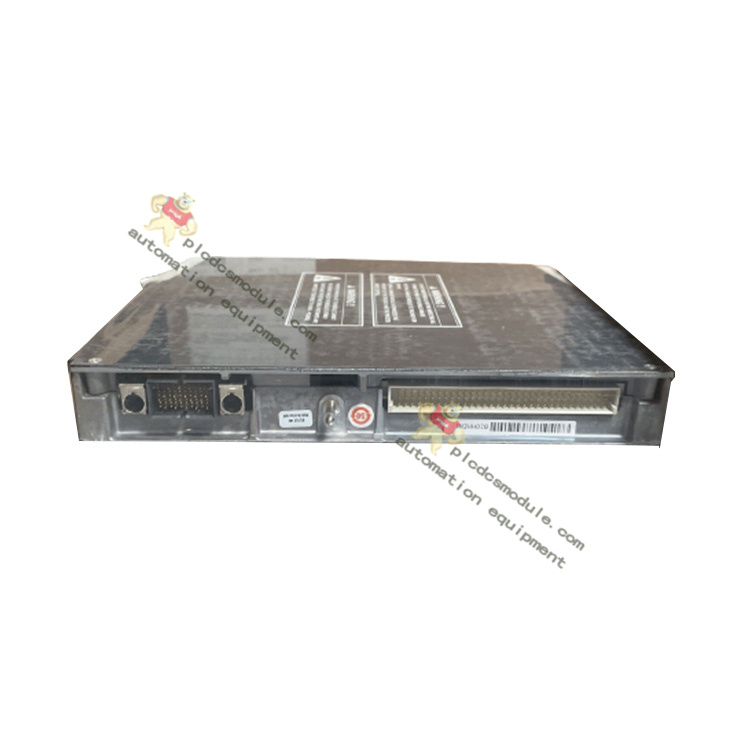

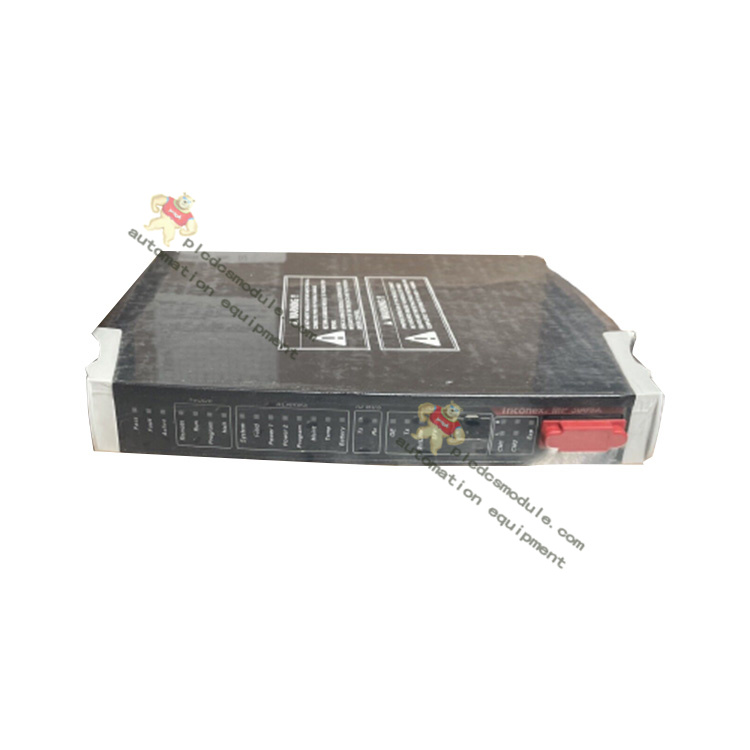

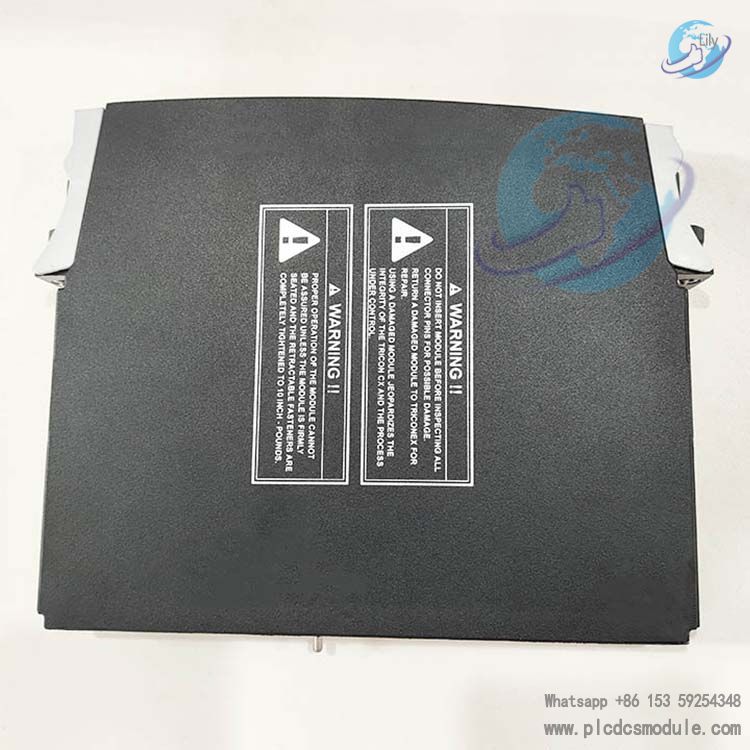

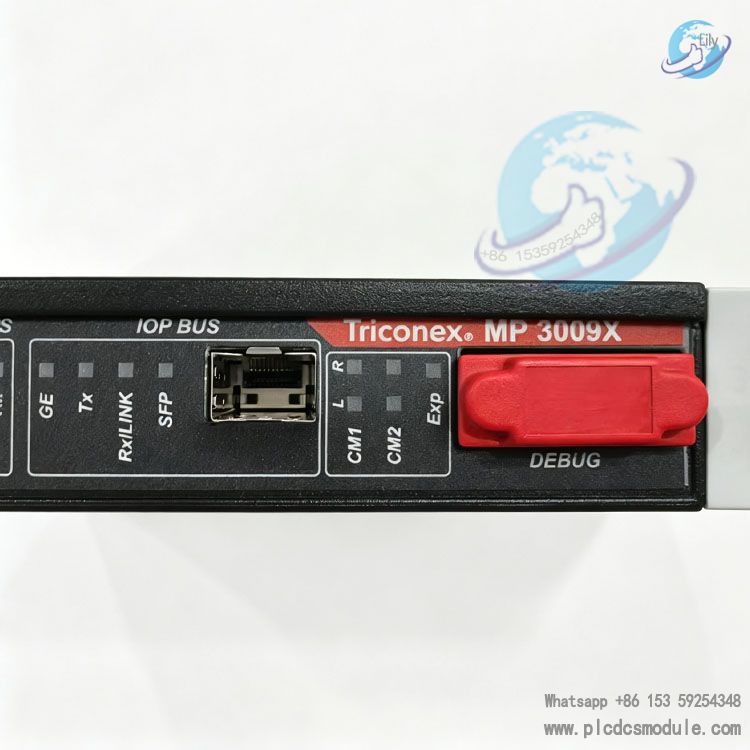

TRICONEX 3009X is an enhanced main processor module dedicated to the Tricon CX Safety Instrumented System (SIS). It is referenced under document code 9791042-002 Rev.2 and only compatible with the 8120X main chassis. Serving as the computing core of the complete TMR Triple Modular Redundant safety control system, the TRICONEX 3009X is equipped with a dual-core P1021 processor. It coordinates system logic computation, I/O data exchange, multi-bus communication and overall unit fault self-diagnosis. Supported by the isolated Tribus high-speed bus, multiple TRICONEX 3009X modules execute parallel redundant computation, meeting SIL 3 requirements for process safety control.
Integrated with large-capacity cache, battery-backed memory, multiple Ethernet and serial communication interfaces, the module supports local chassis control as well as remote I/O rack extension up to 70 kilometres. It is widely deployed in critical safety interlock applications including petrochemical, power and gas industries. Featuring low power consumption, high-precision clock and full-channel electrical isolation, the TRICONEX 3009X adapts to harsh industrial field environments.
Download
Technical Specifications
Architecture: Three independent processor channels, TMR (Triple Modular Redundant) mechanismSupporting Software: TriStation 1131Firmware Compatibility: Tricon V10.0 ~ V11.2Program Storage: On-board Flash memory with battery-backed SRAMInternal Bus: TriBus high-speed synchronous busScan Time: Minimum 20 ms, customizable cycle configurationMaximum Tag Quantity: Approximately 29,000Safety Standards: IEC 61508 SIL 3, IEC 61511Operating Ambient Temperature: 0℃ ~ 60℃Power Supply: DC power supplied via chassis backplaneMounting: Standard Tricon rack slot mountingMaintenance Feature: Hot-swappableForm Factor: Standard Tricon module dimension
Core Functional Advantages
It adopts hardware-based three-channel independent computation. Calculation results are compared in real time via TriBus. A single-point hardware fault will not interrupt control operations to ensure continuous unit operation.
TRICONEX 3009X features comprehensive periodic self-diagnosis, which continuously monitors processor cores, memory, bus links and power status. Fault information can be actively uploaded to the host monitoring platform.
Online hot-swap maintenance is supported. System shutdown is unnecessary when replacing faulty modules. The newly inserted module automatically synchronizes logic programs and real-time process data.
Large-capacity storage supports complex interlock logic and event logging, and improves the capture accuracy of SOE sequence of events to facilitate post-accident traceability and analysis.
With multi-protocol communication scheduling capability, it works with TCM communication modules to realize Modbus communication, peer-to-peer controller interconnection and data exchange with upper-level HMI.
Smooth system upgrade is available. Online migration from legacy processor modules to TRICONEX 3009X can be realized to minimize plant shutdown duration during retrofitting.
Product Features
Fully isolated three-channel hardware design with no shared circuits between channels;Deterministic cyclic computation eliminates timing jitter during logic execution;Fail-safe mechanism that triggers pre-defined safe-state outputs upon detection of critical abnormalities;Modular pluggable structure enabling easy on-site installation and removal;Engineered for long-term service under industrial operating conditions with resistance to vibration and electromagnetic interference;Remote diagnosis support; operating logs of the TRICONEX 3009X can be retrieved via communication links;Online program download with support for incremental logic modification without erasing existing programs.
Application Fields
Oil & Gas: Fire and gas systems for offshore platforms, pipeline ESD emergency shutdown, compressor safety interlocksPetrochemicals: Over-temperature and over-pressure protection for reaction units, safety control systems for distillation columnsPower Generation: Turbine protection, boiler safety monitoring, plant SIS systemsCoal Chemicals: Gasification unit interlocks, safety management for toxic and hazardous medium leakageFine Chemicals & Pharmaceuticals: Safety protection for batch reactorsWater Treatment & LNG Terminals: Safety control for critical processes
Operating Instructions
Insert the TRICONEX 3009X steadily into the designated main processor slot of the Tricon rack under power-off condition and fasten the locking latch. A standard system must be equipped with three main processors to achieve complete TMR redundancy.
Verify normal power supply to the rack, power on the system, and wait for the module LEDs to finish initialization self-test.
Establish communication via TriStation 1131 software, and verify that the firmware version of TRICONEX 3009X matches the system version.
Upload local control logic programs, complete hardware configuration, and define I/O addresses, SOE acquisition parameters and external communication parameters.
Perform online download after error-free program compilation, and switch to run mode once downloading completes.
Continuously monitor module status indicators to confirm no alarms. Carry out full loop testing to verify the execution of interlock logic.
For routine maintenance, regularly export diagnostic logs and event records from TRICONEX 3009X to track hardware health status.
Working Principle
The complete control system is configured with three TRICONEX 3009X modules performing parallel independent computation. Field input signals are sent synchronously to the separate computing channels of each TRICONEX 3009X. Each channel executes identical control logic independently, and computation results are transmitted and cross-compared via the TriBus.
The system adopts a 2-out-of-2 voting mechanism. If inconsistent calculation results are detected from a single channel, the channel is identified as faulty. The system blocks outputs from the faulty channel and generates a fault alarm, while the remaining two healthy processors continue maintaining control functions.
Hardware self-tests run synchronously in every computation cycle. Once the faulty module is replaced, the new TRICONEX 3009X automatically synchronizes programs and real-time data with the other modules to rebuild a complete triple modular redundant structure. All output commands are issued to output modules after voting to prevent false operations caused by single hardware failure.
Product Comparison
TRICONEX 3008 Main Processor: Legacy base model with a maximum of approximately 13,000 tags. It does not support large-capacity SOE configuration, cannot be directly upgraded online to higher system versions, and features a lower computational load limit.
TRICONEX 3009X Enhanced Main Processor: Doubled tag capacity, optimized bus synchronization efficiency, supports online system upgrades, and accommodates larger-scale I/O points. It serves as the mainstream upgrade replacement for the 3008 model.
TRICONEX MP3101 Next-Generation Processor: Designed for new-generation Tricon rack hardware with updated architecture. It offers no backward compatibility with legacy classic Tricon racks and is not suitable for retrofit projects of existing facilities.
Selection Recommendation
TRICONEX 3009X is preferred for retrofits of existing classic Tricon cabinets; the new-generation MP series processors may be evaluated for greenfield projects.
Compatible Supporting Products
Communication Modules: 4355X TCM Communication Module, 4351B TCM Communication ModulePower Modules: 8312 Power Module, 8311 Power ModuleDigital Input Modules: 3301, 3301S2Digital Output Modules: 3401, 3451Analog Input Modules: 3351, 3351S2Analog Output Modules: 3481Rack Backplanes: 8110, 8111 RacksRemote I/O Interface: 4200
Supply Advantages

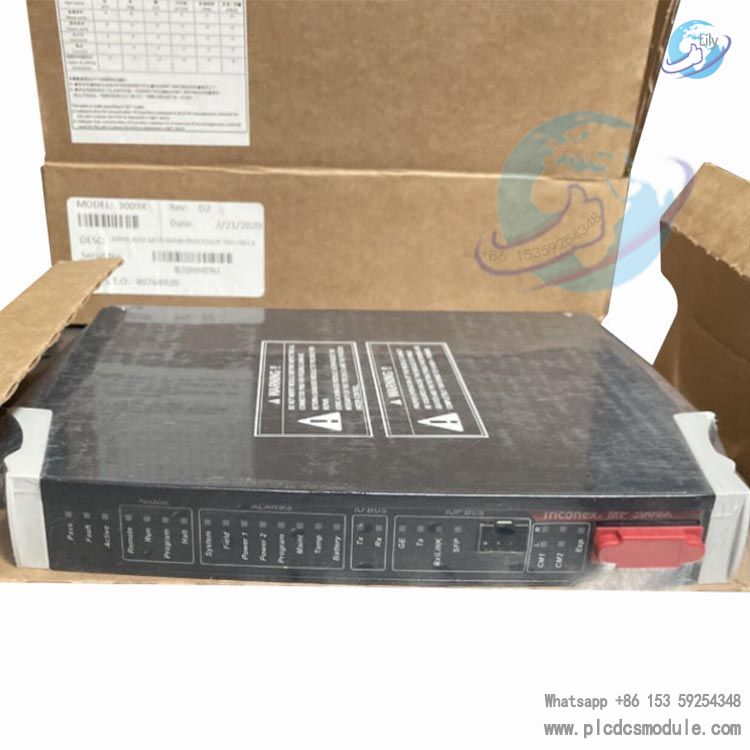

Sufficient spot inventory of TRICONEX 3009X available to shorten project lead time;Power-on testing performed prior to shipment to verify normal module communication, logic computation and self-diagnosis functions;Provide technical consultation on model compatibility to help customers confirm whether existing racks and firmware are compatible with TRICONEX 3009X;Offer complete module matching solutions, enabling one-stop supply of processors, I/O modules, communication cards and power supplies;Robust protective packaging to reduce risks of hardware damage during long-distance transportation;Supply technical documentation support and assist field commissioning engineers with module replacement and program downloading.
Frequently Asked Questions
Q1: What is the minimum quantity of TRICONEX 3009X required for full TMR redundancy in one system?A1: Three pieces of TRICONEX 3009X are required for a standard full triple modular redundant architecture. The system can operate with a minimum of two modules, yet redundancy protection will be degraded. Long-term operation under such condition is not recommended.
Q2: Can TRICONEX 3009X directly replace the legacy 3008 processor?A2: The hardware slot is compatible. However, system firmware version verification is mandatory, and online upgrade configuration shall be completed following standard procedures. Programs under some older versions need recompilation.
Q3: Does TRICONEX 3009X support hot swapping? Will unit interlock be triggered during replacement?A3: Native hot-swap support is available. When replacing one single TRICONEX 3009X under normal redundant status, the other two modules continue computation, and unplanned process interlock will not occur.
Q4: Is the TCM communication module mandatory for TRICONEX 3009X operation?A4: TCM modules are not required for standalone local logic execution. TCM communication modules are compulsory if communication with upper-level systems, other controllers or SOE event acquisition is needed.
Q5: Which TriStation software version supports connection with TRICONEX 3009X?A5: Advanced versions of TriStation 1131 are recommended, matching Tricon firmware V10.0 and above. Low-version software may cause unstable communication.
Q6: What are the common causes of persistent LED alarms after TRICONEX 3009X power-up?A6: Typical causes include mismatched firmware versions, data synchronization failure among three processors, poor backplane contact and program checksum errors. Hardware contact and program integrity can be inspected sequentially.
Q7: What is the maximum number of I/O points supported by TRICONEX 3009X?A7: The I/O capacity is restricted by system rack quantity and scan cycle. Benefiting from larger tag capacity, TRICONEX 3009X supports more I/O channels and internal variables compared with 3008.
Q8: Can TRICONEX 3009X be deployed in F&G Fire & Gas systems?
A8: Fully applicable. The module complies with SIL 3 safety level specifications and has been widely adopted in integrated safety systems for plant fire & gas detection, fire fighting linkage and emergency shutdown.
