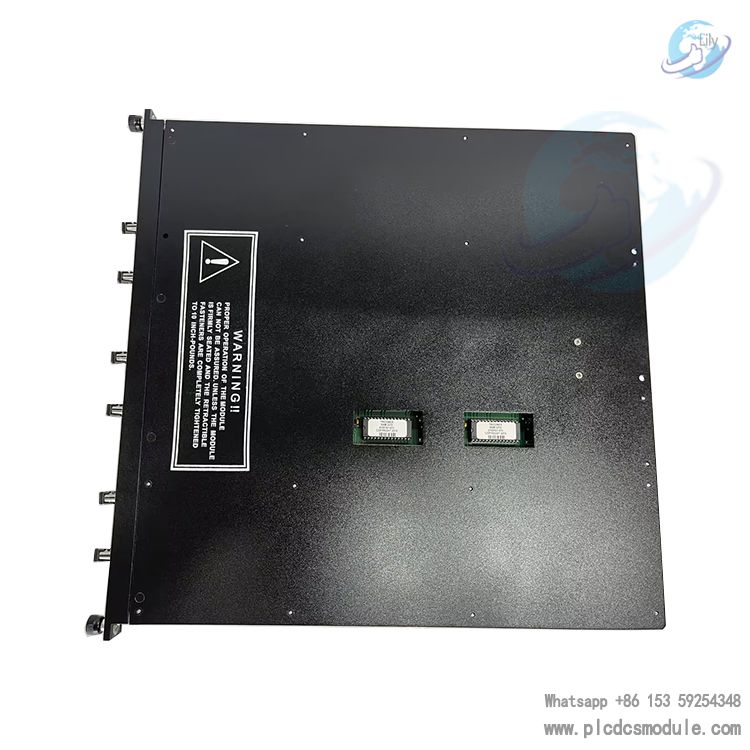

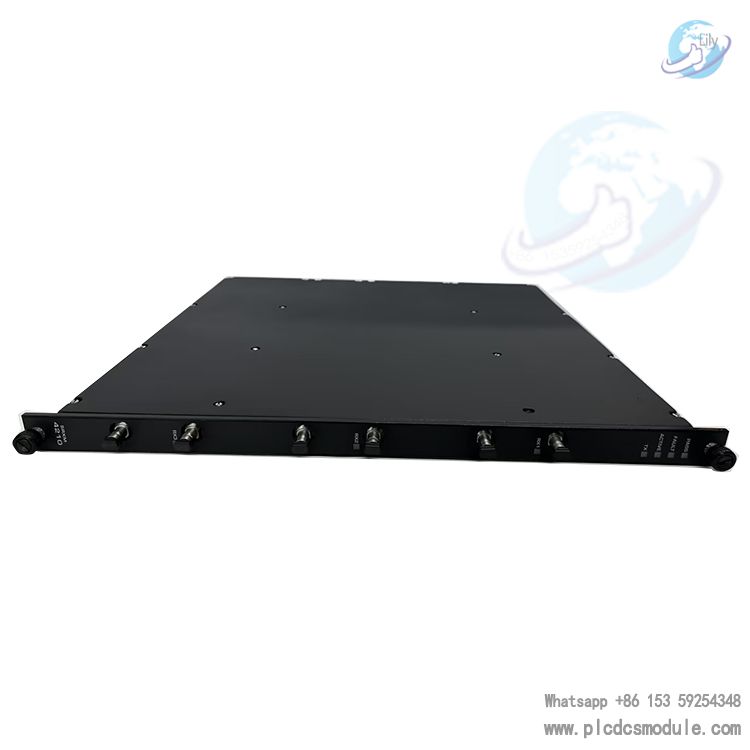

The RXM module of model 4210 is a remote expansion module used in the Tricon system. It belongs to the primary RXM and uses a single-mode fiber optic cable. It can support the deployment of input/output modules up to 12 kilometers away from the main chassis, thus expanding the system's coverage.
Functional Features: As a primary RXM, the 4210-3 module plays a crucial role in signal relaying and expansion within the system. It can amplify signals and extend the transmission distance of the backplane bus of the Tricon system. At the same time, it can achieve common-mode isolation, effectively enhancing the system's anti-interference ability and ensuring the stable operation of the system. In terms of data transmission, this module supports a transmission speed of 375 Kbit/s, which can meet the requirements of the system for data transmission rates.
Application Scenarios: It is applicable to scenarios in the Tricon system where long-distance deployment of input/output modules is required, such as large-scale factories and chemical industrial parks in industrial production. In these scenarios, equipment is often widely distributed and far from the main control system. The 4210-3 module can effectively solve the connection and control problems of remote devices, ensuring the safety and stability of the entire production process.
Configuration and Usage: In the Tricon system configuration, each primary RXM needs to work in coordination with 3 identical modules. It is connected to the remote RXM through 6 fiber optic cables, which are respectively used for data transmission and reception of the three channels A, B, and C, so as to achieve reliable data transmission. In addition, the RXM chassis where the 4210-3 module is located needs to be installed within 30 meters of the main chassis, and an RXM chassis needs to be installed for each remote object to ensure the normal operation of the system and the effective transmission of data.
Technical Parameters

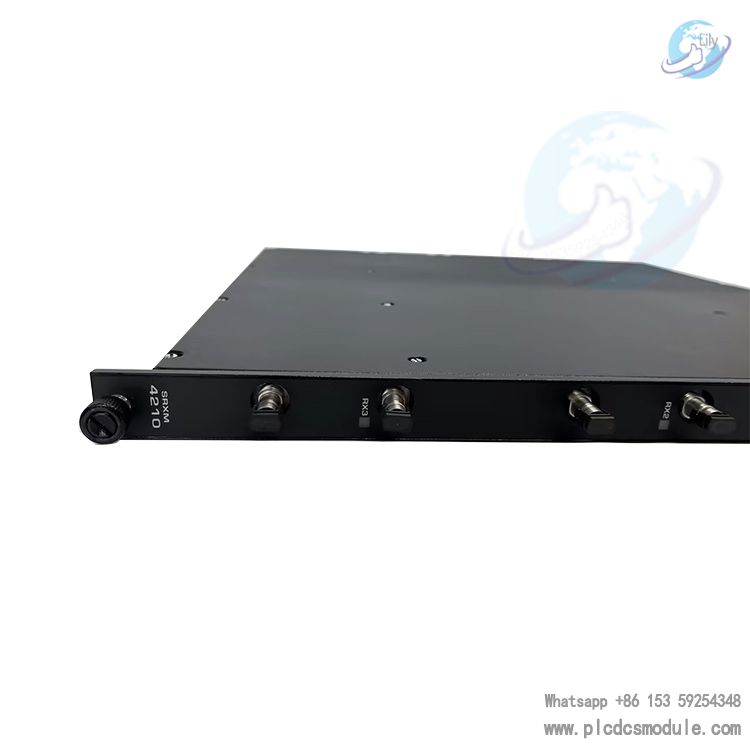

Cable-related: It uses single-mode fiber optic cables. These cables have the ability to resist electromagnetic interference, ensuring stable signal transmission. The maximum cable length is 12 kilometers, which can meet the requirements of long-distance transmission. The ports are equipped with ST-interface optical fibers, facilitating connection to other devices.
Connection Capability: It can support 3 remote points, and reliable data transmission can be achieved at each remote point, meeting the system's requirements for connecting multiple remote devices.
Diagnostic Indicators: It has diagnostic indicators such as PASS, FAIL, ACTIVE, TX, RX1, RX2, and RX3. Through these indicators, the working status of the module can be intuitively understood, facilitating the timely detection and troubleshooting of faults.
