ABB is a multinational company headquartered in Zurich, Switzerland, and a world leader in power and automation technologies. ABB's technology helps industrial, energy and utility customers improve performance while reducing negative environmental impact. ABB's products include a full line of power transformers and distribution transformers, high, medium and low voltage switchgear products, AC and DC transmission and distribution systems, power automation systems, various measurement equipment and sensors, real-time control and optimization systems, robotics hardware and software, and simulation systems. Energy efficient motor and drive systems, power quality, conversion and synchronization systems, and protection of fuses and switchgear to ensure the safety of the power system.
ABB products are widely used in metals, pulp and paper, chemicals, life sciences, automotive industry, power industry automation and building systems. Through close cooperation with local partners in China, we have established a strong production base in power transmission and distribution, automation products and systems.
We sell ABB products:
1.ABB Accuray
gave an outline of：
AccuRay was acquired by ABB in 1998.
AccuRay designs and manufactures computer-based automation and management information systems for
manufacturing processes.
AccuRay systems are used in the pulp and paper, rubber, plastics, textiles and metals industries.
product model: 086444-005/086318-002/086349-002

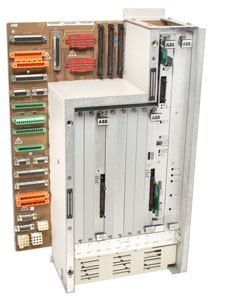

2.ABB Advant OCS
ABB Advant OCS is a distributed control system (DCS) designed for industrial automation applications. It can help manage and control a wide range of industrial processes from chemical plants to power plants.
Advant OCS key features:
Openness: Advant OCS is designed to be interoperable with other systems and devices, making it easier to integrate into existing infrastructure.
Scalability: The system can be scaled to meet the needs of small or large industrial facilities.
Communication Capabilities: Advant OCS can communicate with all levels of equipment, from individual sensors and actuators to entire plant networks.
Software tools: A suite of software tools is available to support all aspects of the system lifecycle, from design and engineering to commissioning and maintenance. Some models : 07AC91D/07KT97B/PM511V16/PM510V16/AI625/AI635/CI560/CI627/DI620.DO/DSAI130/DSAX452
3.ABB Advant-800xA
Key benefits of 800xA:
The complete infrastructure can be preserved
Upgrades can be done gradually
The Advant and 800xA workspaces are parallel to minimize downtime
System 800xA extended automation
Advant Master integrated with 800xA Features:
Panels, object displays, and graphic elements
It looks and feels great
Alerts and events and trend display
TTD logging and configuration support
Status list and system status
Driver and switchgear integration
Central backup of AC400 controller applications
Some models : PP835A/PP845/PP836 3BSE042237R1 /AI835/AI810/AO810/AO801/DI810/DO810/CI810A/CI840A/CI856K01/CI868K01/PM866/TP851/TP854/ TU805K01

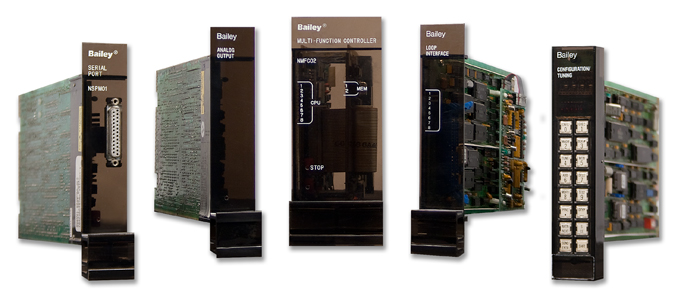

4.ABB Bailey
The Bailey name has a rich history of excellence in control and instrumentation, dating back to the development of the world's first steam boiler meter. Founded in 1916 by U.S. inventor Ervin G. Bailey, the company quickly gained global recognition in the field of automation.
In 1989, Bailey Controls merged with Italy's Elsag Group, forming Elsag Bailey Process Automation and achieving top market positions in various process control and instrumentation sectors. Subsequently, Elsag Bailey merged with ABB in 1998. The talent, creativity, and knowledge of Elsag Bailey continue to be a driving force in ABB's technologies.
Some models : IPSYS01/IMMFP01/IMSPM01/BRC410

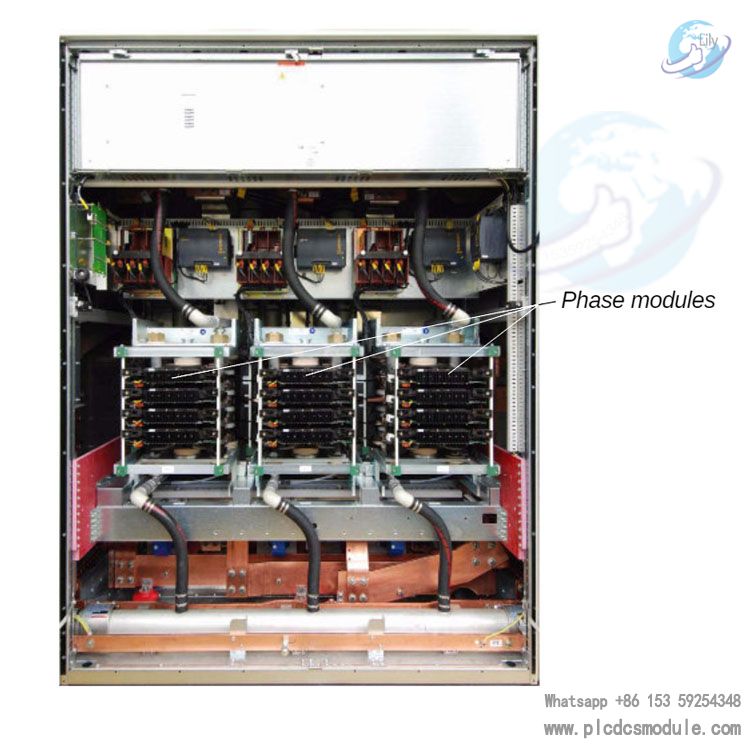

5.ABB Drives HV inverter parts:
Phase modules are an important part of these AC drivers, allowing them to operate on different types of three-phase power supplies:
Single-phase operation: Enables the drive to operate on a single-phase power supply.
Three-phase operation: Standard for most applications.
Unipolar operation: Some models support unipolar operation for specific motor types
Some models :
S-073N 3BHB009884R5211/5SHY35L4510/5SHY3545L0009/5SHY5045L0020/ 5SHY6545L0001 AC10272001R0101 5SXE10-0181/KUC711
6.ABB H&B Freelance 2000 : DCP10/DAO01/DAI 01/DAI03/DAI03
7.ABB Master: DSSR122/DSBC170/DSBB175/DSAO120/DSBB110
8.ABB Robots Robot System Accessories: DSQC633/DSQC697/DSQC658/DSQC626

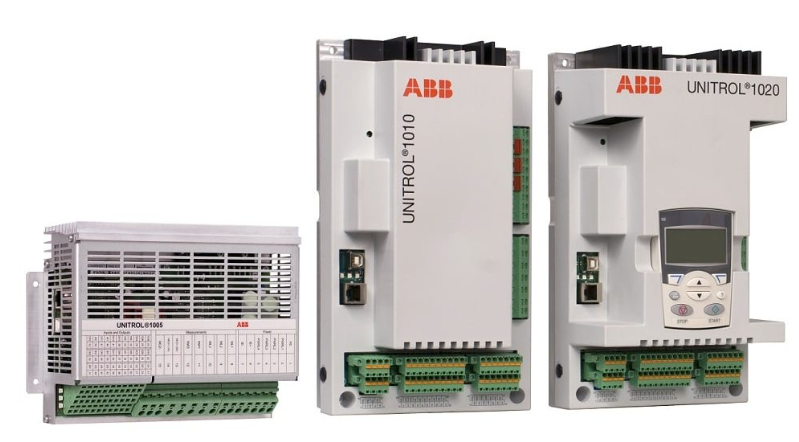

9.ABB UNITROL
The UNITROL 1000 Series is ABB’s brushless excitation system for applications using synchronous machines ranging from 100kVA to 80MVA. Some models : PPD113B01-10-150000/PCD231B/PCD230A/UNITROL 1020 UNS0119A-ZV1
10.ABB TENSION SENSORS, TENSORIZERS: PFEA111/PFEA112/PFEA113/PFTL101A-0.5KN/PFTL101A 1.0KN/PFTL101A 2.0KN 3BSE004172R1/PFXA 401F

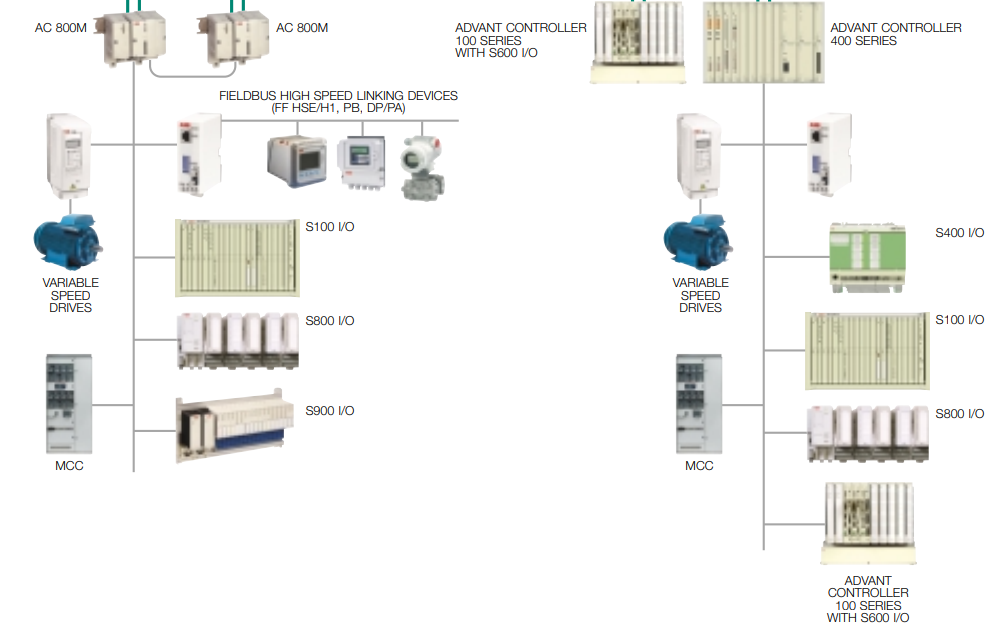

ABB AC800M controller:
As an important member of the Compact Products 800 series, the AC800M is a modular controller installed on rails. It integrates core components such as the CPU, communication modules, and power supply modules, and is equipped with a wealth of accessories. This controller demonstrates outstanding performance in the field of industrial control, excelling in the processing of complex control algorithms, high reliability, strong real-time performance, and diverse communication functions. The AC800M controller is widely used in industries such as petroleum, chemical, and power, providing a solid guarantee for the efficient and stable operation of production processes.
Hardware Composition
Processor Unit: There are various models, such as PM851, PM856, PM860, PM861, PM864, and PM865. It uses a RISC 32-bit real-time multitasking microprocessor and integrates a power supply unit, a CPU processor, and memory. The memory is used to store the running firmware, hardware configuration information of the control unit, and application programs.
Communication Module: Each CPU module is equipped with two Ethernet ports, which can be configured redundantly for communication with other controllers, operator stations, engineer stations, and higher-level application programs. At the same time, there are two RS - 232C ports for point - to - point communication, which can be connected to programming/debugging tools as well as third - party systems and devices. In addition, it also supports Modulbus electrical and optical fiber expansion interfaces.
Power Supply Module: It provides a stable power supply. There are models such as SD821 (24VDC, 2.5A), SD822 (24VDC, 5A), and SD823 (24VDC, 10A). All are switching power supplies, which can convert alternating current to 24V direct current and support redundant or non - redundant use.
I/O Module: It supports a wide range of I/O signals, including intrinsically safe signals in hazardous areas. It can be expanded through S800/S900 I/O modules. The interface on the right side of the controller can be connected to up to 12 S800 I/O modules and 192 S800 I/O points via the electrical Modulebus method.
Functional Features
Redundancy Function: The field controllers can be configured redundantly. The switching time is less than 10 ms, and it supports CPU redundancy, power supply redundancy, etc. This helps to reduce faults at critical points and ensures the operational efficiency of the control system.
Multiple Communication Functions:It supports a variety of industrial protocols, such as Masterbus 300, Comli, Modbus, Siemens 3964R, etc. It can easily communicate with other controllers, automation systems, and field devices. Additionally, it supports additional serial communication protocols, making it suitable for communicating with external devices such as terminals, printers, and special controllers.
Strong Real - Time Performance:It can handle up to 16 tasks with a minimum task cycle of 1 ms. The resolution of the SOE (Sequence of Events) is less than 1 ms. It can quickly process control algorithms and logical operations, ensuring the real - time performance of the system.
Rich Functions:Programming and configuration can be carried out through the Compact Control Builder programming software, enabling various control applications from basic logical operations to advanced control. It provides dedicated function blocks for controlling common factory equipment, such as motors and valves. It also has PID function blocks and self-tuning functions, etc.
Product Model Recommendations
PM856K01: This model is suitable for scenarios where a certain level of control performance is required and medium - scale I/O point applications are involved. For example, it can be used in some small - scale chemical production units and the control of partial subsystems in power systems. It can handle various control tasks effectively, has a certain computing capacity and communication function, and can meet the requirements of conventional industrial control.
PM861:It is a commonly used model with high performance and reliability. It is applicable to industrial automation control systems of various scales, such as the production process control in industries like petroleum, chemical, and metallurgy. It can quickly process complex control algorithms and a large number of I/O signals. It can serve as a central control unit and connect with various devices to achieve real - time monitoring and precise control of the production process.
PM865K01:This is a high - integrity model, suitable for safety - critical application scenarios. For instance, in systems with extremely high requirements for safety and reliability in industries such as nuclear power and pharmaceuticals. It has a higher - level safety certification, can perform diagnostic and monitoring functions, and can achieve control over critical processes while ensuring safety integrity.
CI522AK03:It has a certified TÜV control environment, which can combine safety and business for integrated critical process control. When paired with high - integrity I/O modules, it can be used in safety - critical applications, such as 4 - 20mA analog input modules, 24Vdc normally - closed digital input modules, and 24Vdc digital output modules. The digital output modules provide both normally - energized (ESD) and normally - de - energized (F&G) outputs, making it suitable for industrial scenarios with strict safety requirements.
If you are eager to further explore the vast world of ABB products and gain in-depth knowledge of various cutting-edge products that complement the AC800M controller, such as the high-efficiency drive products that play a crucial role in communication connections or other systems that ensure stable operation in power distribution and control, you might as well click on the [ABB], and jump to the product section of our official website. Here, you will see a rich and diverse ABB product matrix, providing precise solutions for the needs of different industries. You can also conveniently compare the parameters of each product, view practical application cases, and deeply understand how they help enterprises achieve a leap in production efficiency. Our professional online customer service is always on standby, ready to answer your questions and help you quickly find the ABB products that best suit your business.
