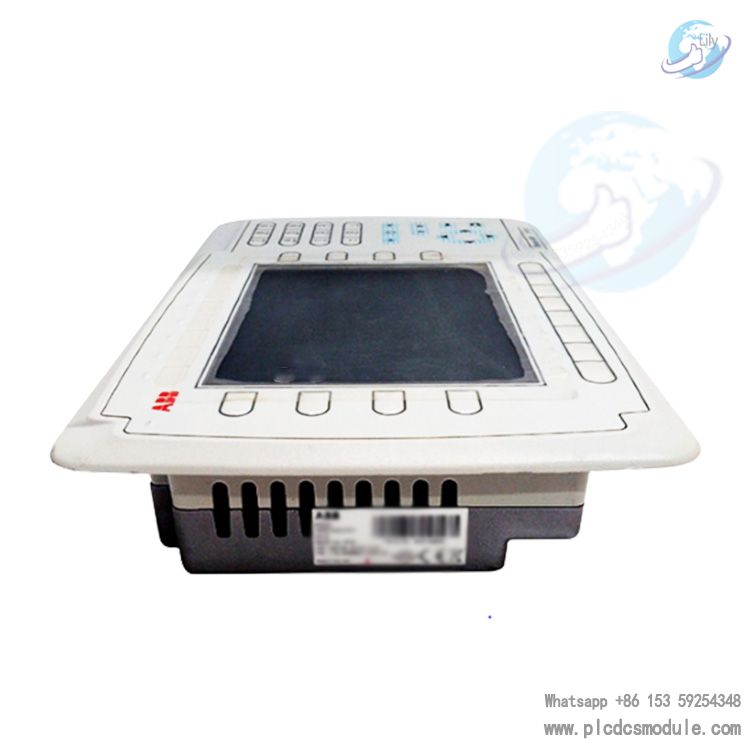

ABB PP836 3BSE042237R1 touch screen Panel 800

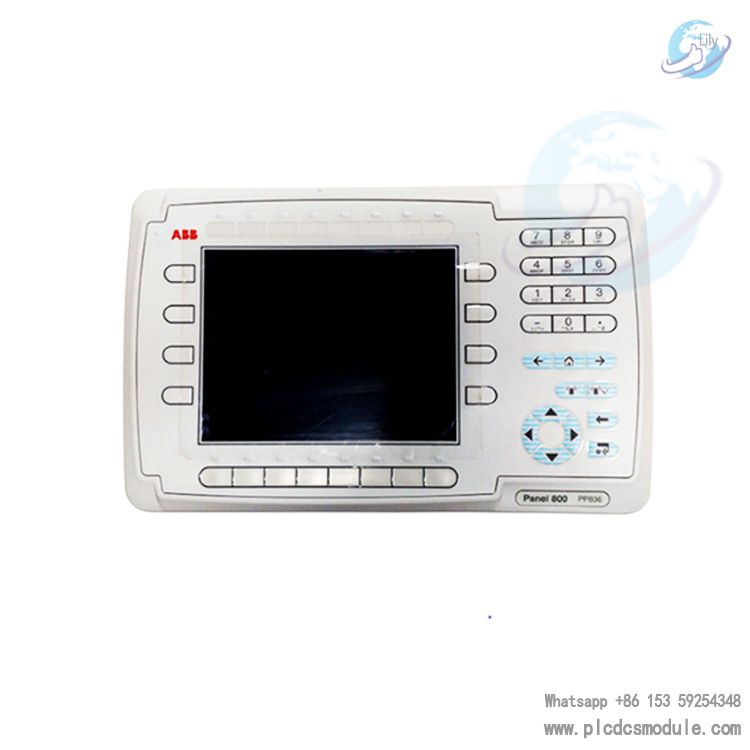

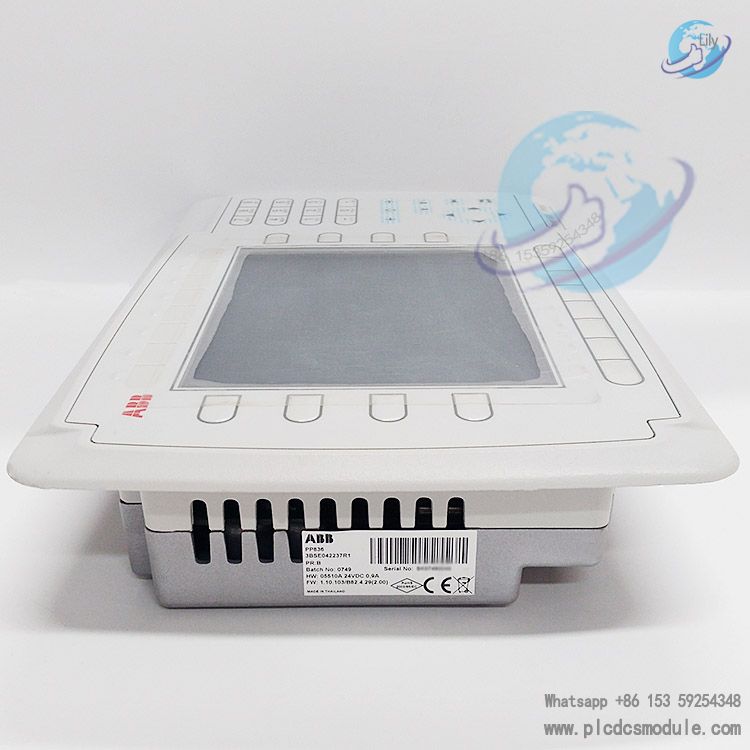

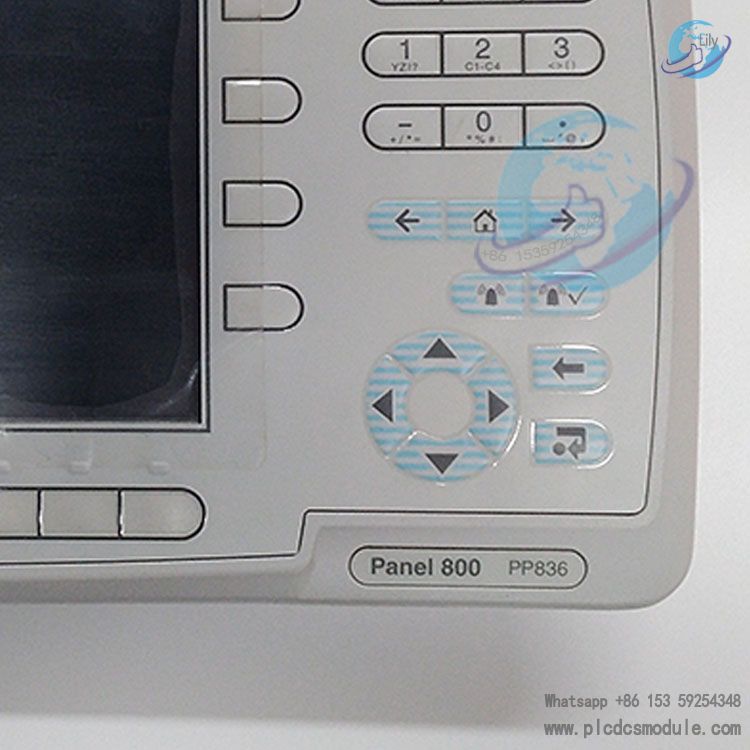

The Panel 800-PP836 Version 5.1 touch screen is a high-performance combined keypad and touch operation panel from ABB Panel 800 series, primarily designed for human-machine interface (HMI) applications in industrial automation systems. It is commonly designated as model PP836A (with part numbers such as 3BSE042237R2). Boasting a rugged industrial-grade design, a comprehensive range of communication interfaces and powerful HMI configuration capabilities as its core advantages, this product is equipped with a 6.5-inch color TFT display and membrane keypad. It supports multilingual operation and real-time data monitoring, and is adaptable to diverse applications ranging from general industrial machinery to complex process control systems. Enabling operators to quickly access equipment status, handle alarms and execute control commands, it stands as one of the mainstream HMI solutions in Version 5.1 that balances operational ease with environmental adaptability.

Internal Component Installation:

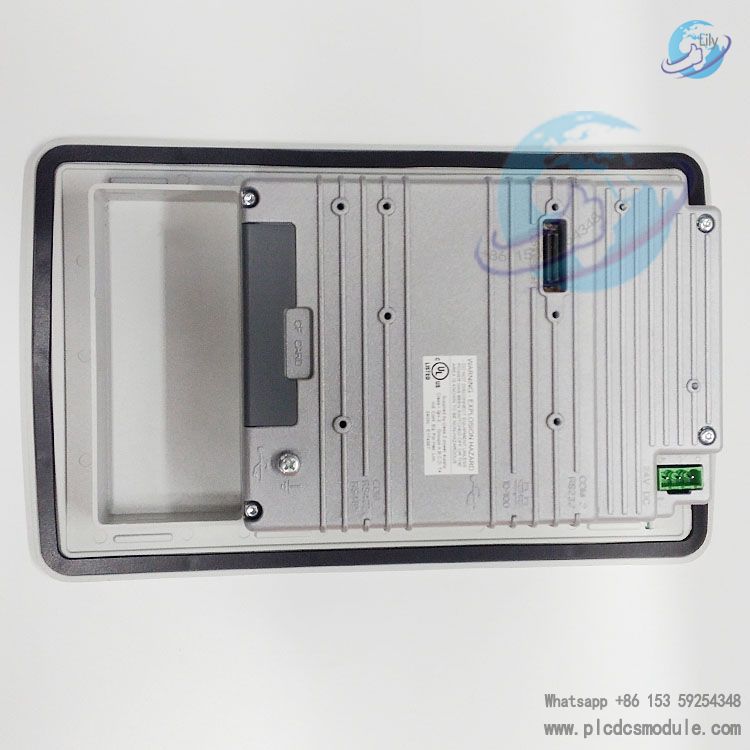

1、Internal Compact Flash Card: It can be used to expand the project memory, and supports Type I and Type II flash cards. To install it, you need to switch off the power, remove the back cover, insert the card into the slot on the CPU board, re-install the back cover, select whether to move the files to the internal card at startup, and set the size of the card in the configuration tool.

2、Profibus DP Expansion Module: Used for connecting via Profibus DP, pay attention to static electricity protection when installing, follow the steps to connect and fix.

3、CB810 - USB to Ethernet Adapter: Used for project transfer between Panel 800 and PC, connect the USB Type A connector to the USB host port of the PC, and use a crossover Ethernet jumper to connect the CB810 to the Ethernet port of the Panel 800.

To learn more about this product click on the file below or download the file:

ABB PP836 3BSE042237R1.pdf

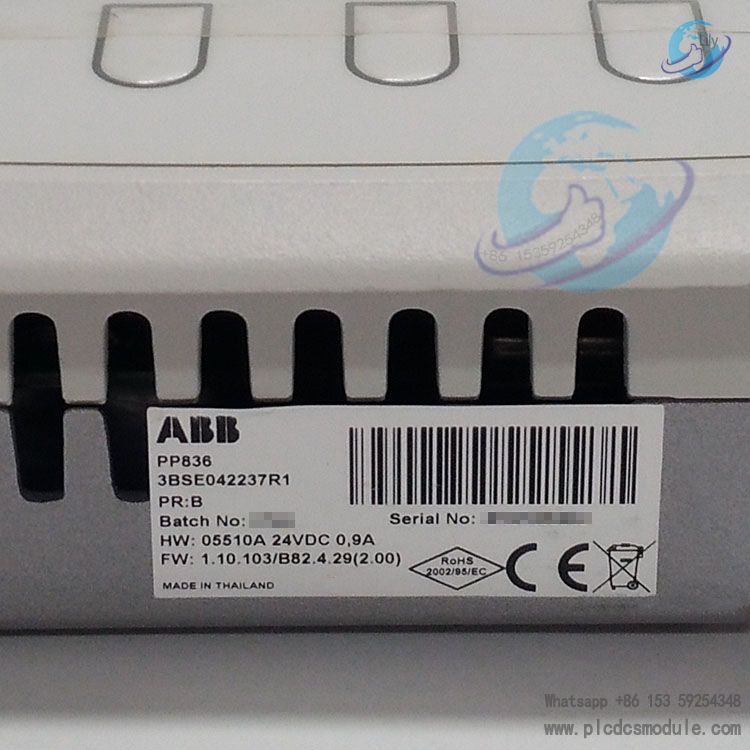

Hardware specifications

• Dimensions: Front panel 285x177x6 mm, mounting depth 56 mm (156 mm including clearance), front panel sealed to IP 66, rear panel sealed to IP 20, weight 1.4 kg.

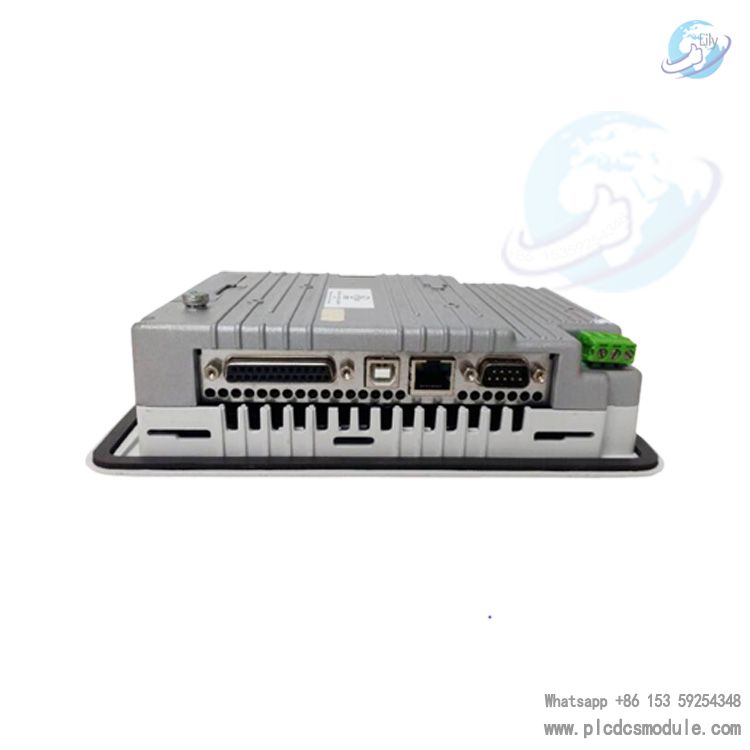

• Interface types: Includes 25-pin D-sub RS422/RS485 interface, 9-pin D-sub RS232C interface, shielded RJ45 Ethernet interface, USB interface (Host type A and Device type B), and CF-slot (supports Type I and Type II compact flash).

• Memory Capacity: 12 MB of application flash (including fonts), memory can be expanded internally by installing a compliant compact flash card.

• Real Time Clock: The PP836 uses CR2450 batteries with a minimum life of 3 years, the PP836A uses rechargeable batteries with errors due to ambient temperature and supply voltage.

• Display: TFT-LCD, 640x480 pixels, 64K colours, CCFL backlight life > 50,000 h at +25°C for PP836, LED backlight life > 25,000 h at +25°C for PP836A.

• Power supply: +24V DC (20 - 30V DC), 3-pin jack connector block, compliant with relevant safety standards.

• Vertical mounting ambient temperature 0°to +50°C, horizontal mounting 0°to +40°C, storage temperature - 20to +70°C, relative humidity 5 - 85% (non-condensing), relevant noise tests and certifications.


ABB Panel 800-PP836 Version 5.1 is mainly used in industrial automation, here are some of the industries where it is used:

Automotive manufacturing, machining, electronic equipment manufacturing, chemical industry, power, oil, gas and other energy fields, power plants, substations, oil rigs and other places of equipment control and monitoring.
