ABB PP875 3BSE092977R1 is a 7-inch standard industrial operator panel from the Panel 800 series, designed for industrial process automation applications.It features a resistive touchscreen and a TFT-LCD display with LED backlight, offering intuitive operation and clear visualization for reliable monitoring and control of industrial equipment and processes.
The unit is equipped with comprehensive communication interfaces, supports wide operating temperatures, and features good vibration and shock resistance, making it suitable for various industrial environments.It complies with RoHS, WEEE and other international certifications, and is ideal for a wide range of small and medium-sized control systems in industrial automation.

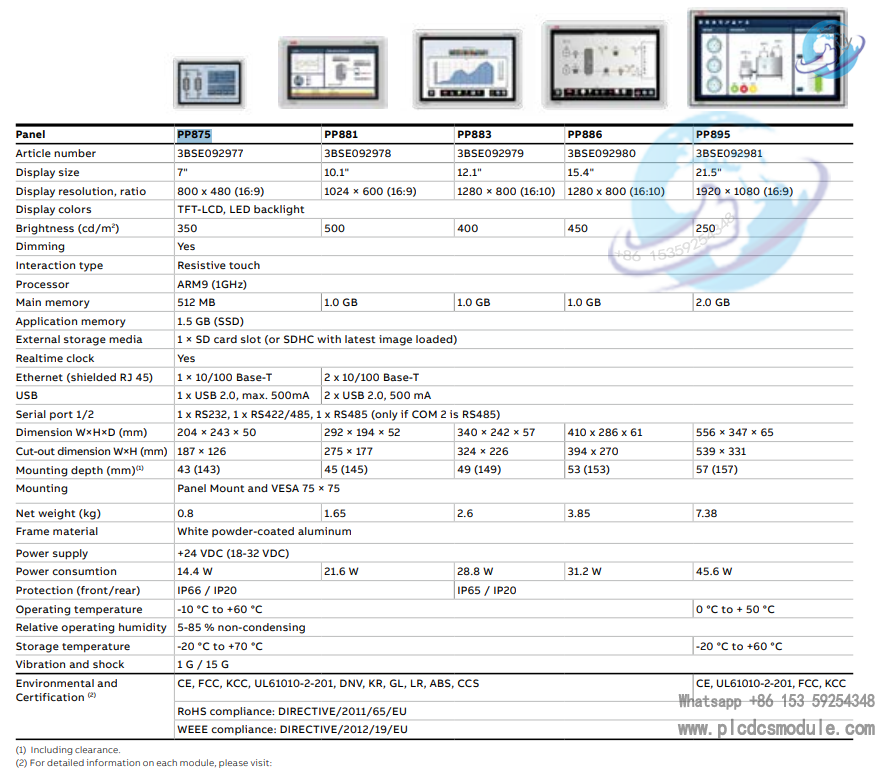

Core Technical Parameters
| Parameter Category | Specification |
|---|---|
| Model | PP875 3BSE092977R1 |
| Display | 7-inch TFT-LCD, LED Backlight, Resistive Touch |
| Resolution / Ratio | 800×480, 16:9 |
| Brightness | 350 cd/m², dimmable |
| Memory | Main RAM 512 MB, App Memory 1.5 GB (SSD) |
| External Storage | 1×SD Slot (supports SDHC) |
| Real-Time Clock | Supported |
| Ethernet | 1×10/100Base-T Shielded RJ45 |
| USB Interface | 1×USB 2.0, max 500mA |
| Serial Interface | 1×RS232, 1×RS422/485 |
| Dimensions (W×H×D) | 204×243×50 mm |
| Cutout Size | 187×126 mm |
| Installation Depth | 43 mm (143 mm incl. clearance) |
| Mounting | Panel + VESA 75×75 |
| Net Weight | 0.8 kg |
| Housing Material | White Powder-Coated Aluminum Alloy |
| Power Supply | +24 VDC (18-32 VDC wide range) |
| Power Consumption | 14.4 W |
| Protection Rating | Front IP66, Rear IP20 |
| Operating Temp | -10 ℃ to +60 ℃ |
| Storage Temp | -20 ℃ to +70 ℃ |
| Operating Humidity | 5-85% non-condensing |
| Vibration / Shock | 1G / 15G |
| Supported Protocols | ABB COMLI, Freelance, MODBUS, Siemens S7, Omron FINS etc. (CAN Open not supported) |
Core Product Advantages
- Compact & High-Efficiency: 7-inch compact design with minimal installation footprint, ideal for small control cabinets and local equipment control scenarios. The SSD application memory ensures stable data storage and operation performance.
- Environmental Adaptability: Wide operating temperature range and IP66 front protection rating resist dust and moisture in industrial environments. With 1G vibration resistance and 15G shock resistance, it meets the vibration requirements of on-site equipment operation.
- Multi-Protocol Communication: Supports ABB proprietary protocols and mainstream industrial communication protocols, enabling seamless connection with various PLCs, frequency converters and other industrial equipment for one-stop device management and control.
- Easy Installation & Maintenance: Supports panel mounting and VESA standard mounting. Features standardized wiring interfaces and external SD card storage, facilitating program upgrades, data backup and fault diagnosis.
Reliable Quality: Aluminum alloy housing combines robustness and heat dissipation performance. Compliant with multiple international industrial certifications and environmental directives, ensuring long-term stable operation in industrial scenarios.
Applications
This product is widely used in industrial automation fields such as food & beverage, packaging machinery, HVAC, water treatment and small production lines. It serves as a local operation terminal for equipment and an HMI for small control systems, enabling parameter setting, operation status monitoring, fault alarm and operational control of equipment.
