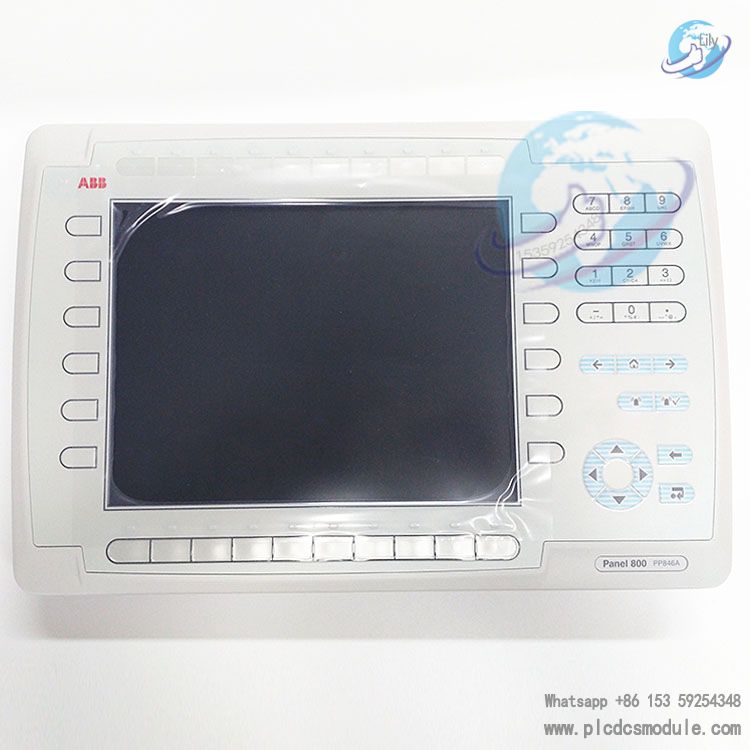

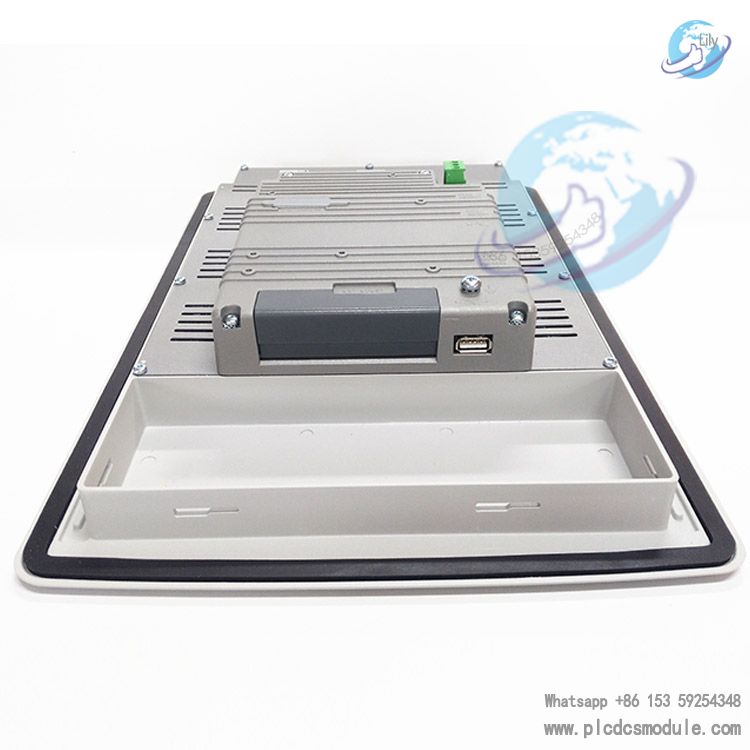

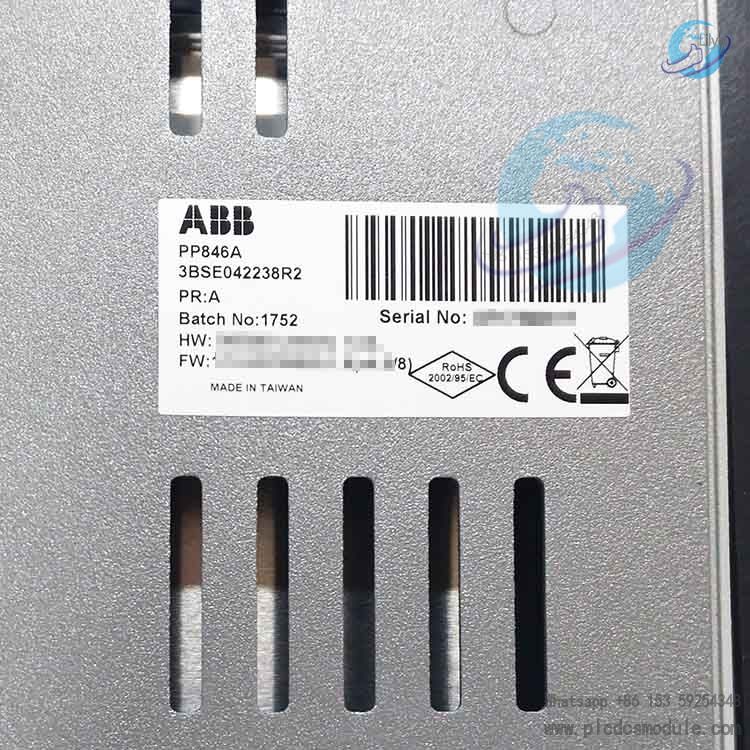

As a standard keypad operator panel of the Panel 800 V6 version, PP846A is an industrial-grade HMI with a die-cast aluminum housing and IP66 front protection. It is widely used in factory automation, power, oil and gas, water treatment and other industries.The panel is equipped with a 10.4-inch high-resolution TFT color display and 12 membrane keys, and features comprehensive communication interfaces. It supports core functions including alarm management, trend logging and recipe handling.Configurable quickly via Panel Builder 800 software, it enables seamless integration with PLC and DCS systems, balancing operational efficiency and system reliability.

Core Technical Parameters

1. Display & Operation

• Display: 10.4-inch TFT color LCD, resolution 800×600 pixels, 64K colors, CCFL backlight (lifetime > 50,000 hours at 25℃)

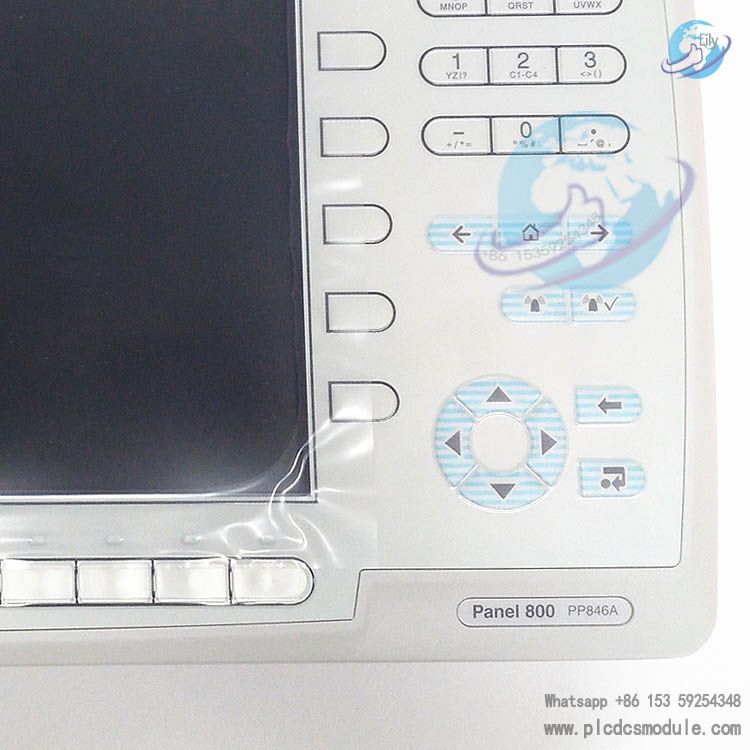

• Operation: 12 membrane keys (no touch screen), supports intuitive key operation and parameter setting
• Display functions: Supports text, dynamic graphics, trend curves, alarm pop-ups, and data logging display

2. Electrical & Environmental

• Power supply: 24 V DC (±20%, 20–30 V DC), typical power consumption approx. 1.6 W, max current 1.0 A
• Operating temperature: 0–50℃ vertical mounting, 0–40℃ horizontal mounting; Storage temperature: -20–60℃
• Protection rating: Front panel IP66, rear panel IP20, suitable for humid and dusty industrial environments
• Housing material: Die-cast powder-coated aluminum, robust, lightweight, and resistant to electromagnetic interference

3. Physical Specifications

• Front panel dimensions: 382 mm × 252 mm × 6 mm
• Installation depth: 58 mm
• Weight: approx. 2.5 kg
• Mounting: Panel flush mounting

4. Communication Interfaces

• Ethernet: 2×10/100 Mbps RJ45, supports Modbus/TCP, Profinet and other protocols
• Serial ports: RS-232C (9-pin D-sub), RS-422/RS-485 (25-pin D-sub)
• USB: 1×USB Host (Type A), 1×USB Device (Type B), for program download and peripheral connection
• Expansion: CF card slot (Type I/II), supports project storage and expansion

Product Features & Advantages

• Robust Industrial Design: IP66 front panel + die-cast aluminum housing, resistant to humidity, dust and vibration, stable operation over wide temperature range, reducing environmental adaptation cost.
• Easy Operation Experience: Rational layout of 12 membrane keys, together with high-resolution display, enables fast parameter setting, equipment start/stop and status monitoring, simplifying operation.
• Abundant Communication Capability: Dual Ethernet + dual serial ports + USB configuration, compatible with mainstream industrial protocols, seamlessly integrated with multi-brand controllers, PLC and DCS systems.
• Efficient Engineering Configuration: Configurable via Panel Builder 800 software, supports multi-language interface and templated development, shortening project deployment cycle.
• Core HMI Functions: Integrated alarm management, real-time trends, data logging, recipe management and audit trail to meet full-scenario process control requirements.

• High Reliability: Industrial-grade components + anti-interference design, supports long-term continuous operation, reducing system downtime risk.

•

Applications

• Factory Automation: Production line monitoring, equipment parameter setting, alarm handling and status feedback
• Process Control: DCS system operation terminal for power, oil & gas, chemical and water treatment industries
• Smart Manufacturing: Equipment control and data visualization in discrete manufacturing, metallurgy and mining
• Special Environments: Marine, offshore platforms and other industrial scenarios requiring high protection and marine certifications
