Built on an open architecture based on the .NET framework, this product supports connection with controllers of multiple brands. It comes with high-resolution TFT/LED display, industrial-grade protection design and abundant communication interfaces, capable of meeting the demands of process monitoring and equipment control in harsh industrial environments such as humid and dusty conditions.Supported by the Panel Builder 800 tool for fast engineering configuration and application simulation, it is an ideal choice as the main HMI for small and medium-sized automation systems or an auxiliary HMI for large-scale systems.
Technical Specifications
Basic Specifications
| Item | Specification |
|---|---|

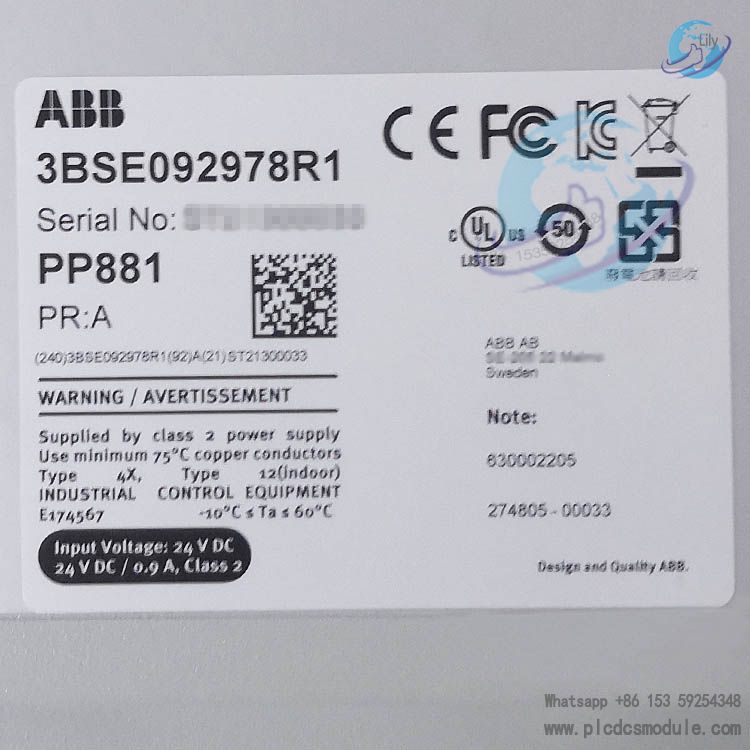

| Model | PP881 3BSE092978R1 |
| Product Type | Standard Industrial HMI |
| Display Type | Resistive Touch Screen (dimmable) |
| Display Size | 10.1 inches |
| Resolution | 1024 × 600 pixels |
| Brightness | 500 cd/m² |
| Processor | ARM9 (1 GHz) |
| Main Memory | 1 GB |
| External Storage | 2 GB SSD (1.5 GB available for applications) |
| Real-Time Clock | Supported |

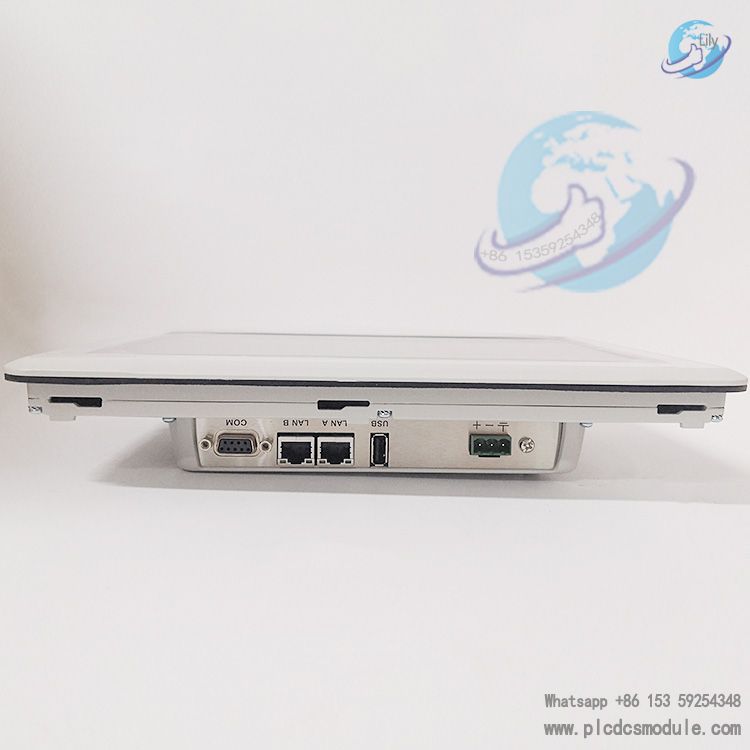

Hardware Interfaces
- Ethernet: 2 × shielded RJ45, 10/100 Base-T
- USB: 2 × USB 2.0, 500 mA
- Serial: 1 × RS232, 1 × RS422/485, plus 1 × RS485 (enabled when COM2 is set to RS485)
Power Supply & Power Consumption
- Power Input: +24 V DC (wide range: 18–32 VDC)
- Rated Power Consumption: 21.6 W
Physical Dimensions & Mounting
- Dimensions (W×H×D): 292 × 194 × 52 mm
- Cutout Dimensions (W×H): 275 × 177 mm
- Mounting Depth: 45 mm (145 mm including clearance)
- Mounting: Panel mount, VESA 75×75 wall mount
- Weight: 1.65 kg
Environmental Specifications
- Operating Temperature: -10°C ~ +60°C
- Storage Temperature: -20°C ~ +70°C
- Operating Humidity: 5% ~ 85% (non-condensing)
- Vibration / Shock: 1 G / 15 G
- Housing Material: White powder-coated aluminum alloy (front)
Certifications & Compliance
- Basic Certifications: CE, FCC, KCC, UL 61010-2-201
- Marine Certifications: DNV, KR, GL, LR, ABS, CCS
- Environmental Compliance: RoHS (DIRECTIVE/2011/65/EU), WEEE (DIRECTIVE/2012/19/EU)
- Ingress Protection: Front IP66, NEMA 4X/12, UL Type 4X/12; Rear IP20
- Hazardous Location: Not suitable (Hazardous No)
Applications
- Main HMI for small and medium-sized automation systems, implementing core functions such as process parameter monitoring, equipment start/stop, and alarm handling.
- Auxiliary HMI for medium and large control systems such as 800xA, serving as a local operation terminal to supplement the control functions of the main system.
- Equipment control terminal for marine applications including engine rooms and offshore platforms, complying with marine working conditions thanks to classification society certifications.
Local operation panel for harsh industrial environments such as metallurgy, chemical industry and food processing, operating reliably with IP66 protection and wide temperature range.
Recommended Models (ABB Panel 800 Series)
- PP881 3BSE092978R1 – Standard Industrial HMI
- PP883 3BSE092979R1 – Standard Industrial HMI
- PP874 3BSE035895R1 – Standard Industrial HMI
- PP886 3BSE092980R1 – High-performance Industrial HMI
- PP885M 3BSE092984R1 – Marine-certified Industrial HMI
- PP871 3BSE035892R1 – Compact Industrial HMI
