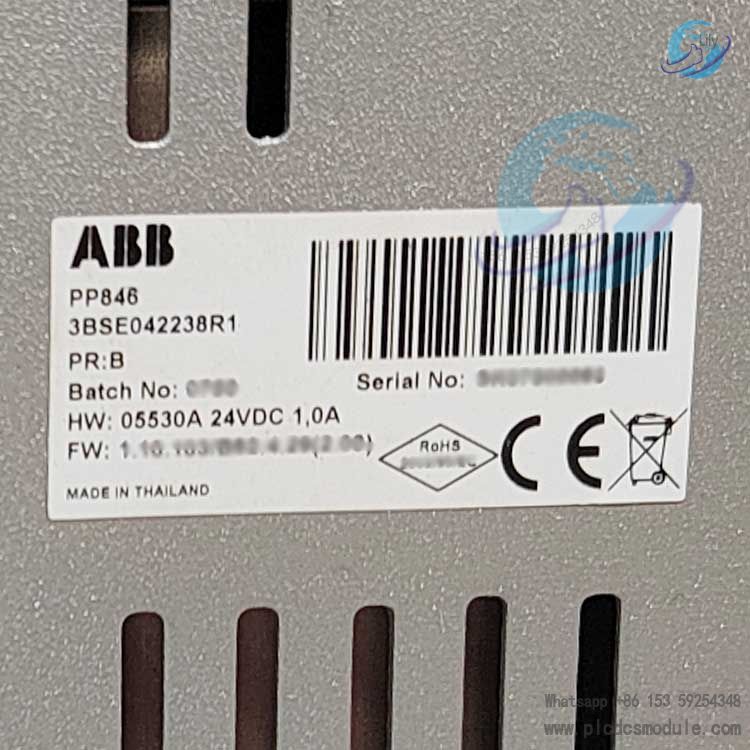

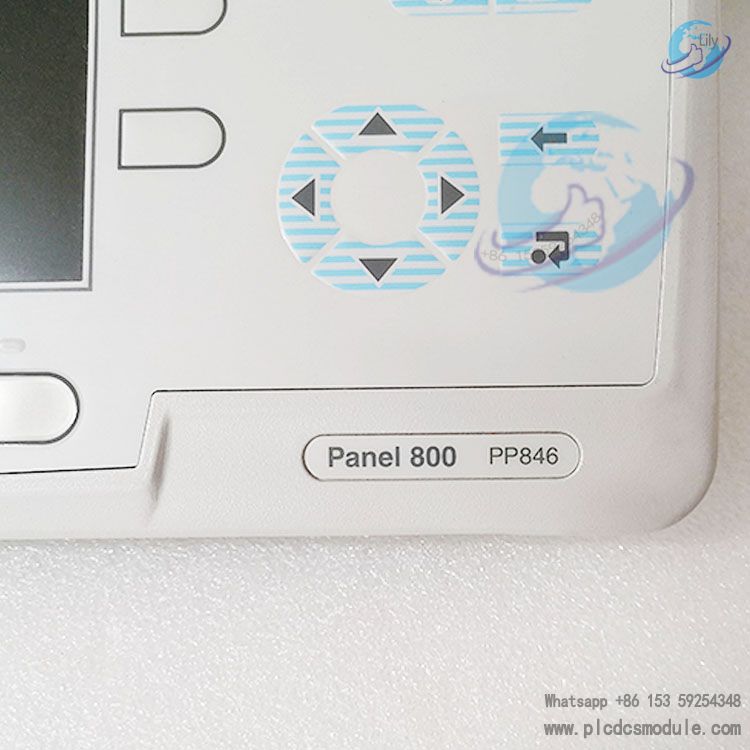

The PP846 3BSE042238R1 panel features efficient control operation and stable communication capabilities, with a rugged industrial-grade construction. Based on object-oriented operation logic, it integrates complete functional modules including text display and control, dynamic indication, time channels, alarm handling, and recipe management.Projects can be configured using the Panel Builder 800 configuration tool, with programs stored locally on the panel. It enables seamless connection with various automation control equipment such as PLCs, servos, and drives, meeting diverse HMI requirements in industrial field applications.Certified to multiple international standards including EMC and Low Voltage Directives, the panel is suitable for harsh and complex environments such as hazardous areas and industrial control cabinets. It is widely applied in industrial automation production lines and process control systems.

Technical Parameters

Functions & Features

1. Flexible Operation and ConfigurationThe panel adopts object‑oriented operation logic for simple and intuitive operation.Rapid project configuration can be completed via the PC‑based Panel Builder 800 configuration tool, and configured projects can be directly transferred and stored locally on the panel.Equipped with 4 groups of DIP switches, supporting multiple operating modes including Run, System Restore, Image Load, Service Menu, Self‑Test, and Hard Reset.The Service Menu mode allows direct IP configuration, project deletion, touch screen calibration, etc.The System Restore mode supports one‑click factory reset to meet on‑site commissioning and maintenance requirements.
2. Expandable Storage and CommunicationSupports on-board Compact Flash Type I/II industrial CF card (recommended: SiliconSystems SiliconDrive, SanDisk Industrial, Cactus 203/302/303 series) for project storage expansion.When enabled, the internal CF card can replace the external CF card function.Also compatible with external USB flash drives for file transfer.Natively supports Profibus DP expansion module (dimensions 87×70×30 mm, weight 0.1 kg) for Profibus DP bus communication.Additionally supports RS232/RS422/RS485, Ethernet and other standard communication interfaces, enabling seamless connection with mainstream industrial controllers.

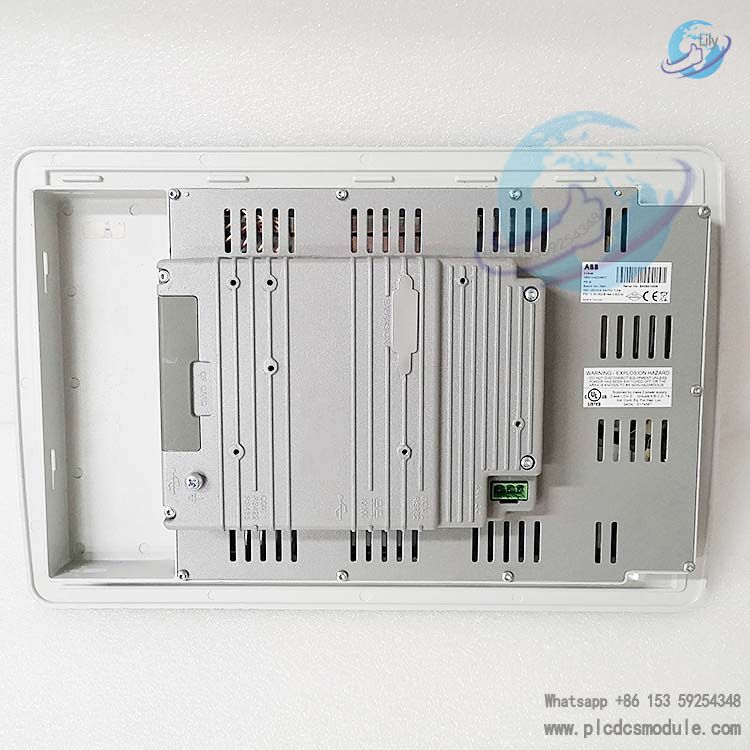

3. Industrial Durability and ProtectionPowder‑coated aluminum alloy backplate provides excellent chemical resistance, able to withstand common industrial chemicals such as diesel, cooking oil, 10% acetic acid, 20% sulfuric acid.The touchscreen area is protected by Autotex F157/F207 film, resistant to short‑term contact with solvents such as acetone, isopropanol, toluene.Front panel IP66 high protection rating effectively prevents dust and liquid ingress, suitable for harsh industrial environments.Certified with UL/cUL for hazardous locations, suitable for Class I, Division 2, Groups A,B,C,D hazardous and non‑hazardous areas.
4. Professional Accessories and CompatibilitySupports CB810 USB‑to‑Ethernet adapter (USB2.0 to 10/100 Mbps Ethernet) for Ethernet‑based project transfer between PC and panel.The adapter is compatible with USB1.0/1.1/2.0 and supports full‑duplex / half‑duplex modes.Provides dedicated cables including TK212A (Panel 800‑AC 800M) and TK854V030 (RS232 programming cable) to ensure stable communication.Compatible with various industrial bus cables, supporting Ethernet, Profibus, CC‑Link and other fieldbus types.

Installation and Compatibility Requirements

• Installation Space:Ventilation space must be reserved; panel vents must not be blocked.Recommended clearance: ≥ 100 mm for operation and heat dissipation.Cutout dimensions: 343 × 208 mm (13.5 × 8.18 inches).
• Grounding Requirements:Use a grounding conductor ≥ 2.5 mm² to ensure reliable grounding between the panel and enclosure.Use short, thick braided ground straps between enclosure and door, and between door and cabinet to avoid high‑frequency interference.
• Wiring Rules:High‑voltage cables, signal cables, and power cables must be routed separately.Cross at 90° if crossing is unavoidable.Use shielded cable for RS232, twisted‑pair shielded cable for RS422/485, and foil‑braid double‑shielded cable for Ethernet.
• EMC Protection:Ferrite cores can be installed on 24V DC power lines (2–3 turns for better suppression).For long‑distance communication, use single‑end shielding grounding or connect shielding to ground via 0.1 uF/250V capacitor to avoid ground loops.
• Temperature Control:An axial fan (120×120 mm) is recommended inside the cabinet to blow cool air directly to the panel, reducing operating temperature and extending service life of electrolytic capacitors.In cabinets with multiple heat‑generating devices, mount the panel in the lower, cooler area.

•

Applications
