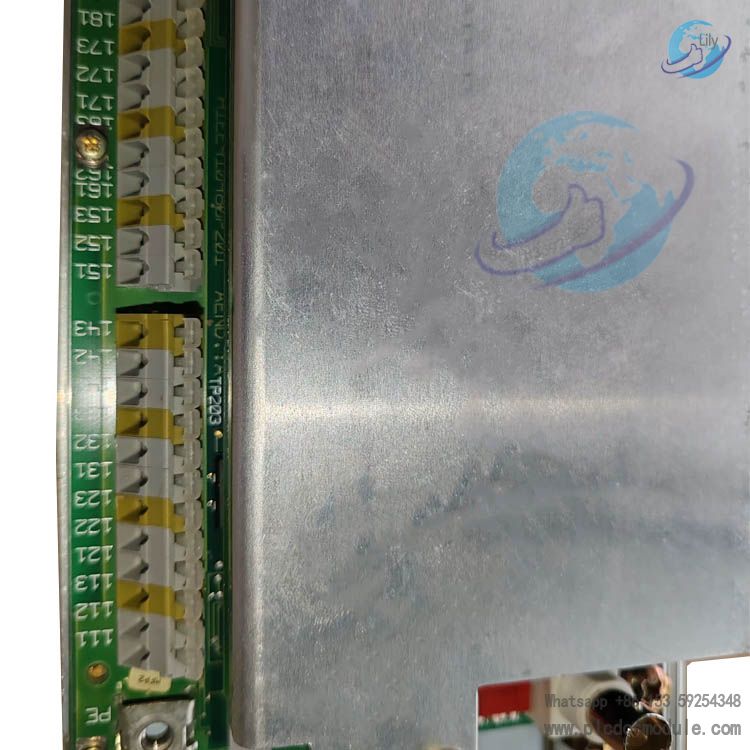

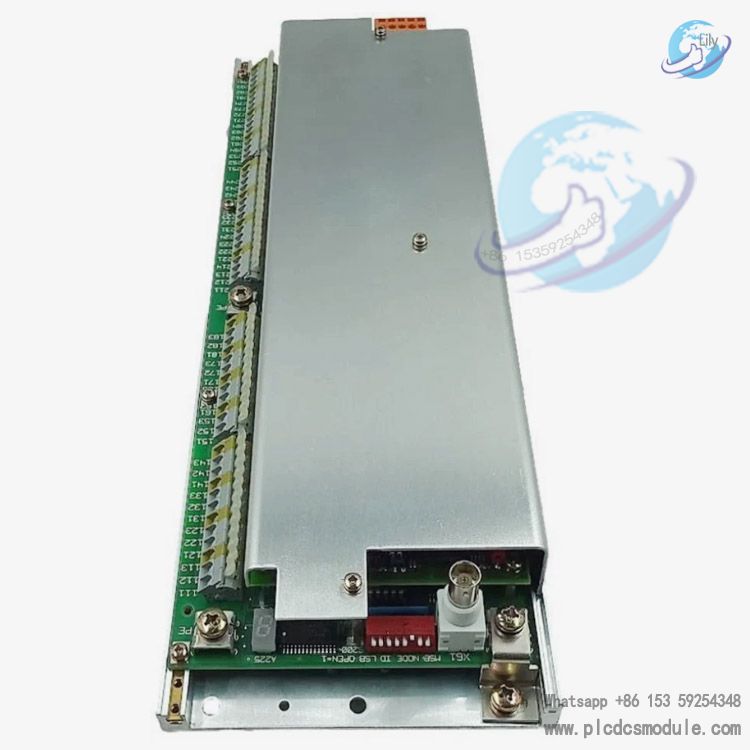

ABB UAC096 AE1（Material No.: HIEE300794R0001）is an analog I/O module manufactured in Switzerland, specifically designed for the UNITROL® P series excitation system. It provides high-precision analog acquisition and output for generator excitation control, ensuring stable and reliable operation of core functions such as voltage regulation, reactive power control and protection logic. As a critical spare part for reducing downtime risks and maintaining full functional and safe system operation, one unit is standard per UNITROL® P generator set.
Basic Information
- Model: UA C096 AE1
- Material Code: HIEE300794R0001
- Product Type: Analog Input / Output Module (Analog I/O Module)
- Country of Origin: Switzerland
- Applicable System: ABB UNITROL® P Excitation System
Physical Parameters
| Item | Value |
|---|---|
| Net Length / Depth | 381 mm |
| Net Height | 128 mm |
| Net Width | 49 mm |
| Net Weight | 1.2 kg |
| Gross Weight | 1.3 kg |
Core Functions
Bidirectional Analog Signal Interaction
- Analog Acquisition: Captures key analog signals of the excitation system, including excitation current/voltage, stator voltage/current, temperature, and transmitter signals, providing accurate feedback for the AVR (Automatic Voltage Regulator).
- Control Command Output: Drives voltage regulators, actuators, alarm circuits, etc., to achieve closed-loop regulation and protection control.
System-Level Reliability Assurance
- Uses original factory components, fully compatible with UNITROL® P main controllers, gating units, I/O interfaces, etc., with no compatibility risks.
- Industrial-grade design withstands harsh conditions such as strong electromagnetic interference, wide temperature range, and vibration in power plants, ensuring long-term stable operation.
Product Positioning & Application Scenarios
- Core Positioning: Serves as the analog acquisition and control hub of the UNITROL® P excitation system, connecting field instruments with the control core.
- Typical Applications: UNITROL® P excitation control systems for synchronous generators in thermal power, hydropower, gas turbine units, etc.
- Supporting Components: Works cooperatively with PPC322 BE1 processing unit, GDB021 BE1 gating unit, UNC 4674b-E I/O interface, and other modules.
Frequently Asked Questions (FAQ)
Q1: Is this module only suitable for UNITROL® P systems, or can it be used in UNITROL 1000/6000/8000?A1: It is dedicated to the UNITROL® P excitation system only. Its hardware interface, firmware and backplane communication are incompatible with other series and must not be mixed.
Q2: How many UA C096 AE1 modules are required for one UNITROL® P unit?A2: According to the official ABB bill of materials, one module per unit is the standard configuration; no additional modules are needed.
Q3: Does the module support hot-swapping in case of failure?A3: In accordance with UNITROL® P maintenance specifications, replacement with power off is recommended. Mark wiring and back up parameters before operation to avoid short circuits or configuration loss.

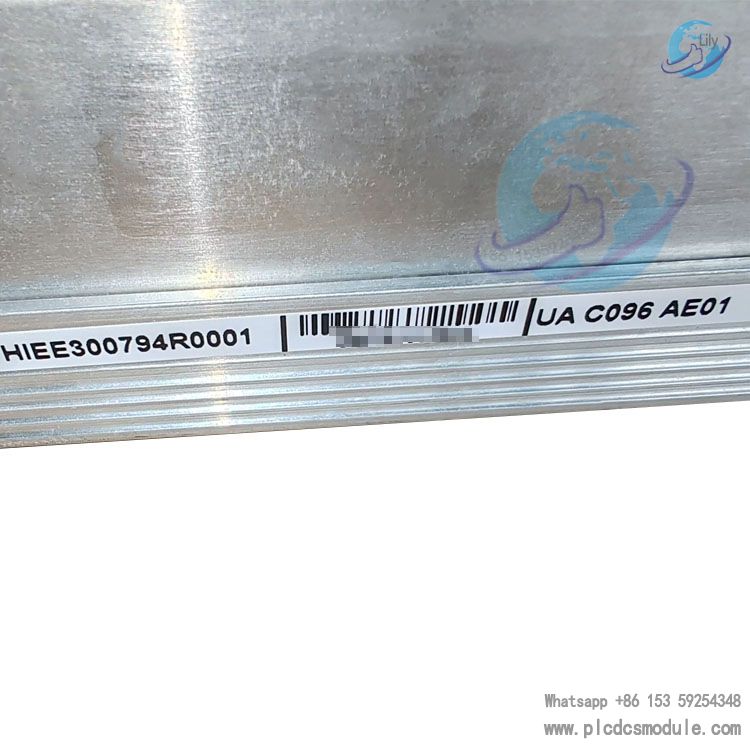

Q4: How to verify authenticity and original origin?A4: Ensure the model UA C096 AE1 and material code HIEE300794R0001 match; genuine products are manufactured in Switzerland.
Q5: Can substitute models or third-party compatible boards be used?A5: Strongly recommend using genuine ABB spare parts. Third-party or substitute modules may have mismatched accuracy, isolation or EMC performance, causing control abnormalities, false protection trips or even unit shutdown.
Q6: What should be noted for storage and installation?A6: Store in a dry, dust-free, non-corrosive environment at 0–40℃. Install and secure strictly according to cabinet dimensions (381×128×49 mm) with reliable grounding, and follow the original wiring diagram for connections.
