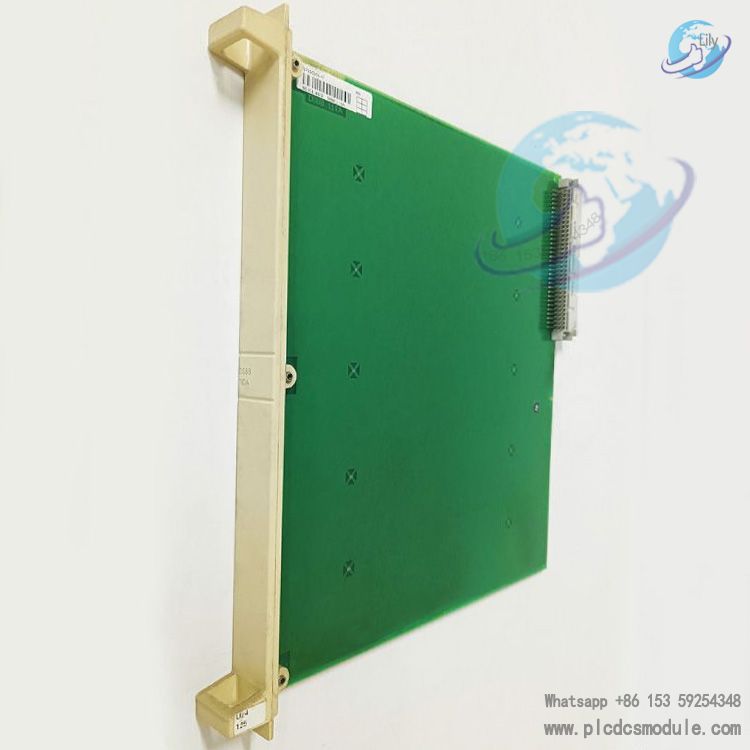

ABB DSBB110A 57330001-Y is a shield board designed for the System 800xA distributed control system. Its core functions are to provide signal protection, electromagnetic interference (EMI) suppression, and fault isolation for the control system, ensuring stable signal transmission and accurate, reliable control in industrial environments with high electrical noise. As a key auxiliary component of the 800xA system, it guarantees stable operation of core parts such as I/O modules and controllers through hardware‑level anti‑interference and protection design. It is widely suitable for industrial applications including power, petrochemicals, metallurgy, water treatment, and others.
Basic Information
Model: DSBB110APart Number: 57330001-YBrand: ABBSeries: ABB System 800xA DCS system, DS SeriesOrigin: SwedenWeight: Approx. 0.4 kgProtection Rating: IP20
Core Functions
Electromagnetic Interference Suppression
Built with multi-layer shielding circuits and filtering networks to effectively attenuate electromagnetic interference (EMI) and radio frequency interference (RFI) generated by industrial inverters, motors and high-voltage lines, preventing signal distortion, data bit errors and abnormal control behavior.
Signal Integrity Protection
Provides overvoltage, overcurrent and short-circuit protection for digital and analog signals, guarding system modules against damage from external surges, miswiring or equipment faults, and ensuring accurate and intact signal transmission.
Fault Isolation
Each channel features independent protection. In case of a single-channel fault, it can be quickly isolated without affecting other channels or overall system operation, minimizing fault propagation risks.
Adaptive Signal Conditioning
Supports standard industrial signal types and complies with system I/O module specifications. It can be directly integrated without additional adapters, simplifying system configuration.
Technical Specifications
| Item | Specification |
|---|---|
| Operating Voltage | 24 V DC ±20% |
| Power Consumption | Approx. 5 W |
| Operating Temperature | 0℃ ~ 55℃ |
| Storage Temperature | -40℃ ~ 85℃ |
| Relative Humidity | 5% ~ 95% non-condensing |
| Dimensions | Approx. 64 mm × 170 mm × 58.5 mm |
| Mounting | Standard rack mounting, compatible with 800xA system cabinets |
| Channel Features | Multi-channel independent shielding, supports mixed protection for digital/analog signals |
| Response Time | Microsecond-level, fast response to abnormal signals and protection triggering |
Product Features
Industrial-Grade High Reliability
Uses industrial-grade components and PCB manufacturing processes. It has passed strict vibration, shock and temperature cycle tests, complies with IEC 61010 and IEC 61131-2 industrial standards, and enables long-term stable operation in harsh environments.
Modular Plug-and-Play
Standardized dimensions and interface design, supports hot-swapping in selected scenarios. Installation, replacement and maintenance can be performed without system shutdown, improving O&M efficiency.
Full-Scenario Anti-Interference Performance
Dual shielding structure (on-board filtering + housing shielding) with EMC performance meeting the highest industrial level, suitable for strong electromagnetic interference environments.
Fault Visualization
Integrated channel status indicators clearly display normal, fault and abnormal conditions for fast troubleshooting.
Strong System Compatibility
Natively compatible with ABB System 800xA, Bailey INFI 90 and other systems, supports S800 I/O and S900 I/O modules, enabling seamless integration into existing control systems.
Applications
Power Industry: Signal protection for DCS monitoring systems in power plants and substation automation systemsPetrochemical Industry: Signal isolation and anti-interference for process control loops in refineries and chemical plantsMetallurgy & Mining: Signal protection for smelting and mineral processing automation systems in strong electromagnetic environmentsWater Treatment: I/O signal protection for municipal sewage and industrial water treatment control systemsManufacturing: Stable control signal guarantee for automotive, machinery, paper and other production line automation systems
Frequently Asked Questions (FAQ)
Q1: What is the core function of DSBB110A 57330001-Y? Is it mandatory to install?A: Its core functions are electromagnetic interference suppression, signal protection and fault isolation. Installation is not mandatory, but it is highly recommended in scenarios with strong electromagnetic interference (e.g. multiple inverters, high-voltage equipment) and high reliability requirements, as it can greatly reduce the probability of system failures and signal distortion.
Q2: Does this shield board support hot swapping? Does replacement require system shutdown?A: Yes, it supports hot swapping. Replacement does not require full system shutdown; operation can be performed as long as the corresponding channel has no critical control tasks, without affecting the operation of other modules.
Q3: Which ABB systems is DSBB110A compatible with? Can it work with other brands of DCS?A: It is natively compatible with ABB System 800xA and Bailey INFI 90, and supports S800/S900 I/O modules. It is not directly compatible with other brands of DCS. Signal adapter modules can be used for adaptation, but compatibility cannot be guaranteed. It is recommended to use only with ABB systems.
Q4: How to troubleshoot when the channel fault indicator stays on?A: 1. Check whether the corresponding channel wiring is short-circuited, miswired or overvoltage; 2. Disconnect the external signal. If the indicator remains on, the shield board channel is damaged and needs replacement; 3. If the indicator turns off, the external equipment or cable is faulty. Check the front-end sensors, actuators or cables.
Q5: What is the difference between DSBB110A and ordinary signal isolators?
A: 1. Higher pertinence: Designed specifically for ABB 800xA systems with fully matched interfaces and protocols;
2. More comprehensive protection: Includes EMI shielding, multiple electrical protections and fault isolation;
3. Higher integration: Multi-channel integrated design, suitable for system cabinets without extra wiring;
4. Higher reliability: Industrial-grade standards plus system-level testing, with better stability than general-purpose isolators.
