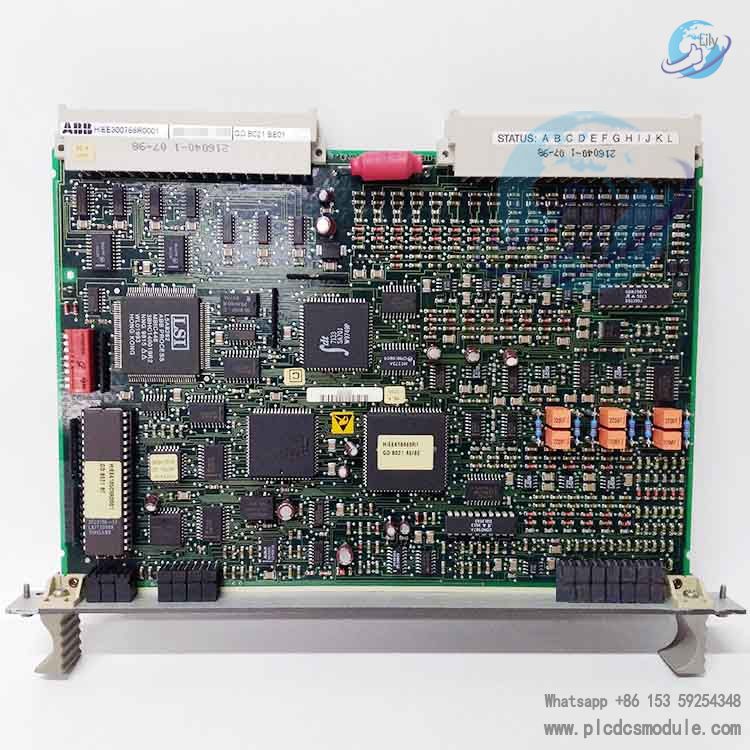

ABB GD B021 BE01 (order code HIEE300766R0001) is a high-performance gate drive and control module designed by ABB for critical power electronic applications. As a core interface between the control system and power semiconductor devices such as IGBTs, IGCTs and thyristors, it performs two key functions in high-demand industrial systems. For medium-voltage frequency converters and high-power converters, the GD B021 BE01 electrically isolates and power-amplifies low-power PWM control signals from the upper controller into high-current gate pulses for driving high-power switching devices, while providing microsecond-level overcurrent, short-circuit and undervoltage protection. For UNITROL® P series excitation systems, it serves as a dedicated gating control unit that delivers precise triggering, signal isolation, real-time condition monitoring and fast fault protection for synchronous generator excitation circuits.
Featuring an industrial-grade wide-temperature design and enhanced anti-interference structure, GD B021 BE01 HIEE300766R0001 is fully compatible with ABB ACS 6000, ACS 6080 medium-voltage drives, static frequency converters (SFC), large-scale DC drives and UNITROL® P excitation systems. It is widely used in power generation, metallurgy, petrochemical, rail transit and other industries with extremely high reliability requirements. As an original ABB OEM high-priority spare part, each UNITROL® P unit is typically equipped with 2 pieces as standard.
Positioning and Application
System Scope: UNITROL® P Static Excitation SystemCore Role: Trigger, drive and protection hub for the excitation power unitTypical Applications: Thermal power, hydropower, gas turbine, combined-cycle power plants and synchronous condenser unitsKey Value: Reduces outage downtime, ensures full-load availability, and extends system service life
Core Functions
- Precise Triggering for Thyristors / Power DevicesReceives commands from the controller and outputs synchronized, high-precision gate drive pulses to ensure orderly turn-on and turn-off of the power circuit.
- High-strength Electrical IsolationProvides high-voltage isolation between the control side and power side, improving anti-interference performance and operational safety.
- Real-time Status MonitoringMonitors operating conditions including overcurrent, overvoltage, overtemperature and drive abnormalities, with fast fault signal feedback.
- Fast Protection ShutdownImmediately blocks drive pulses under abnormal conditions to protect power devices and excitation cubicles, preventing fault escalation.
- Signal Conditioning & Interface AdaptationCompatible with UNITROL® P system backplane communication and adapts to the overall unit control logic.
Technical Specifications
| Item | Specification |
|---|---|
| Model | GD B021 BE1 |

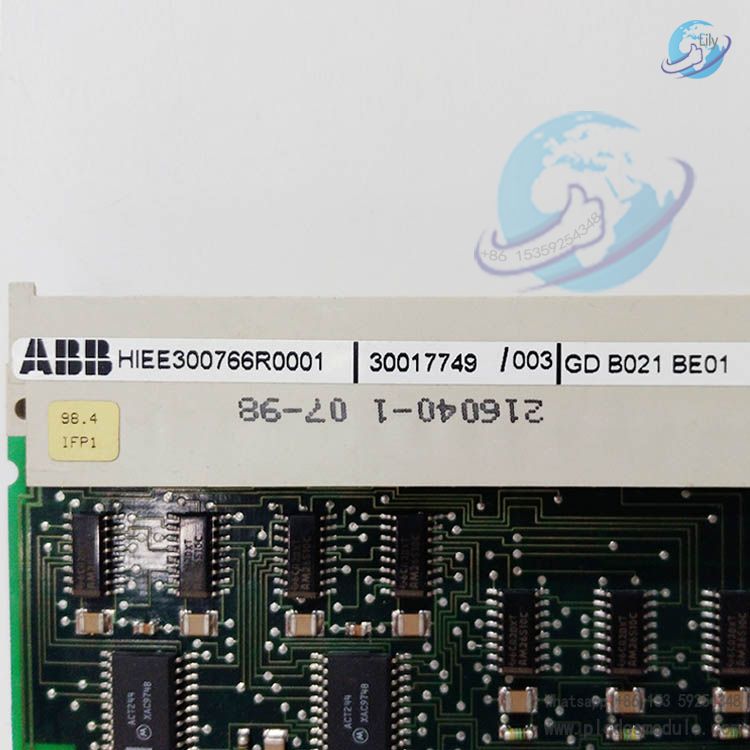

| Part Number | HIEE300766R0001 |
| Suitable System | UNITROL® P Excitation System |
| Quantity Per Unit | 2 pcs per generator set |
| Spare Part Level | High-Priority Recommended Spare Part |
| Installation Type | Backplane plug-in |
| Protection & Environment | Industrial-grade design, suitable for high-temperature and strong electromagnetic environments in power stations |
| Certification | Compliant with IEC standards and ABB original quality standards |
| Net Length / Depth | 276 mm |
| Net Height | 37 mm |
| Net Width | 206 mm |
| Net Weight | 0.42 kg |
Product Advantages
ABB PPC322BE HIEE300900R0001 | PSR-2 Architecture Industrial Processor Module
- Genuine Original AssuranceGenuine OEM spare part with 100% compatibility with complete units, eliminating compatibility risks and non-original hidden hazards.
- High-Reliability DesignIndustrial-grade components, multi-layer PCB, and enhanced anti-interference design to meet continuous operation requirements.
- Maintenance-FriendlyModular plug-in structure enables quick replacement, greatly reducing downtime for emergency repairs.
- System-Level CoordinationDeeply matched with PPC322 BE1 processing unit, power packs, trigger units and other modules to improve overall system performance.
- Long-Lead-Time Spare PartListed in the high-priority spare parts list. On-site stock is recommended to respond to unexpected failures.
Frequently Asked Questions (FAQ)
Q1: Are GD B021 BE1 and GD B021 BE01 interchangeable?A: They are similar models in the same series with identical core functions; minor differences lie in hardware versions and pin definitions. It is preferred to use HIEE300766R0001 (GD B021 BE1) for UNITROL® P systems. Please verify the part number and backplane definition before replacement.
Q2: What failures will be caused if this module is damaged?A: It will result in abnormal excitation triggering, out-of-control power circuits, unstable excitation current, failure of unit grid connection or voltage stabilization. In severe cases, it will trigger protection shutdown.
Q3: Must a single unit be equipped with 2 modules?A: The standard configuration for UNITROL® P is 2 modules, featuring redundant design for higher reliability. Stocking according to the complete unit configuration is recommended to avoid operation failure caused by single-module fault.
Q4: How to judge module failure?A: Typical symptoms include no excitation output / fluctuation, missing trigger pulses, system drive fault alarms, and abnormal power device behavior. Faults can be identified via system diagnostics, status indicators, and pulse testing.
Q5: Is third-party replacement supported?A: The use of genuine ABB HIEE300766R0001 is strongly recommended. Third-party modules may have mismatched isolation, timing or protection logic, leading to component damage or system failure.
Q6: What are the suggestions for stocking and delivery?A: This is a high-priority spare part with long lead time. Power stations are advised to keep 1–2 units in stock. Contact official ABB service channels to ensure genuine parts and technical support.
Q7: Is the size compatible with standard UNITROL P cabinets?A: With original standard dimensions of 276×206×37 mm and 0.42 kg, it fits directly into UNITROL P original backplanes and cabinets without modification.
