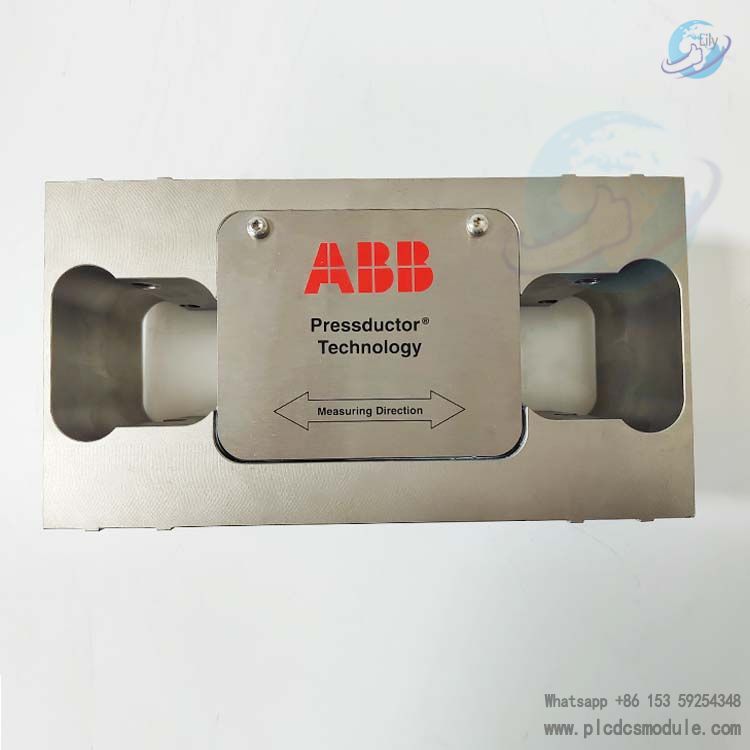

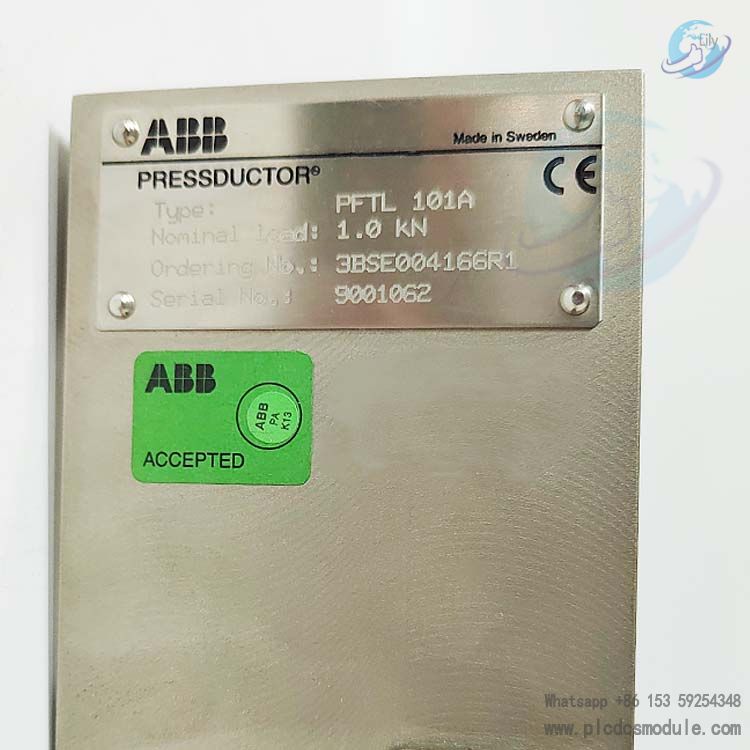

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The ABB PFTL101A-1.0KN 3BSE004166R1 is a horizontally-mounted Pressductor-type load cell suitable for force measurement in various industrial scenarios. It adopts ABB's well-known Pressductor technology, which is based on the magneto-elastic effect. That is, the magnetic properties of the material will be affected by the mechanical force applied to it. When subjected to mechanical force, the sensor will generate measurement signals due to the change in the magnetic field. These signals do not depend on physical movement or deformation, enabling the load cell to have both high sensitivity, super-strong overload-bearing capacity, and almost no inherent limitations on the number of load cycles.
Product Features
- High Precision
Capable of providing accurate weight or force measurement under various environmental conditions, with a measurement range of 0.2–2.0 kN. Ideal for industrial applications requiring high precision. - Robust and Durable
The load cell housing is machined from a single piece of steel, typically made of stainless steel (e.g., models PFTL101A, PFTL101AE), ensuring excellent durability and corrosion resistance. - Multiple Connection Methods
PFTL101A and PFTL101B are equipped with connectors for pluggable connection cables, while PFTL101AE and PFTL101BE feature fixed connection cables, facilitating installation in different scenarios. - High Protection Level
Models like PFTL101AE/BE used for web tension measurement in paper machine drying sections have a protection rating of IP66, making them suitable for harsh industrial environments. - Easy Integration
Equipped with diverse external interfaces, including excitation current, analog I/O, digital I/O, Ethernet connection, RS-232 serial port, etc., enabling easy integration with various control systems.
Performance Parameters
Application Fields
- Paper Industry
Widely used in equipment such as paper machines, calenders, coaters, and winders to accurately measure and control web tension, ensuring paper production quality. - Other Industrial Scenarios
Applied in scenarios requiring high-precision tension and pressure measurement, such as manufacturing, automated production lines, and quality control processes. It can monitor the tension of cables or coils, as well as the force borne by various mechanical components.
