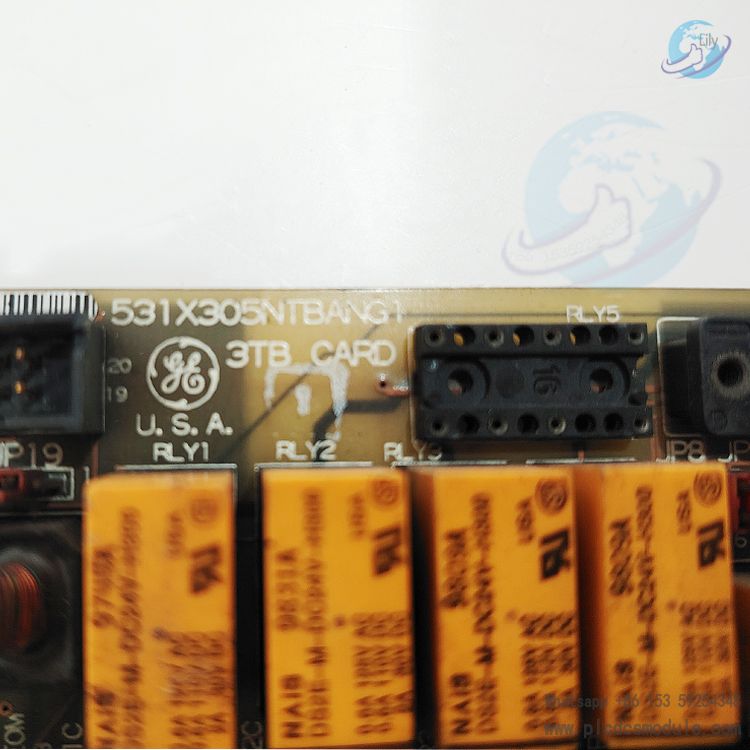

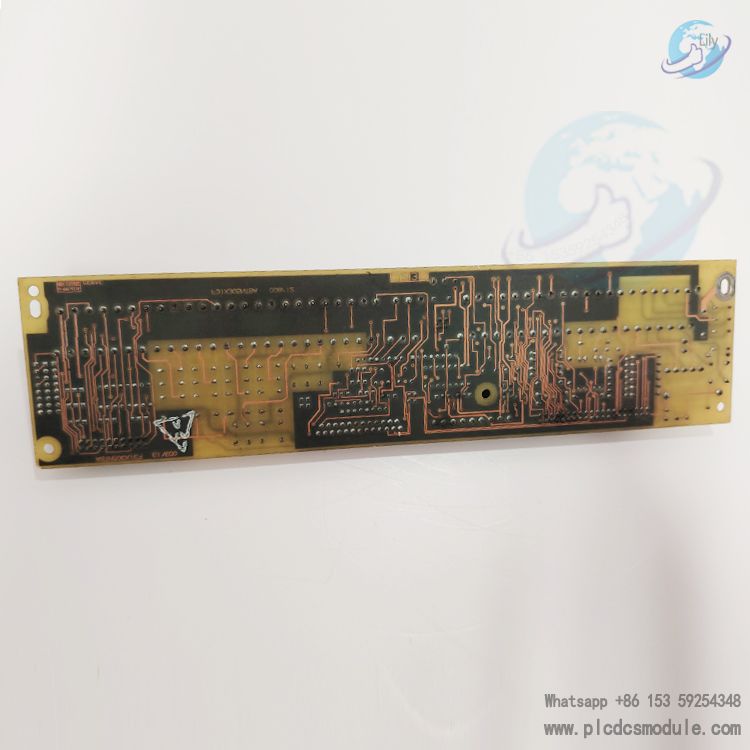

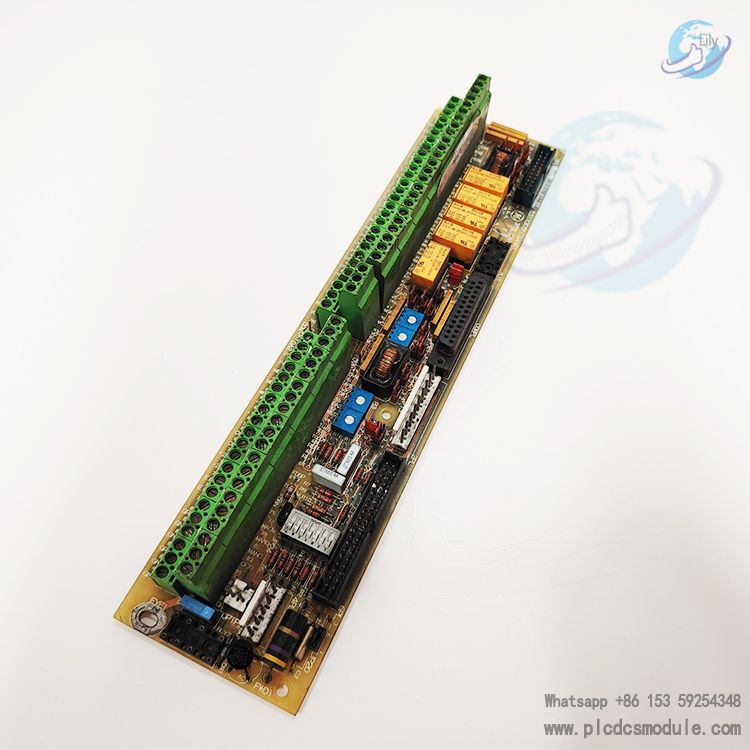

The F31X305NTBANG1 531X305NTBANG1 terminal boards from GE belong to the 531X series. As key components for drives and excitation cabinets, they offer multiple power outputs, including regulated 5V DC, 15V DC, and unregulated 24V DC or 125V AC. Encoders can be configured via onboard jumpers. The boards feature 7 relay outputs with 120V AC-rated contacts and 4 potentiometers for scaling low-level analog I/Os. Their standard PCB coating provides basic protection. Widely used in systems like the EX2000 excitation system, they ensure stable operation of equipment in industrial automation and power systems.
Communication Interfaces: Supports digital control inputs and encoder interfaces, enabling connection to various external devices for complex control functions and data transmission.
Potentiometer Adjustment: Four potentiometers allow fine scaling of low-level analog inputs/outputs, facilitating signal amplitude adjustment to fit different external devices or system requirements.
Hardware Design Details: PCB Coating: Standard PCB coating provides basic protection for hardware components, resisting dust, mild corrosion, and electrical interference to ensure stability and reliability in general industrial environments.
Dimensions & Weight: Weighs approximately 0.14kg. Though exact dimensions are unspecified, the compact design is typical for terminal boards, enabling easy installation in various equipment cabinets to save space.
Installation & Maintenance
Installation Precautions: Follow specific installation parameters and refer to equipment/manuals for wiring to minimize damage risks. Installation should be performed by trained professionals to ensure all functions operate normally.
Packaging & Shipping: Usually shipped in anti-static plastic bags to prevent ESD (electrostatic discharge) damage to electronic components during transportation and storage.
Supplementary Application Scenarios
Excitation System Interface
As a part of the EX2000 excitation system, it establishes connections between the control core and external devices, supporting analog-to-digital conversion outputs for testing and auxiliary analog voltage controller oscillator inputs. This facilitates precise control and monitoring of the excitation system.
Industrial Automation Control
Widely applied in the field of industrial automation, it can collaborate with GE's drive and excitation cabinets to provide power distribution, signal processing, and control functions for various devices such as motors and generators, ensuring stable operation and precise control of equipment.
