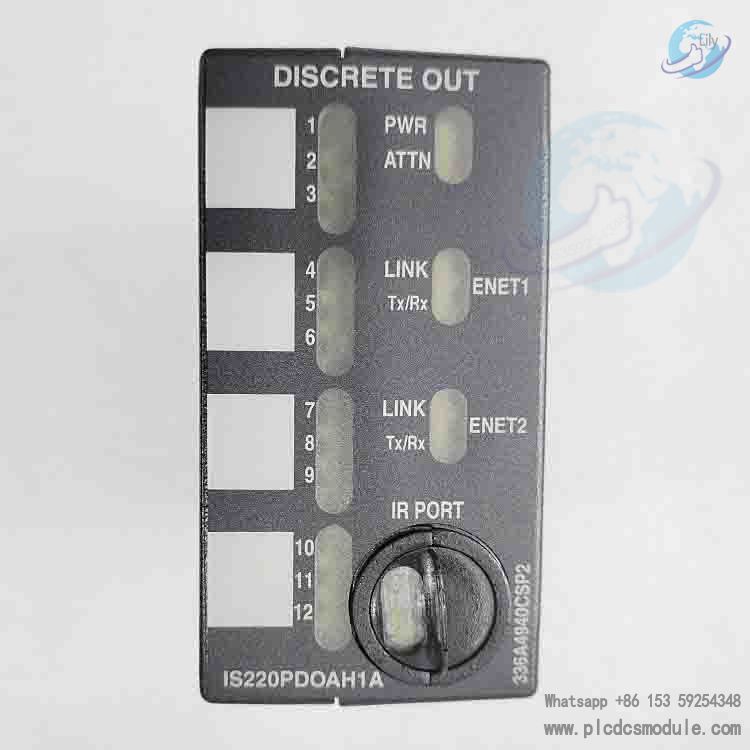

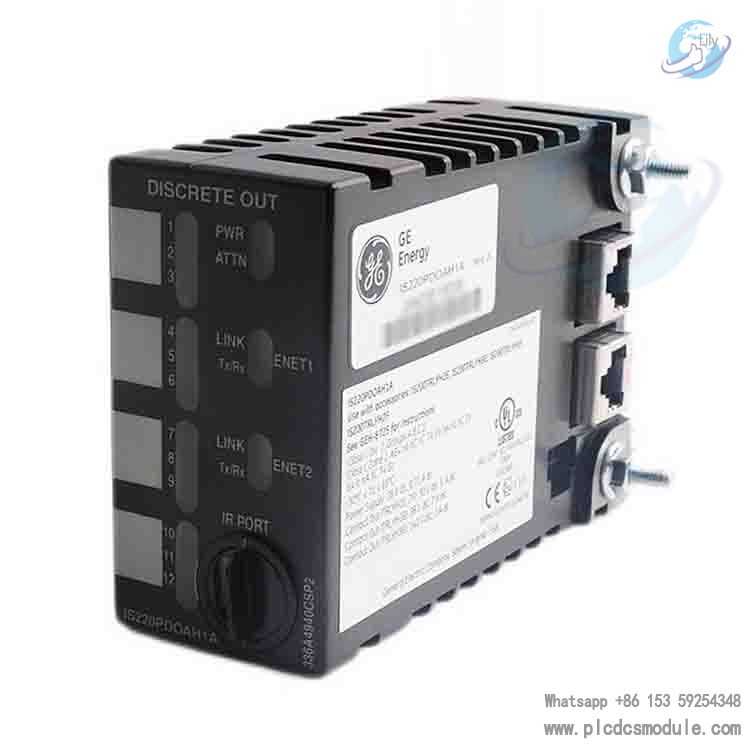

GE IS220PDOAH1A 336A4940CSP2 Digital Output Module is engineered for industrial automation control, precisely delivering digital signals to efficiently manage external equipment operations. With multiple output channels, it simultaneously drives relays, contactors, and various loads to meet complex system requirements. Its excellent electrical isolation design resists interference, ensuring accurate data transmission and stable system operation. Supporting multiple communication protocols, it enables easy integration with other devices, making it a reliable choice for achieving robust automation control in power, chemical, and other industrial sectors.
Electrical Characteristics
Output Channels: Equipped with multiple digital output channels for simultaneous control of external devices. Channel count varies (e.g., 16 or 24 channels) — refer to product manual for exact specifications.
Output Signal Type: Provides switch-type signals for controlling relays, contactors, etc. Common output voltage levels include 24V DC, with other options available based on module design and application requirements.
Output Current Capacity:Each channel delivers sufficient current to drive loads, typically rated at several amperes (e.g., 1A or 2A), meeting the needs of most industrial field devices.
Functional Features
Isolation Function: Incorporates electrical isolation to separate internal circuits from external loads, safeguarding against interference and protecting the module from voltage surges or current spikes. Enhances system stability and reliability.
Diagnostic Function: Features self-diagnosis capabilities for real-time status monitoring. Operational and fault indicators provide visual feedback for quick troubleshooting. Advanced models support remote monitoring and predictive maintenance via communication interfaces.
Communication Interfaces: May include Ethernet, RS-485, or other protocols for seamless integration with control systems. Enables remote control, status updates, and parameter configuration within industrial automation networks.
Operating Environment
Temperature Range: Designed to operate in harsh industrial environments, typically within a temperature range of -20°C to +60°C (exact specifications depend on the product model; refer to the datasheet for details).
Humidity Range: Functions reliably in non-condensing humidity conditions from 5% to 95% relative humidity, ensuring stable performance in varying atmospheric conditions.
Application Fields
Widely used in industrial sectors such as power generation, chemical processing, metallurgy, and manufacturing, this module controls the start/stop and status switching of industrial equipment, including:
Electric motors,Valves,Indicator lights,Relays,Contactors
It serves as a critical component in industrial automation systems for digital output control, enabling precise and reliable operation of machinery and processes.
