Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. PPC-R22.1N-T-Q1-NN-NN-FW is a product launched by Bosch Rexroth for multi-axis motion control applications. It belongs to the PPC series of controllers, featuring various functional characteristics and suitable for a wide range of industrial scenarios.
Product Overview:

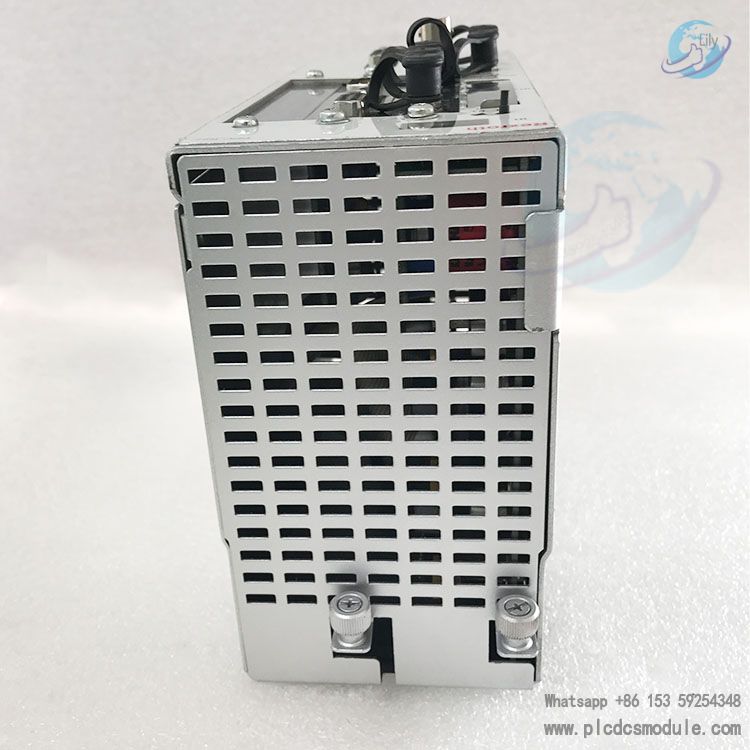

PPC-R22.1N-T-Q1-NN-NN-FW is a controller in the PPC series, manufactured by Bosch Rexroth. The PPC-R unit is compact with an IP20 protection rating, serving as a universal platform that can function as a PLC or NC controller depending on the application scenario. It adopts a housing version suitable for Reco units and is equipped with cross-communication functionality.
DATA SHEET
PPC-R22.1N-T-Q1-NN-NN-FW.pdf
Hardware Configuration

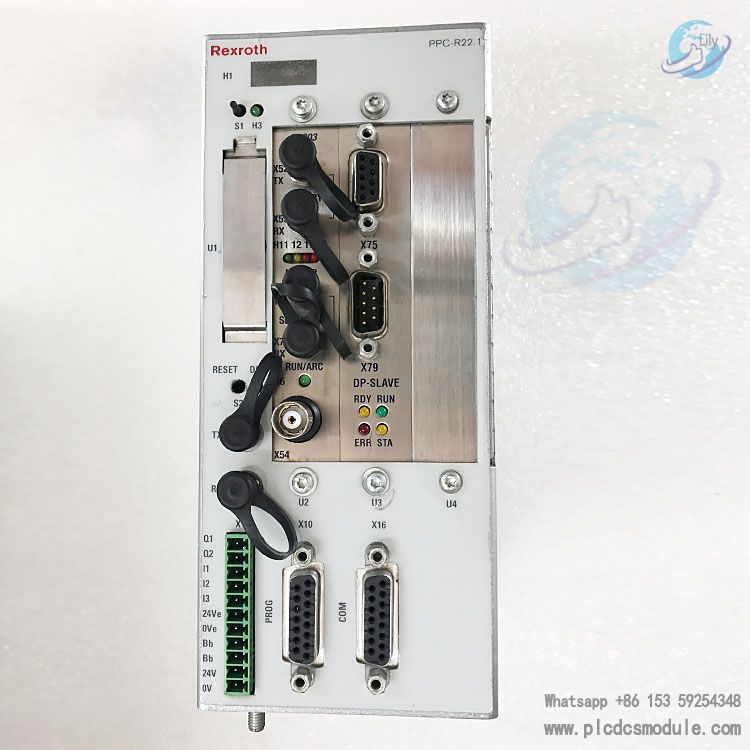

- Core Components: Features a dual-slot width design with three expansion slots, an onboard Ethernet interface (located at the bottom of the controller), and support for an optional 10/100 MBaud Ethernet card. It is equipped with a 4-digit alphanumeric display (H1) for diagnostics and status indication, as well as a compact flash card slot (U1).
- Expansion Modules: Equipped with a DAQ03 card to implement Link Ring functionality, enabling master-slave interfaces between controllers via fiber optic ring networks for sharing master position data. Supports up to two Option Card PLS (Programmable Limit Switches), which can provide 16 or 32 output channels.
- Interface Support: Includes a Sercos fiber optic real-time communication interface (supporting 2, 4, 8, or 16 MBaud), two serial interfaces (X10 and X16, supporting RS232, RS422, and RS485), and dual Ethernet support (onboard Ethernet and optional Ethernet card).
Technical Specifications
- Power Parameters: Nominal voltage is 24 VDC, with an allowable voltage range of 19.2 - 30 VDC (including ripple). Maximum current consumption is 1.2 A (up to 2.6 A when supplying power to I/O modules).
- Environmental Parameters: Operating temperature range is 0 - 45°C (32 - 113°F), and storage temperature is -25 - 70°C (-13 - 158°F); in terms of humidity, it is 5 - 78% (non-condensing) during operation and 5 - 95% (non-condensing) during transportation; the protection rating reaches IP20 (compliant with DIN VDE 0470 and EN 60529 standards).
- Digital I/O Parameters: Digital inputs are isolated, with low level 0 - 5V, high level 15 - 30V, and a delay time of 50µs; digital outputs are also isolated, with a rated current of 0.5A and a maximum response time of 500µs.
Functional Features
- Communication Capability: Can support up to 64 intelligent digital drives connected via Sercos. The dual Ethernet design: the onboard Ethernet is a passive interface that occupies processor resources; the Ethernet option card has its own processor and can handle communication tasks independently. Supports multiple fieldbus interfaces (as a slave), such as Profibus-DP, Interbus, DeviceNet, ControlNet, and EtherNet/IP.
- Motion Control Function: Enables multi-axis coordinated or non-coordinated motion control, integrates logic control functions (IndraLogic) compliant with IEC 61131-3 standard, and supports complex application scenarios such as electronic gearboxes (ELS) and robots.
- Safety Features: Integrates a watchdog function (Bb relay), integrated safety technology compliant with EN 954-1 safety category 3, and supports emergency stop and other safety-related functions.
Firmware and Software Support
- Firmware Version: Uses GPP 11 firmware.
- Programming Tools: VisualMotion Toolkit is used for motion control programming and debugging, and IndraLogic is used for PLC logic programming.
Supported Drive Firmware: Supports various drive firmwares, including IndraDrive (MPx02, MPx03, MPx04 with ELS05 support), Diax 04 (SSE03 or ELS05), EcoDrive 03 (SMT02, SGP01, SGP03, SGP20), and EcoDrive Cs (MPG01).
Installation and Configuration Key Points
Installation Requirements: Must be vertically installed in slot 00 of the RMB02.2 rack. Sufficient heat dissipation space should be reserved during installation. It can connect up to 4 RMB racks, with communication via the local bus.
Grounding Requirements: Each electronic component must be individually grounded to the machine's central grounding point. A copper wire with a cross-sectional area of at least 10mm² should be used as the grounding wire to ensure the effectiveness of the grounding system.
Diagnostic Display: The H1 display can show information such as firmware version, NVRam backup status, port mode and baud rate, and IP address. Pressing the S1 button allows switching between different display contents, facilitating users in monitoring device status and debugging.
Application Fields: This product is suitable for industries such as food and beverage, material handling, textiles, printing, rubber and plastics, and woodworking. It can play a role in motion control scenarios in fields such as machine tools and CNC machinery, industrial automation, printing and packaging machinery, medical equipment, aerospace, and laboratory and scientific research equipment.
