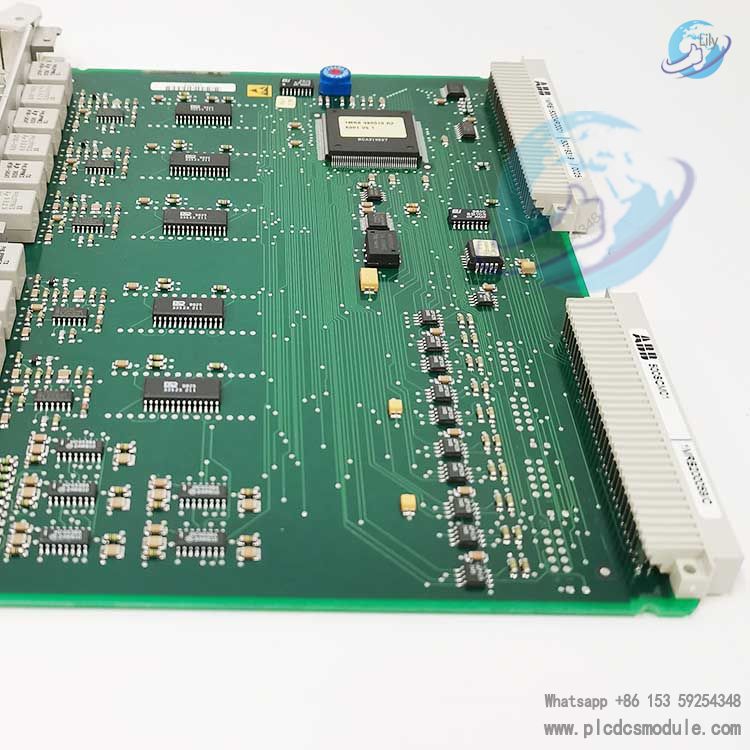

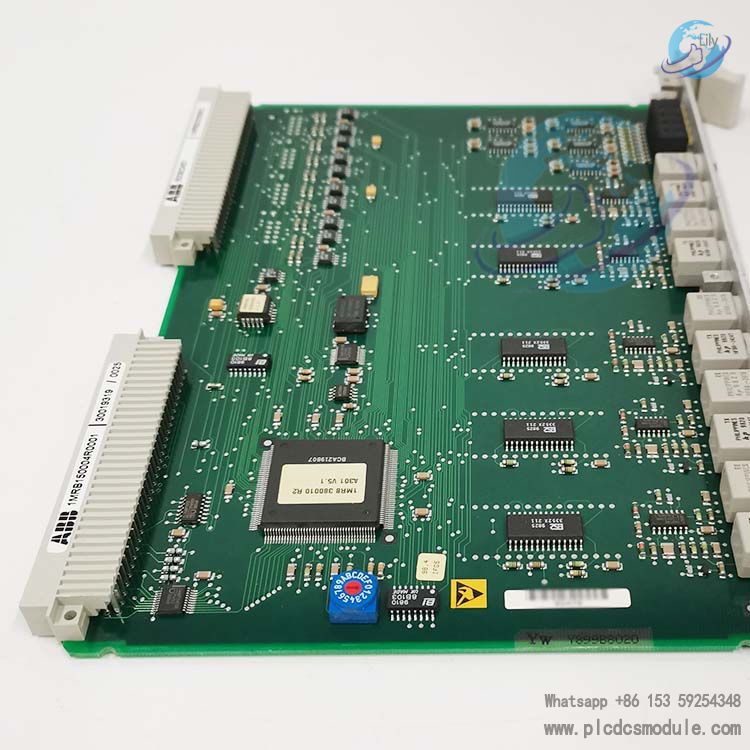

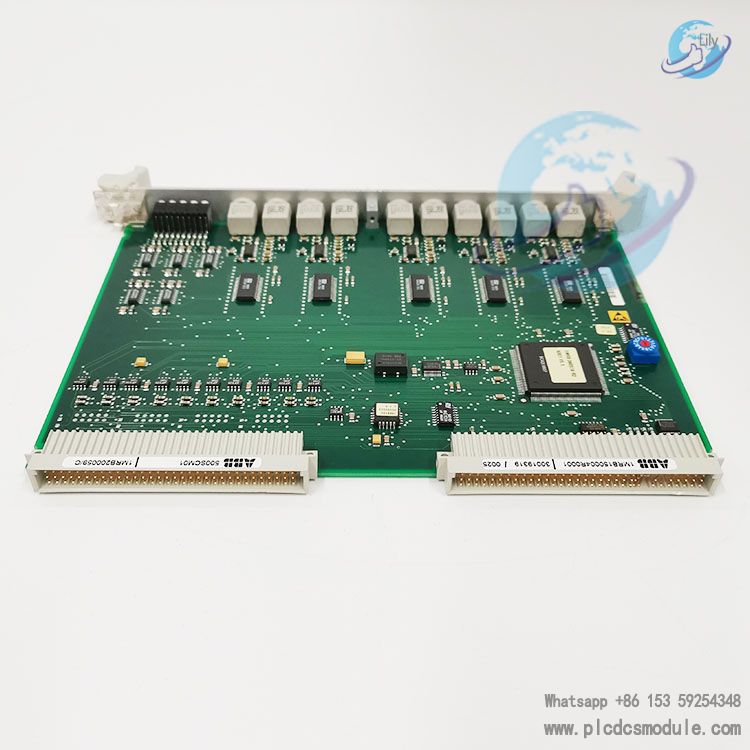

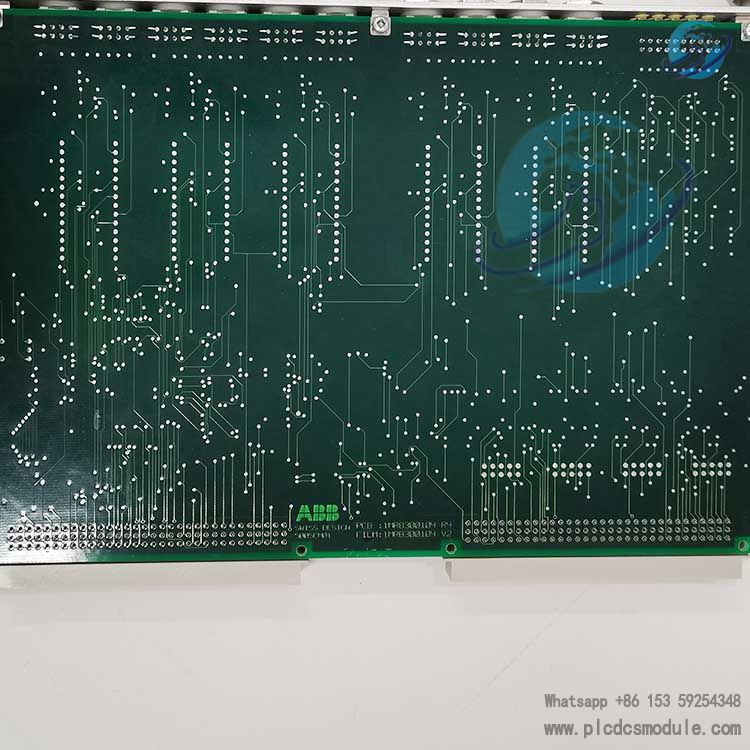

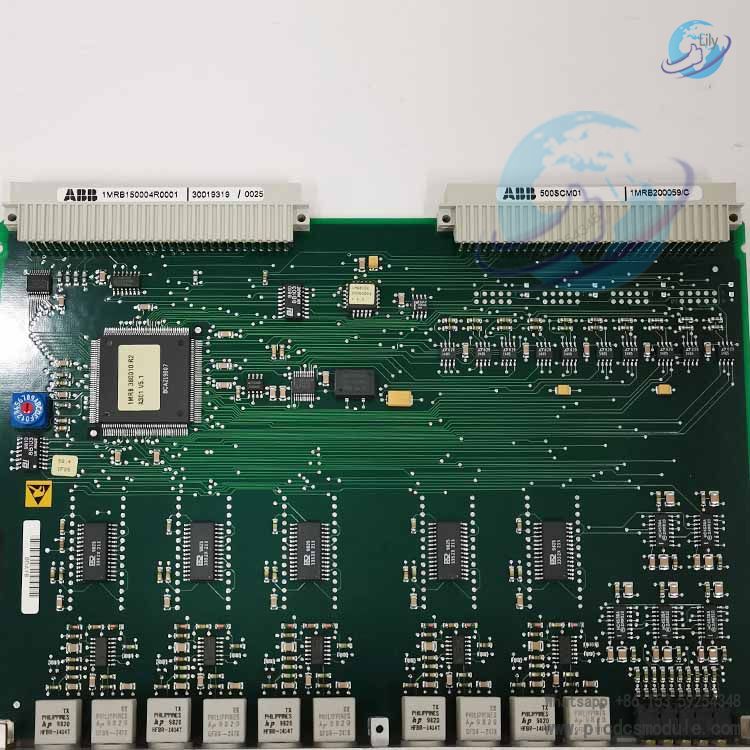

ABB 500SCM01 1MRB150004R0001 is an industrial automation coupling module. It is mainly used for data transmission and signal processing, and can connect automation equipment to achieve efficient data communication. It adopts a modular design with a compact size, facilitating integration and expansion. With industrial-grade components, it has strong anti-interference capability and can work stably in harsh industrial environments. This module is widely used in power systems, process control, automated production lines and other fields, providing reliable guarantees for the stable operation of industrial automation systems.
Basic Parameters:
Operating Voltage: 380V AC.
Power: 1.5 kW.
Current: 2.8A.
Technical Features:
Signal Processing Capability: This series of signal conditioners consists of 12 different modules, which can be either configurable or dedicated. It supports various signal types such as current, voltage, HART protocol, RTD, and thermocouple, and can realize functional configurations like splitters, single-channel, multi-channel, repeaters, and loop power supply. The signal accuracy is less than 0.1% of the full-scale value, ensuring the accuracy of measurement and control.
Isolation Protection: Safe operation is achieved through three-way isolation (2.5kV), which can effectively prevent electrical interference and electrical accidents, ensuring the stable operation of the system.
Communication Capability: Supports Ethernet TCP/IP and serial (such as RS232/RS422/RS485) communication. It is compatible with Modicon Modbus protocol (via serial communication), Modbus/TCP protocol (a variant of serial Modbus for TCP/IP Ethernet communication), and the proprietary Bently Nevada protocol (for communication with 3500 rack equipment and data acquisition packages), facilitating connection and data interaction with various devices and systems.
Integration Capability: The CPU is equipped with 7 communication ports and an LCD display, featuring USB local I/O expansion, Ethernet remote I/O functions, as well as a large number of discrete and analog I/O modules. The analog modules are equipped with displays, enabling easy drive integration and convenient user setup and operation.
Functional Characteristics:
Fault Diagnosis: It has fault alarm and self-diagnosis functions, which can promptly detect problems during system operation, help users quickly locate and solve faults, and reduce downtime.
Protection Functions: Equipped with multiple protection functions such as overload protection, overvoltage protection, undervoltage protection, and short-circuit protection, it can ensure the safe operation of equipment and motors and ext
Operating Conditions:
Operating Temperature Range: -25℃ to +70℃, which enables it to adapt to relatively harsh industrial environments.
Application Fields:
Widely used in various industrial automation and process control fields. For example, it is used to control the speed and direction of conveyor belts to realize material transportation; control the speed and flow of pumps to meet different process requirements; control the rotation speed and air volume of fans to adjust air temperature and humidity; control the spindle speed and feed rate of machine tools to achieve precise machining operations; control the speed and tension of textile machinery to produce high-quality textiles, etc.
