Based on a hardware architecture resistant to harsh environments and real-time data processing technology, its core functions include high-speed acquisition of on-site industrial digital signals, logic operation, and command output. It also features fault self-diagnosis and redundant backup capabilities.Its design complies with the IEC 61131-2 standard for industrial control equipment, and its electromagnetic compatibility (EMC) meets the requirements of EN 61326-1 Class A. It can operate stably in industrial scenarios with high dust, strong vibration, and wide temperature fluctuations, providing hardware support for the safety interlock control of large units (such as generator sets and refining units).

Technical Specifications

Advantages and Features

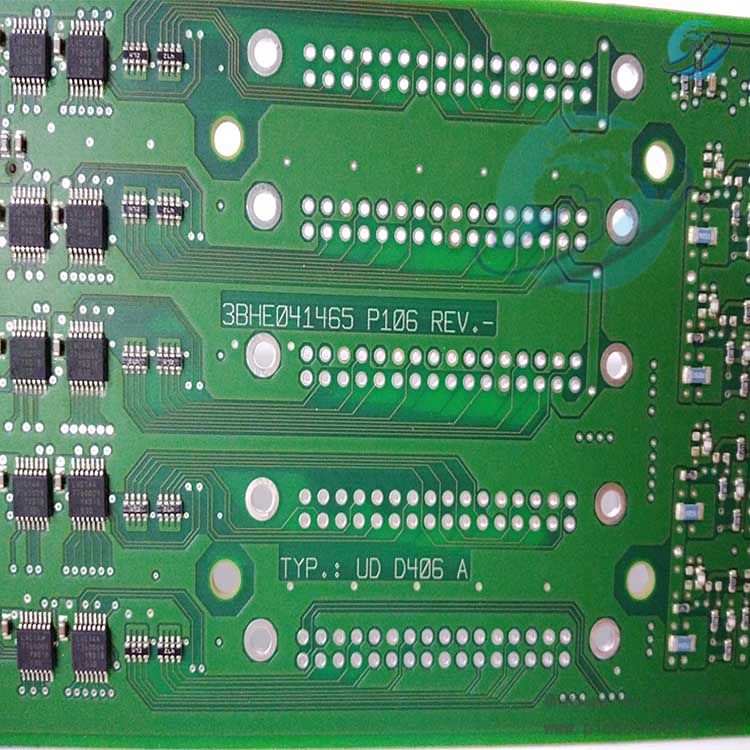

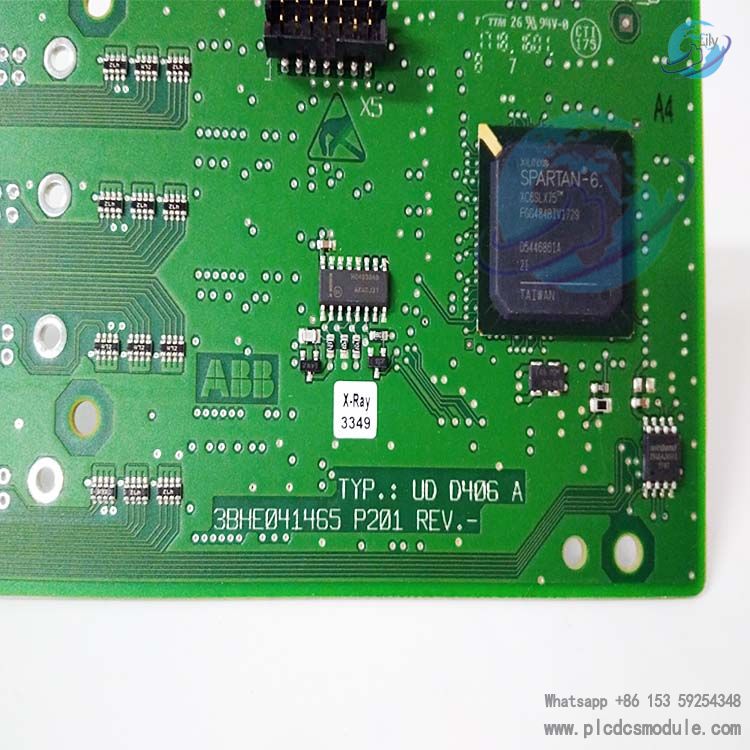

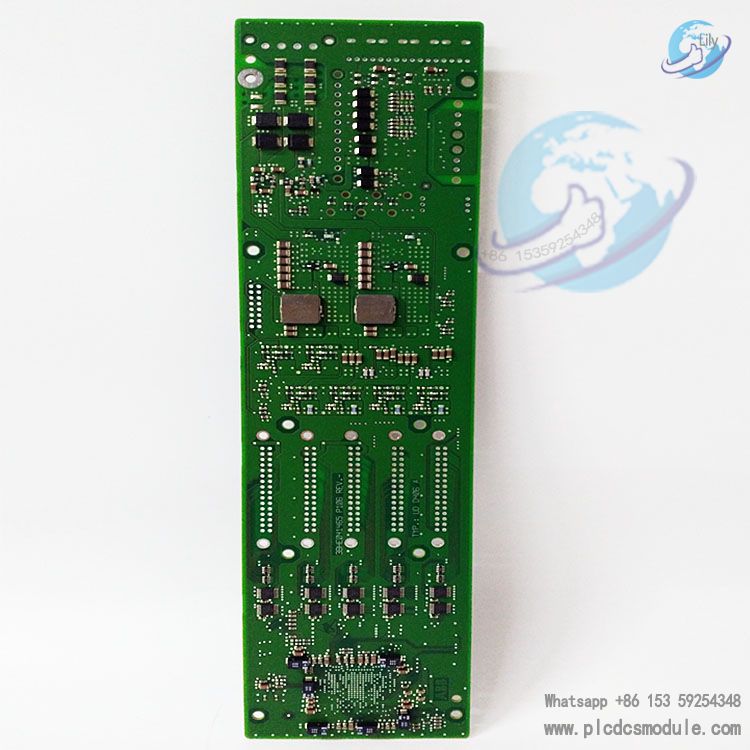

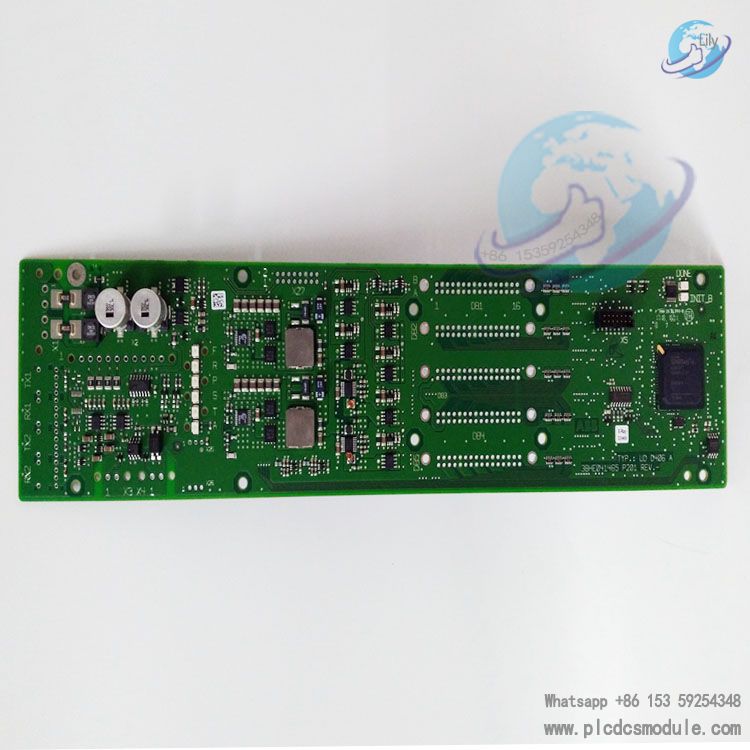

ABB UDD406A 3BHE041465P201 PCB Board

• High-Speed Signal Processing Technology: Adopts an ARM Cortex-M3 processor and hardware logic gate circuit. The DI response time is ≤0.5ms and the DO output delay is ≤3ms, which is more than 50% faster than similar products (with an average response of 1-2ms), meeting the needs of emergency interlock control.
• High-Reliability Redundant Design: Supports dual power input (24V DC Channel A/B), with a power failure switching time of ≤100μs. The backplane bus supports redundant communication; when a single bus fails, it automatically switches to the standby bus without data loss.
• Enhanced Anti-Interference Capability: The PCB adopts a 6-layer design (2 signal layers, 2 ground layers, 1 power layer, 1 shielding layer). Key signal traces use a "ground wire wrapping" layout, with EMI radiation ≤30dBμV/m (at 10m), which is 10dB lower than the IEC standard.
• Intelligent Diagnostic Function: Built-in voltage, current, and temperature monitoring chips that can real-time detect power voltage (accuracy ±0.1V), output current (accuracy ±0.1A), and board temperature (accuracy ±0.5℃). When a fault occurs, it provides dual prompts via LED indicators (PWR, COMM, FAULT) and the DCS alarm system, supporting fault code reading (e.g., "E03-DO Short Circuit", "E05-Communication Timeout").
