With wide voltage adaptation, multiple safety protections, and high compatibility, this module is widely used in fields such as industrial automation, process control, power systems, and petrochemicals. It acts as a "bridge" connecting external DC power supplies to the Honeywell control system, ensuring the entire system operates continuously and stably in harsh industrial environments.

I. Core Functions and Positioning

1. External DC Power Input and Distribution

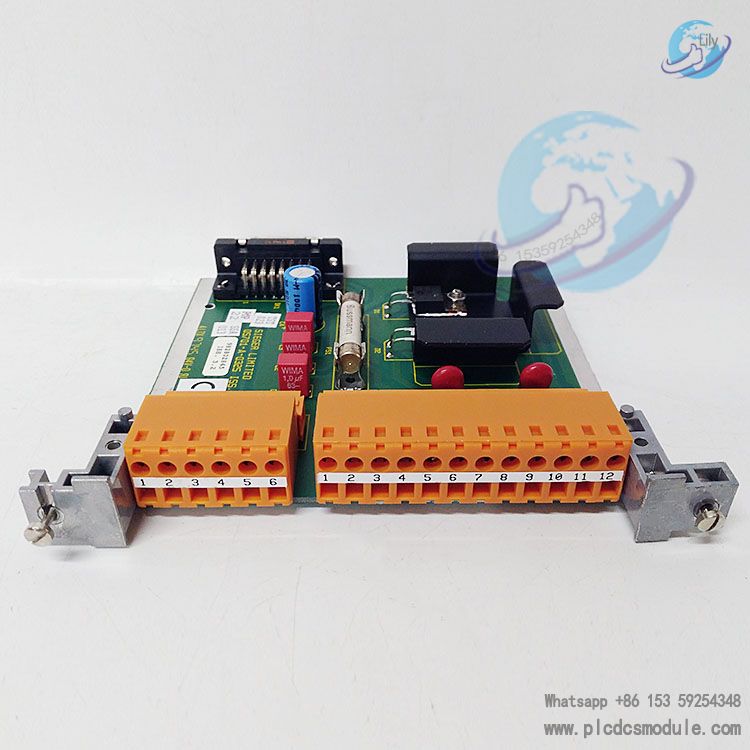

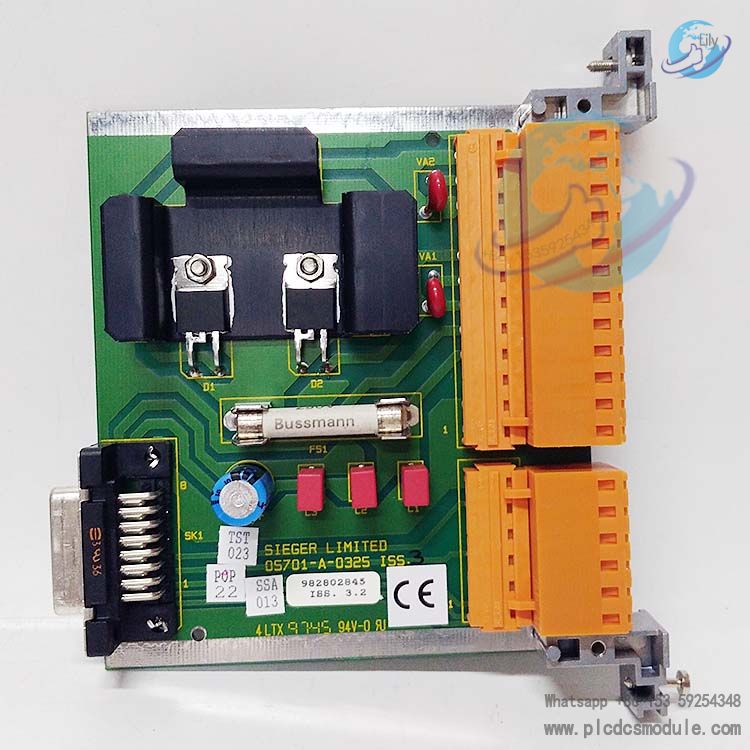

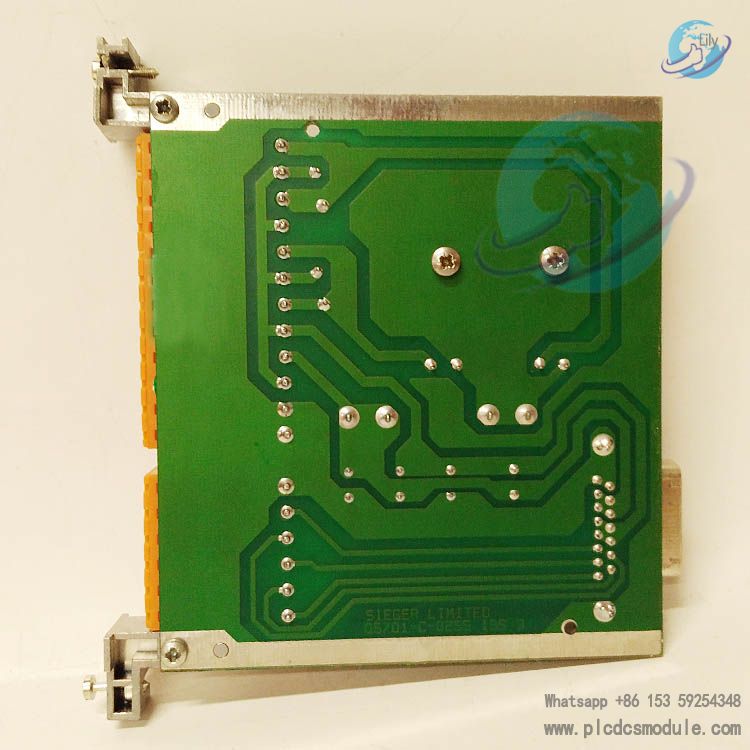

As the core power interface of the System 57 control system, the 05701-A-0325 DC Input Card is mainly responsible for receiving external DC power and distributing it to various internal components of the system. The module is equipped with two-way power input terminals (e.g., PSU 1, PSU 2) and auxiliary power inputs (AUX 1, AUX 2), supporting parallel connection of main power supply and backup battery power supply. It achieves power redundancy through diode isolation technology — when the main power supply fails, the backup power supply can switch seamlessly to avoid system shutdown due to power outage. Meanwhile, the module provides a fused 24V DC output (Fused +24V/0V) to supply stable power for external auxiliary equipment (such as sensors and relays). The fuse is a 10A anti-surge type, which effectively prevents damage caused by overload.

2. Power Monitoring and Fault Protection

The module has a comprehensive power status monitoring and fault protection mechanism. It can real-time monitor whether the input voltage is within the normal operating range of 18V-32V (compatible with 24V DC nominal power supply). When the voltage is lower than 18V or higher than 32V, it can feed back fault signals through the system to assist in troubleshooting power abnormalities. In addition, the module integrates reverse polarity protection (preventing component burnout due to reversed positive and negative poles of the power supply), RFI filtering (reducing the impact of radio frequency interference on power signals) and open-circuit protection. These functions avoid unstable system power supply caused by line disconnection and poor contact, and fully ensure the safety of power input.

3. High-Integrity System Adaptation

For high-safety-level scenarios (such as petrochemical and nuclear energy industries), the 05701-A-0325 supports the "independent power supply" configuration. In addition to powering the entire system, it can also directly provide independent DC power for a single relay card through terminals, meeting the strict requirements of key circuits for power supply reliability. The module terminals adopt a two-part design (TB1 terminal block), which does not require disconnecting each wire during disassembly, facilitating quick plugging and unplugging during maintenance and reducing downtime.

II. Technical Specifications and Hardware Parameters

Application Scenarios and System Compatibility

1. Core Application Scenarios

• Industrial Automation Production Lines: Provides stable DC power for the System 57 control system and connected devices such as gas sensors and proximity switches, adapting to the continuous production needs of scenarios like automobile manufacturing and food & beverage packaging.
• Process Control Field: In the petrochemical and metallurgical industries, it supplies power to key equipment such as toxic/combustible gas detection systems and pressure transmitters, ensuring uninterrupted transmission of monitoring data.
• High-Reliability Systems: Cooperates with backup batteries to achieve "uninterruptible power supply", suitable for high-risk scenarios where shutdown is not allowed, such as nuclear power plants and large-scale storage tank areas.

2. System-Compatible Components

• Mandatory Components: Must be used in conjunction with the Honeywell 05701-A-0361 Engineering Card to realize power status monitoring and system configuration;
• Relay Card Compatibility: Supports connection with 05701-A-0326 (Field Interface Card), 05701-A-0327 (Dual SPCO Relay Card), 05701-A-0330 (High-Integrity Relay Card), etc., to provide power for relay output;
• Power Module Matching: Can be externally connected to Honeywell 05701-A-0405 (16-channel AC-DC Power Supply) or 05701-A-0406 (8-channel AC-DC Power Supply) to convert 85V-264V AC to 24V DC input.
