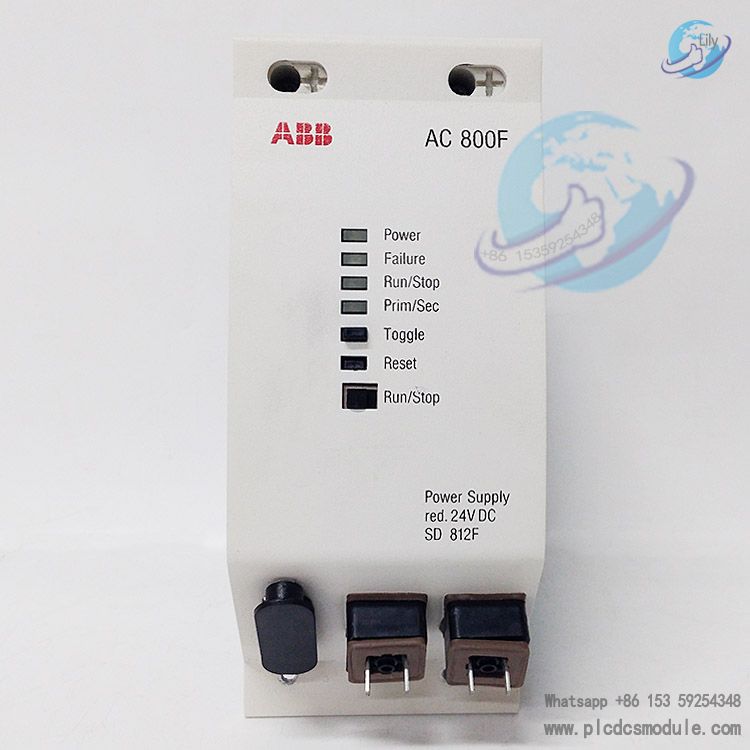

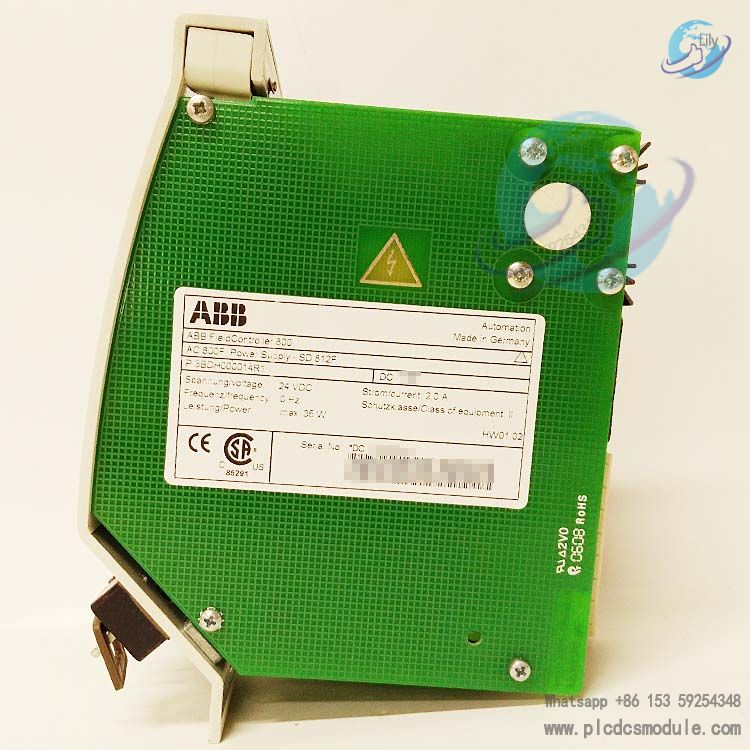

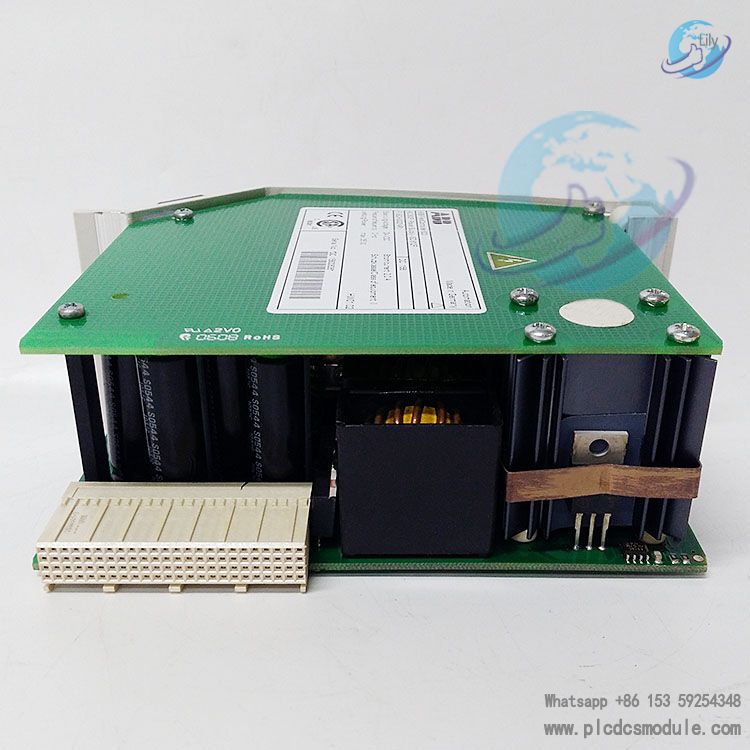

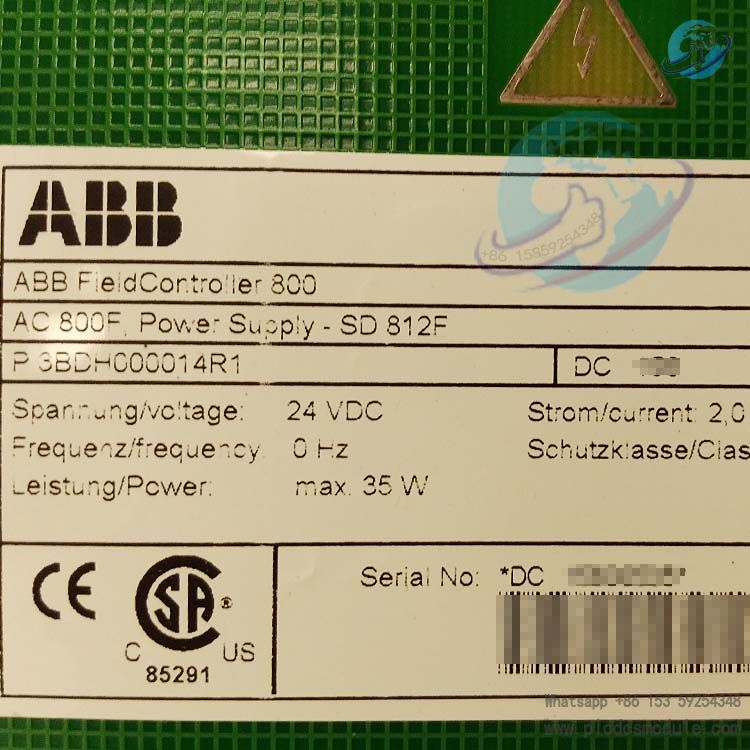

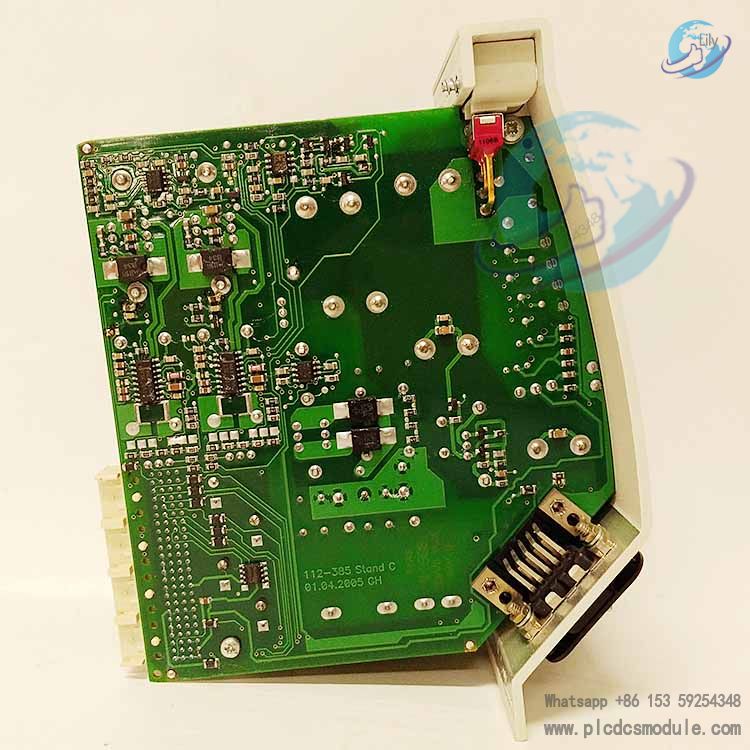

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The ABB SD812F 3BDH000014R1 is a 24V DC power supply module specifically designed for the AC800F controller. As the core power supply component of the Freelance 800F control system, it provides stable and reliable power support for the controller module. It features industrial-grade characteristics such as redundant input, short-circuit protection and wide voltage adaptation. It is suitable for small and medium-sized control scenarios in automation, power, environmental protection and other fields, and is a key device to ensure the continuous operation of the system.
Document Download:
SD812F 3BDH000014R1 AC800F.pdf
Core Functions and Advantages
- Redundant power supply design: Supports 24V DC redundant input with an allowable input voltage range of 19.2 - 32.5 VDC. It meets the high availability requirements in industrial scenarios and ensures stable system operation even if a single power supply path fails.
- Stable output performance: Provides dual-channel output of 5 VDC / 5.5 A and 3.3 VDC / 6.5 A for the AC800F module. The output voltage accuracy reaches ±3% with low residual ripple, guaranteeing the stable operation of the controller and peripheral modules.
- Comprehensive protection mechanisms: Equipped with open-circuit protection, overload protection and continuous short-circuit protection. The short-circuit current is limited to approximately 7.5 A, and normal operation can be automatically restored after fault elimination, effectively protecting the module and downstream equipment.
- Power-off buffer capability: When the power supply is interrupted for ≥5 ms, a power-off signal is triggered and the output voltage is maintained stable for at least 15 ms. It can handle a total input voltage dip of 20 ms, ensuring safe system shutdown and restart.
- Status visualization: Real-time feedback of power supply status, system operation status and fault information through LED indicators, facilitating on-site rapid diagnosis and maintenance.
Key Technical Specifications
Application Scenarios and Compatibility
- Compatible devices: Specifically designed for the PM 802F / PM 803F base units of the AC800F controller, serving as the standard power supply component of the Freelance 800F control system.
- Application fields: Widely used in process automation control scenarios in industries such as power, chemical engineering, metallurgy, and environmental protection, especially suitable for small and medium-sized control projects with requirements for power supply stability and redundancy.
- Software compatibility: Must be used with Control Builder F V7.1SP2a or higher versions to ensure compatibility in system configuration and parameter management.
Installation and Maintenance Points
- Installation requirements: Must be used in conjunction with the PM 802F or PM 803F base unit. It is recommended to install it in a well-ventilated control cabinet to avoid electromagnetic interference and physical damage.
- Maintenance features: Supports hot-swap operation, allowing module replacement during system operation. The LED status indicators can quickly locate power supply faults, reducing maintenance downtime.
- Safety tips: It has no electrical isolation design. Industrial electrical safety specifications must be followed during installation and maintenance to avoid the risk of electric shock.
