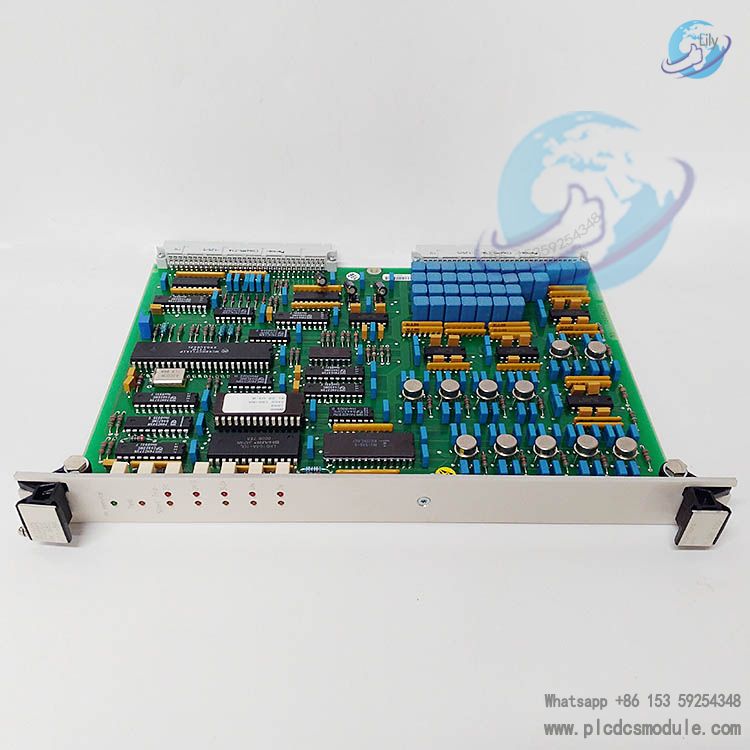

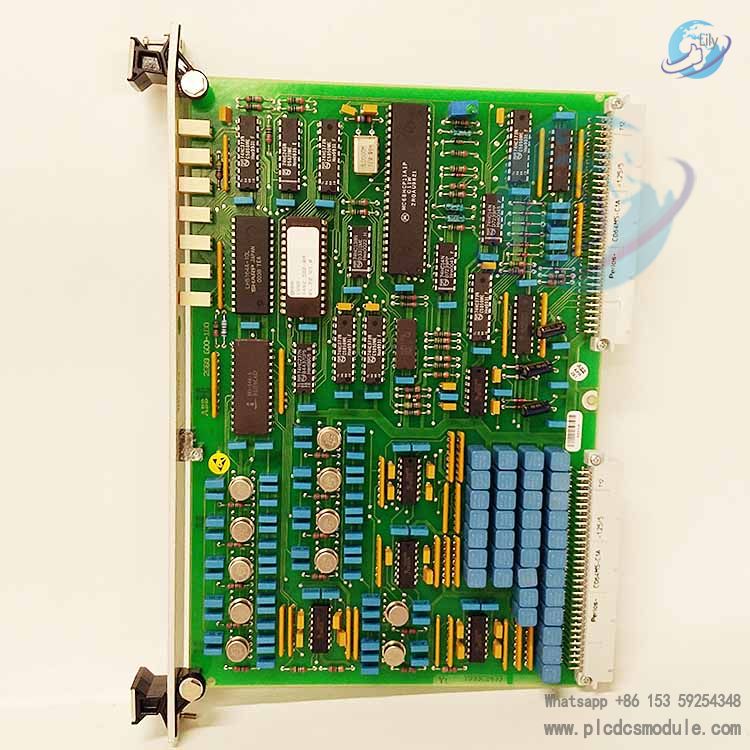

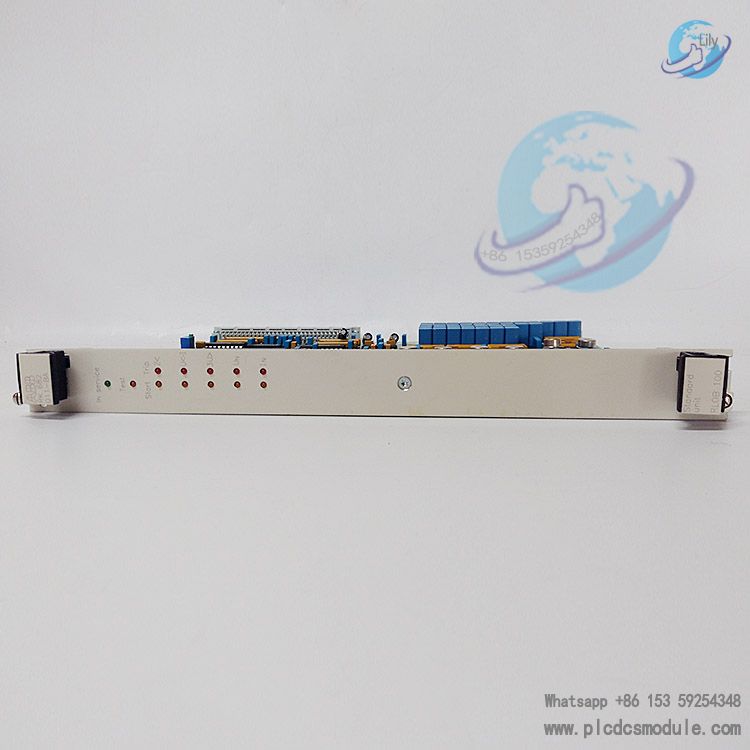

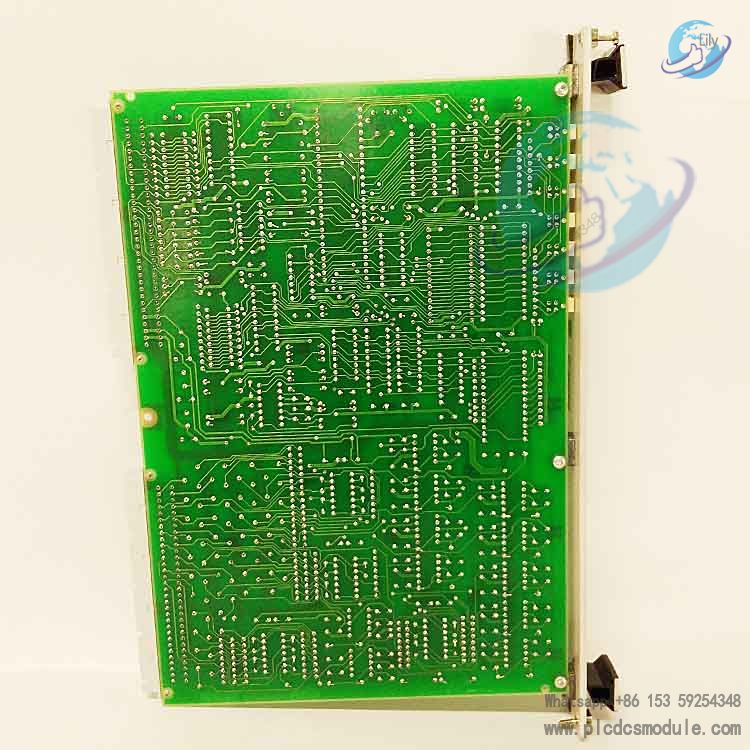

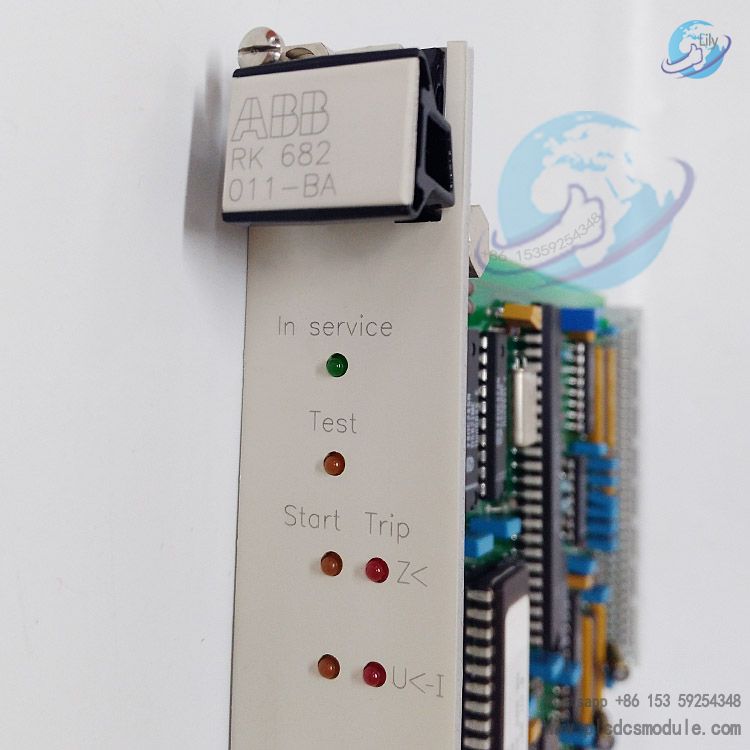

ABB RLOB100 RK682011-BA STANDARD UNIT MODULE

Product Overview

The ABB RLOB100 RK682011-BA is a high-performance standard unit module designed for industrial automation and process control systems, delivering stable and precise control functions for critical industrial processes.

As a core component of ABB's industrial control product line, this module supports seamless integration with ABB AC 800M, S800 I/O, and other automation systems, providing flexible configuration options and excellent scalability.

With compact design, easy installation, and built-in diagnostic functions, the RLOB100 minimizes maintenance costs and downtime, while its compliance with international industrial standards ensures compatibility and interoperability.

Key Specifications

• Model NumberRLOB100 RK682011-BA
• Module TypeStandard Control Unit
• Operating Voltage24V DC ±10%
• Temperature Range-20°C to +60°C

• Integration SystemAC 800M, S800 I/O

•


Technical Specifications

• CategoryParameterDetails

• Electrical Supply Voltage 24V DC ±10% (nominal 24V DC)

• Electrical Power Consumption Typical 5W, Maximum 8W

• Electrical I/O Channels 8 digital inputs, 4 digital outputs (configurable)

• Environmental Operating Temperature -20°C to +60°C (-4°F to +140°F)

• Environmental Humidity 5% to 95% non-condensing

• Mechanical Dimensions 45mm x 140mm x 180mm

• Mechanical Mounting DIN rail mounting (35mm standard)

• Performance Response Time Digital input: ≤1ms, Digital output: ≤2ms

• Performance MTBF ≥100,000 hours (per IEC 61709)

Compatibility

Installation Instructions

1. Pre-Installation Preparation
   Verify installation environment, inspect module for damage, prepare required tools (screwdriver, anti-static wristband, DIN rail clips).
2. Module Mounting
   Mount the module on standard 35mm DIN rail, ensure secure seating with proper ventilation clearance (minimum 10mm).
3. Wiring Connection
   Connect 24V DC power supply, I/O signals, and communication cables. Tighten terminal screws to 0.5-0.8 N·m torque.
4. Power-Up Verification
   Power on system and check LED indicators (Power: green, Status: green, Fault: off).

5. Configuration & Testing
   Use ABB Control Builder M software to configure module and perform functional tests for all I/O channels.
