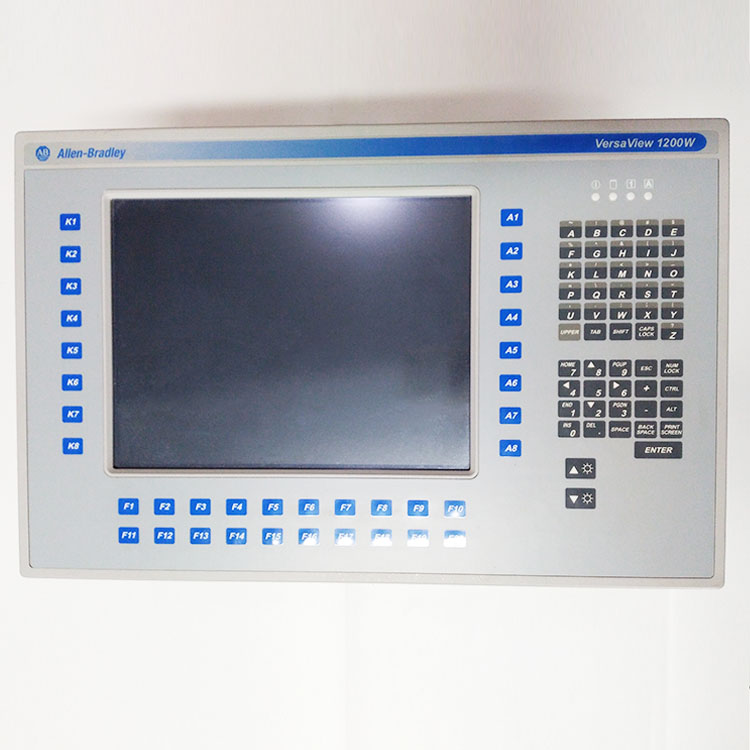

Integrated with a 15-inch resistive touchscreen, this product delivers integrated hardware configuration, reliable performance and rich functional expansion. It is capable of fulfilling multiple tasks including visual interface operation, equipment maintenance, process control and basic data acquisition, providing industrial users with a one-stop solution for on-site operation and data processing. It helps enterprises make more informed business decisions and is widely applicable to various automated production scenarios.
related documents
Display Parameters
- Type: Color TFT (Thin-Film Transistor)
- Size: 15 inches
- Resolution: 1024 x 768 pixels, supports 24-bit color display. Delivers clear and detailed images, accurately presenting various data and interfaces required for industrial control.
- Touch Type: Resistive touchscreen, easy to operate, suitable for complex on-site scenarios such as gloved operation in industrial environments.
System Configuration
- Processor: 2.0 GHz Pentium IV (performance-oriented configuration, meeting high-load application requirements)
- Memory: 512 MB RAM, ensuring smooth multi-task operation
- Storage: 80 GB HDD, providing sufficient local storage capacity for industrial control programs, production data, maintenance documents, etc.

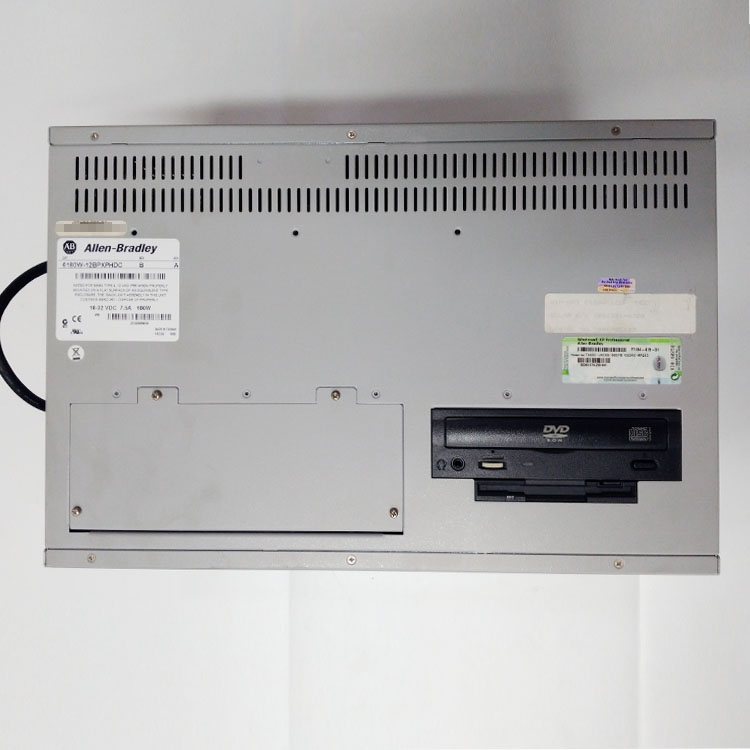

- Optical Drive: DVD/CD-RW Drive, supporting disc reading and writing for easy program installation, data backup and recovery
- OS Image: Default Windows XP image (replaceable with Windows 2000 image by changing "XP" to "2K" in the model number). Software activation license and authorization need to be purchased separately.
Interfaces & Expansion
- Function Keys: 36 programmable function keys, supporting I/O function programming via software tools to adapt to personalized operation needs
- Input Devices: Integrated full-alphabet keyboard and numeric keypad, meeting data entry and operation control requirements in industrial fields

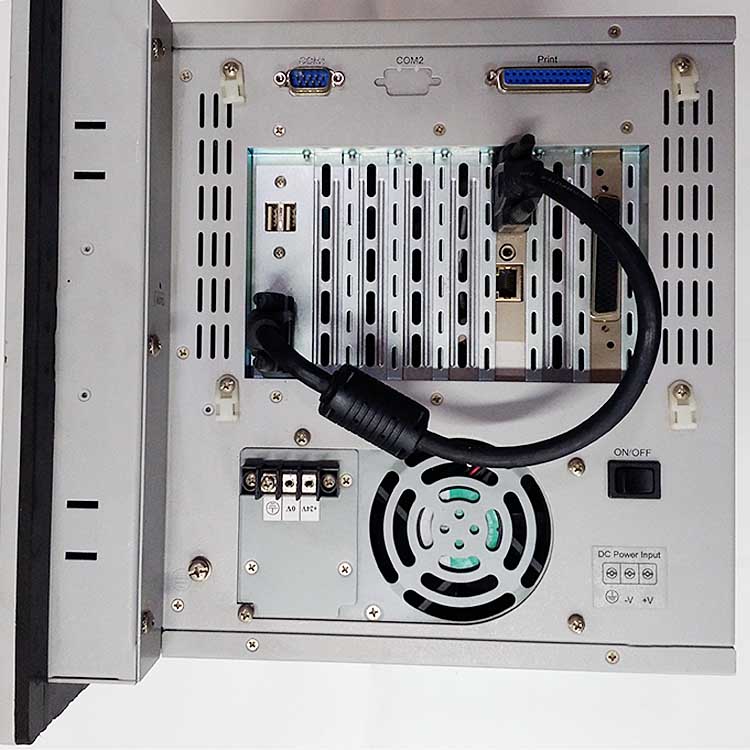

- Standard Interfaces: Parallel port, serial port, 2 USB ports, 10/100 M Ethernet port, audio port, VGA video display interface. Covering multiple application scenarios such as industrial equipment connection, data transmission, and external display.
- Expansion Slots: 2 half-length PCI slots, 1 full-length ISA slot. Supports additional function expansion via optional cards, enhancing product adaptability.
Electrical Parameters
- Input Voltage: DC 19-32V (adaptable to industrial DC power supply environments)
- AC Input: AC 90-264V (auto-switching), line frequency 47-63 Hz
- AC Power Consumption: 160 VA (current 1.6-0.67A), reasonable energy consumption control, adapting to industrial power supply load requirements
Environmental & Mechanical Parameters
- Operating Temperature: 0-50°C
- Storage Temperature: -20-60°C
- Humidity: 5%-90% (non-condensing), adapting to humid or dry industrial environments
- Vibration (Operating): 1.0g peak; Vibration (Non-operating): 2.0g peak
- Shock (Operating): 15g (1/2 sine wave, 11 ms); Shock (Non-operating): 30g (1/2 sine wave, 11 ms)
- Protection Rating: NEMA 12/13/4/4X, IP66. Equipped with excellent dustproof, waterproof and oil-resistant capabilities, suitable for harsh factory environments.
- Weight: 16.3 kg (35.94 lbs)
- Overall Dimensions (H x W x D): 311 mm x 483 mm x 400 mm (12.24 x 19.02 x 15.75 inches)
- Cutout Dimensions (H x W): 326.4 mm x 429.3 mm (12.85 x 16.9 inches), facilitating embedded equipment installation
Advantages
Broad CompatibilityCompatible with Windows operating systems and mainstream industrial control software, it features application interoperability and technical change management capabilities. It can seamlessly integrate with existing industrial systems, ensuring investment validity.
Application Fields
With its rugged design, stable performance and multi-tasking capability, the 6180W-12BPXPHDC is widely used in the following scenarios:
Automated Production Line ControlIt can directly connect to industrial equipment, realize real-time monitoring and operation control of production processes via a visual interface, and support core functions such as program start/stop and parameter adjustment.
Equipment Maintenance & InspectionIt displays equipment operation status data and fault diagnosis information, providing maintenance personnel with accurate maintenance guidance, helping quickly troubleshoot faults and shorten downtime.
Production Data Acquisition & AnalysisIt collects basic production data such as output, efficiency and energy consumption, providing data support for enterprise production scheduling, cost control and business decision-making.
Industrial On-site Human-Machine InteractionServing as an on-site operation terminal, it is suitable for harsh environments in multiple industries including automotive manufacturing, chemical engineering, metallurgy, power generation and food processing, enabling efficient collaboration between personnel and equipment.
Process Startup & CommissioningAfter new equipment installation or production line transformation, the workstation can complete system startup, program debugging and parameter configuration, ensuring the rapid implementation of production processes.
