PIONEER MAGNETICS PM3328B-6-1-3-E 80026-524-01 Power Supply Module

Manufacturer: PIONEER MAGNETICS

Product Number: PM3328B-6-1-3-E 80026-524-01

Product Type: Power Supply Module

Place of Origin: USA

Price Range: $2630

✓ Payment Method: Telegraphic Transfer (T/T)

✓ Warranty Period: 12 months

✓ In Stock

✓ On-site Inspection Supported

Mail： plcdcs-module@foxmail.com

Phone/Wechat/Whatsapp：+86 15359254348

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication.

PIONEER MAGNETICS PM3328B-6-1-3-E (P/N: 80026-524-01) is a single-phase input, 56V DC output power supply module specifically designed for Allen-Bradley PowerFlex 7000 medium-voltage AC drives. Boasting an output power of 1500W, it serves as a core component that delivers stable control power for the drive system. Its performance directly impacts the operational stability and reliability of the AC drive, making it suitable for various medium-voltage drive applications in industrial production.

related documents

PM3328B-6-1-3-E 80026-524-01.pdf

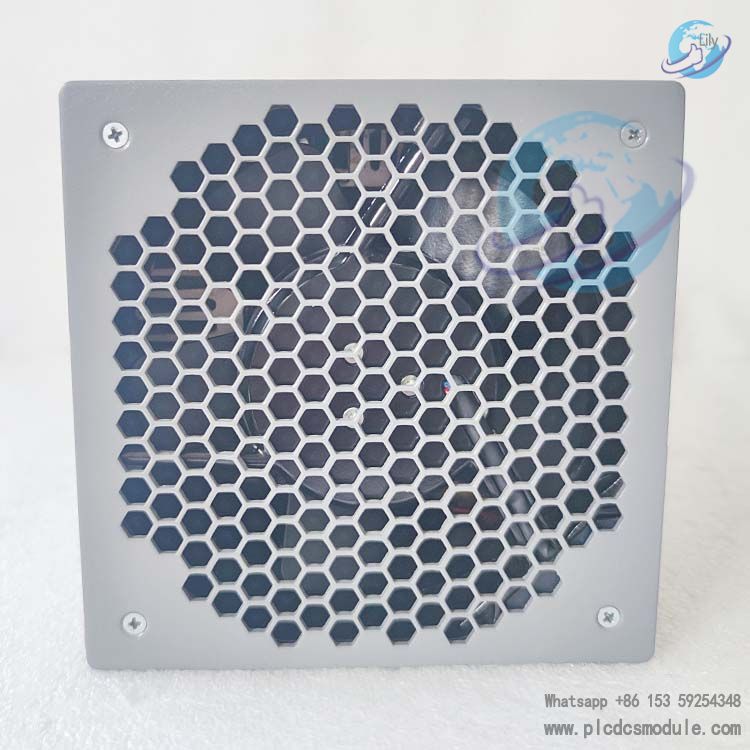

PIONEER MAGNETICS PM3328B-6-1-3-E 80026-524-01 Power Supply Module..jpg

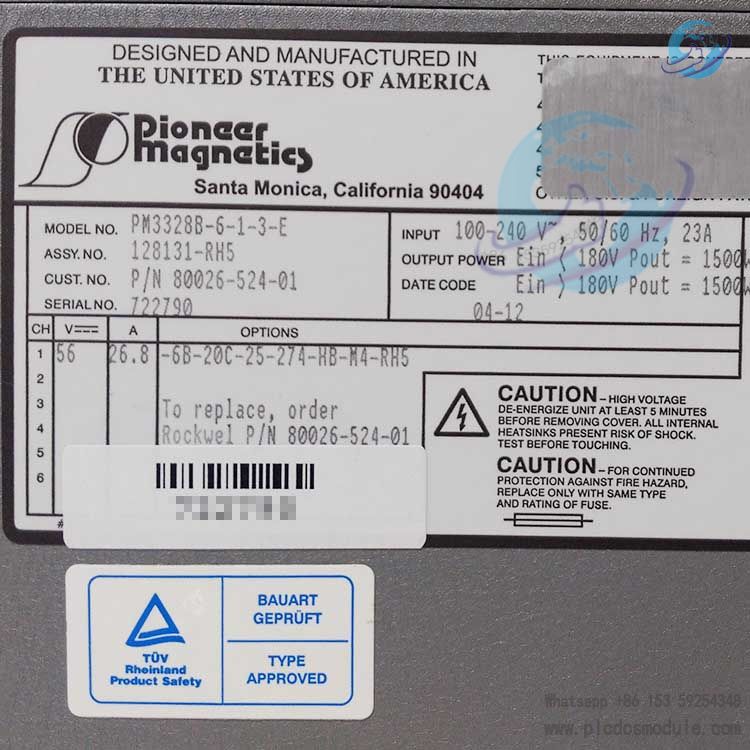

Core Specifications

Input Type: Single-phase AC input, suitable for common industrial AC power supply environments.

Output Parameters: DC output voltage is 56V, with an output power of 1500W, which can fully meet the power requirements of the drive’s control circuit and associated components.

Compatible Equipment: Specifically designed for the PowerFlex 7000 series medium-voltage AC drives (including models 7000A, 7000, and 7000L, corresponding to Frame A, Frame B, Frame C, as well as marine, heat pipe and other types of drives), featuring high compatibility.

Component Part Number: The official standard part number is 80026-524-01-R. It is an original spare part certified by Rockwell Automation, ensuring perfect compatibility with the equipment.

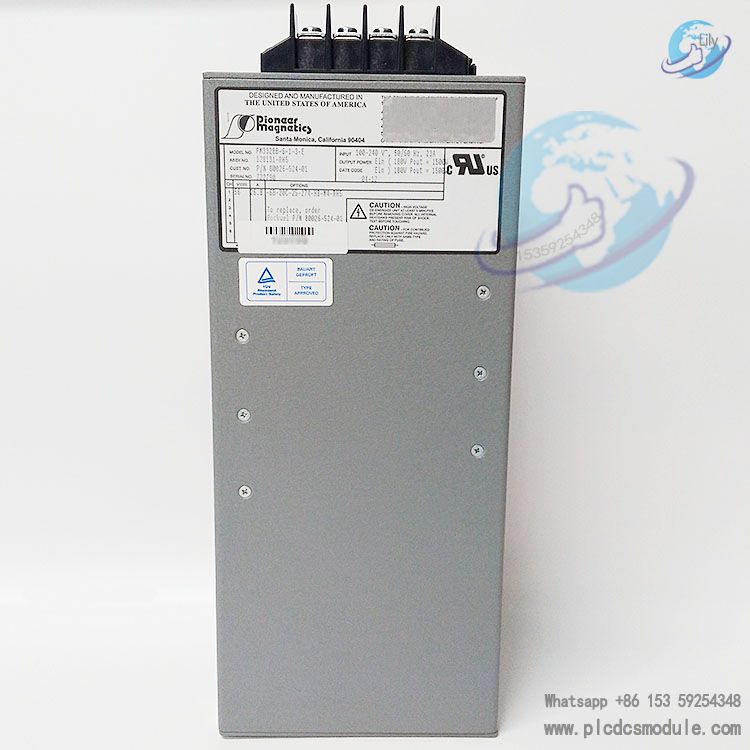

PIONEER MAGNETICS PM3328B-6-1-3-E 80026-524-01 Power Supply Module.jpg

Functions & Application Scenarios

Power Supply Function: Delivers a stable 56V DC power supply to critical components of the drive, including control circuits, sensors, and communication modules, ensuring the coordinated operation of all components.

Compatible Drive Types: Applicable to a variety of PowerFlex 7000 series drive scenarios, such as general industrial drives, marine drives, and heat pipe drives, covering the requirements of different industrial environments.

Fault Protection Compatibility: Integrates with the drive’s fault detection system. In the event of abnormal output from the power supply module, it will trigger relevant fault codes of the drive system (e.g., AC/DC power supply fault codes), facilitating quick troubleshooting.

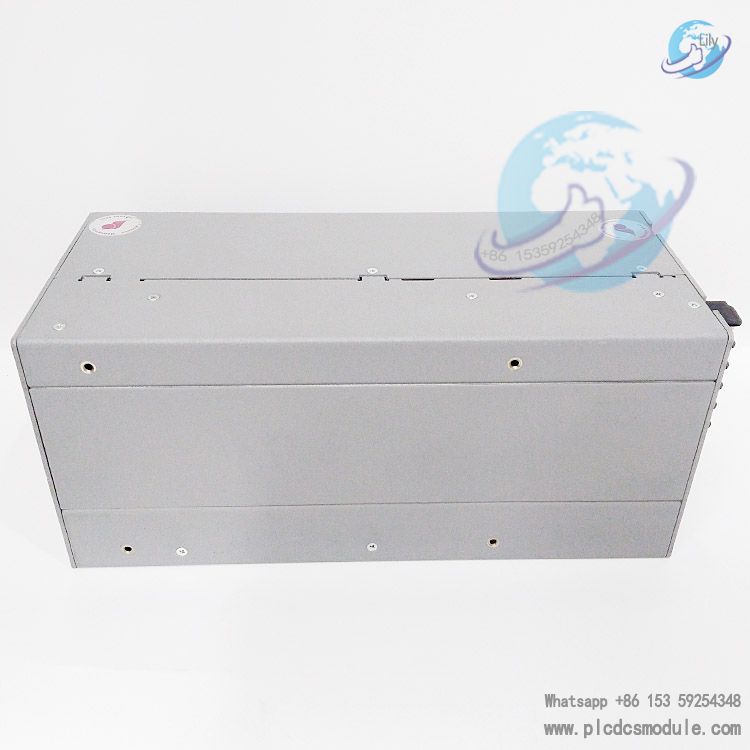

PIONEER MAGNETICS PM3328B-6-1-3-E 80026-524-01 Power Supply Module.....jpg

Troubleshooting & Maintenance Recommendations

Common Fault Correlations: When faults such as AC/DC #1~#4 AC Fail (Fault Codes 58~61) and AC/DC #1~#4 DC Fail (Fault Codes 48~51) occur in the drive system, they may be associated with abnormal input voltage, low output voltage of this power supply module, or internal module faults.

Recommended Troubleshooting Steps:

Verify that the input AC voltage of the power supply module (typically 110Vac or 120Vac) is stable and meets the rated input requirements.
Measure the module output voltage to confirm it reaches the standard value of 56V; a voltage below 49Vdc may trigger a DC Fail fault.
Inspect the connection lines between the module and the Analog Control Board (ACB) for firmness and ensure normal signal transmission.
Check the operation status of the internal cooling fan of the module. If fan failure causes module overheating, replace the fan or the module itself promptly.

Maintenance Cycle: It is recommended to integrate visual inspections and voltage measurements of the power supply module into the regular maintenance schedule of the AC drive. Ensure there are no abnormalities such as loose connections, overheating, or abnormal noises to extend the service life of the module.
